AF08/030726/BA
Yi Chang Multi Glass Fiber Twisting
Quantity: 1
Year: 2019

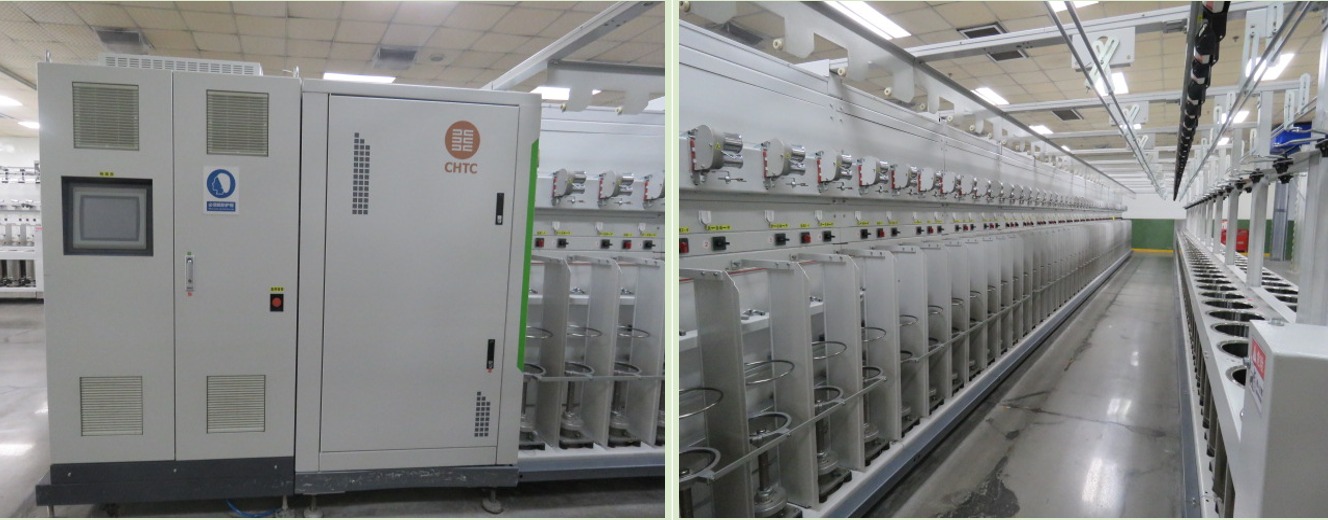

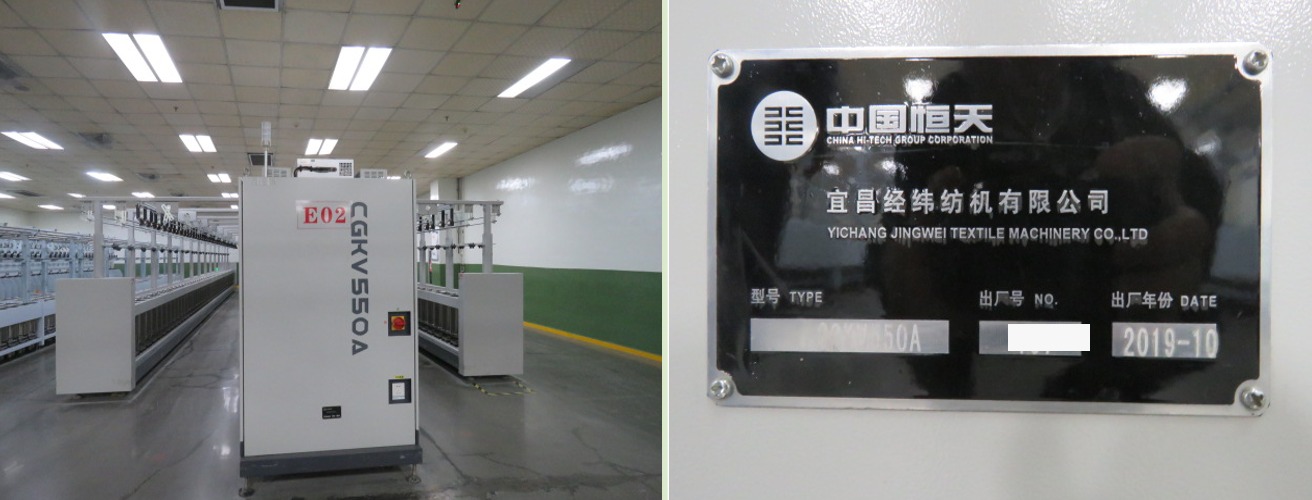

Yi Chang, machine model of CGKV550A, N. 017, 80 spindles, 2 play 1.
Machine stopped in the floor, still connect the power cable, can show the running.
Machine's Motors Power:
-first twisting each motor power 80 x 250W x 2=40,000, 40 Kw.
-second twisting motor power 80 x 250=20,000 w, 20 Kw.
-over feeder roller 80 x 40=3,200, 3.2 Kw
-lift motor, 5 Kw.
Spindles are suitable for which type of bobbins: -bottle type bobbin, weight of 8 Kg.
Which yarn count range the Rings are suitable for production: Suitable for yarn range 68 dtex x 2=136 dtex, 68 dtex x 4=272 dtex.
Machine will be supplied with operational manual, spare parts manual, circuit diagram.
