Volkmann CarpetTwister / CarpetCabler

Quantity: 1
Year: End of 2017

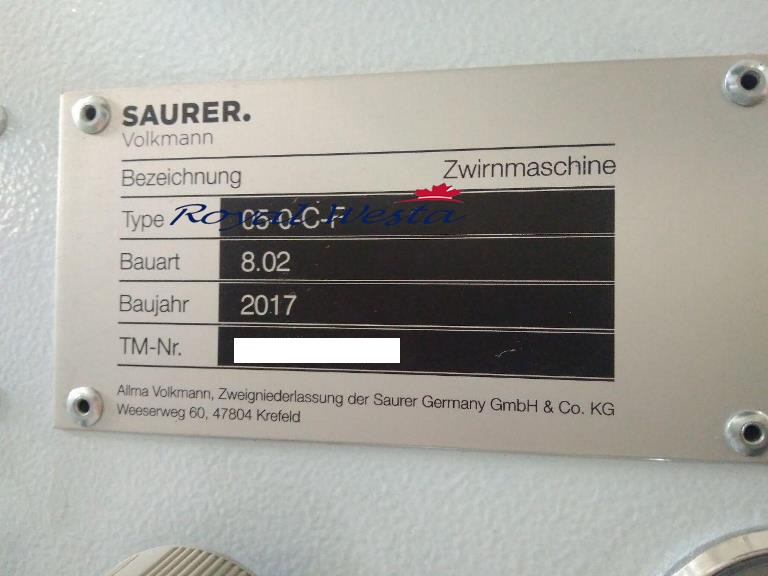

Type: VTS-05-0-F / VTS-05-0-C-F
Series: 8.02
Configuration
Number of spindles: 160
Number of sections: 20
Spindle gauge: 445 mm
Balloon limiters: without
High energy saving spindle E-260
Overall dimensions

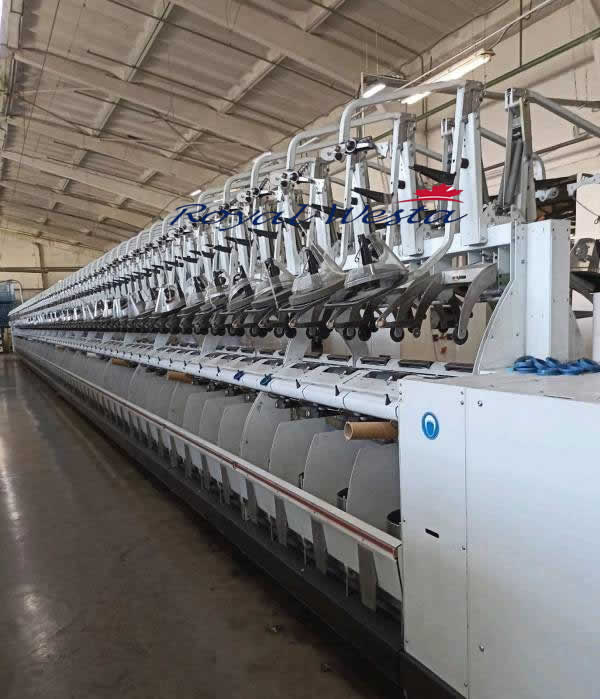

Overall length: approx. 39.77 m
Overall width: approx. 1.50 m
Overall height: approx. 2.69 m
Technological data
Material: 100% PP
Range of counts: dtex 1200 – dtex 3800
Range of twist:
Up-twisting: 40 – 710 t/m
Cabling: 20 – 355 t/m
Twist direction: S + Z
Untwisted yarn (feed packages)
Package type: cylindrical feed packages
Traverse: 10" (254 mm)
Tube length: 290 mm
Inside diameter of tube: 73 mm
Maximum outside diameter: 260 mm
Net yarn weight (approx., depending on yarn quality and package density): 5.0 kg
Twisted yarn (take-up)
Package type: cylindrical cross-wound bobbins
Traverse: 10" (254 mm)
Tube length: 290 mm
Inside diameter of tube: 73 mm
Maximum outside diameter (approx.): 350 mm
Main drive
Driven by two short-circuit squirrel-cage induction motors (one motor per machine side) with frequency inverter
Output: 2 × 37 kW
Voltage: 220/380 V, 3 phases, 50 cycles (to be confirmed in case of order)
Full motor capacity achievable if installation height does not exceed 1000 m above sea level and ambient temperature does not exceed 40°C

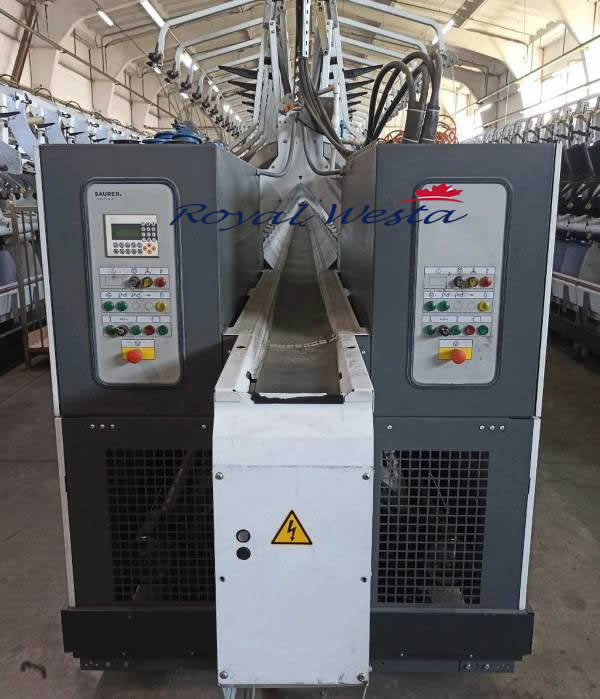

Electrical control
Electrical control located in the switch gear cabinet
Reversion of twist direction from S to Z manually
Drive connected via intermediate drive onto two main drive shafts, located in front of the spindles for easy access
Spindle speed controlled by frequency inverter
Terminal displaying spindle revolution, delivery speed, turns per metre and crossing angle
Spindle drive

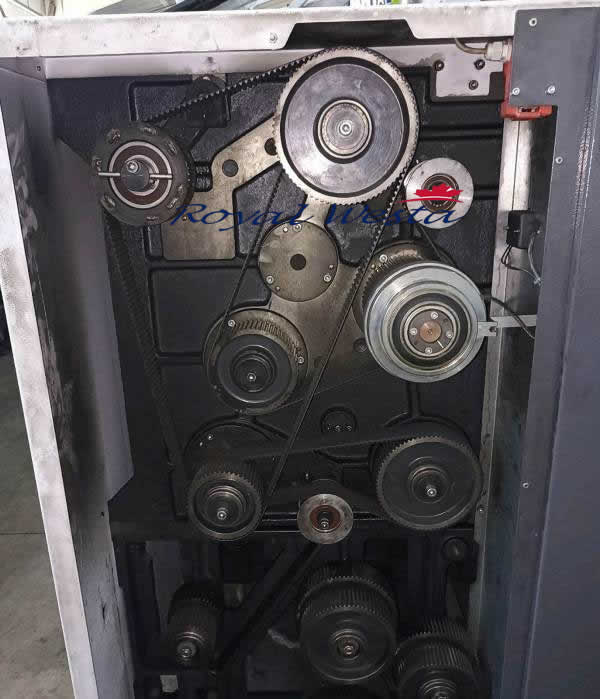

Individual spindle drive by endless tape with 180° contact to spindle whirl, easily exchangeable
Tape tension released when spindle is stopped
No mechanical friction between tape and drive pulley due to air cushion
Gear section
One individual gear per side
Gear drive for adjusting:
Turns per metre
Take-up tension (pre-take-up)
Angle of crossing of take-up packages
Special cam-driven traverse motion for high-speed take-up, including anti-patterning device

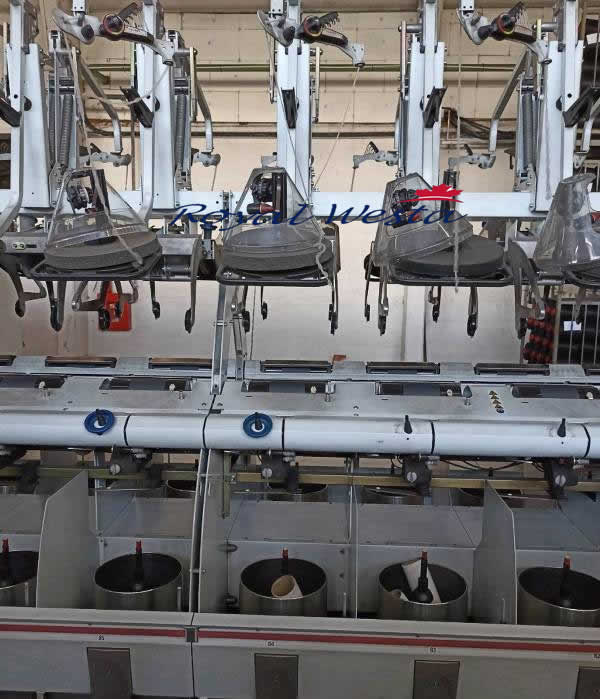

Volkmann spindle (two-for-one and cabling spindle)
Maintenance-free spindle, rigidly fixed to spindle rail, with two yarn channels:
One for two-for-one twisting
One for direct cabling
Spindle rotor statically and dynamically balanced
Reserve discs with anti-wrap collar to avoid yarn wraps around the whirl in case of ends down
Stationary protection pot held by permanent magnets with tension device
Separators between individual spindles
Machine equipped with Volcojet
Machine without balloon limiters
Take-up
Adjustable pre-take-up per machine side to vary take-up tension and package density
Adjusting range: 60%
Traversing thread guides, self-threading, fixed on traverse rod
Drive of packages by friction rollers
Pivotable balloon thread guides with enclosed ceramic eyelet, height adjustable per section
Device for producing hard and soft packages
Cradle
Swivelling, spindleless four-bar cradle with special pressuring device to ensure uniform density throughout package diameter
Centering discs for take-up tubes, simple ball-and-socket type bearing, easily exchangeable for different tube dimensions
Machine colours
Textured paint
Principal colour: Light grey NCS S 0510-R90B
Secondary colours:
Traffic grey B NCS S 7502-B
Red NCS S 1080-Y90R
Anthracite grey NCS S 8502-B

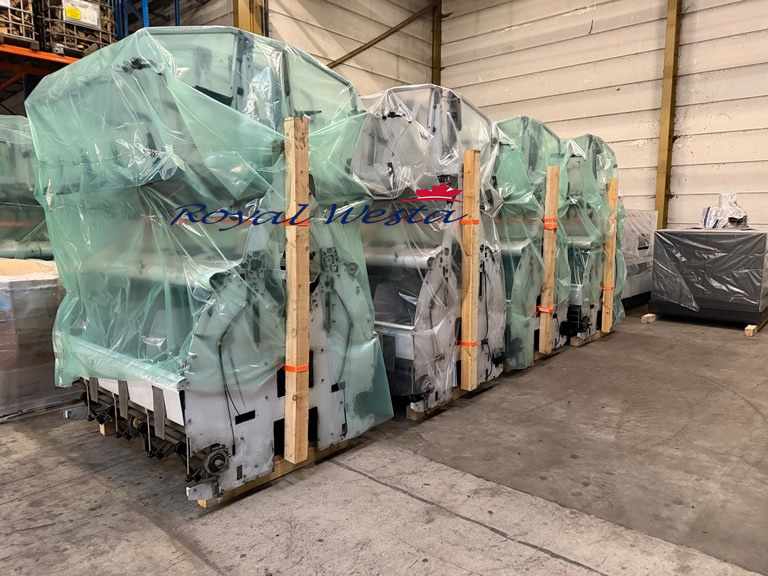

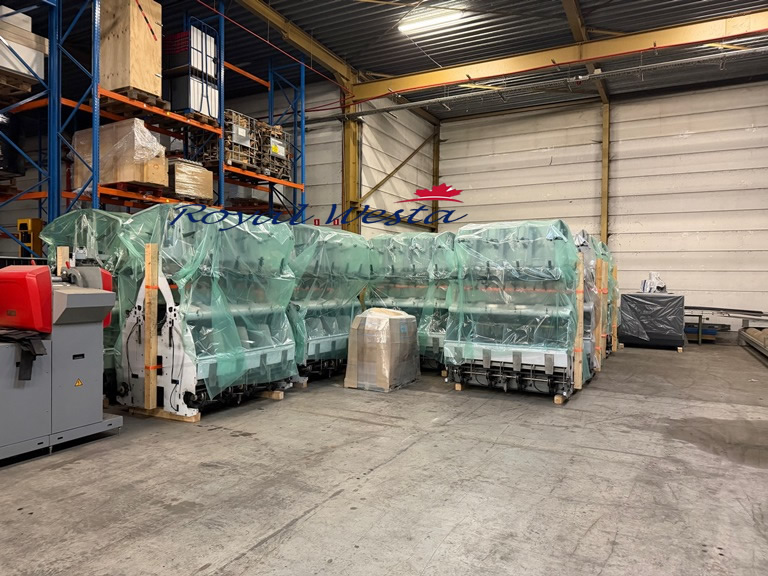

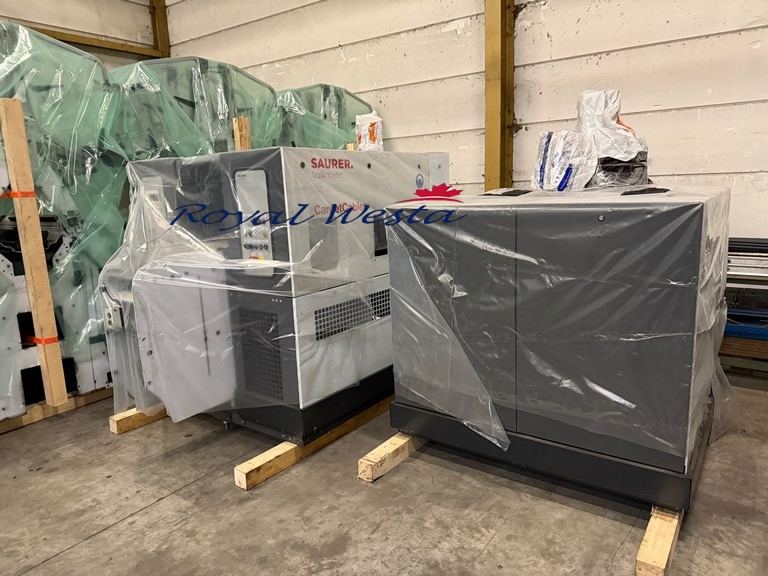

Note: Machine is professionally dismantled, packed and warehoused by Volkmann technicians. with energy reduction
