AA41/101225E/ROI-CI/F/BY/

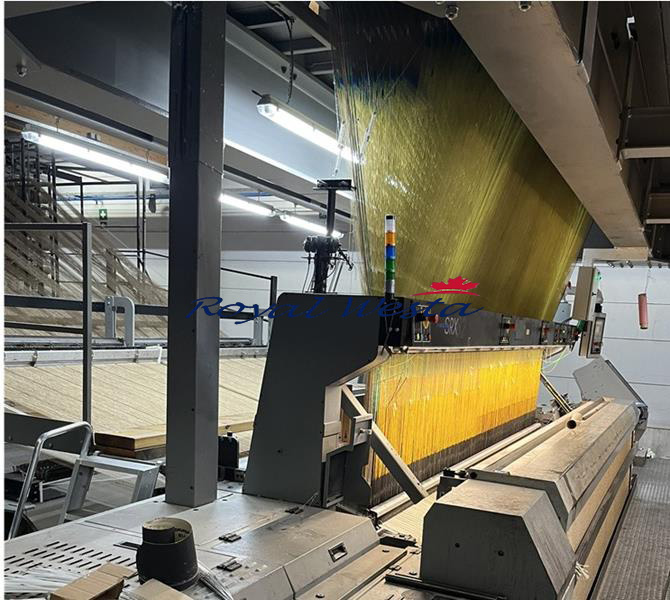

Van De Wiele SRX 83 Loom
Quantity: 1
Year: 2006
Width 4000 mm
Reed density 320 d/m
Voltage 380 V
Prewinder 6 pcs LGL - Progress Technico
Low Beam stand

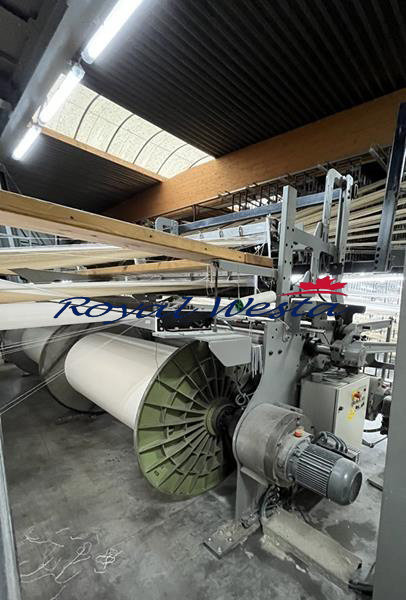

Take-up roller For carriers
Shaft motion 6 shafts

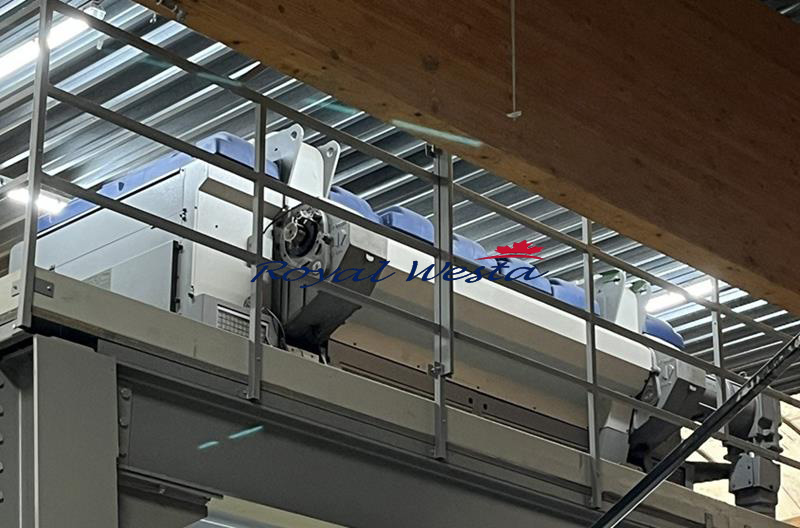

Jacquard type SLX-C2
Harness (number of cords) Harness 6 colours - Flatweave 2 x 2 c
Creel For PP bobbins - 8 256 bobbins

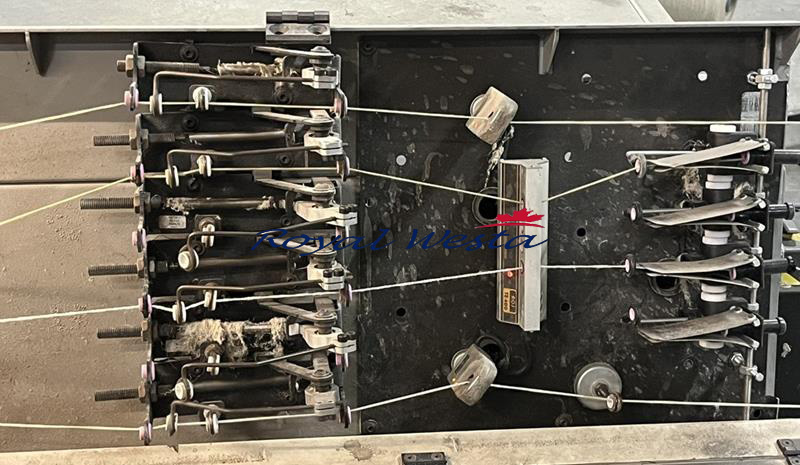

Warp stop motion Pile stop motion included - Ground stop motion included

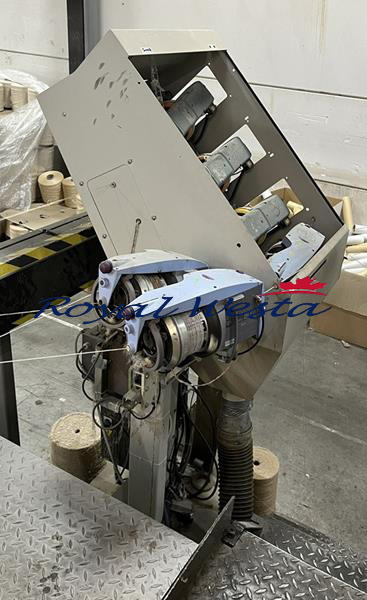

Miscellaneous Weftselector
Possibilities:

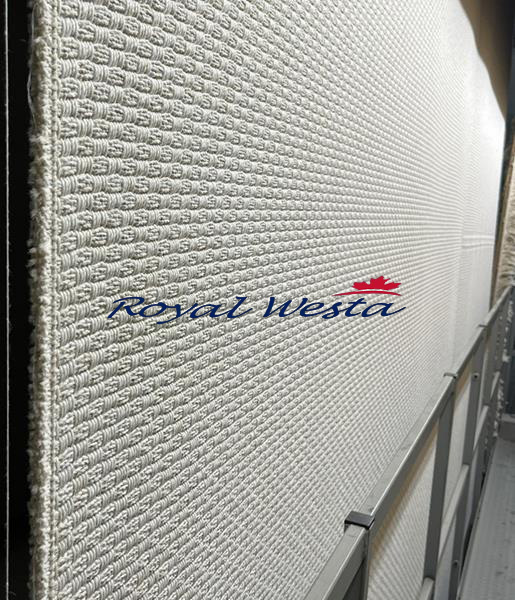

Face to face carpet weaving
Flat Weaving
Sisal Weaving
Shaggy Weaving upon 5 cm
Flat+Loop carpet
The reeddensity is 320, and the harness is equipped for 6 colours.
Nevertheless there are only 4 colours working due to the ticker yarn they are using.
Top and bottom carpet are completely different.
The harness eye is bigger comparing to normal weaving
