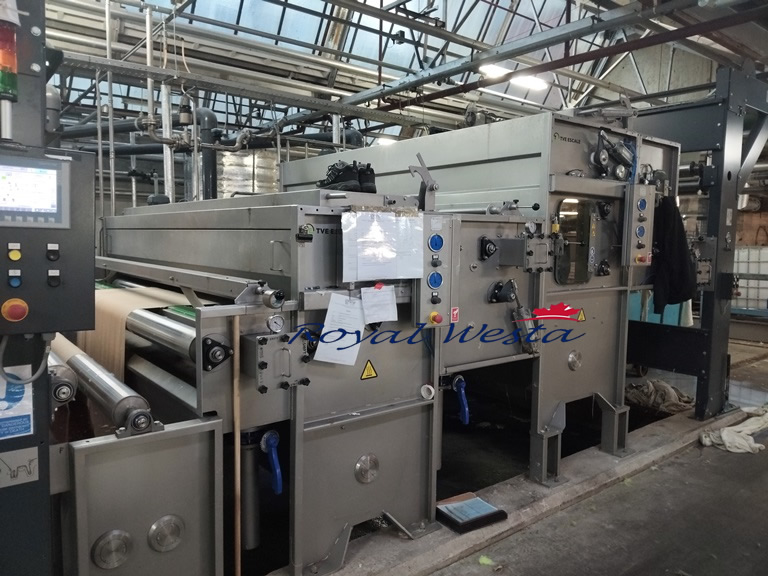

TVE ESCALE High Efficiency Washing System-Open Width Scour Machine

Quantity: 1
Year: 2023
The TVE-ESCALE High Efficiency Washing Range (ESCALE) is a high-performance industrial open-width textile washing system designed for efficient scouring, washing, and bleaching of fabrics.

This three-bath configuration features counter-flow operation and incorporates the TVE-ESCALE MRS vacuum extraction system, delivering excellent cleaning results while significantly reducing water, energy, and chemical consumption.

The system is fully PLC-controlled and offers flexible fabric input (from roll or plaited) with plaited output.

Working width: 2800 mm
Fabric weight range: 100–400 gsm (successfully operated on heavier fabrics)
Process control: Fully PLC controlled
Maximum running speed: Up to 30 metres per minute (dependent on fabric weight and construction)
Machine Type: Open width washing range
Number of Baths: 3
Evacuation System: MRS vacuum system (3 slots)
Fabric Types: Wool and blends
Maximum Fabric Width: 2,800 mm
