AB64/120826/AO/

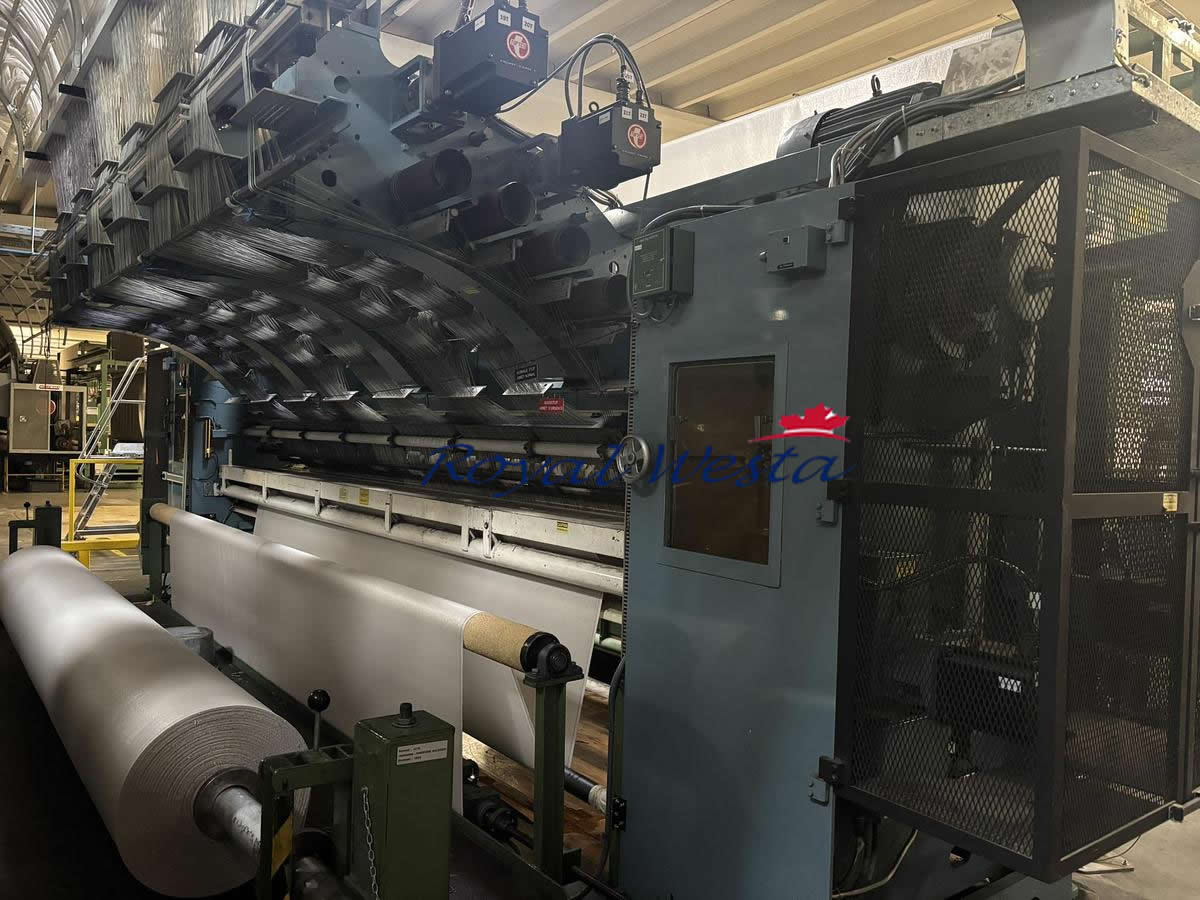

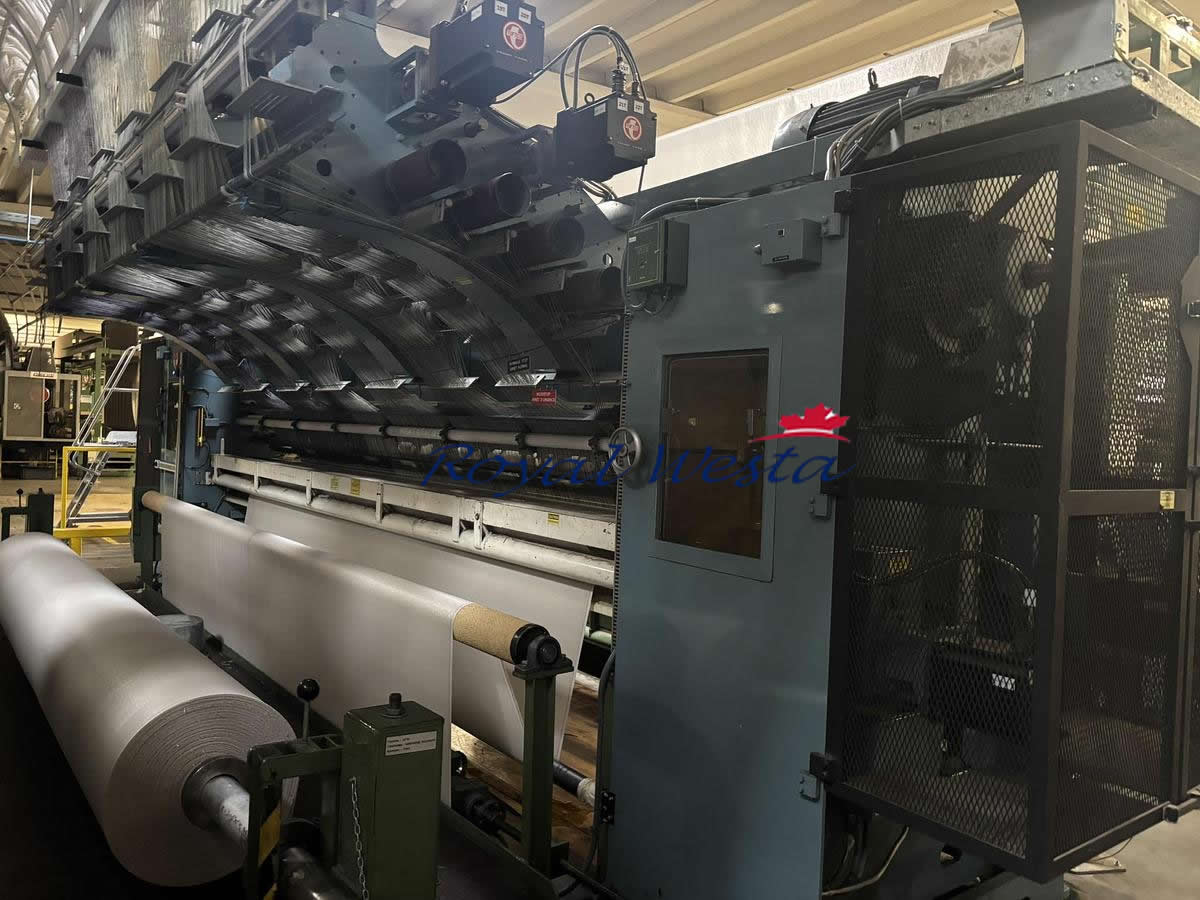

Tuftco 5/32″ Tufting
Quantity: 1
Year: 1999
Type: 52040199-L
Gauge: 5/32"
Pile type: Loop pile
Machine orientation: RH
Needlebar: Straight
Working width: 5 m (tufting in 4 m)
Drive system: Full servo
Needlebar movement: SSNB by servo
Yarn feed system: Multiroll MRA – 4 roller
Pile height range: approx. 4 – 10 mm
Handsaeme Inspection frame: Working width: 5 m, Year: 1994.
Handsaeme Reroll unit: Type Reroll with vertical dancing roller, Working width: 5 m, Year: 1999.
Handsaeme Primary backing unwinder: Type Primary backing unwinder, Working width: 5 m, Year: 1999.
Matthys Magazine creel: Type Double deck magazine creel, Gauge: 5/32", Working width: 5 m, Execution: Extra wide walkways for pallet truck
Remarks: Joined to TM02 creel, easily removed, can operate as standalone creel.
