AB64/120826/AO/

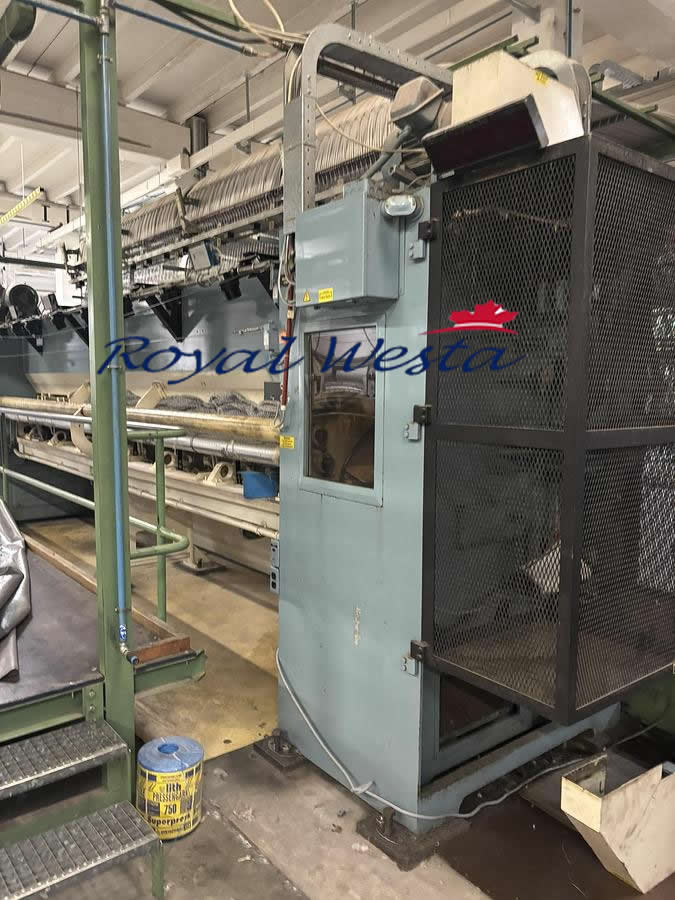

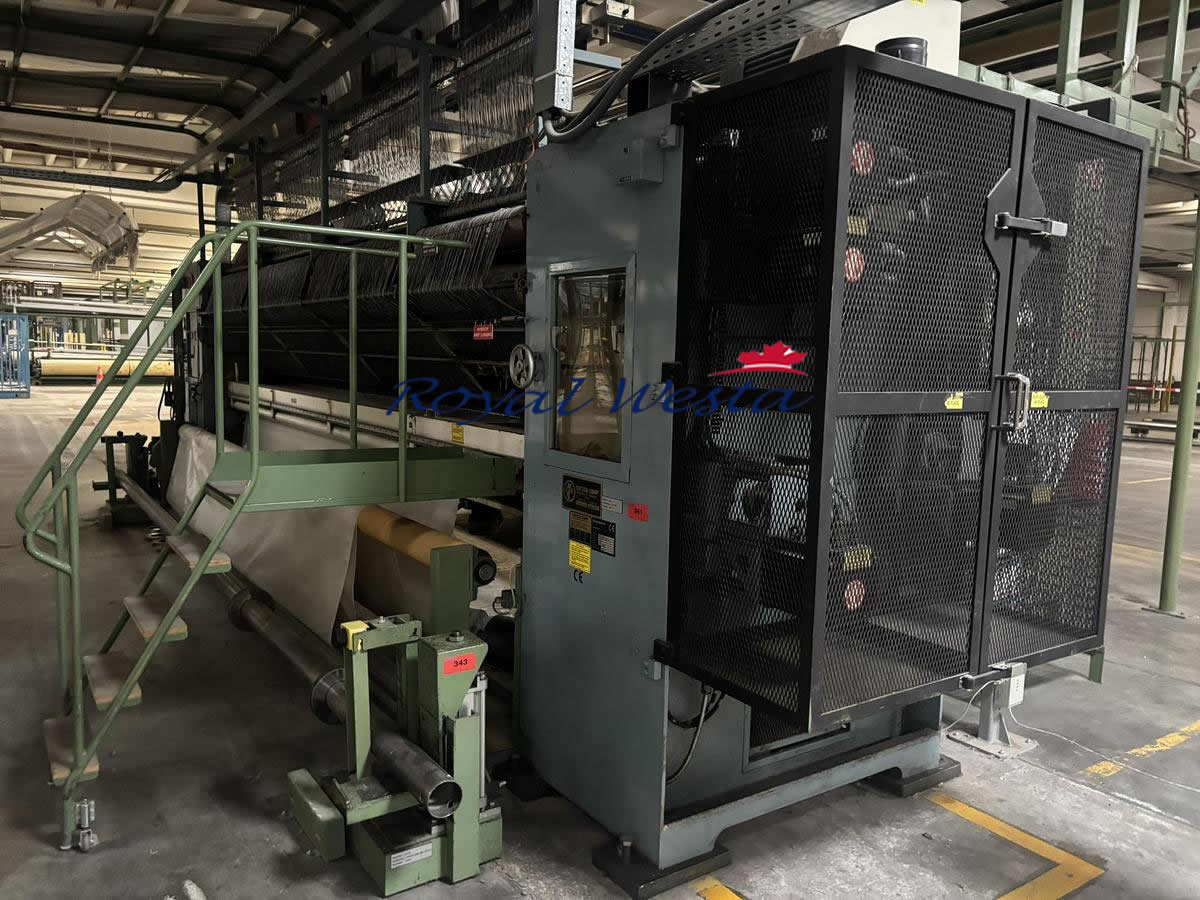

Tuftco 5/32″ Tufting
Quantity: 1
Year: 1998

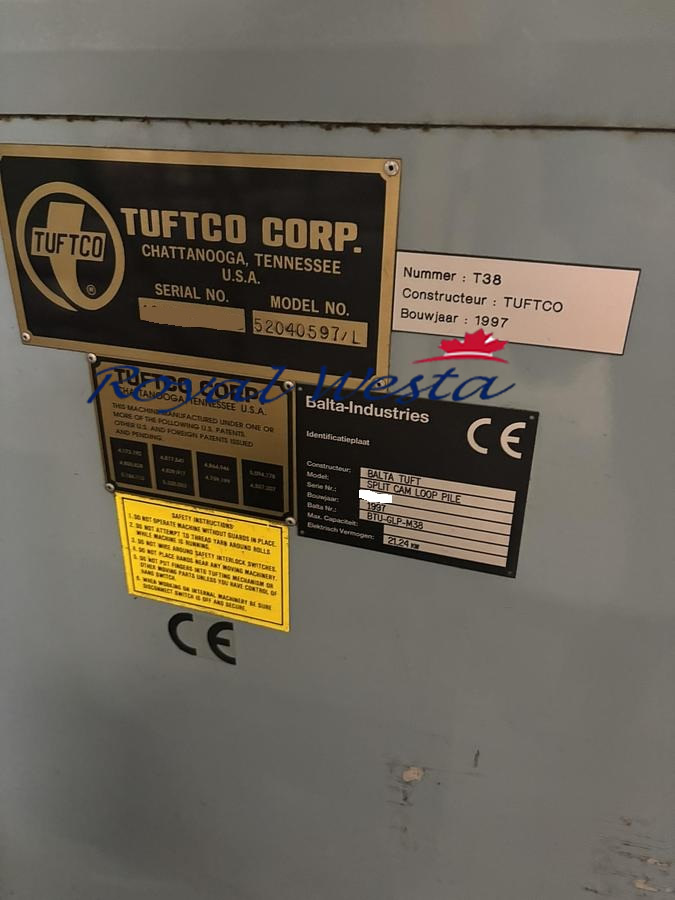

Type: 52040597-L
Gauge: 5/32"
Pile type: Loop pile
Machine orientation: RH
Needlebar: Straight
Working width: 5 m (tufting in 4 m)
Drive system: Full servo
Needlebar movement: Mechanical ZZ-bar
Yarn feed system: Split dual yarn feed
Pile height range: approx. 4 – 10 mm
Handsaeme Inspection frame: Working width: 5 m, Year: 1998
Handsaeme Primary backing unwinder: Type: Primary backing unwinder, Working width: 5 m.

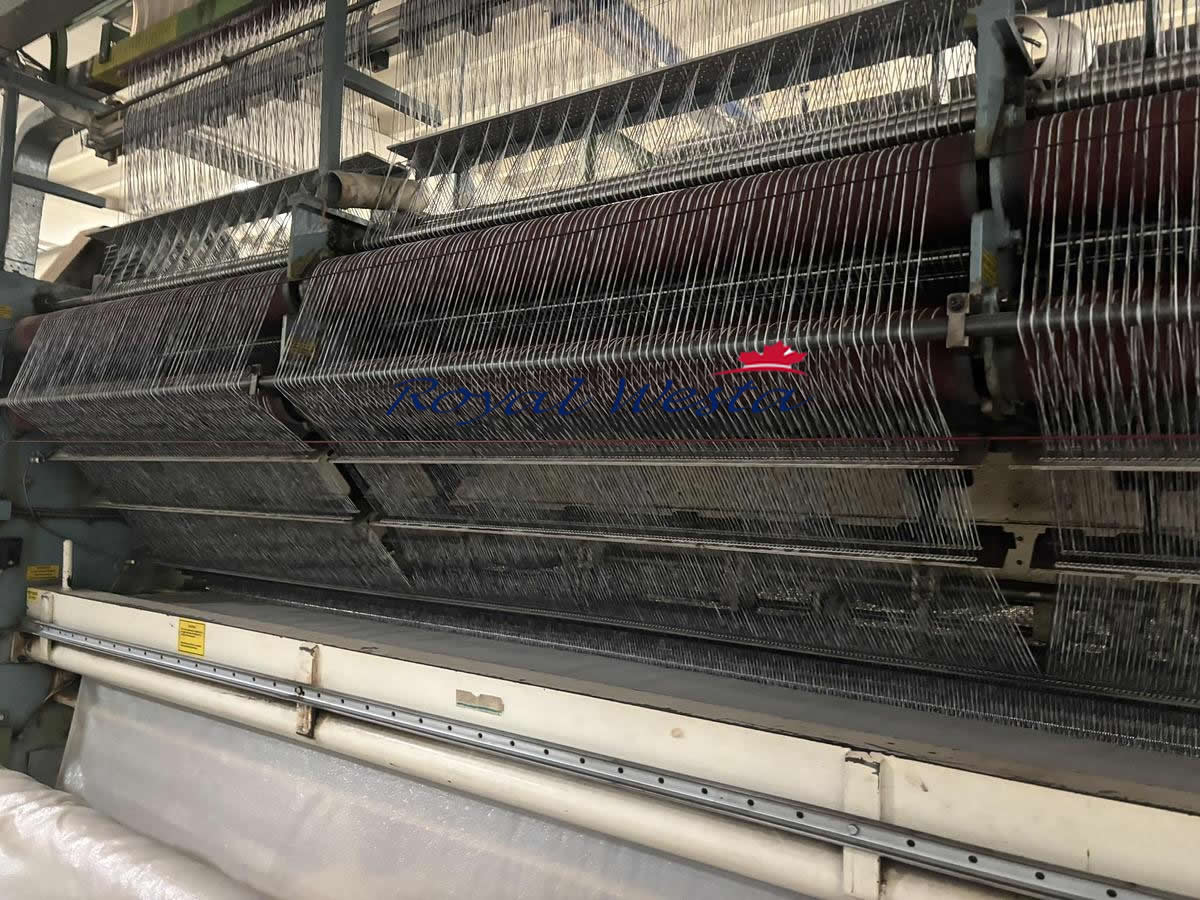

Beam stands: Type Beam stands for feeding tufting machine, Gauge: 5/32", Working width: 5 m, Execution: With yarn guides and collector boards.
Magazine creel: Type Double deck magazine creel, Gauge: 5/32", Working width: 5 m, Execution: Standalone creel.
