THIES Beam Dyeing

Quantity: 1
Year: 2021
Plant composed of N. 2 beam dyeing machines with a capacity of 50 kg each, N. 2 beam dyeing machines with a capacity of 300 kg each, N. 1 THIES HP-BATCHER, dye beams, dye beam carts and accessories

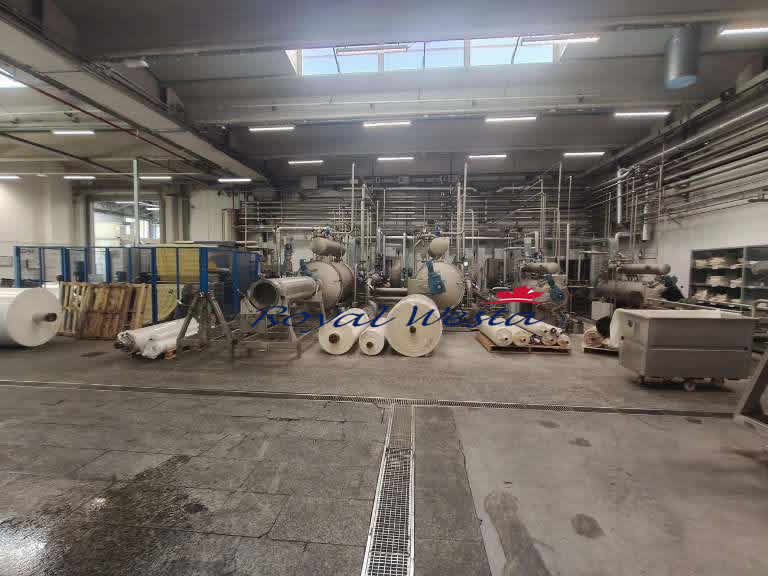

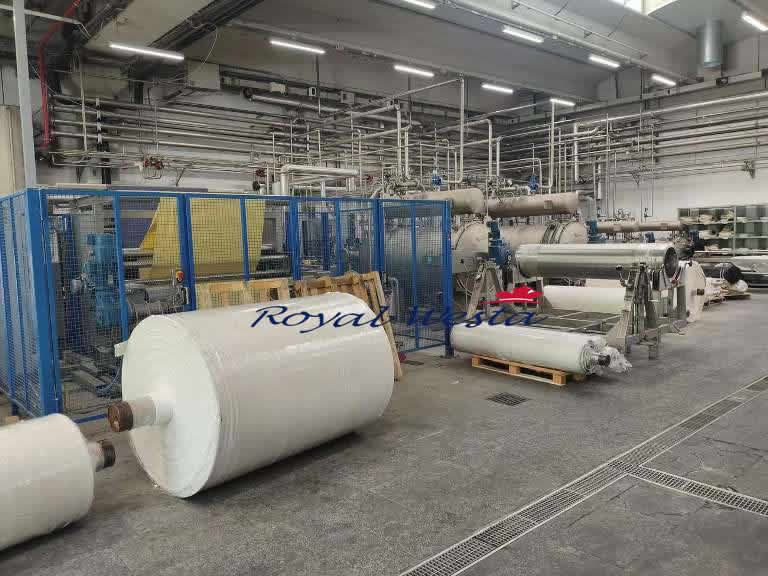

Complete plant for HT open-width beam dyeing of woven fabrics
Number of beam dyeing machines: 4
N. 2 THIES HT BEAM TYPE 600/1X2000 machines, capacity approx. 50 kg each
N. 2 THIES HT BEAM TYPE 1150/1X2000 machines, capacity approx. 300 kg each
Beam length: 2200 mm
Useful fabric width: 2000 mm
Maximum operating temperature: 140 °C
SETEX 777 color controllers
Each machine equipped with N. 2 tanks with electric agitator for chemicals and dyes
N. 2 stainless steel electrical panels for each pair of machines
Dye beams with diameters of 300 mm, 500 mm and 800 mm, with inside sleeves
Binding stars, external sleeves, dye beam carts and transport carts

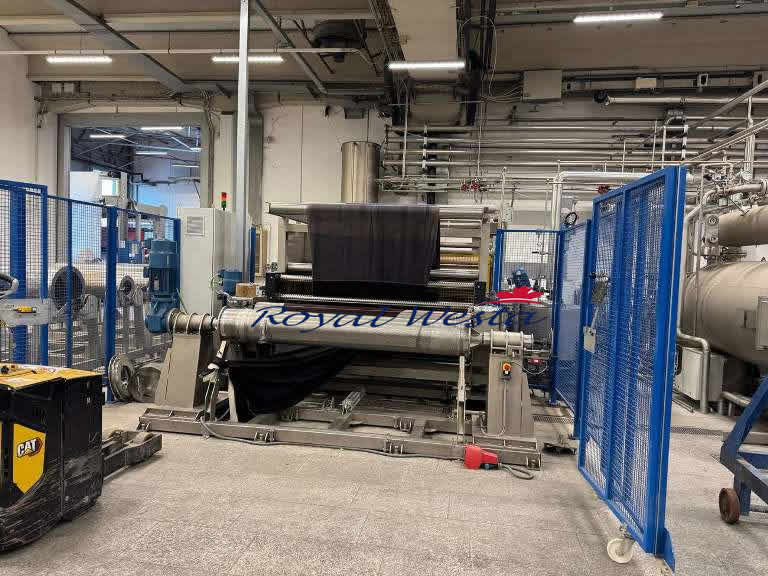

N. 1 THIES HP-BATCHER for winding dry woven fabrics onto dye beams
THIES HP-BATCHER maximum dry capacity: 500 kg
THIES HP-BATCHER maximum fabric width: 2000 mm
Maximum batch diameter: 1350 mm
Speed up to 80 m/min
THIES HP-BATCHER controlled by PLC with touchscreen terminal and SETEX T646 controller
Padder retrofit on THIES HP-BATCHER with hot-water tank for fabric wetting
THIES safety package with safety fence and light barriers
The complete plant is sold as one lot
Machine condition: excellent, like new
