AH25/070126E/RRL-RL/F/AQ/
Production Line Includes: Texturing, Twisting, Dyeing, and Packing
1x GIUDICI Texturizing:
Year: 2002, mod .TG30 FA , 84 position, Designed for polyester yarns ranging from 10 to 300 denier.
Work from 40 dtex to 600 dtex polyestere nylon and polipropilene, full automatics.
1x IMPIANTI NOVOPAC Packaging Machine
Year: 1997, Model: ARF500 + 1406B.

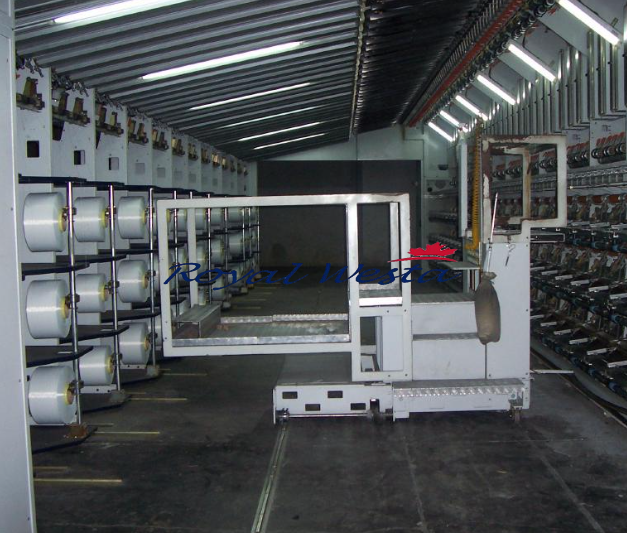

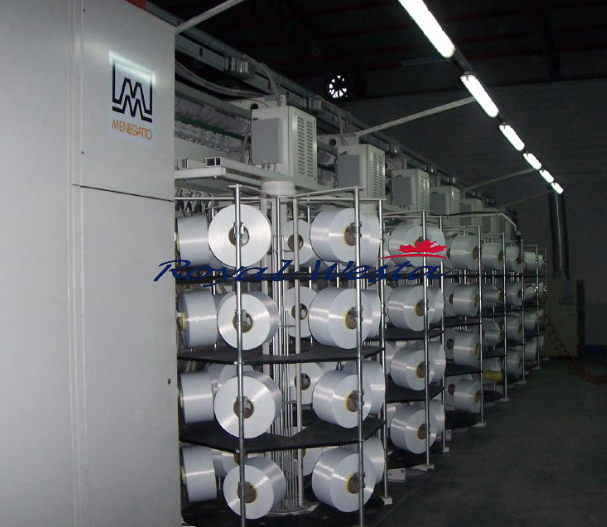

2x MENEGATTO Texturizing:
Year: 1999, Model: TMA 43, Total Spindles: 168 (84 per side), Sections: 7 per side.
Texturizing Ovens: 84 high-temperature electric ovens (1000 mm length, 100–650°C range)
Fixing Ovens: 84 high-temperature electric ovens (700 mm length)
Feeding Shafts: 4
Rotary Creels: 14, each with 24 bobbins arranged over 3 floors
Drive System: 168 TEMCO drive belt spindles
Cooling System: Forced cooling with refrigeration and fume extraction
Control System: Electronic control with Menegatto software
Doffing: Manual or automatic
Work from 40 dtex to 600 dtex polyestere and nylon and polipropilene, full automatics.
1x OBEM Dyeing and Steaming Machine
Year: 1997, Model: 97003
1x RPR Texturizing:
Year: 1997, Model: 3SDX4
Take-up Positions: 168
Total Power Consumption: 143 kW
Yarn Compatibility: Polyester yarns ranging from 33 to 330 dtex
Production Speed: Up to 1000 meters per minute
3SDX 4 work from 40 dtex to 600 dtex polyestere nylon and polipropilene, Electronics endowed with pc that can change the form of manufacture in automatic; can work both to an oven and to two.n. 4 shaft of workmanship, position of job 84 positions for forehead, total 168, or rather every front can independently work from 84, endowed with plant for punching of the yarn to air; electronic control of the production and the quality.

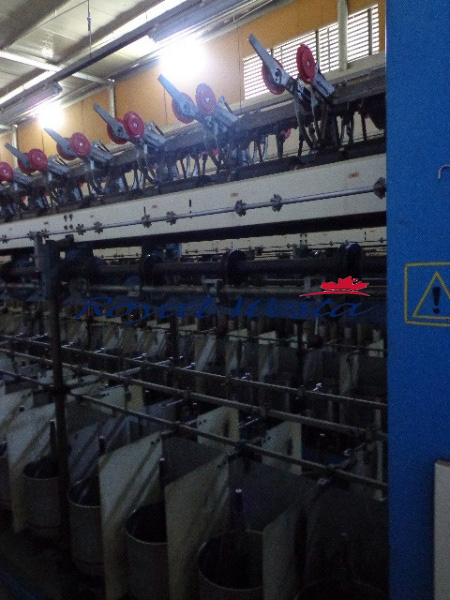

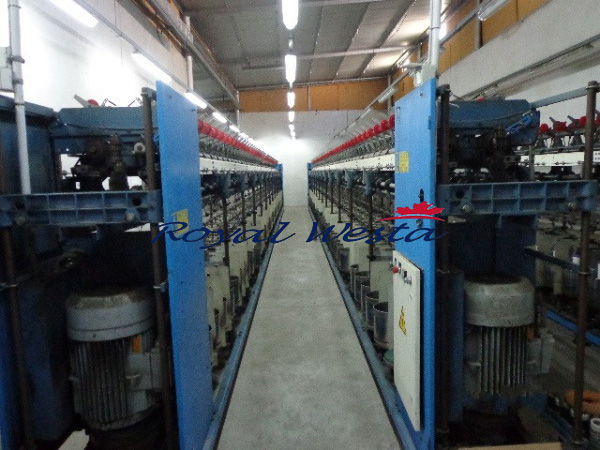

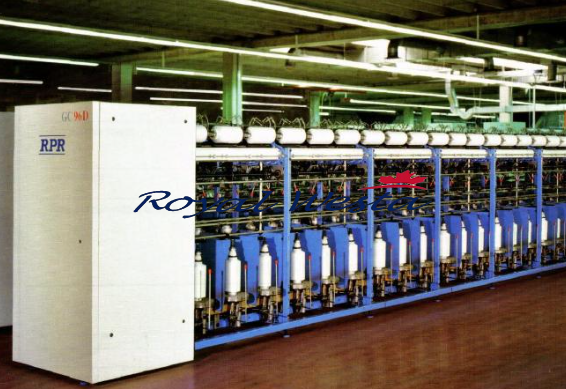

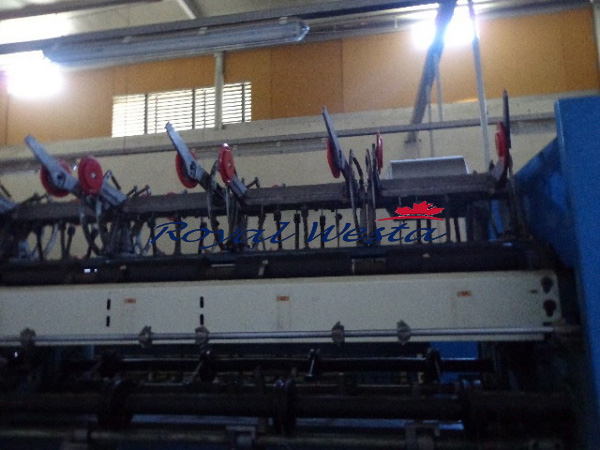

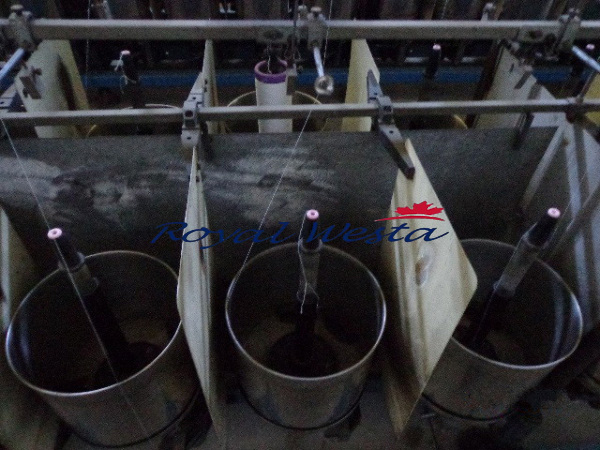

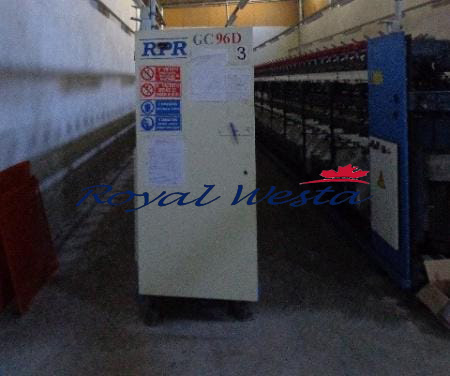

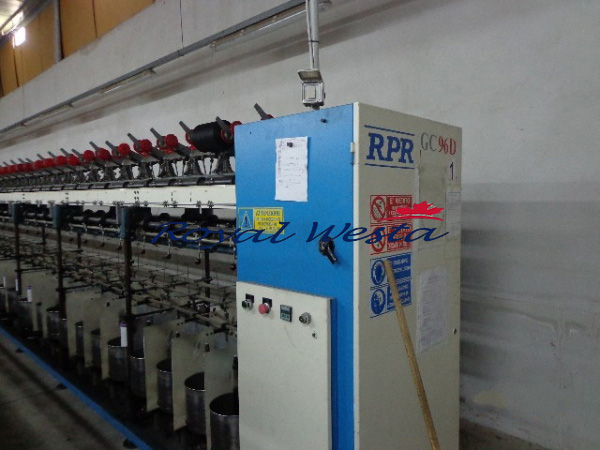

6x RPR Twisting GC 96:
Year: 1998, Model : GC96D
Number of spindles: 90–96, depending on configuration.

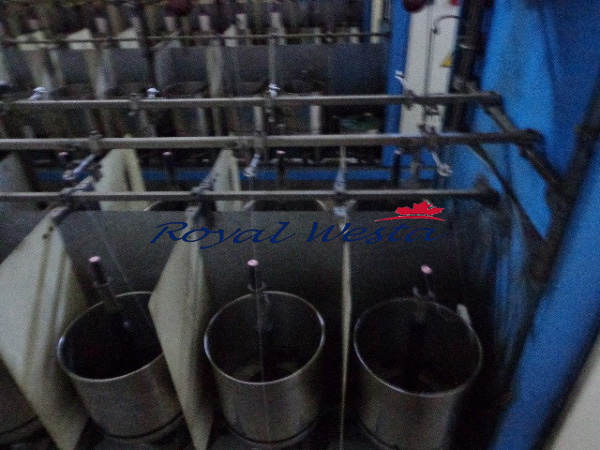

Can/tub diameter: approximately 270 mm; take-up tube length: approximately 230–290 mm
Package capacity: up to approximately 3–5 kg per package.
Motor power: approximately 22 kW; electrical specification 220 V / 60 Hz.
10x VEMATEX Twisting:
Year: 1990, n. 72 spindles melted by cm 250 with centralized taper.
Vematex WB-T — Double Twist TFO Twister.
