AA02/140725/
Terry Towel Machinery & Equipment
WARPING:

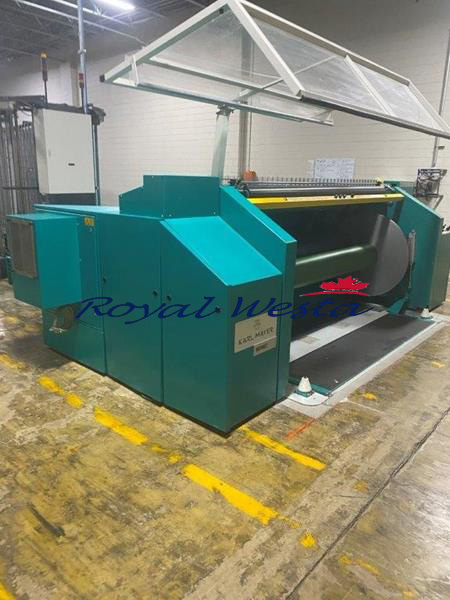

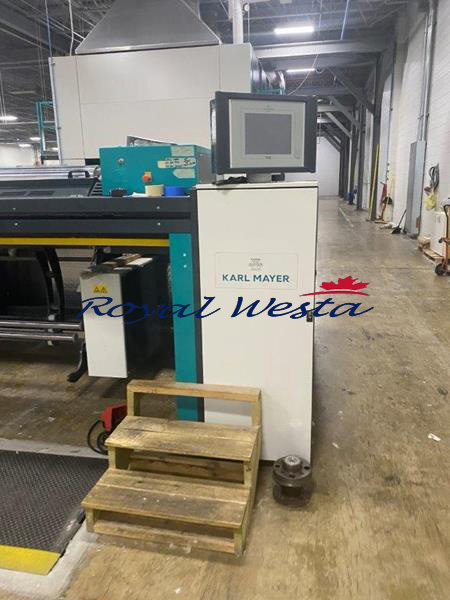

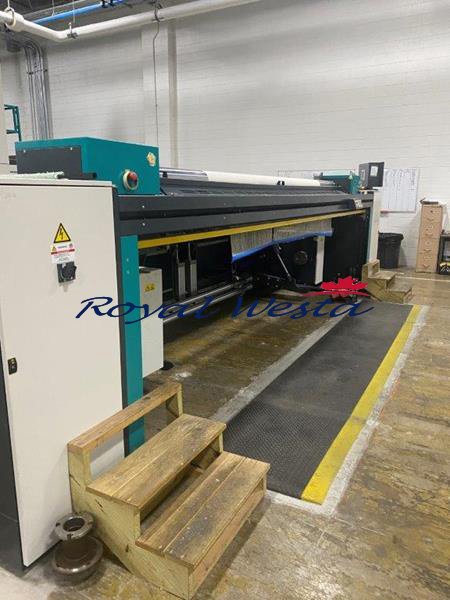

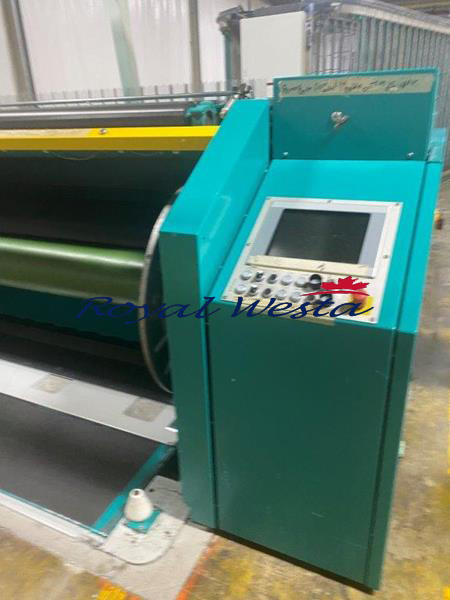

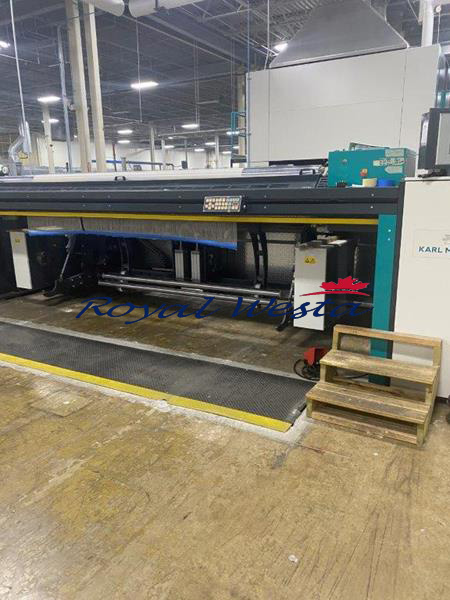

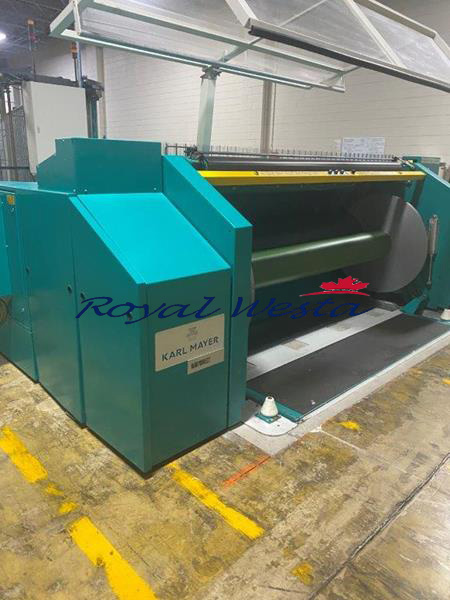

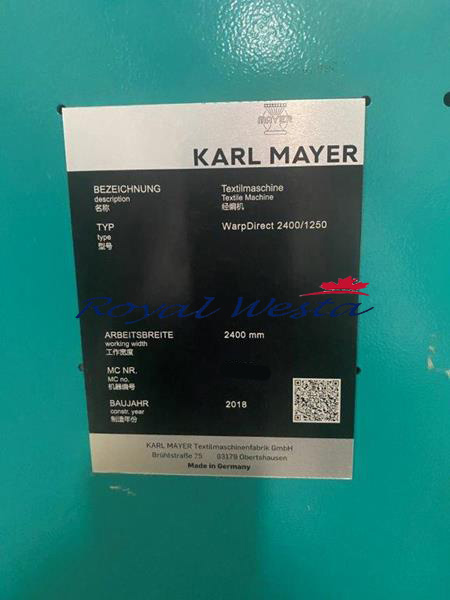

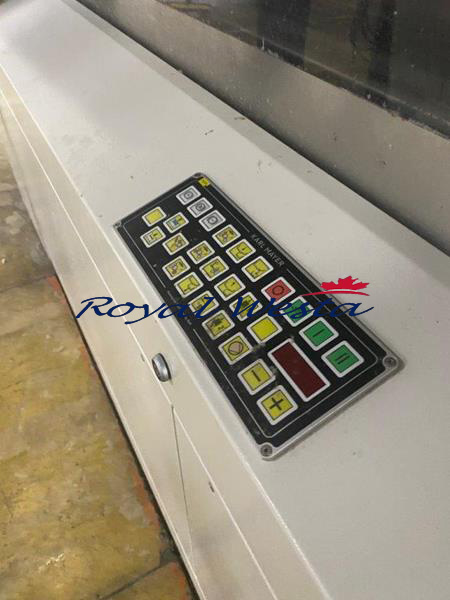

1x KARL MAYER DIRECT WARPER
Model Warp Direct 2400/1250, Year of Manufacture 2018, 2400mm Warping Width, 1250mm Maximum Flange Diameter, Zig Zag Reed, Perspex fly screen.
With:

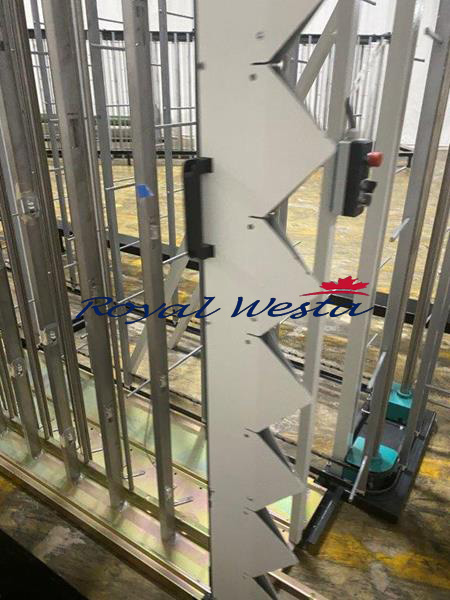

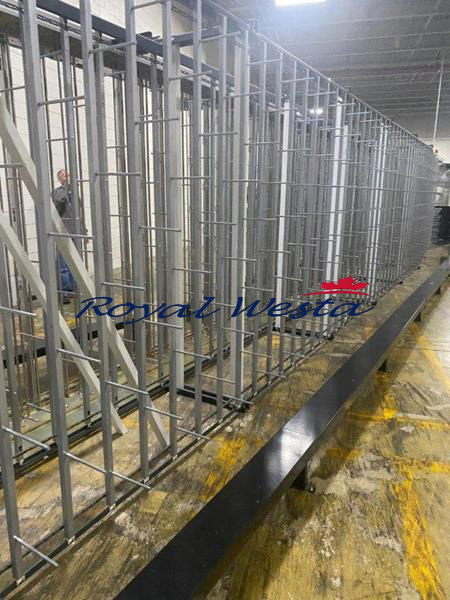

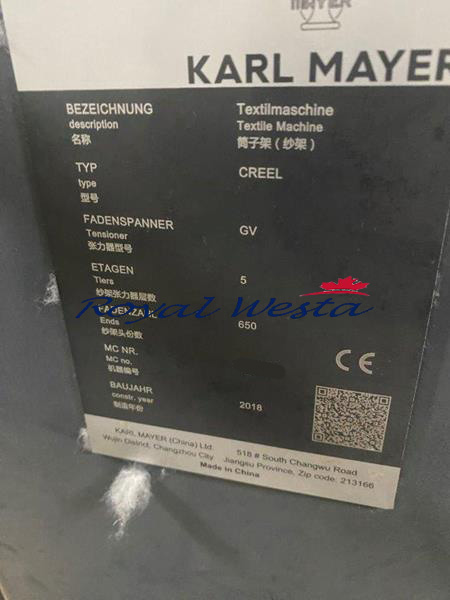

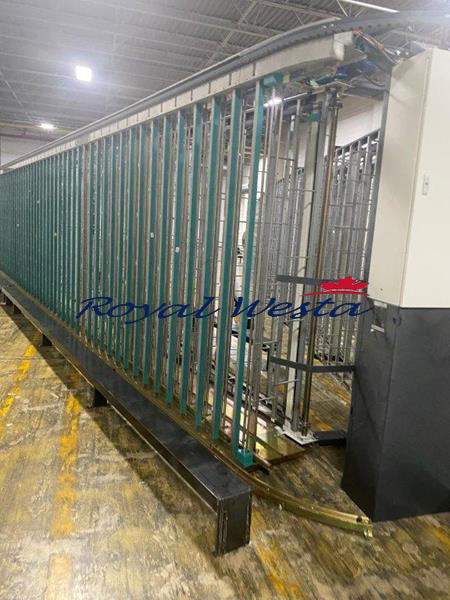

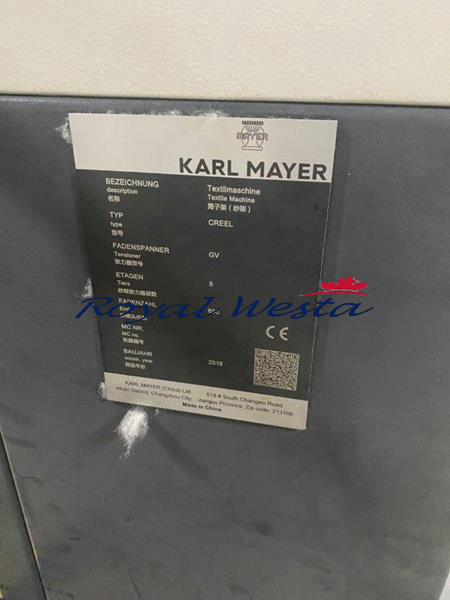

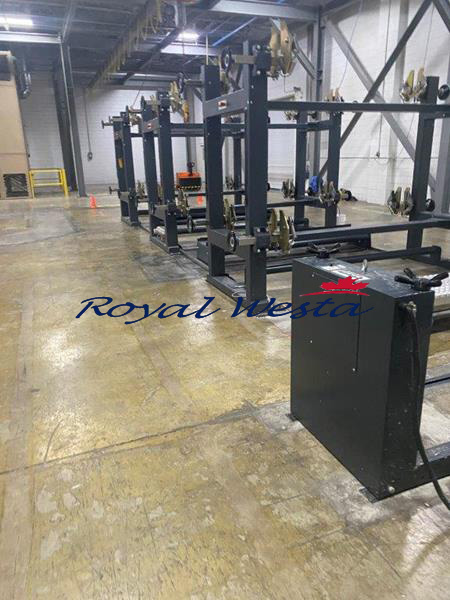

1x KARL MAYER VEE CREEL
Model Creel, Year of Manufacture 2018, 650 Running ends, Automatic Cutter, With Mayer GV Tensionners, Inside loading, Outside Discharge, 5 Packages high, Packages at 17inch vertical and 10 inch horizontal off set centers.

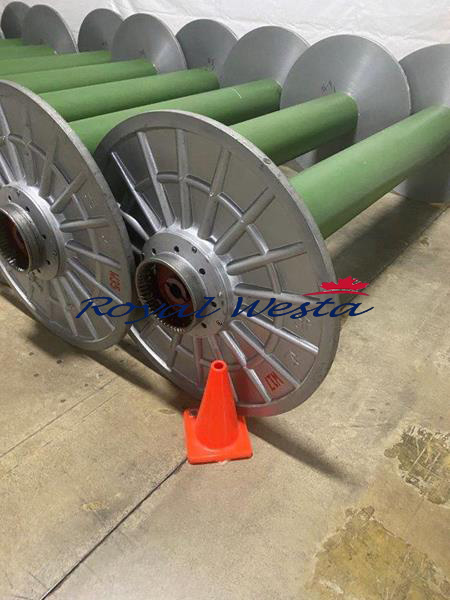

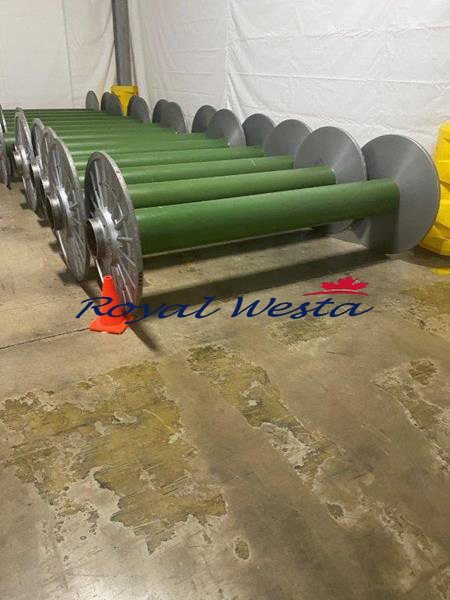

36x SECTION BEAMS 2400MM X 1000MM DIAMETER
With cone splined drive ends.
1x TANGSHI CONE TO CONE RE-WINDER
Year of Manufacture 2018, 60 positions Double sided 30 positions each side, 6 position per section x 5 sections, 6 inch traverse with grooved drums, 4 deg 20- cone angle, Individual motor drive to each spindle, 3 position Tension discs, End Breakage, Overhead travelling blower.
BEAM HANDLING:
2x WUXI XJANDA BEAM STORAGE RACKS
Year of Manufacture 2018, 2 tier - Motorized beam retrieval, 25 Beams each rack, Beam Hangers - Max weight 1500KG, Max beam length 300cm, Max flange diameter 1250mm, Overall height 24 feet.
3x WUXI XJANDA BEAM PALLET TRUCKS
Model XD-1200T, Year of Manufacture 2018, Hydraulic, Beam forks 280cm Max 1200mm beam diameter.
4x WUXI XJANDA BEAM PALLET TRUCKS
Model XD-1250T, Year of Manufacture 2018, Hydraulic, Beam forks 280cm Max 1250mm beam diameter.
5x WUXI XJANDA BEAM PALLET TRUCKS
Model XYJC-1500, Year of Manufacture 2018, Hydraulic, Beam forks 280cm Max 1250mm beam diameter.
2x WUXI XJANDA BEAM PALLET TRUCKS
Model XD-2500 ET, Year of Manufacture 2018, Hydraulic, Beam forks 280cm Max 2500mm beam diameter.
1x WUXI XJANDA BEAM PALLET TRUCK w/CHARGER
Model XD-1000 B, Year of Manufacture 2018, Manual.
WEAVING:

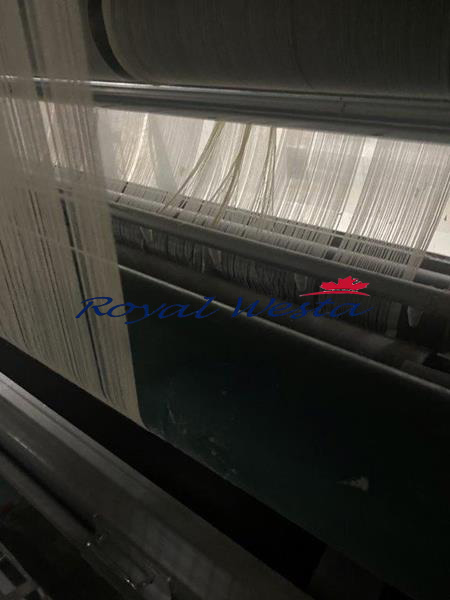

12x TOYOTA AIR JET TERRY LOOMS
Model JAT810, Year of Manufacture 2018, Type JA4T-280DE-EH-T810, 280cm weaving width, 4 color, Staubli dobby Model S3222 e3 DRC, 20 Shaft Capacity, 16 levers installed, Neuenhauser off loom take up with inspection, Leno selvedges, 2 row Ground and 2 row pile warp stop motion, Each loom installed with, 1 Ground beam 800mm diameter, 1 Pile Beam 1250mm diameter, 16 Harness frames, 4 weft feeders, 1 Weft creel stand, 2 Row Pile Warp stop motion, 2 Row Ground warp stop motion, 1 Neuenhauser Batcher.

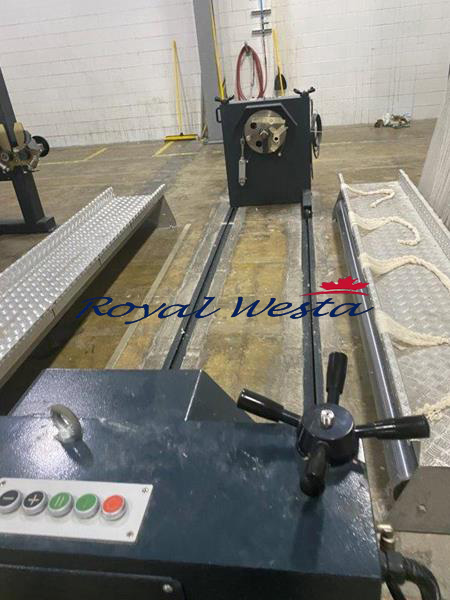

1x GROZ-BECKEART WARP TYING HEAD
Model Knot Master, Year of Manufacture 2018, Type AS/3, Sheet to sheet, With spare knotting cartridge in transport trolley.

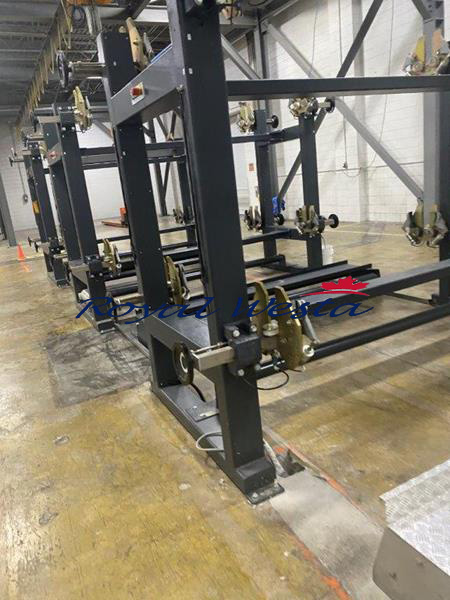

1x WARP TYING FRAME
Year of Manufacture 2018, 3000mm brush length.
DYEING:
1x THIES I-MASTER JET DYE MACHINE
Model i-Master F. Type 140/4, Year of Manufacture 2019, 4 Port - 1600 kg Capacity, 200mm diameter nozzle for Terry, With expansion tank, With 2 Dye preparation Tanks, With Heat exchanger, Winch and operator stand, Setex controller.
1x THIES I-MASTER JET DYE MACHINE
Model i-Master F. Type 140/1, Year of Manufacture 2018, 1 Port - 400 kg Capacity, 200mm diameter nozzle for Terry, With expansion tank, With 2 Dye preparation Tanks, With Heat exchanger, Winch and operator stand, Setex controller.
1x THIES CHEMICAL DISPENSING SYSTEM
Year of Manufacture 2018, With 20 Tanks.

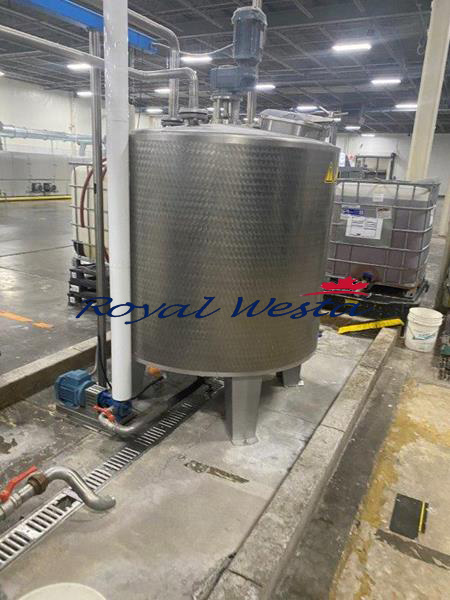

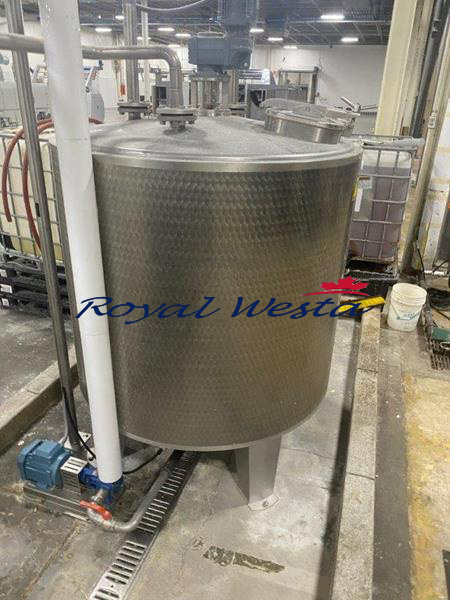

1x THIES DYE DISSOLVER
Type MPS-D600L, Year of Manufacture 2018, With Hot water tank, Control scales.
FINISHING:

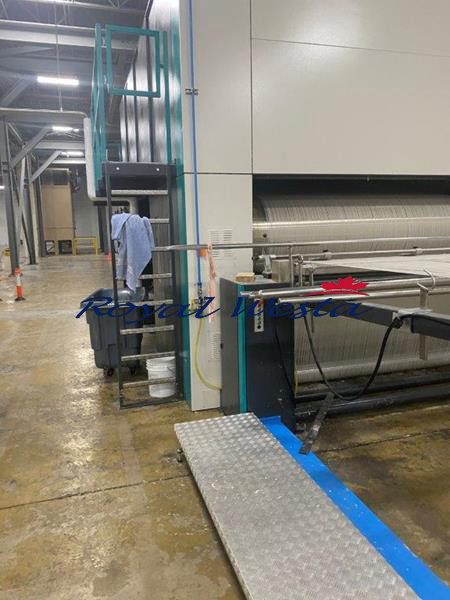

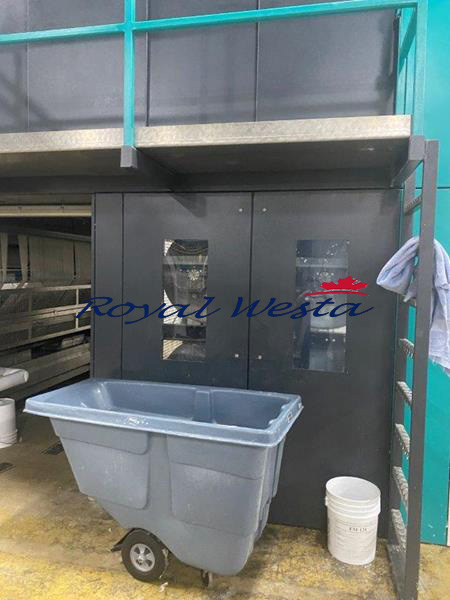

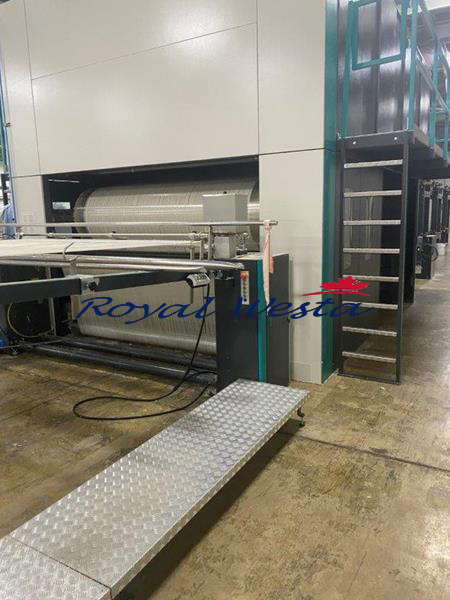

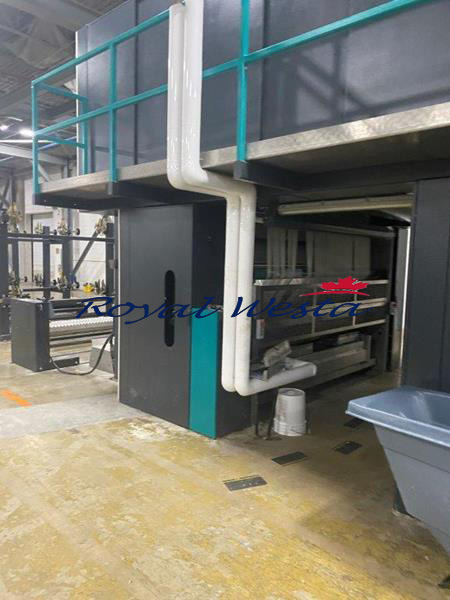

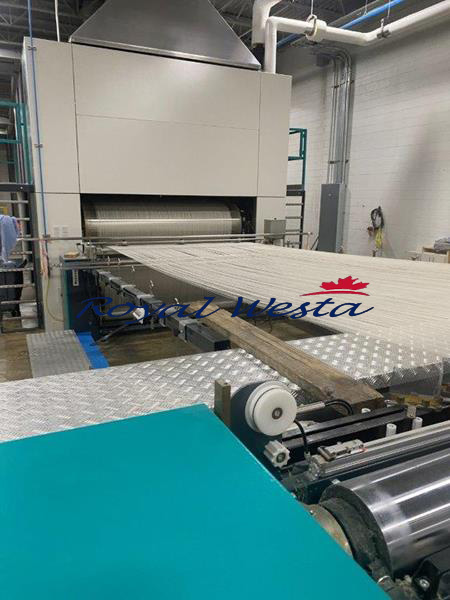

1x UNITECH TENTER FRAME
Model RED.EV07/6K/28u/G, Year of Manufacture 2018, Maximum width 3000mm, 6 Zone, Nat Gas Heated, 1 Exhaust Fan, Unitech Unwind stand, Pin Chain with Horizontal Return, Bianco Pad Model Foulard Spremitura, PW 3000 x FW 2800, With (2) chemical application tanks, Bianco Opener and weft straightener, Model Raddrizzatrama A Spilli, With Spirals RDSBP00049LO535.
STITCHING:
1x TEXPA LENGTH CUTTER/SLITTER
Type 109, Year of Manufacture 2018, Volts: 277/480, 60Hz.
2x TEXPA LENGTH HEMMERS
Type Terry Length 120, Year of Manufacture 2018, With (2) Pegasus Double lock stitch hemmers.
1x TEXPA FOLDING MACHINE
Model APD3/2 Folder, Year of Manufacture 2018, 56 inch table entry, 27 inch conveyor exit, into:
1x DM PACK PACKING MACHINE
Model Star EVO 1100/T, Year of Manufacture 2019, Electric heat bag sealer, With Label Printer, 480V, 50/60Hz.
LABORATORY:
Year of Manufacture 2018
1x DARONG EIGHT BASKET THERMOSTAT DRIER, Type Y (B) 802G.
1x DARONG ELECTRONIC SINGLE END STRENGTH TESTER, Type YG (B) 021DL.
1x G&G ELECTRONIC SCALE, Type TC30K-H.
1x DARONG YARN TESTER, Type YG (B) 086.
1x DARONG TESTER, Type YB 331C
1x DARONG LAB OVEN, Color Fastness to Perspiration, Type Y (B) 902 G
1x BALANCE SCALE, Type FA1004, 100 Gram
1x DARONG TESTER RUBBING, Type YB571-III
1x GRETAG MACBETH LIGHT BOOTH, Type Spectralight III
1x DARONG WATER ABSORBTION TESTER
1x DARONG DIGITAL TEARING TESTER, Type YG (B) 033B
1x DARONG DIGITAL FABRIC STRENGTH TESTER, Type YG (B) 26SJ
1x DIGITAL ELECTRONIC BALANCE, Model FA B Series
1x G&G DIGITAL SCALE
1x DIGITAL TWIST TESTER, Model YB 331C, Year 2018
1x WET & DRY CROCK TESTER RUBBING, Model Y (B) 571-11
1x ROTARY CROCK TESTER, Model Y (B) 571-X
1x ABSORBANCY TESTER, Model Y (B) 813X, Year 2018
1x WENZHOU LAUNDROMETER, Year 2018
1x JINGKE HIGH TEMP SAMPLE DYEING MACHINE, Year 2018
1x BLUE M LAB OVEN
1x JINGHE DYE CONTROLLER, Type HG-TC100
PLANT & EQUIPMENT:
2x JOHNSON STEAM BOILER SYSTEM
Model PFTA750-4G150S, Year of Manufacture 2018, 750 HP, 150 Psi.
with:
1x GM SURGE TANK
Model UW, Year of Manufacture 2018
