AB60/131025E/AO-A/F/AO/

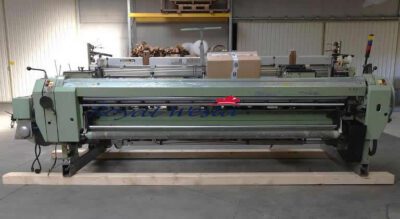

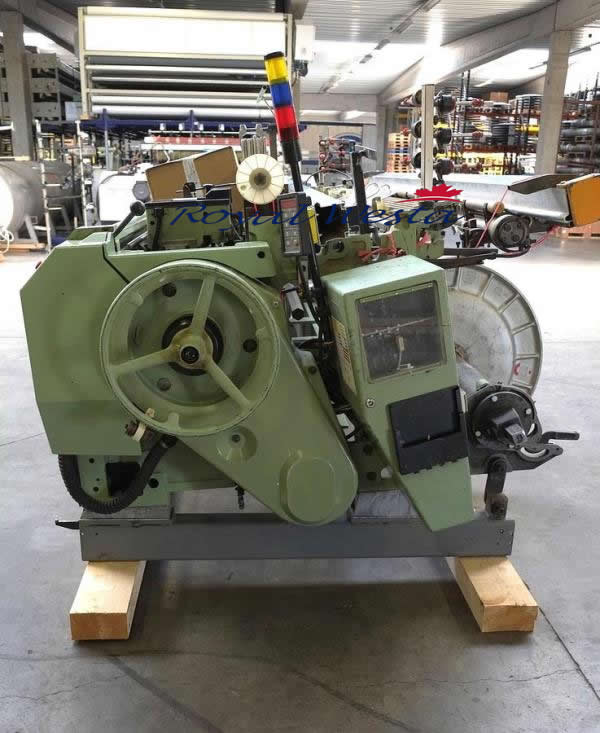

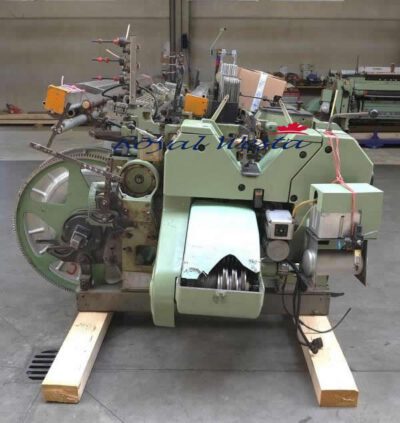

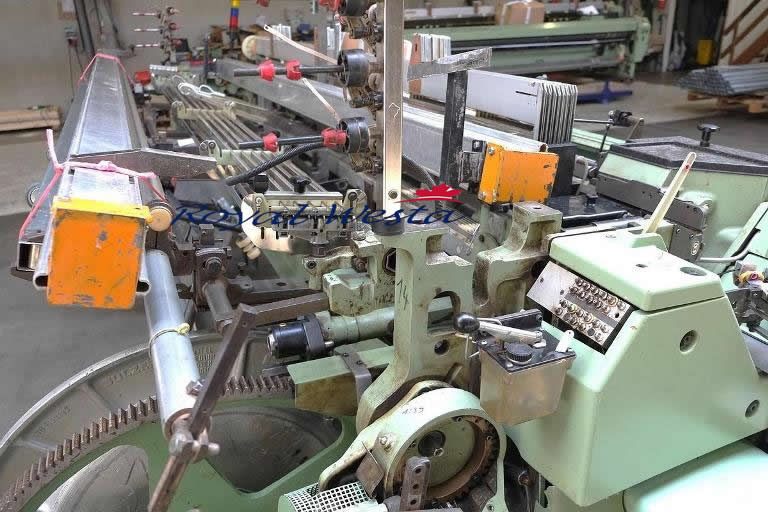

Sulzer Projectile Weaving Looms P7100-B280-N-1-1-EP-R-D1 / P7100-B280-N-4-EP-R-Q-D1

Quantity: 3
Year: 1989-1991
Type P7100-B280-N-1-1-EP-R-D1 (2x) / P7100-B280-N-4-EP-R-Q-D1

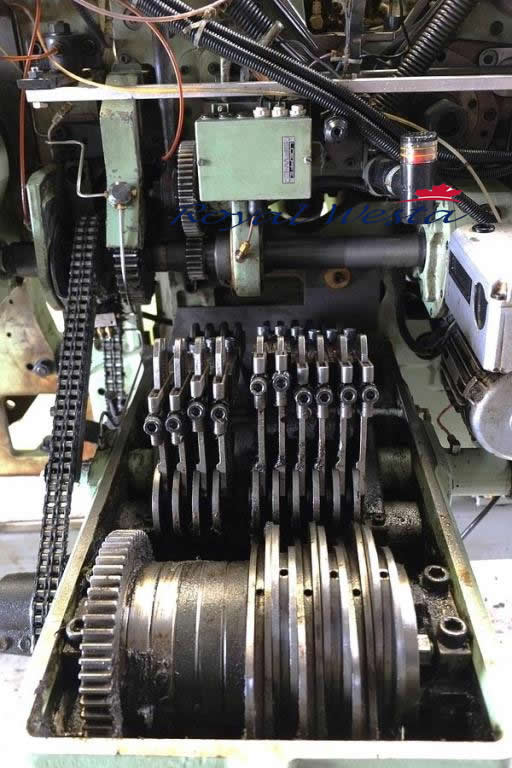

Working width 2800mm, 2 colours, with cam box SULZER, 10 levers installed.

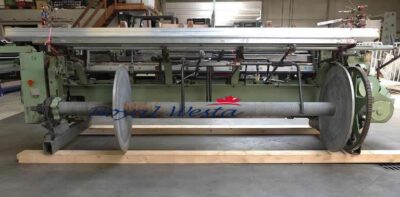

Equipment : combined feeder/bobbin stand, 2 weft feeders IRO Orion “M” with control box, 2 weft colours, 2 weft brakes, 8 heald frames SULZER GROBAMEXTRA 13”, warp stop motion with 5 detection bars, warp beam with flanges diameter 950mm, internal cloth roll drive, cloth roll, 2 steps, mechanical selvedge cutters, dustbin.
