AB60/131025E/AT-A/F/AO/

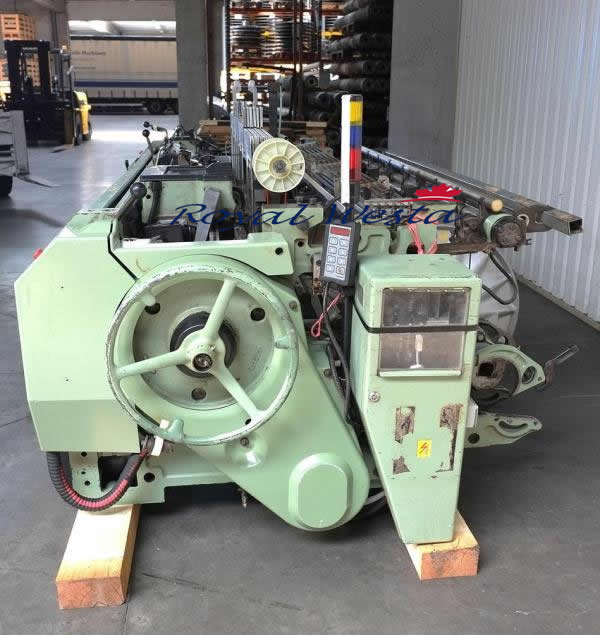

Sulzer Projectile Weaving Looms P7100-B220-N-1-1-EP-R-D1 / P7100-B220-N-4-EP-R-Q-D1

Quantity: 4
Year: 1990-1991
Type P7100-B220-N-1-1-EP-R-D1 (3x) / P7100-B220-N-4-EP-R-Q-D1
Working width 2200mm, 2 colours, cam box SULZER, 10 levers installed.

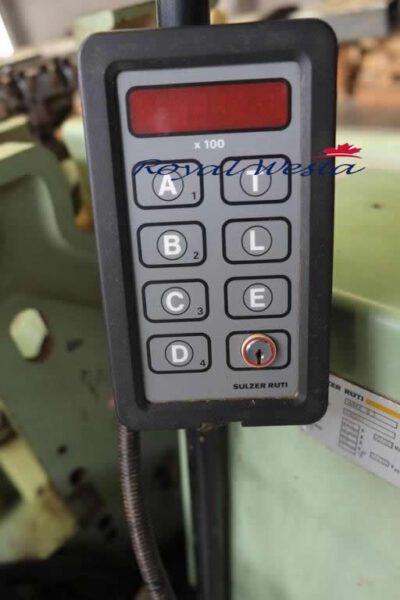

Each equipped with : combined feeder/bobbin stand, 2 weft feeders Iro Orion (2 looms) / 2 weft feeders Sulzer (2 looms) with command box, 2 weft colours, 2 weft brakes, 6 heald frames SULZER GROBAMEXTRA 13”, warp stop motion with 5 detection bars, warp beam with flanges diameter 800mm, internal cloth roll drive, 1 cloth roller, mechanical selvedge cutters, dustbin.
