AA08/010425E/LS-Y/F/AQ/

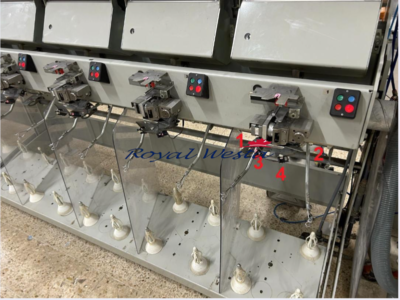

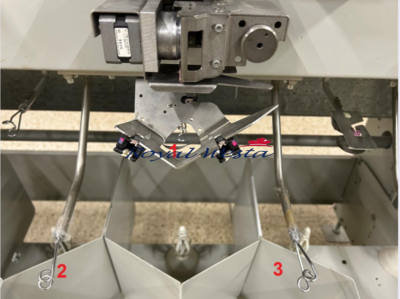

SSM DP-Y Assembly Winder

Quantity: 1
Year: 1999
n.60 heads
Installed in two separate sections, 30 +30 facing each other
Pitch 8” (200 mm)
n.1 Display for setting the parameters of the first 20 heads with Precicontrol cards
n.1 Display for setting the parameters of the 40 heads
Tube 220 mm diam.43 mm on 40 heads and 54 mm on 20 heads
Internal feeding creel
n.10 heads 4-ply - n.50 heads 3-ply
Each section of 30 heads with Magitex
Mesdan Splicer system mod.ATS Aquasplicer 4921 A
Automatic doffing
Machine in excellent condition, installed.
