AA23/181025E/YSS-CI/F/
SML Austrofil Multifilament Spinning Plant For PP Multifilament
Quantity: 1
Year: 2016

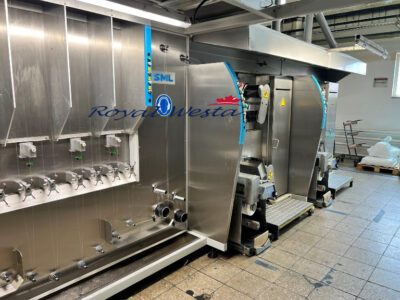

Austrofil Multifilament spinning plant for PP multifilament HT yarn - HT 4x2/75
Yarn titer range 165-4400 dtex
extruder output up to 160 kg/h
Polymer MFR (iso 1133) 10-25 g/10min
length 11000 mm
width 6700 (7300) mm
height 5600-6100 mm
Extruder - 75 mm, 28D
4 spinning sections
1x set of 148 filament spinnerets

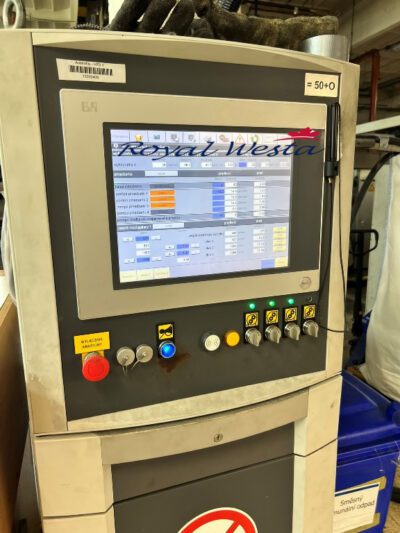

PLC from Smile

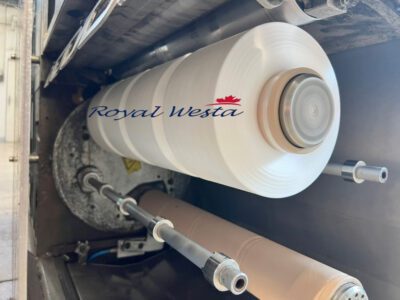

winding from STC - babyASW 602/604
for 2 or 4 ends per section on tubes dia 75 mm, length 150 mm or 300 mm
Doser from Maguire
5 components
without chiller, compressor, furnaceetc. Only machine, doser and Winding
machine is still working on the power
