New & Never Installed Smit 2Fast Looms

Quantity: 33
Year: 2025
These are new and bought directly from Smit before they ceased production.
6x machines 380cm predisposed for jacquard– price does not included accessories – beam, weft feeders etc.
1x machine 290cm predisposed for jacquard – price does not included accessories – beam, weft feeders etc.
1x machine 190cm Dobby compete in all respects.
7x machines 220cm pre-disposed for dobby – price does not include Dobby, beam, weft feeders etc.
17x machines 340cm pre-disposed for dobby – price does not include Dobby, beam, weft feeders etc.
1x machine 380cm pre-disposed for dobby – price does not include Dobby, beam, weft feeders etc.
These are all NEW and all Free Flight Machines
Looms can be completed with Staubli Dobbies and or Jacquards of your own desire, with weft feeders, harness frames, Droppers and Heddles, temples etc.

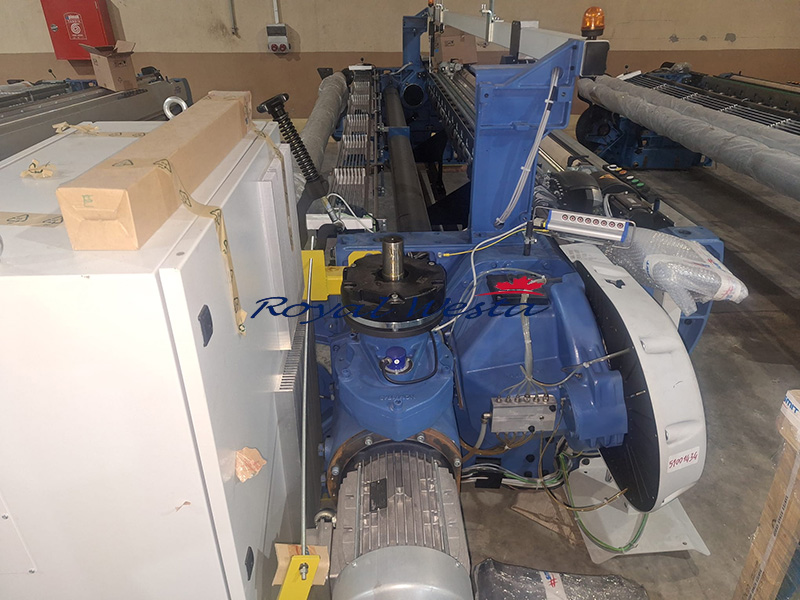

Attached is a picture of the 380cm Jacquard loom as an example.

Jacquard Looms:

6x NEW SMIT RAPIER JACQUARD WEAVING LOOMS
Type M2 FAST.380.C8J
Year of manufacture 2025
Working width 3800 mm
with pre-disposed Jacquard, w/o Jacquard
8 colors weft selection
Free Flight Rapiers
Speed 800 rpm
Converging Rapiers for precise weft positioning
Programmable elec. weft-cutter, Type E-cut
Control of the weft stretching at high speed, pick by pick independently
Electronic Scissors for lateral & intermediate cutting units
On Loom Take up
Full Beam Execution
With one 6 row electronic warp stop motion included

1x NEW SMIT RAPIER JACQUARD WEAVING LOOM
Type M2 FAST.290.C8J
Year of manufacture 2025
Working width 2900 mm
with pre-disposed Jacquard, w/o Jacquard
8 colors weft selection
Free Flight Rapiers
Speed 800 rpm
Converging Rapiers for precise weft positioning
Programmable elec. weft-cutter, Type E-cut
Control of the weft stretching at high speed, pick by pick independently
Electronic Scissors for lateral & intermediate cutting units
On Loom Take up
Full Beam Execution
With one 6 row electronic warp stop motion included

Dobby Looms:

1x NEW SMIT RAPIER WEAVING LOOM (Completed)
Type M2 FAST.190.C8D
Year of manufacture 2025
Working width 1900 mm
Including Staubli Dobby
Type S3020 DRC
20 Levers installed
8 colors weft selection
Free Flight Rapiers
Speed 800 rpm
Converging Rapiers for precise weft positioning
Programmable elec. weft-cutter, Type E-cut
Control of the weft stretching at high speed, pick by pick independently
Electronic Scissors for lateral & intermediate cutting units
On Loom Take up
Full Beam Execution
1 Electronic warp stop motion with 6 bars
1 Warp Beam 800mm diameter
1 Cloth Roller
16 Harness Frames
4 Weft Feeders
1 Weft Creel Stand
6,000 Heddle wires
6,000 Dropper wires (Open)

7x NEW SMIT RAPIER WEAVING LOOMS
Type M2 FAST.220.C8D
Year of manufacture 2025
Working width 2200 mm
Pre-disposed for Staubli Dobby, Type S3020 DRC
20 Levers capacity (not yet installed)
8 colors weft selection
Free Flight Rapiers
Speed 800 rpm
Converging Rapiers for precise weft positioning
Programmable elec. weft-cutter, Type E-cut
Control of the weft stretching at high speed, pick by pick independently
Electronic Scissors for lateral & intermediate cutting units
On Loom Take up
Full Beam Execution
With one 6 row electronic warp stop motion included

17x NEW SMIT RAPIER WEAVING LOOM
Type M2 FAST.340.C8D
Year of manufacture 2025
Working width 3400 mm
Pre-disposed for Staubli Dobby, Type S3020 DRC
20 Levers capacity (not yet installed)
8 colors weft selection
Free Flight Rapiers
Speed 800 rpm
Converging Rapiers for precise weft positioning
Programmable elec. weft-cutter, Type E-cut
Control of the weft stretching at high speed, pick by pick independently
Electronic Scissors for lateral & intermediate cutting units
On Loom Take up
Full Beam Execution
With one 6 row electronic warp stop motion included

1x NEW SMIT RAPIER WEAVING LOOM
Type M2 FAST.380.C8D
Year of manufacture 2025
Working width 3800 mm
Pre-disposed for Staubli Dobby, Type S3020 DRC
20 Levers capacity (not yet installed)
8 colors weft selection
Free Flight Rapiers
Speed 800 rpm
Converging Rapiers for precise weft positioning
Programmable elec. weft-cutter, Type E-cut
Control of the weft stretching at high speed, pick by pick independently
Electronic Scissors for lateral & intermediate cutting units
On Loom Take up
Full Beam Execution
With one 6 row electronic warp stop motion included

Special Features of the M2 Fast Loom:
Main frame reinforced - reduce vibration and torsion
Integrated drive - compact layout
Dobby under motion Staubli - reduce vibration
Let off gear box reinforced- increase range of wrap tension
Beating position +2degree - improved beating efficiency
Load cell - improved the reading capacity and tolerance
Touch screen - net connection
Dobby gear connection - no belt high performance
