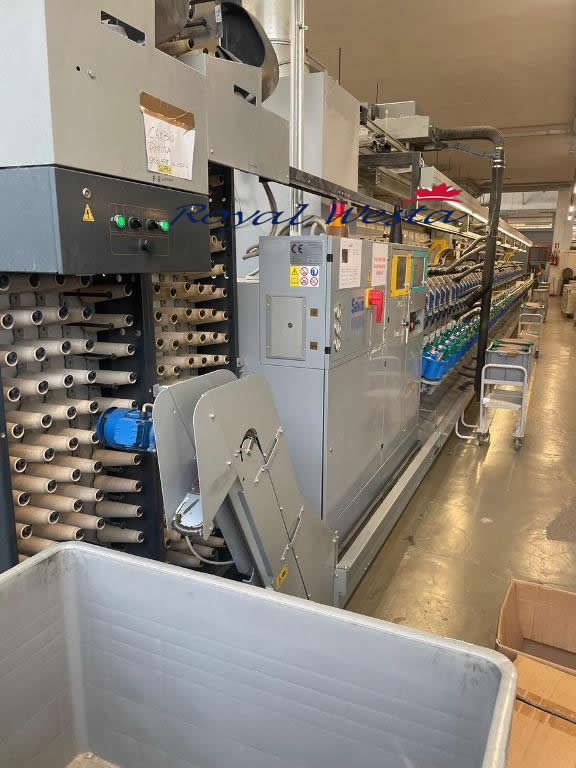

SAVIO Automatic Cone Winder

Quantity: 1
Year: 2005

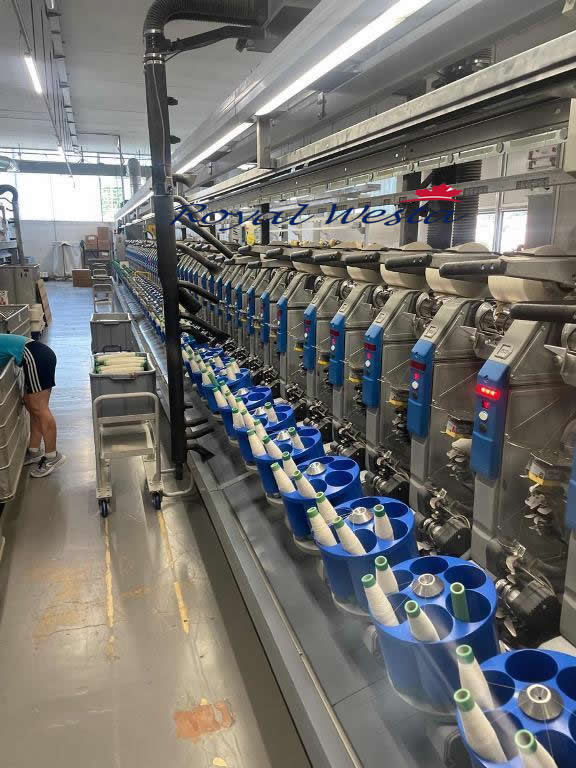

mod. ORION L (As seen in pictures machine looks new and highly maintained)

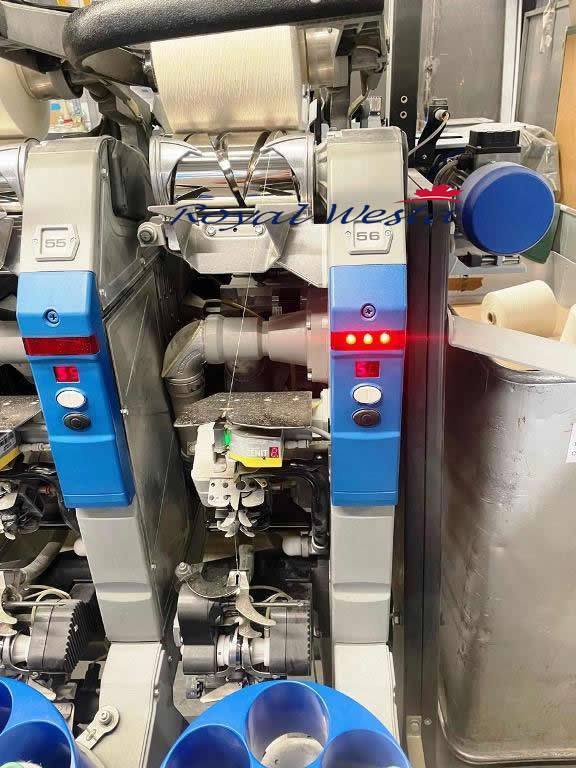

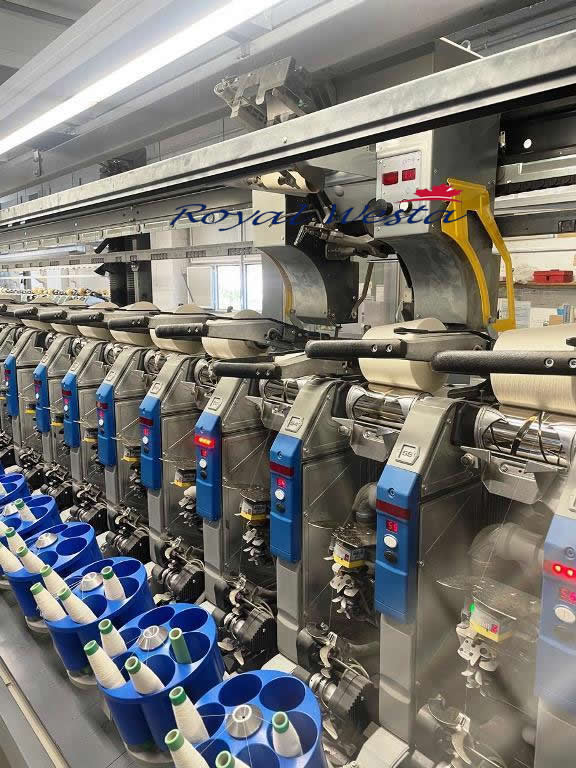

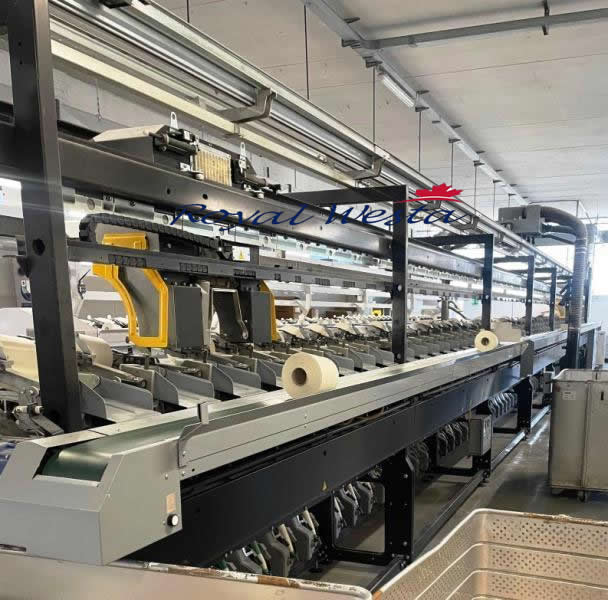

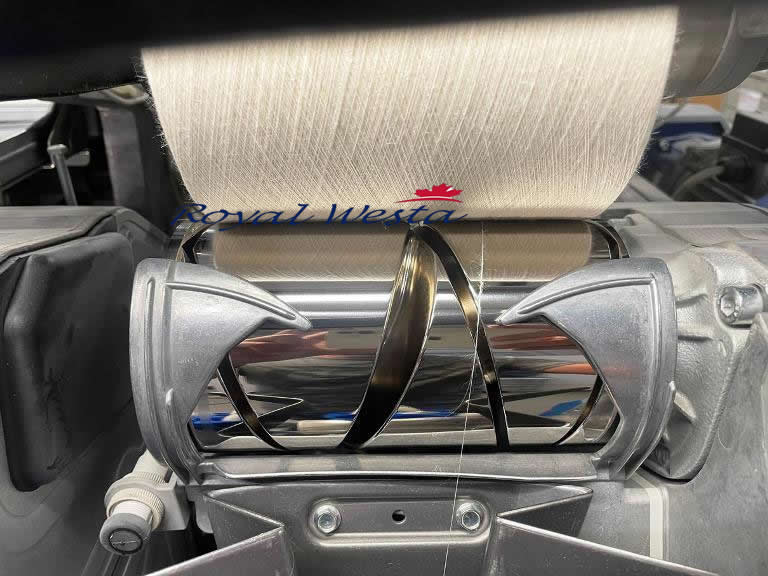

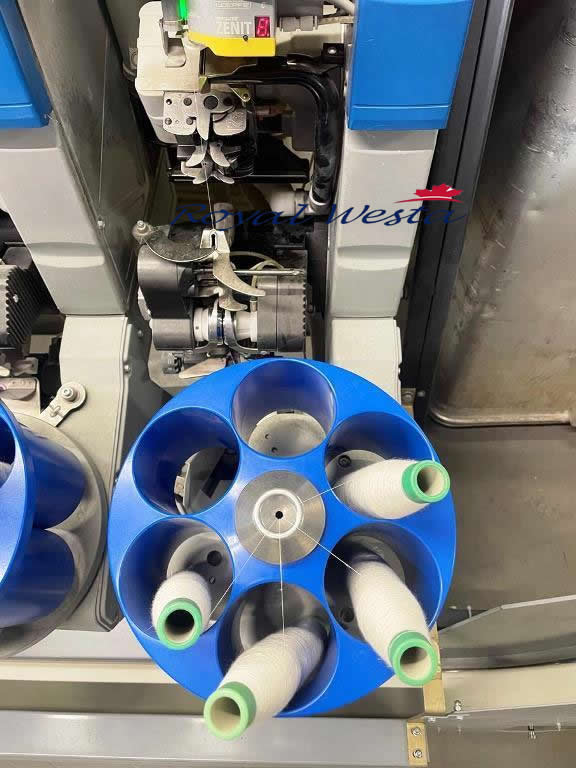

with 56 spindles ,manual bobbin feeding , magazine revolver type ,pitch 6" (152 mm) , conicity 4°20' , drum diam 94 mm. 2 turns asymmetric step ,automatic bobbins doffing ( by n. 02 trolley ) ,double centralized empty cones feeding ,package conveyor belt , split for unloading n. 03 lots ,

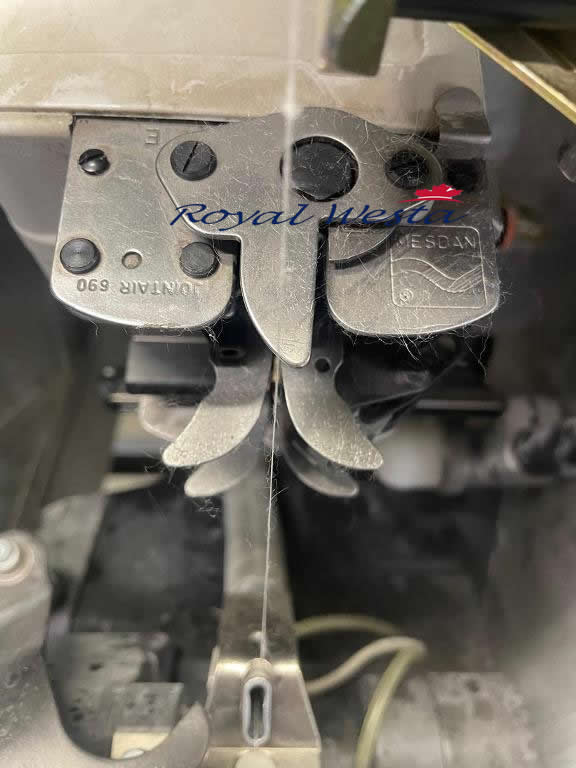

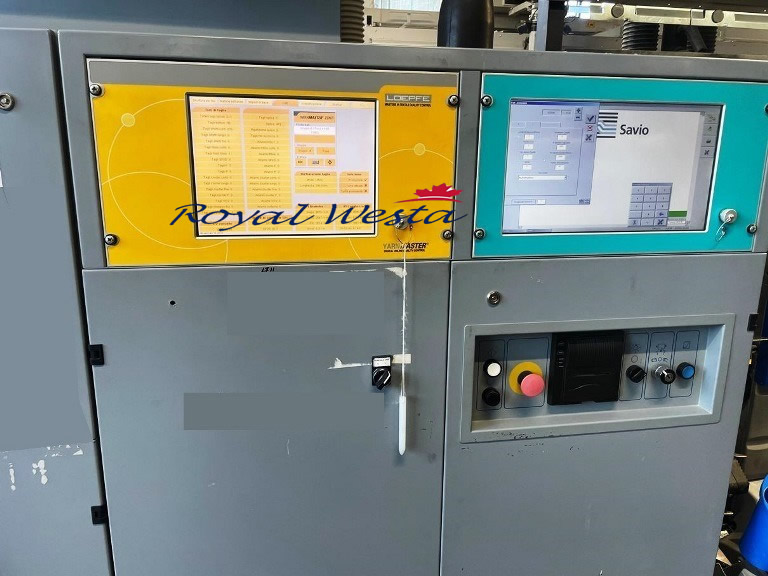

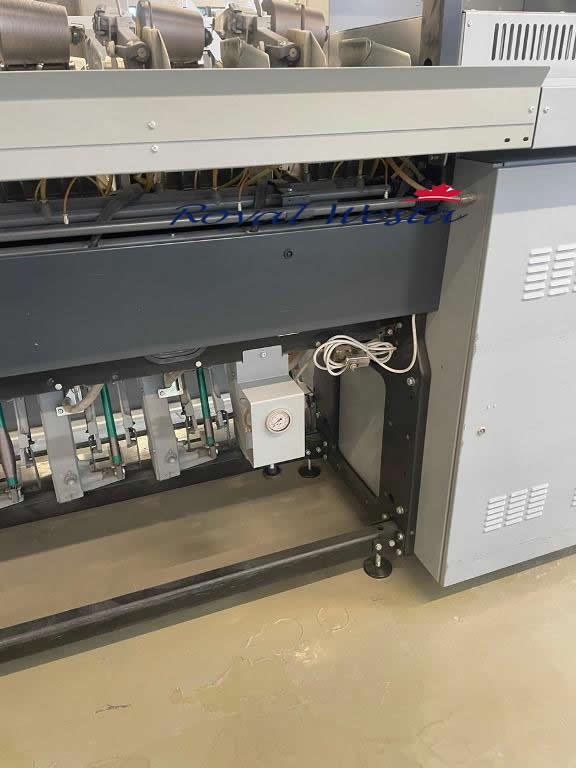

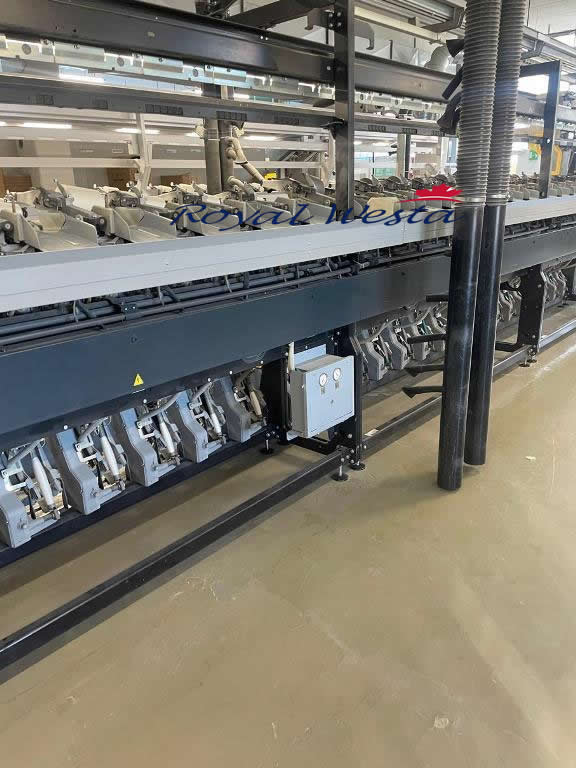

With 3 pneumatic control panel , to split yarn tension for n. 03 lots ( 24/16/16 ) ,double tubes unload belt , one towards the head , one towards the tail of the machine ,yarn stretcher + waxing device on n. 16 heads , yarn stretcher on n. 40 heads ," Tensor " sensor device to control by Computer the constant density winding process , automatic joint yarn Splicer Mesdan mod. 690 ,Computer to set speed , yarn length on package and to control/monitor all the winding process ,

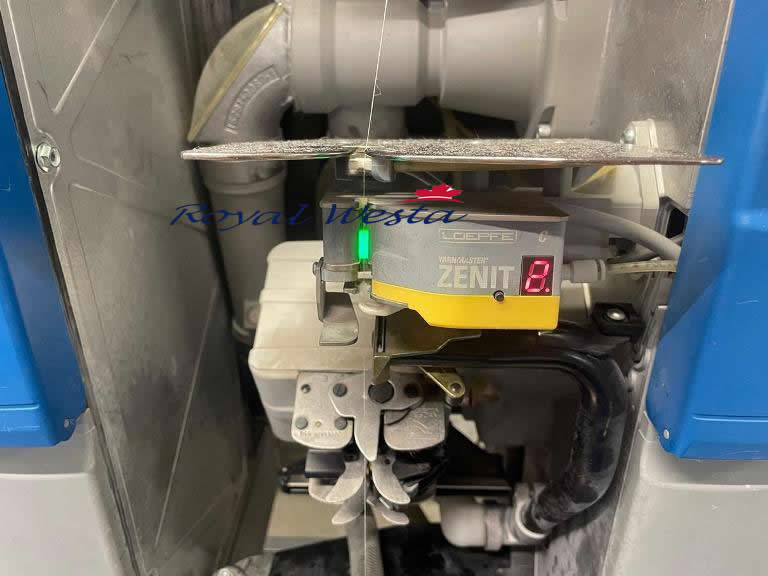

electronic yarn clearers Loepfe Zenit YM C , equipped with foreign fibers chanel ,

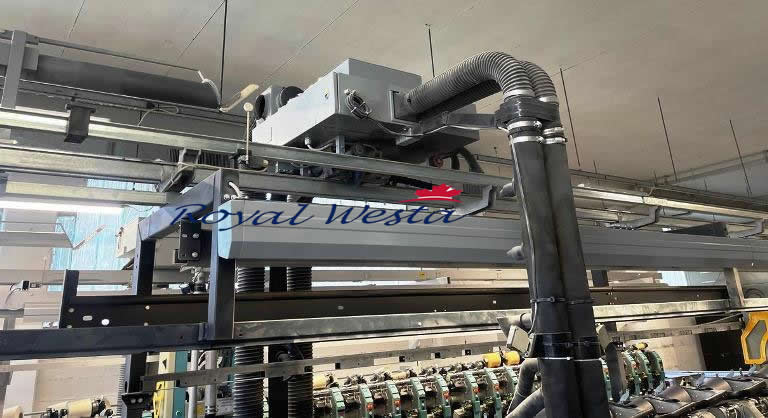

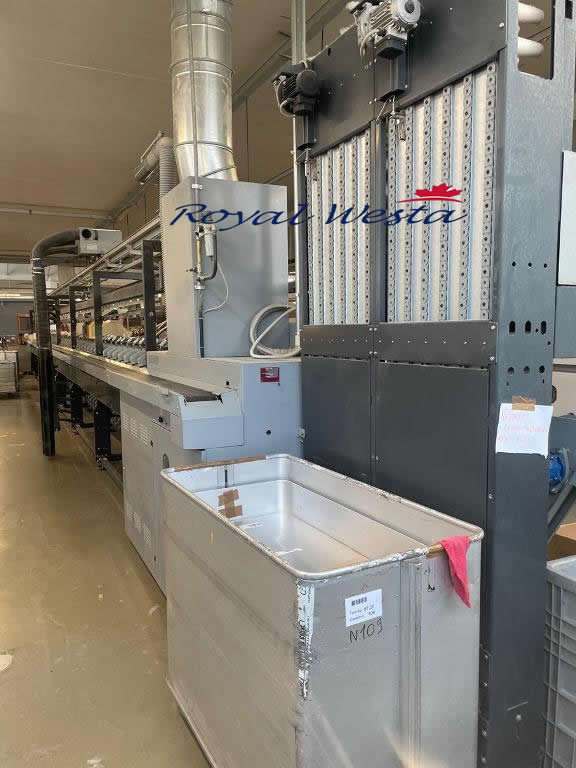

Magitex Blower ,Lightening along the machine

NOTE:
Location : The machine has been dismantled by professional technicians and is currently stored in warehouse in Europe
Machine in excellent running condition , no broken or missing parts ;
