Salvade Calender

Quantity: 1
Year: 2018

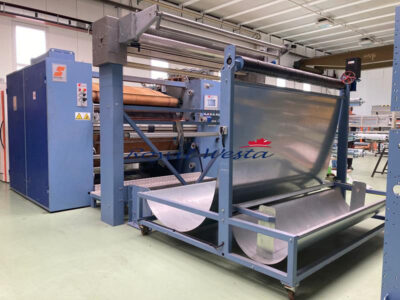

Felt calender type COMBI 1020 JB, CME, K3, A for transfer printing, laminating and application of metallic and fancy foils (not micro-dot).
Electric Power V.400, Hz.50, Ph.3 + T (other on request). Total Consumption: kW 63.
Working Width Up to 1700 mm.
Heated Cylinder: Diameter 1000 mm. ; Total width 2000 mm.
Heating system: electric by n. 30 resistances + thermic oil in the cavity wall of the cylinder and expansion tank, all included).
Felt: Seamless closed ring felt made of 100% aramid fibre, for high temperature transfer printing with automatic proportional electro-pneumatic felt guide system.
Brakes: n. 5 electromagnetic powder brakes with very fine adjustment by machine software.
Clutches: n. 2 electromagnetic powder clutches with very fine adjustment by machine software.
Winding system: type A x contact by 2 rubberized rollers and J-box for fast roll change.
Compensator: Adjustable counterweight compensator dancer for knits, elastic fabrics and woven fabrics.
Operator side: the “touch screen” control panel is positioned on the right side.
Felt extraction: from the left side of the machine.
Electric box side: the electrical box is positioned on the right side of the machine.
Language: SW Italian/English/Spanish.
Accessories included:
“JB” J-box, ME type on inlet side

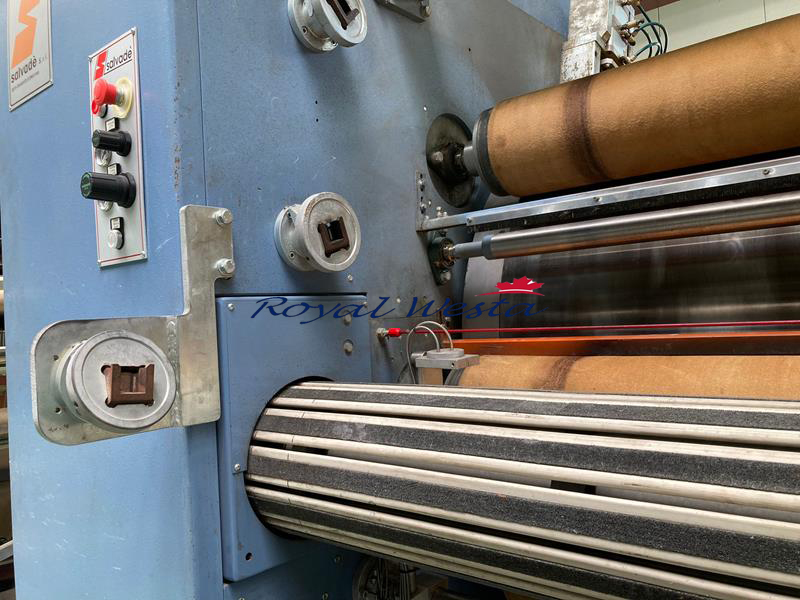

“CME” Bilateral double slat expander/centerer with 2 photocells.
“K3” type pressure cylinder with booster for thrust up to 3.2 Tons.
Platform with 2 shoulders for protection paper unwinder for rolls up to Ø 600 mm with electromagnetic powder brake + idle rolls for paper and fabric passage coming from J-box. There is also an expander & with slatted centering device (Dogal by Bianco) for centering the fabric that goes to the CME.
Voltage: V.400, Hz.50, 3 Phases + Earth (other on request)
