Picanol Rapier Weaving Looms

Quantity:119

74x PICANOL DOBBY RAPIER LOOMS Model Optimax-i 8R, Year: 54x2016-20x2017
220 cm weaving width
8 Color Weft Insertion
FF Free Flight Rapier system
Staubli Dobby
Model S.3020 E3 DRC/C4CAN
20 Lever Capacity
16 levers installed (42 year 2016)
18 levers installed (12 year 2016)
16 levers installed (20 year 2017)
Leno selvedge with ELSY each side
On Loom Take up
Double back rest rollers
Supplied with
1 Warp Beams 800mm diameter
1 Cloth Rollers

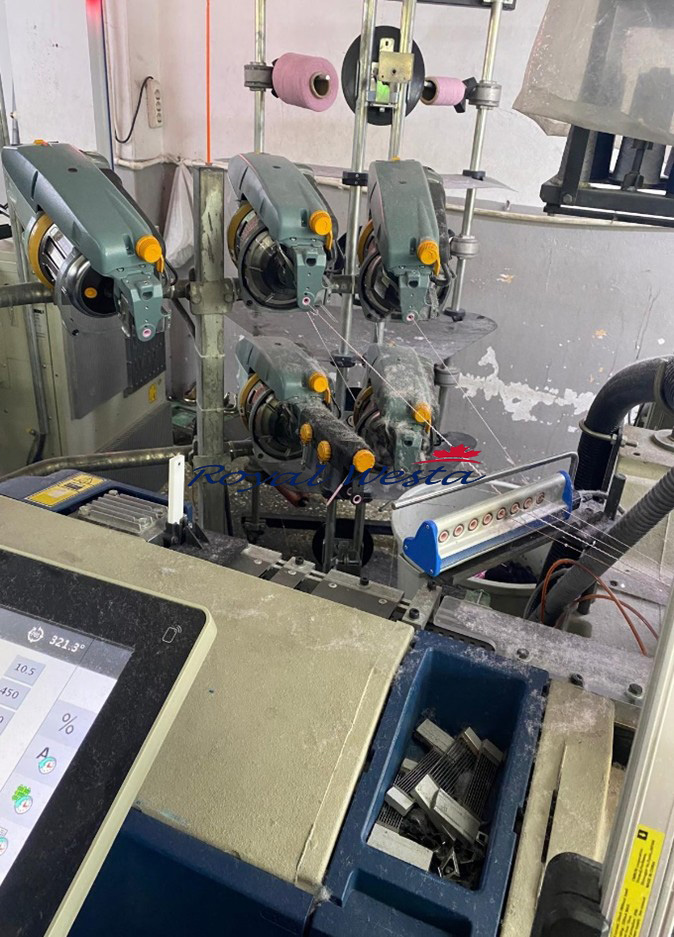

4 IRO Chrono X4.0 weft feeders
12 Harness Frames
Healds and droppers as installed

24x PICANOL DOBBY RAPIER LOOMS Model Optimax-i 8R, Year: 2017
220 cm weaving width
8 Color Weft Insertion
GC Guided Rapier system
Staubli Dobby
Model S.3020 E3 DRC/C4CAN
20 Lever Capacity
16 levers installed
Leno selvedge with ELSY each side
On Loom Take up
Double back rest rollers
Supplied with
1 Warp Beams 800mm diameter
1 Cloth Rollers
4 IRO Chrono X4.0 weft feeders
12 Harness Frames
Healds and droppers as installed

15x PICANOL CAM RAPIER LOOMS Model Optimax-i 4P, Year: 2020
380 cm weaving width
4 Color Weft Insertion
Free Flight Rapier system
Staubli Cam
Model 1792 DRC/C4CAN
8 Lever Capacity
8 levers installed
with ELSY each side
Side and (2) center Tuckers
Batcher
Double back rest rollers
Supplied with
1 Warp Beams 1000mm diameter
1 Batcher
4 IRO
8 Harness Frames
Healds and droppers as installed

6x PICANOL JACQUARD RAPIER LOOMS Model Optimax-i 8J, Year: 2016
220 cm weaving width
8 Color Weft Insertion
FF Free Flight Rapier system
Staubli Jacquard
Model SX
2688 Hook Capacity
2688 Hook Installed
Staubli JC6 Controller
Leno selvedge with ELSY each side
On Loom Take up
Double back rest rollers
Supplied with
1 Warp Beams 800mm diameter
1 Cloth Rollers
4 IRO Chrono X4.0 weft feeders
Droppers as installed
