AI83/301025/

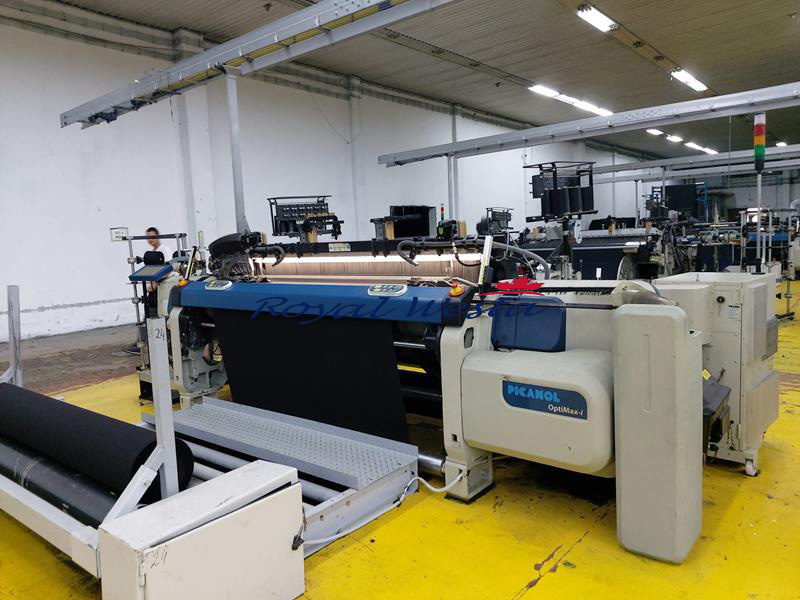

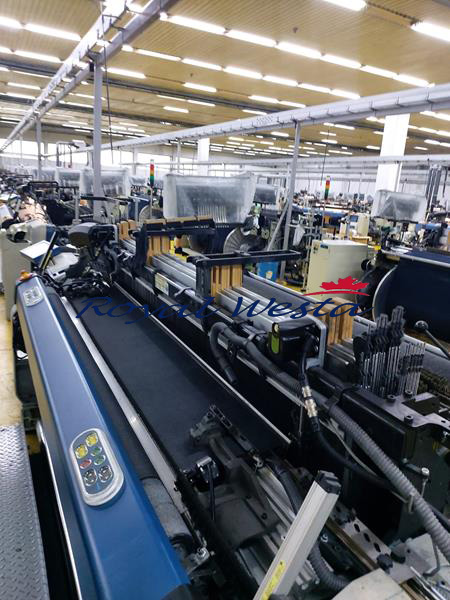

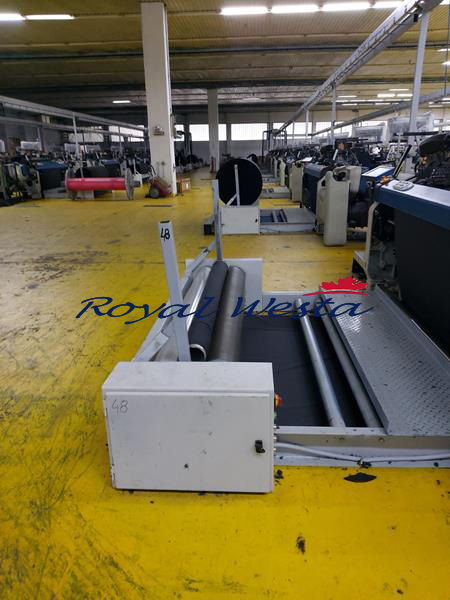

Picanol OptiMax-i-6-R Looms
Quantity: 30
Year: 2019
Working width: 2200mm
GC gripper system
STAÜBLI S3020
Levers 16 max
SUMO motor
6 electronic colour
2 weft accumulators type IRO Luna x3
16 frames Alupower 124 gtp
Single beam
Groz-Beckert KFW 5600 warp stop motion
Detection bars 6
Tension roll approx 120mm diameter (can't be measured accurately due to the connection of the roller to the machine)
Single warp
Warp beam diameter 1000mm
External batching motion
Droppers 5900 installed in 5 lines, 1 line empty and space for more.
