AB60/090426/

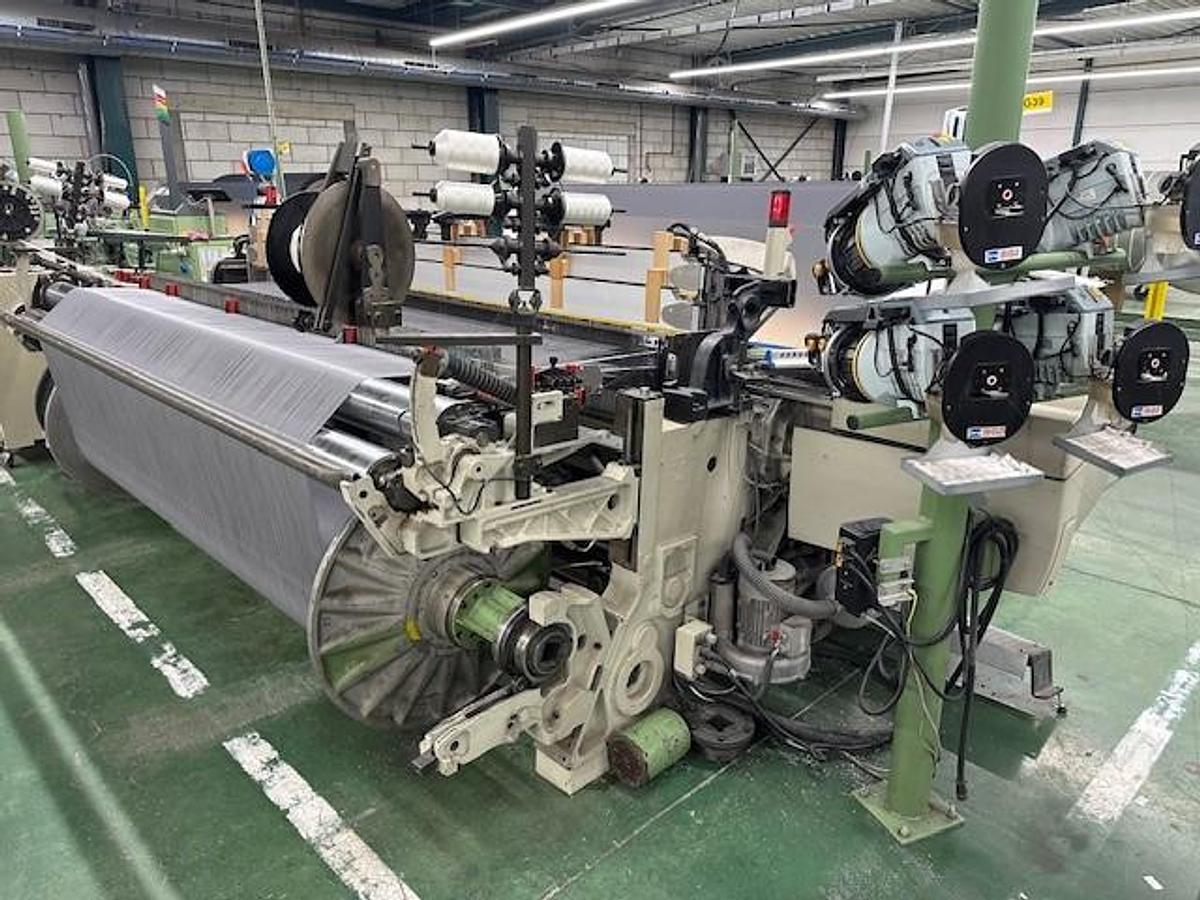

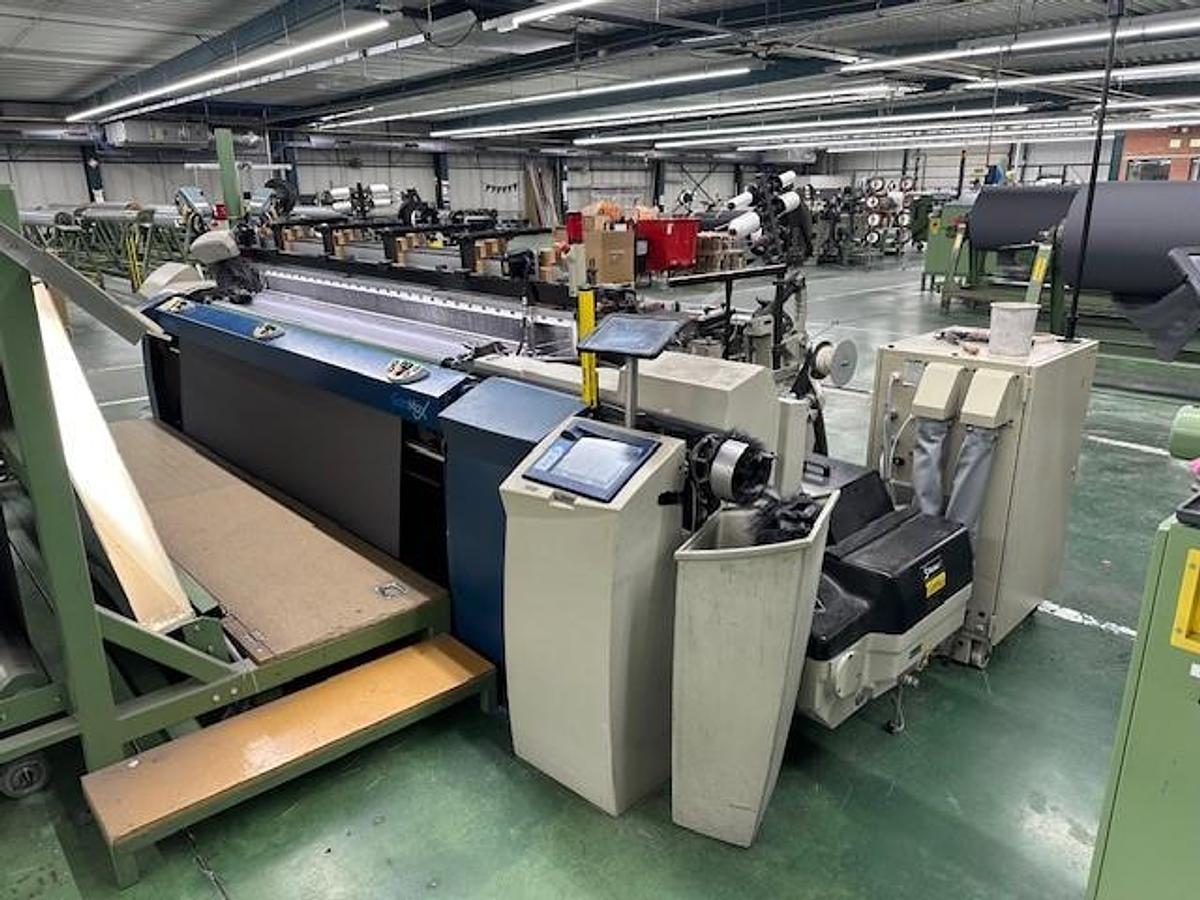

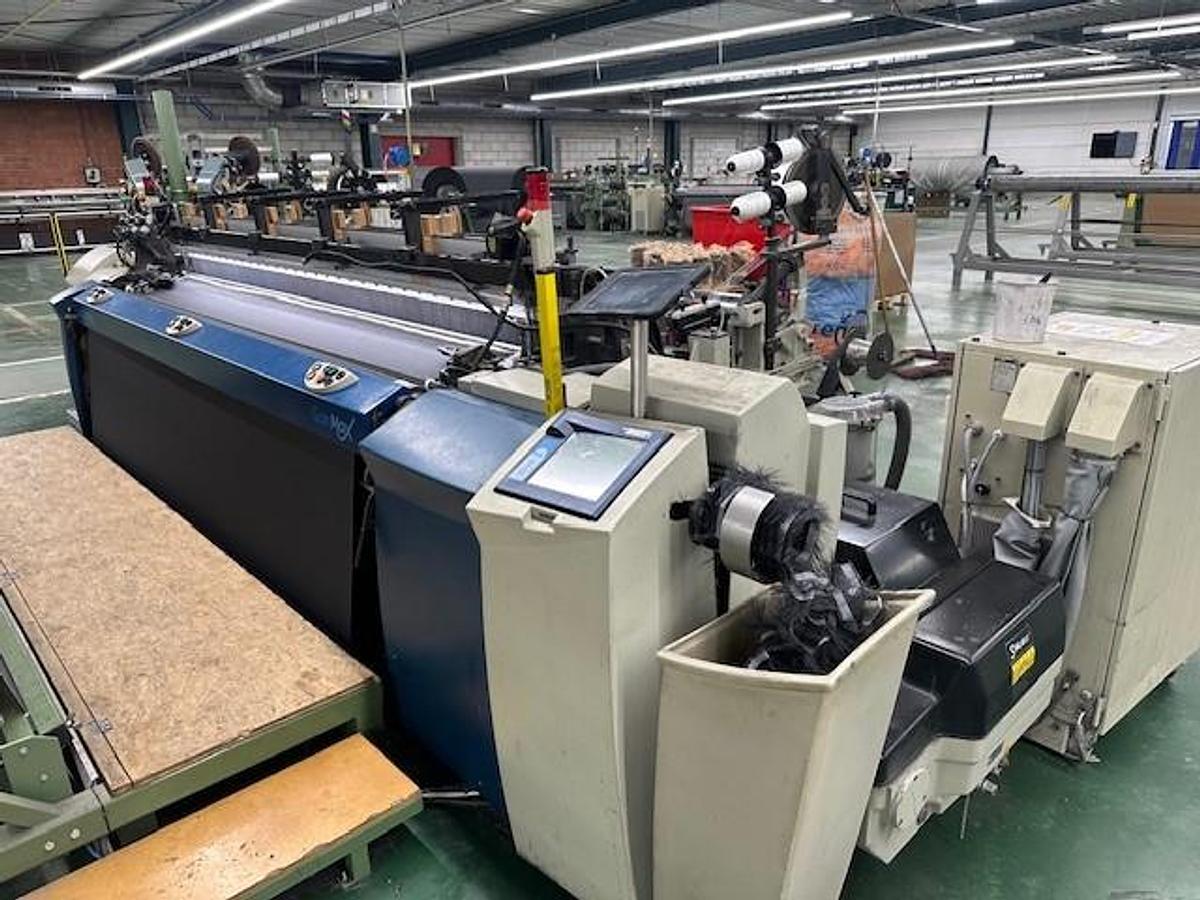

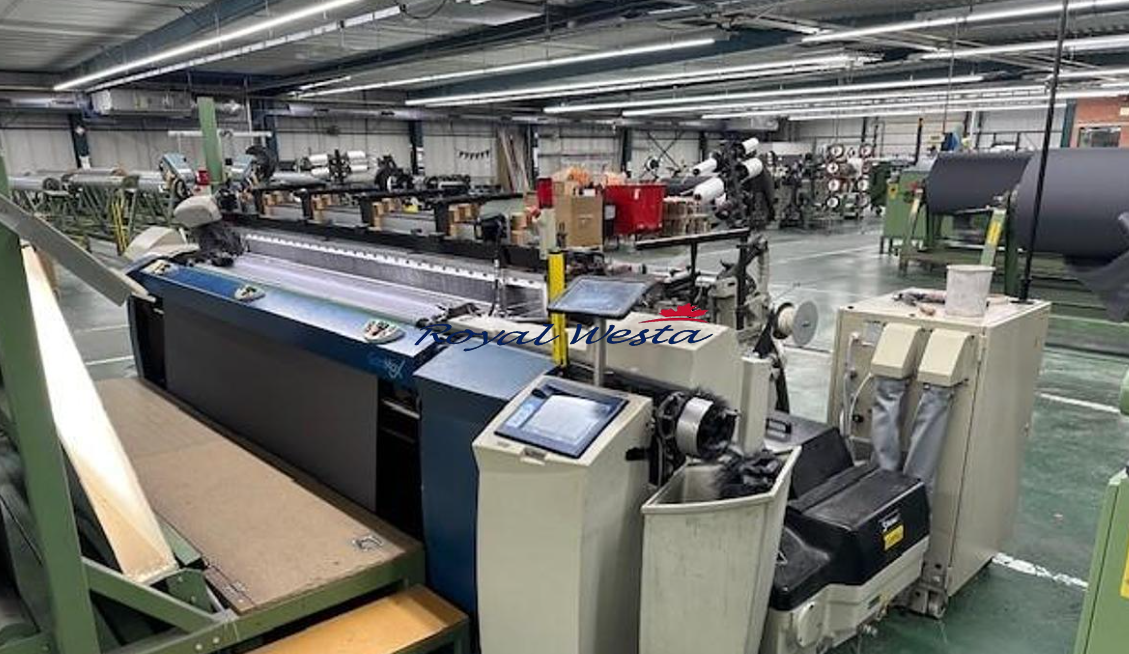

PICANOL grapple looms type GamMax-6-R-300

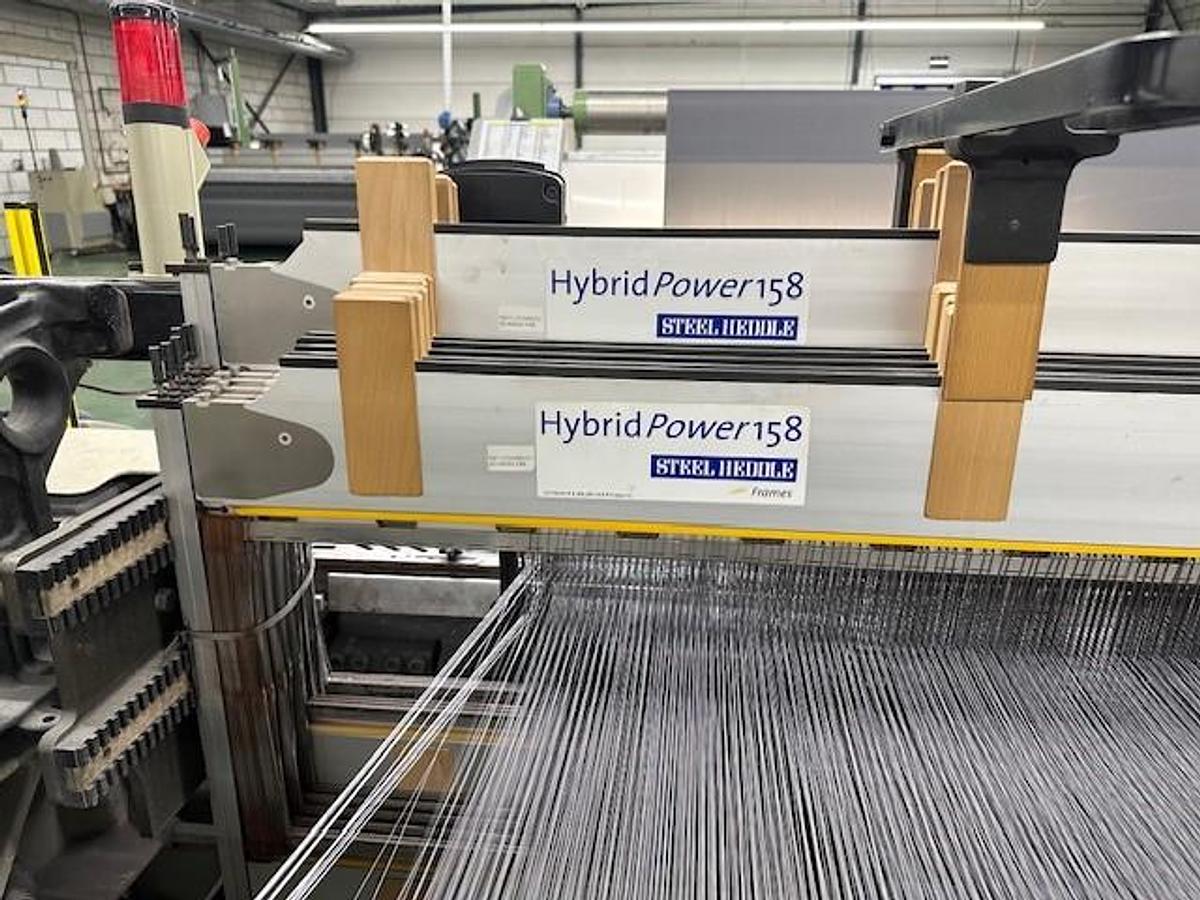

2 MACHINES, year of manufacture 2006, working width 3000 mm, free flight, 6 colors, electronic STAUBLI shank machine type 2861 up to max. 24 shanks, 14 shank drives installed, each loom equipped with: 6 weft colors QS, 4 pre-winders PICANOL type Chrono X2, pre-winder support, bobbin rack, 12 shafts STEEL HEDDLE type DRC3 Hybrid Power 158 13”, 5 rows warp guard GROB, levers & slats as on the loom, warp beam position 12, double drawbar diameter 140 mm with spring left and right, double pressure roller, mechanical weft share, electric waste share RHS & LHS, waste system with waste bin, suction motor RHS, touch screen BLUE, cloth roller drive with 1 cloth roll, 1 ½ chain beam diameter 800 mm, speed 430 RPM.
