AB60/081123/

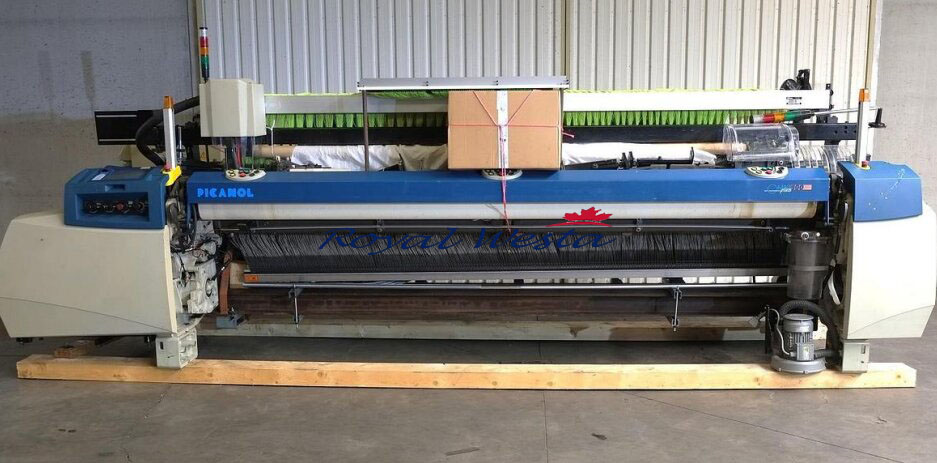

Picanol Air Jet OmniPlus 800-F-4-R-280 Weaving Loom

Quantity: 1
Year: 07/2006
Type OmniPlus 800-F-4-R-280
working width 2800mm, 4 colours,
with jacquard STAUBLI type CX880 serial number BFM/COF1 year of construction 07/2001, format 1408, 1344 hooks installed. Equipped with : SUMO, ELO, ETU, 4 weft colours, 4 weft feeders PICANOL type 1131X2 with PFL, feeder stand, bobbin creel, with end bobbin detection, double warp tension rolls Ø 140mm with springs RHS + LHS, single pressure roll, Leno RHS + LHS, STAUBLI harness year of construction 2018, warp beam position 13, warp detection GROB with 6 detection bars, droppers, melt cutters RHS+LHS, touchscreen, walking step, waste-system, cardan axe, controller STAUBLI JC7 (year of construction 2016), 176 modules MP (=M6), single gantry, foreseen for warp beam T280 but without warp beam T280, foreseen for external batching motion but without external batching motion, speed 750 TPM.
