AH82/131025D/RPL-RL/F/BC/

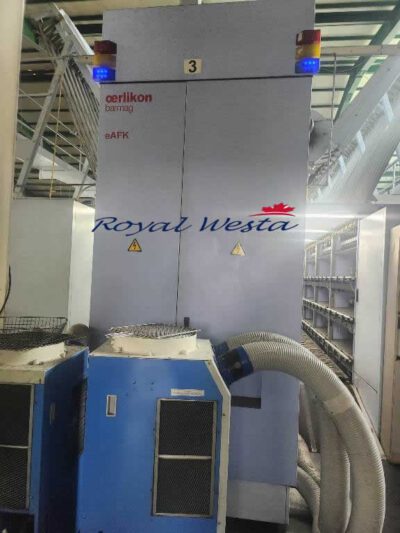

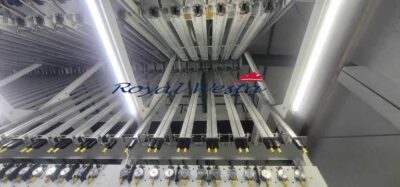

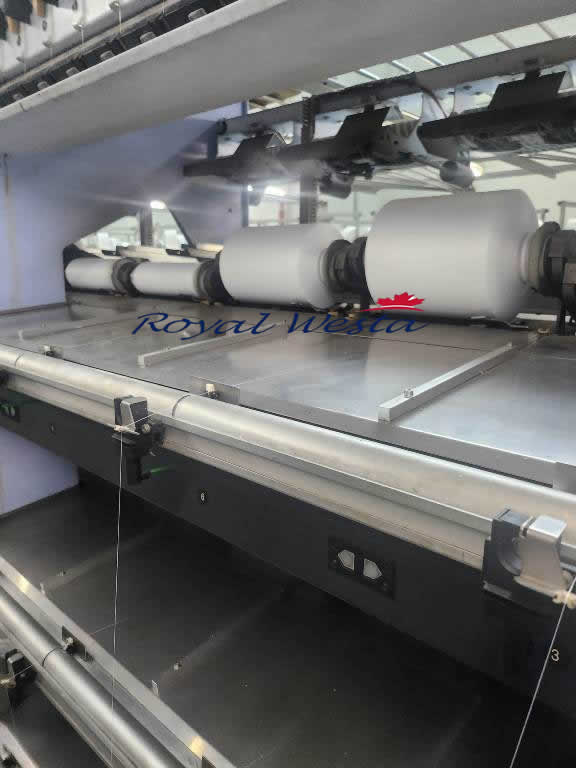

Oerlikon-Barmag Model “EAFK”(Site A)
Quantity: 1
Year 2012
288sp
Inverter type

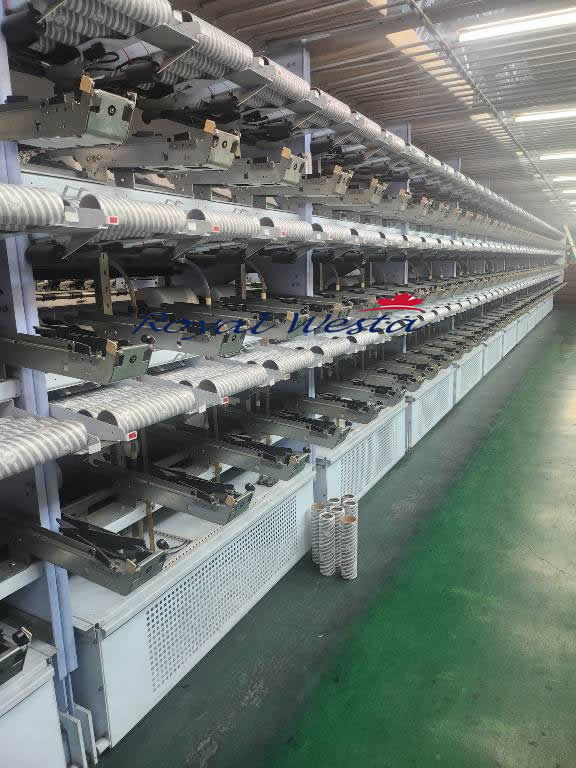

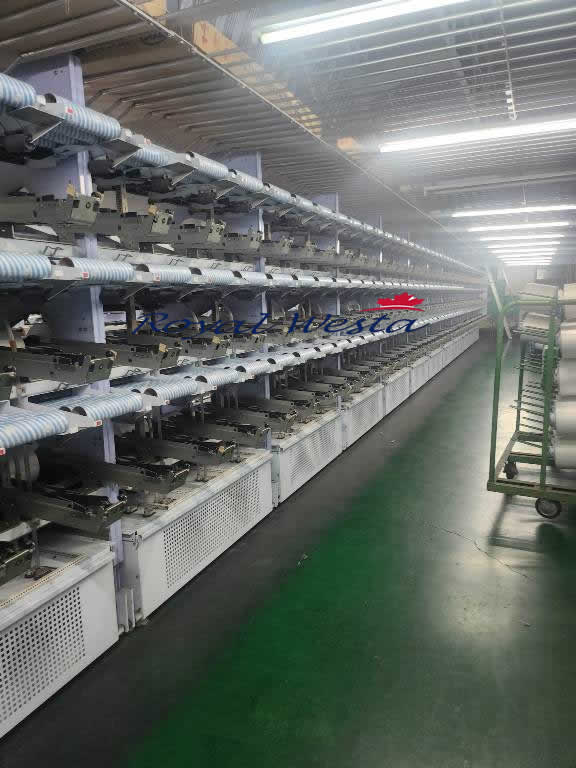

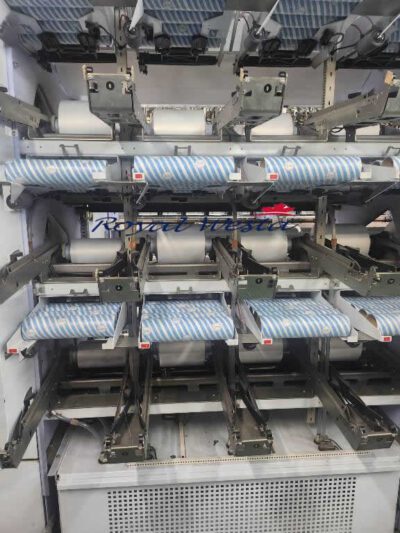

Auto-doffing.
Two Heaters.
Additional tech details:
1- The machine is 2 sides, it means side A and side B, separately, LH+RH.
2- The machine JETS are Heberlein brand
3- INVERTER,
There are two typed of driving system as below:

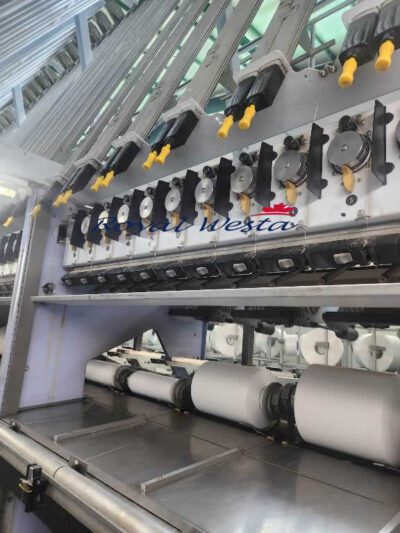

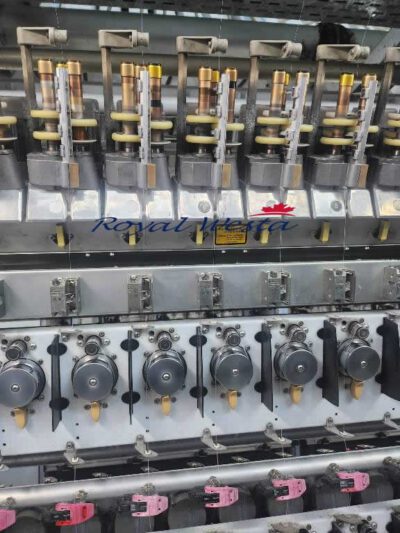

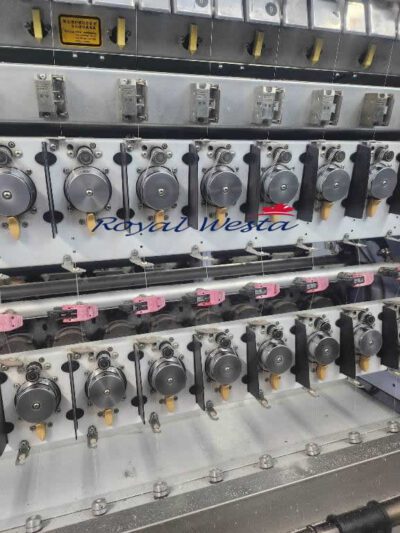

(1). Individual Spindle Drive (e.g., Barmag FK, EFK, E-AFK, etc.) Structure and Control: Each spindle is driven individually by
a disc motor and controlled by an inverter (frequency converter).
The inverter regulates the rotation speed and torque for each spindle separately.
(2). Belt-Driven System (e.g., Murata 33H) Structure and Control: All spindles are driven by a single motor through a common belt system.
Speed is uniform across all spindles and is controlled by the main motor speed.
4- The RANGE OF DENIERS that these machines do range from 30 to 300d.

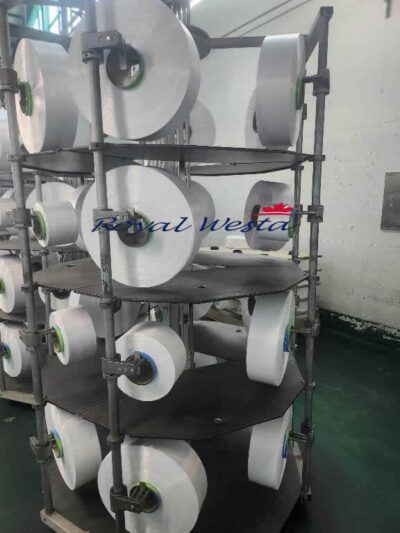

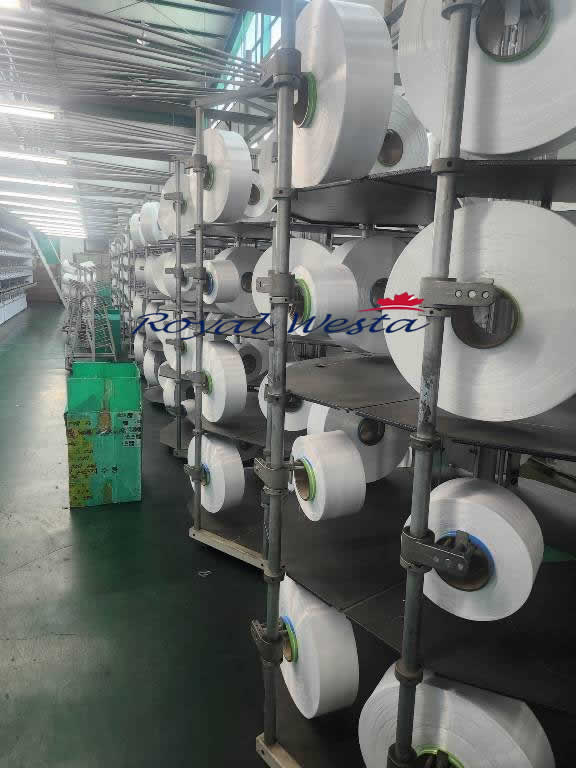

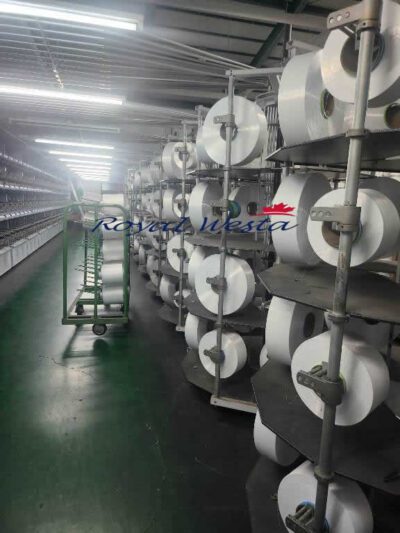

(1). Factory where the machine is mostly producing 75d and 150d, specially 300d.
for example 850rpm x 150d x 288sp x 24h x60 min. / 9,000 / 1,000 = 5,875.2 Kg x 30 days= 176,256Kg monthly per machine 288sp.
(2). With S-Z function(double disc), possible to produce 600d.
(In case of production for 600d with 300d by S-Z function,
productivity is 1.8 times higher than standard operation)
(3). In case of production with lycra device, productivity will be
decreased by 10 to 15%.
5- machine is made in China by Barmag of Germany

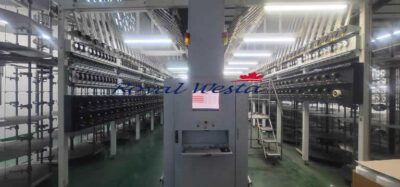

6- This machine is in a SITE called SITE [A] and is in full running in excellent condition.
7- Machine can be inspected under power
