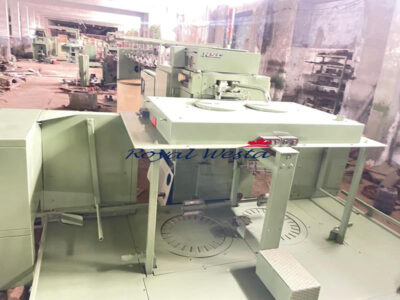

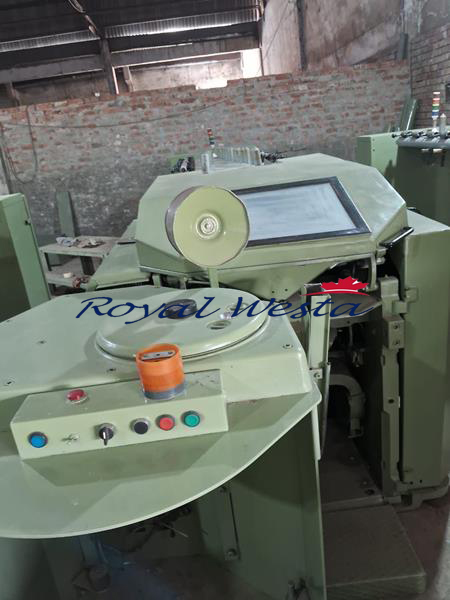

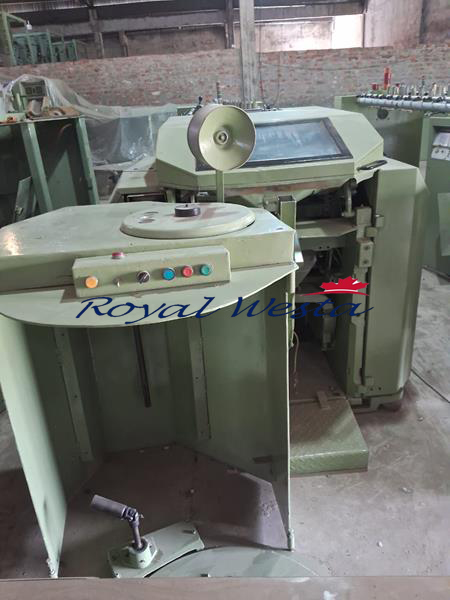

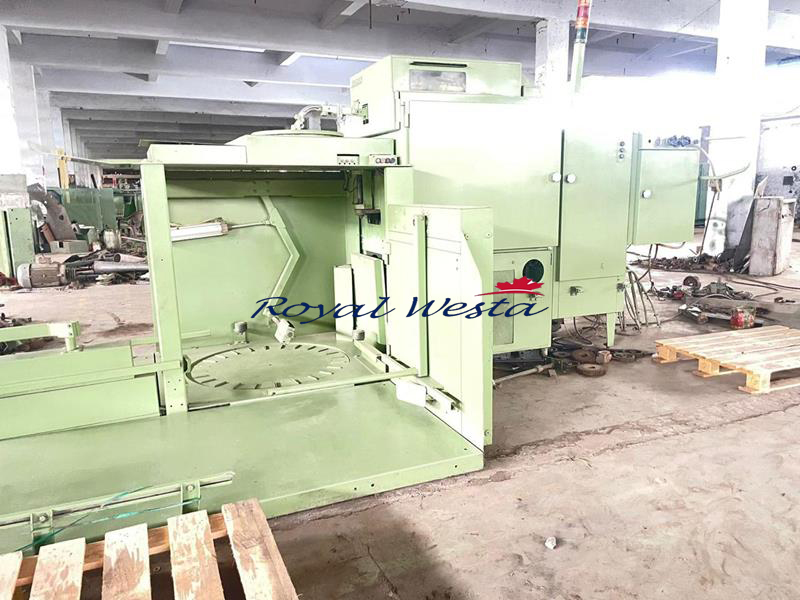

NSC Gillboxes

1x NSC GC14

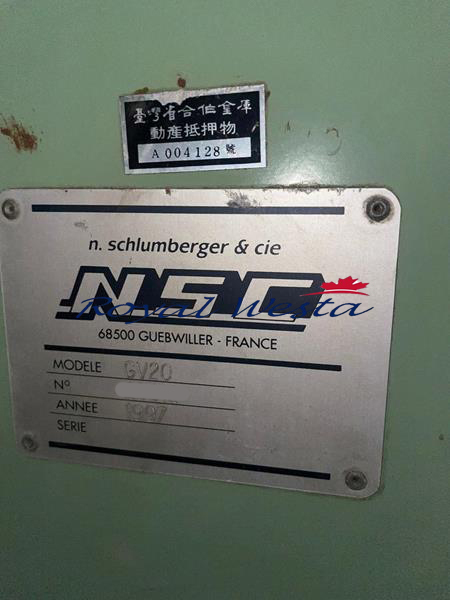

1x NSC Gillbox GV20
Year 1997 , It is autodoffing

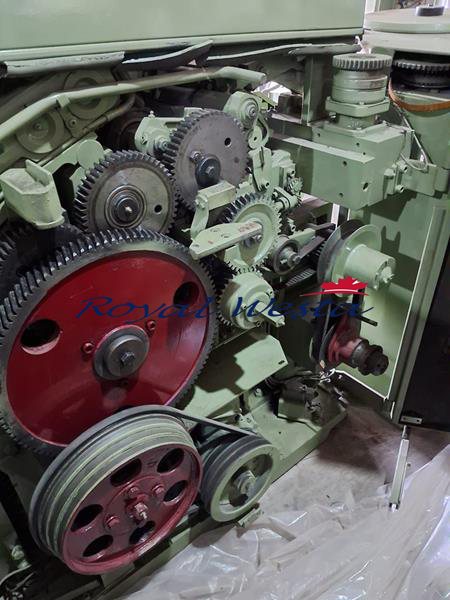

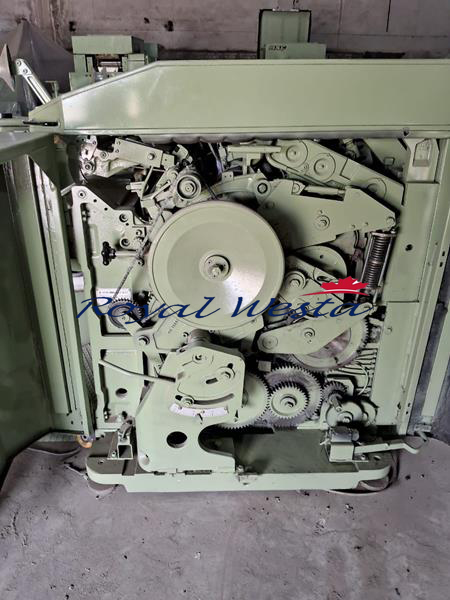

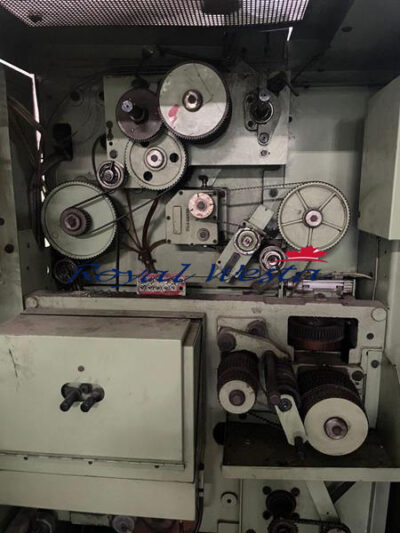

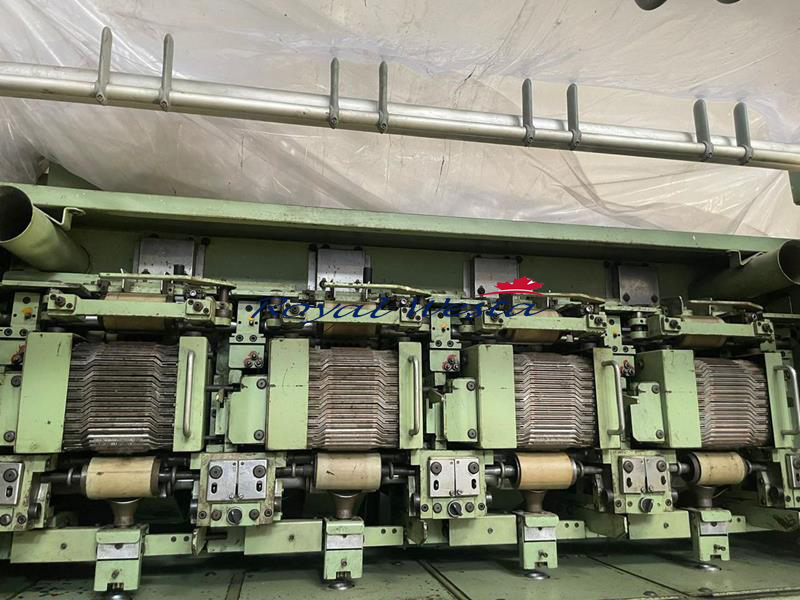

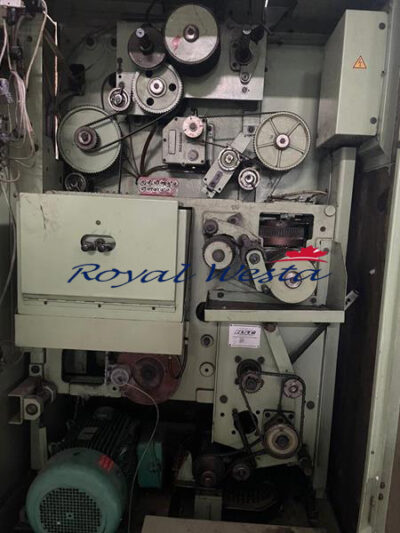

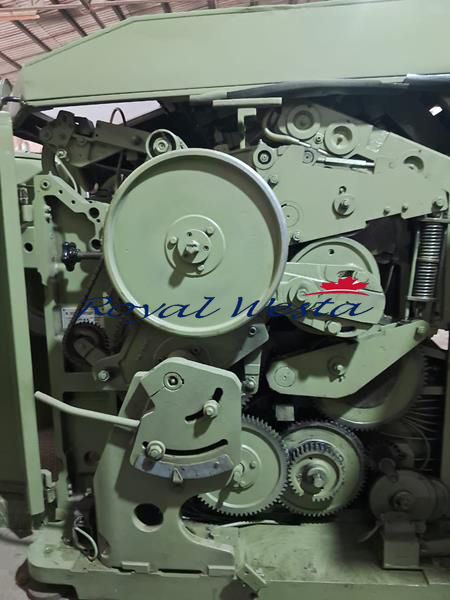

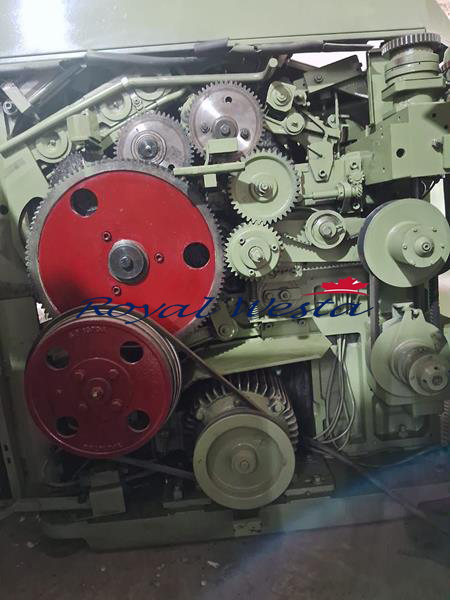

The GV20 high speed finisher Gill Box have perfectly vertical drafting system above the cans with 04 faller heads having chain drive.

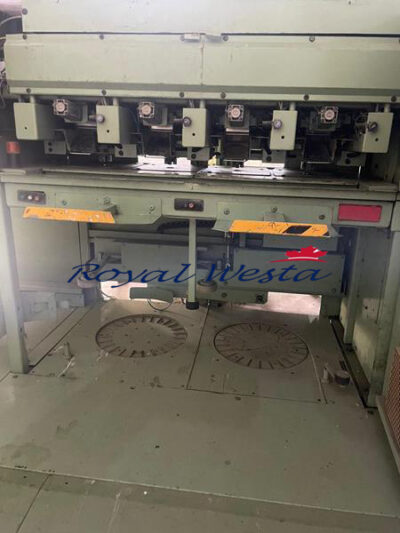

Machine with 4 Heads, delivery 02 cans (700*1000), consequently double end.

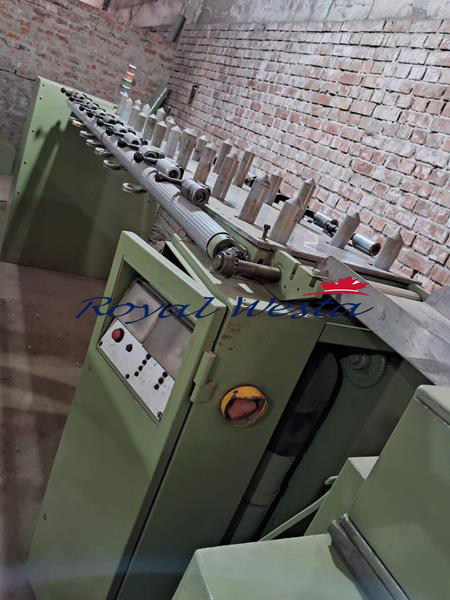

An Overhead type creel with a capacity of 4*4 cans upto dia 800 mm.
Faller chain Pitch - 9.525 mm
Number of fallers per Head - 2*56
Active fallers - 2*16
Draft cylinder Diameter -30/ 62.5 mm
Feed Cylinder Diameter - 50 mm
Fallers Pinned length - 85mm
Standard Draft Range - 4.5 -13.1
Max. Delivery speed - 400m/min
Compressed air supply - 6.0 Bars

1x NSC GC15
