AC94/010426/BS/
New/Unused POY & FDY Spinning Lines & DTY machines
15x TMT (Japan) POY Spinning Lines - 2010/2011 year

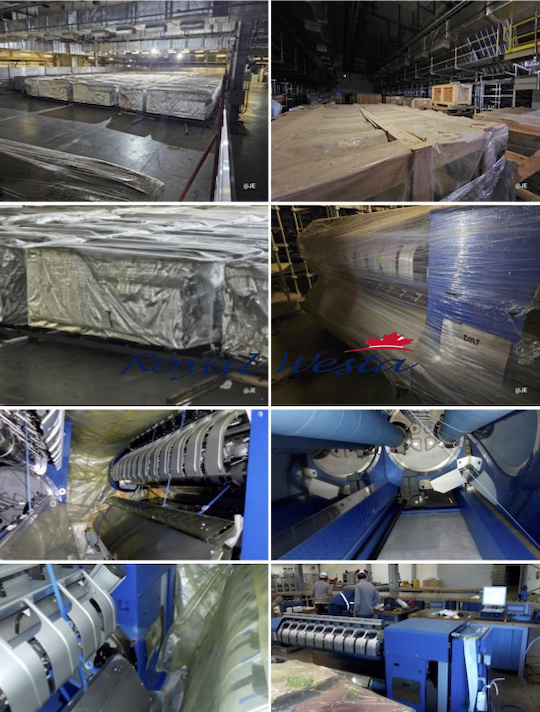

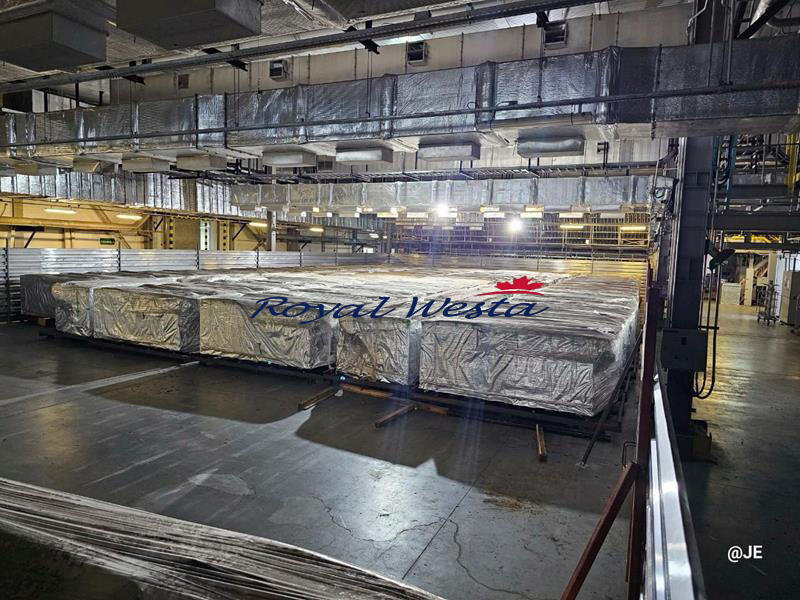

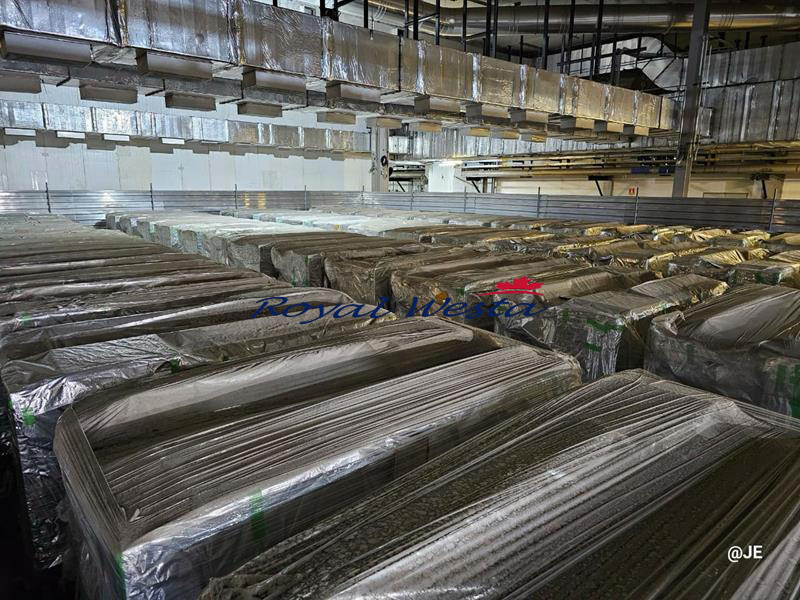

NEW/UNUSED in original packing
Individual lines set up for coarse, regular, fine and micro denier yarn
All lines engineered to feed directly from Polymer w/o extruders
Includes oil finish, quenching, godet section and winding

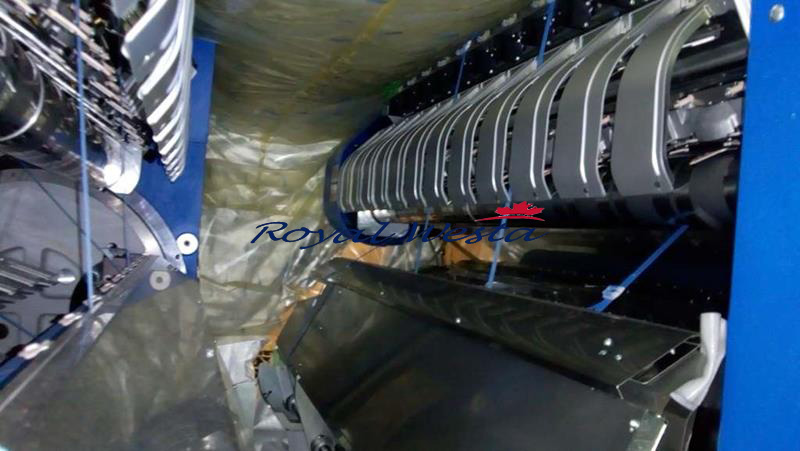

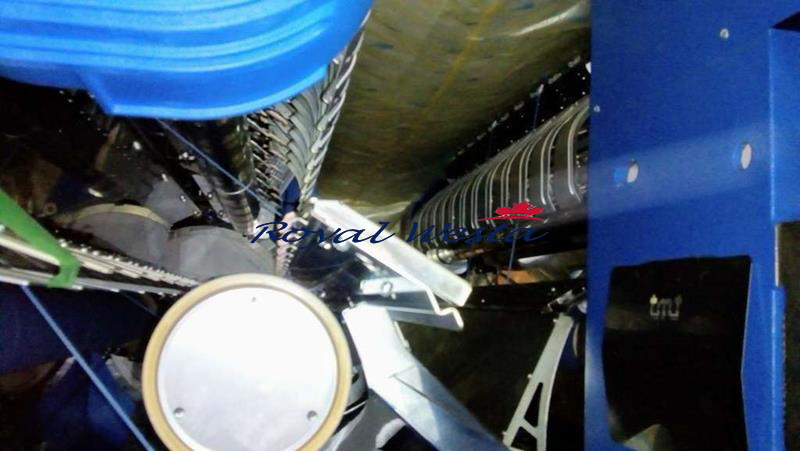

Each line with 36 x TMT Take Up Winders
Type ATi-415R/10 with 10 cops each
====
1 x Line for coarse denier - (267 ~ 533/36 ~ 136f)
After drawing: (220 ~ 334 dtex/36 ~ 136f dpfrange: 2.0 ~ 5.6 de/f)
36 x TMT Take up Winders type ATi-415R/10 - 1400mm (total 36 winding units)
====
7 x Lines for regular denier - (134 ~ 267 dtex/36 ~ 96f)
After drawing: (83 dtex~167 dtex/36 ~ 96f dpfrange: 1.0 ~ 3.4 de/f)
36 x TMT Take up Winders type ATi-415R/10 - 1250mm each line (total 252 winding units)
====
4 x Lines for fine denier - (89 ~ 134 dtex/24 ~ 48f)
After drawing: (55 ~ 83 dtex/24 ~ 48f dpf range: 1.4 ~ 3.0 de/f)
36 x TMT Take up Winders type ATi-415R/10 - 1250mm each line (total 144 winding units)
====
3 x Lines for micro denier - (124~267 dtex/72 ~ 288f)
After drawing: (83 ~ 167 dtex/72 ~ 288f dpfrange: 0.35 ~ 1.0)
36 x TMT Take up Winders type ATi-415R/10 - 1350mm (total 108 winding units)
====
Spin Finish System: Nozzle oiling system
====
Winding Section (The 12 lines have 36 winders each, total 540 can be sold separately)
540x TMT Take up Winders type ATi-415R/10 - 1350mm - 10 ends each
Take Up speed: 2500 ~ 4000m/min
Package size: Ø 440 x 120L
Tube size: 110 ID X 124 X 150 OD
Take up speed: 1500 ~ 6000m/min 2500 ~ 4000m/min
The spindle length varies with the winders. This is covered in the spec sheet and also in the spinning line description. The different lengths were accounting for different deniers however all winders are 10 position.
(36) winders have 1400mm spindle
(108) winders have 1350mm spindle
(432) winders have 1250mm spindle
NOTE: See page 27 of catalog for more details
====
60x TMT DTY (Japan), Draw Texturizing Machines.
The Draw Texturizing Machines were installed but only ran a short time because the whole POY project stopped.
====
2x TMT (Japan) FDY Spinning Lines - 2010/2011 year
NEW/UNUSED in original packing
Individual lines set up for coarse and regular denier yarn
All lines engineered to feed directly from Polymer w/o extruders
Includes oil finish, quenching, hot godet section and winding
Each line with 36 x TMT Take Up Winders
Type ATi-615R/12 with 12 cops each
NOTES """WINDRES OF FDY LINES TOTAL 72 WINDERS AND THE GODETS (godets were included with the (72) FDY winders) ARE SOLD""", enclosed on the LINK there is a PDF list of what is sold from the 2x TMT FDY Spinning Lines.
====

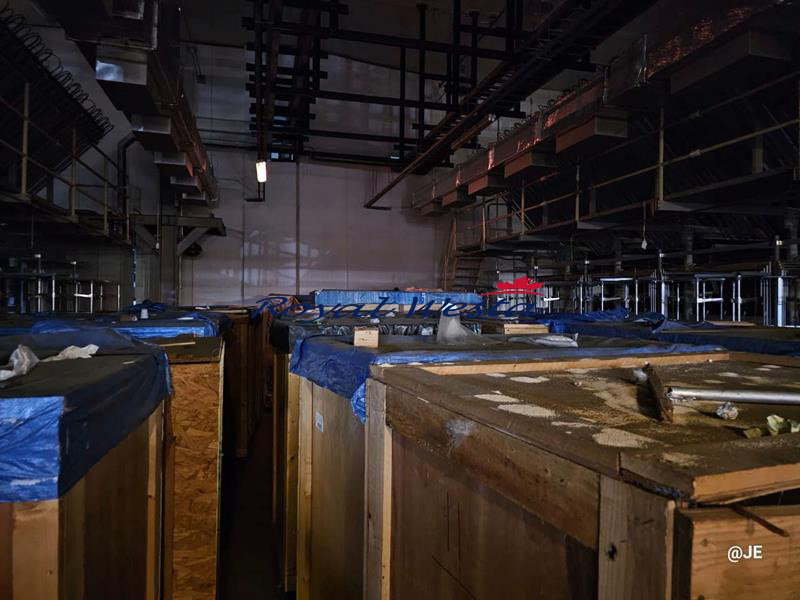

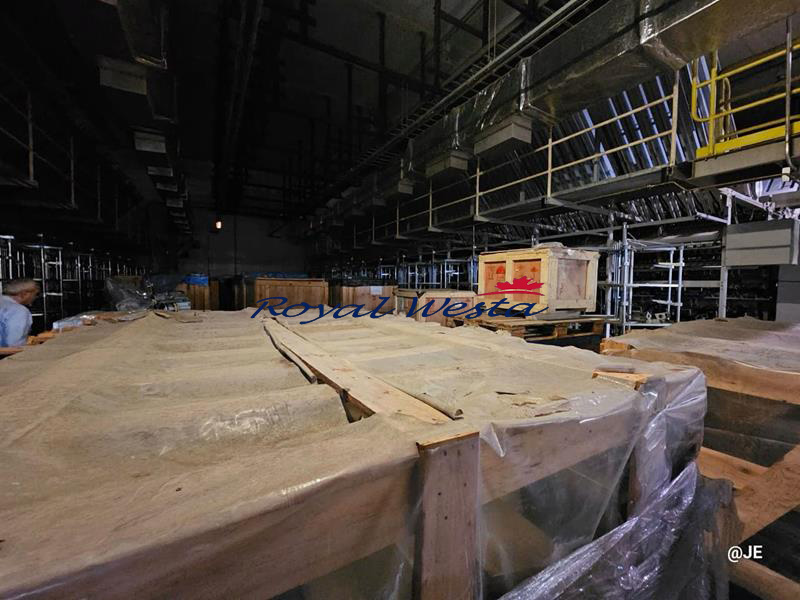

All equipment New and Unused in original packing.
The lines can be purchased complete or winders can be purchased separately.
===
PRICE OF EACH WINDER IS USD 19,500 EXW if purchased separately (Total 540 pcs available)
