NEEDLEPUNCH (NEEDLEPUNCH) NONWOVEN FACILITY

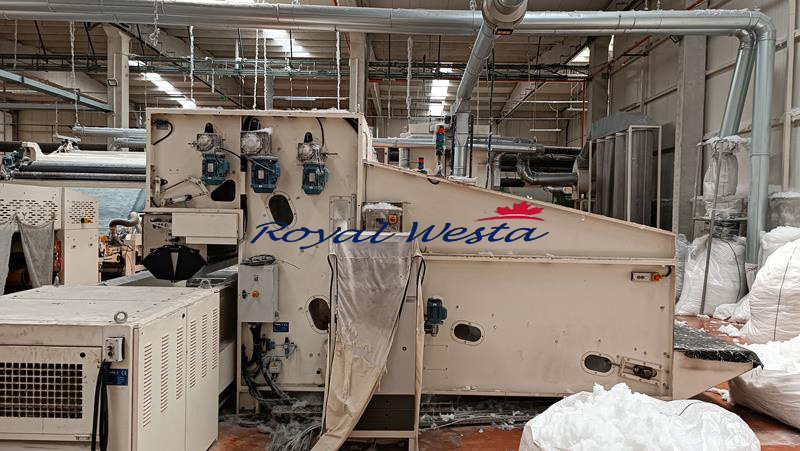

a) BALE OPENER-THREWING ROOM AND FEEDING SECTION
TYPE: 3-Way Bale opener, blending and chambering. Electronic weighing and dosing.
BEMABLOW Unit.
BRAND: BEMATIC.
MODEL YEAR: 2015

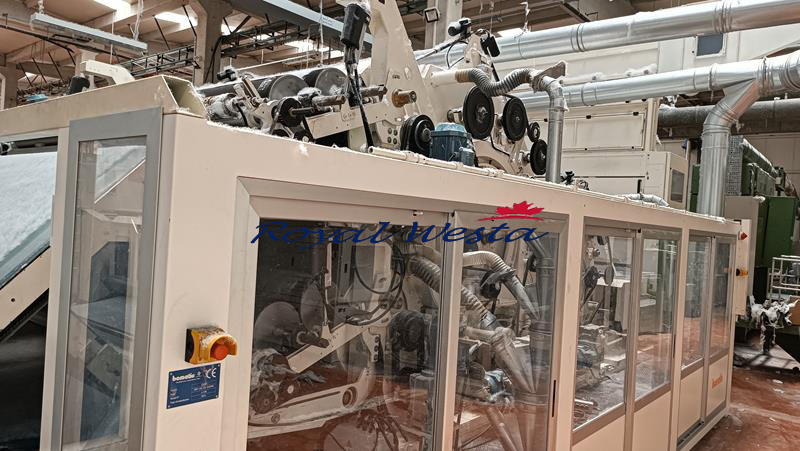

5b) CARDING SECTION
TYPE: Double doffer-Double Random.
BRAND: BEMATIC.
MODEL YEAR: 2015
WIDTH: 300 cm
FEATURE: BEMAFEED Shute feed Card feeding system.

c) CROSSLAPPER SECTION
TYPE: Carbon cylinder belt spreader.
BRAND: YING YANG.
MODEL YEAR: 2020
LAYING WIDTH: 520 cm
FEATURE: Electronic conveyor belt control system (Push Rod). Carbon Cylinder, Carbon
conveyor belt.

d) DRAFTER SECTION
BRAND: YING YANG.
MODEL YEAR: 2020
8 double cylinders, can be controlled from the central PLC. It is a system that can work
synchronously with the speed of the line.

e) BATT FEEDER SECTION
BRAND: YING YANG.
MODEL YEAR: 2020

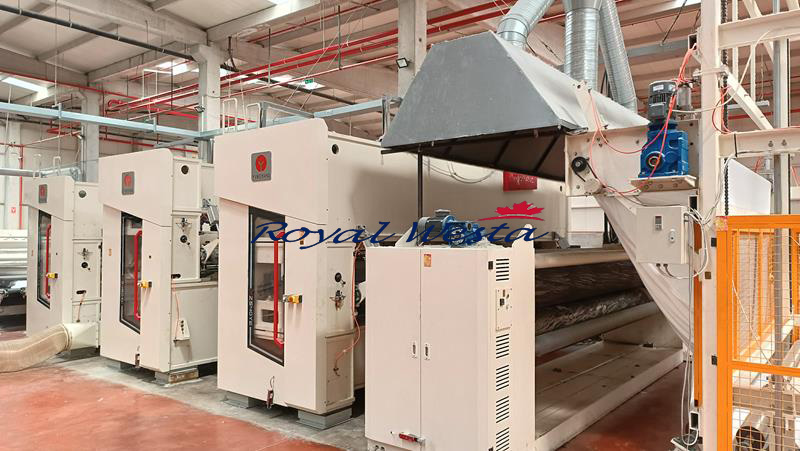

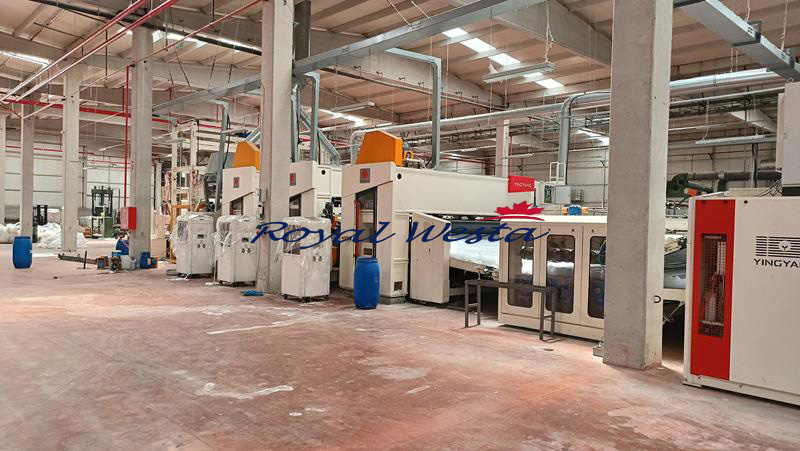

f) NEEDLEPUNCH SECTION
BRAND: YING YANG.
MODEL YEAR: 2020
1. NEEDLE Top-punched (Pre-needle) Width: 4,800 mm
2. NEEDLE Bottom-punched. Width: 4,600 mm
3. NEEDLE PUNCH Top impact. Width: 4,600 mm
It has a system where all shafts are lubricated with hydraulic oil and the oils are kept at a
stable temperature in the heat control system after circulation.
The final product width varies according to the weight and fiber type, but the average is 420
cm.

g) CALENDERING SECTION
BRAND: YING YANG.
MODEL YEAR: 2020
WORKING WIDTH: 500 cm
FEATURE: It has a closed circuit oil heating system with electric resistance. Flat Calender.

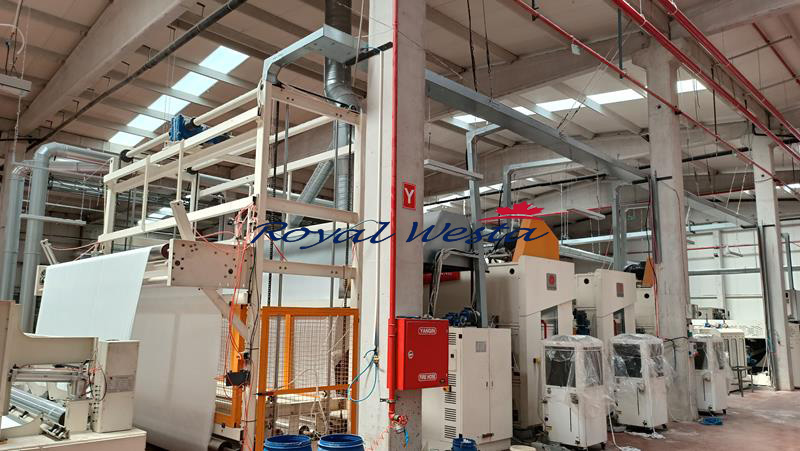

h) ACCUMULATOR SECTION
BRAND: YING YANG.
MODEL YEAR: 2020
WIDTH: 500 cm.
FEATURE: It is operated in accordance with the machine working speed. 25m fabric
accumulation (depending on the weight, but average) can be done.
The height of the machine is 5m.
There is an electronic tension control system.

i) WINDING SECTION
BRAND: YING YANG.
MODEL YEAR: 2020
WORKING WIDTH: 450 cm.
FEATURE: The machine is operated in accordance with the working speed. There are 6 cutting
blades on it. There are 3 Pneumatic Shafts that can be wrapped on a 76 mm diameter reel. It
cuts automatically when the meter is full
