AB46/150626/AS/

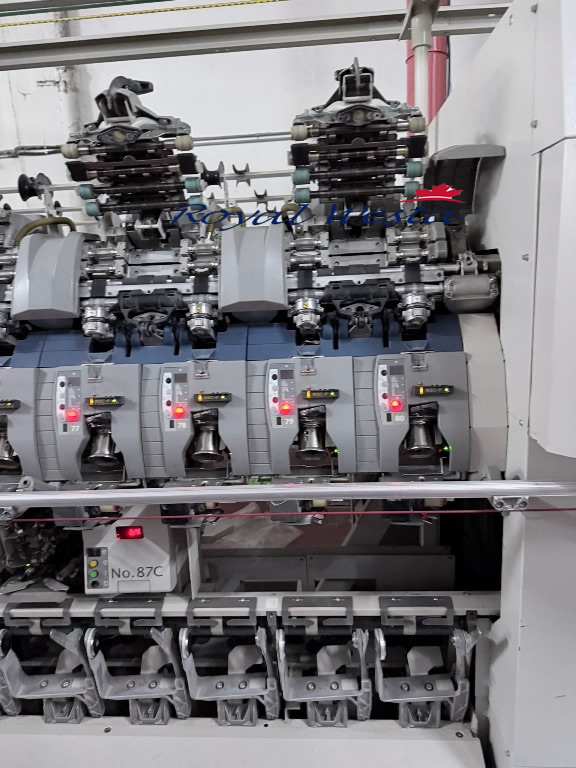

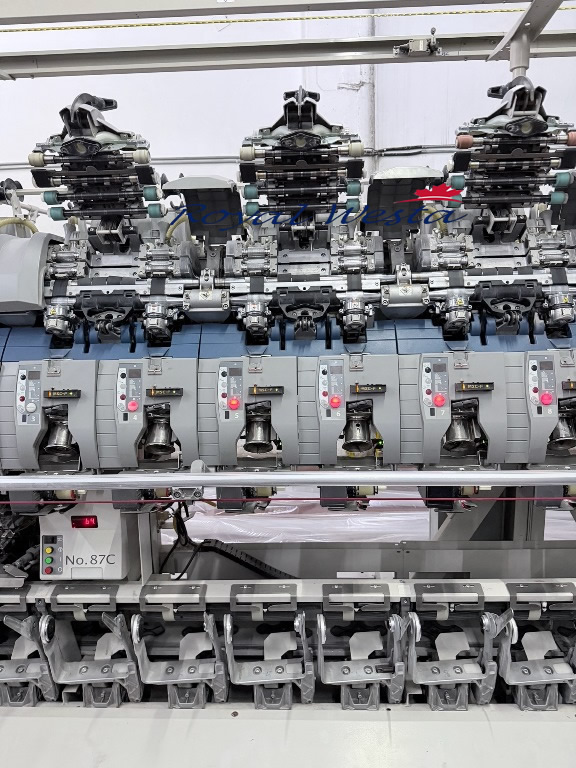

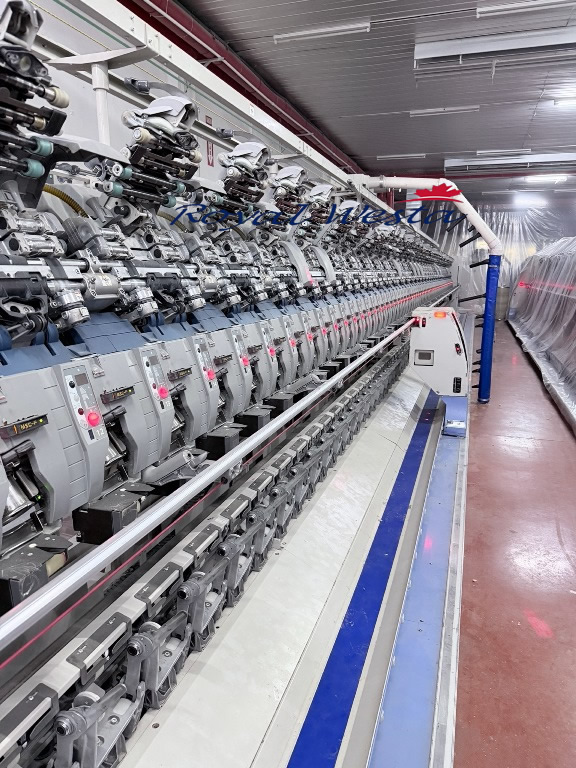

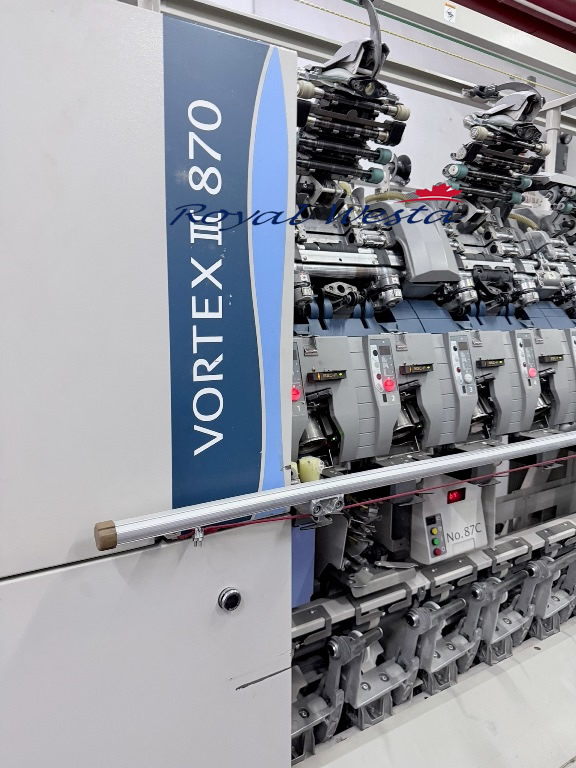

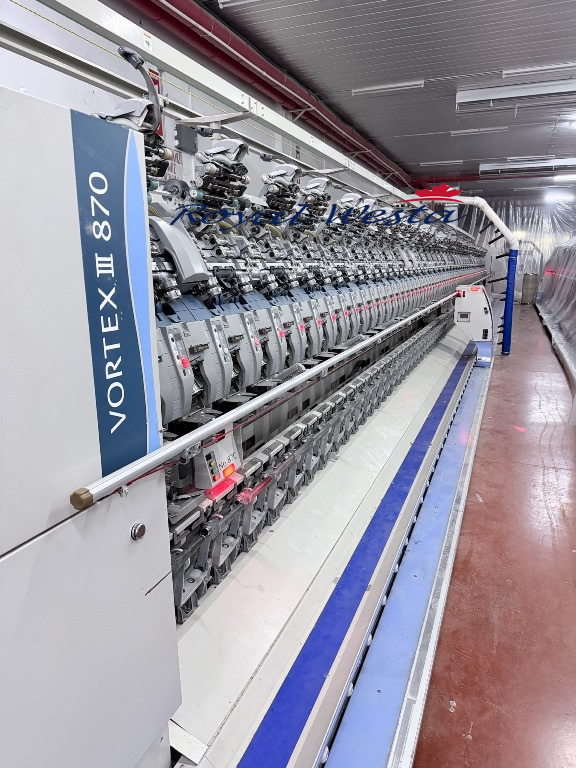

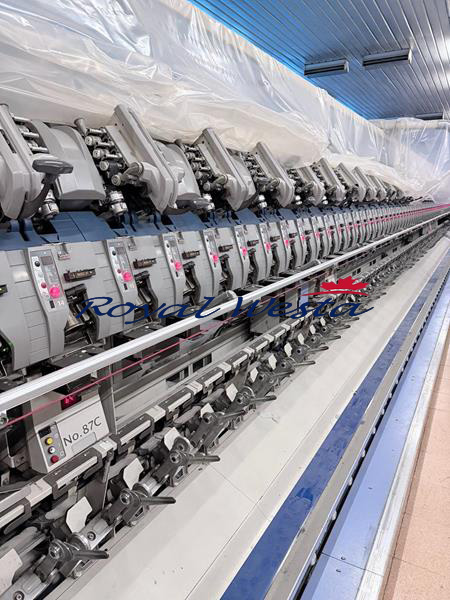

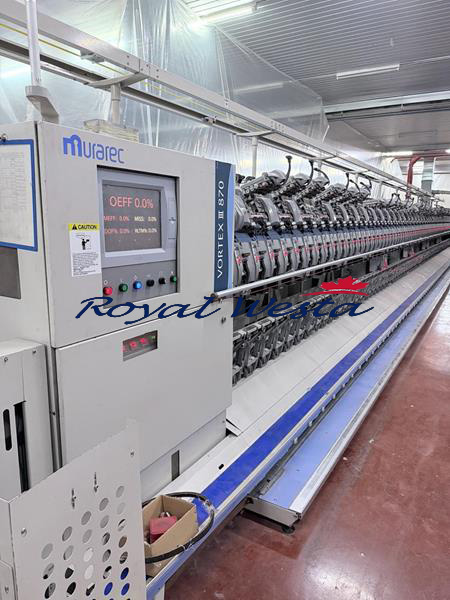

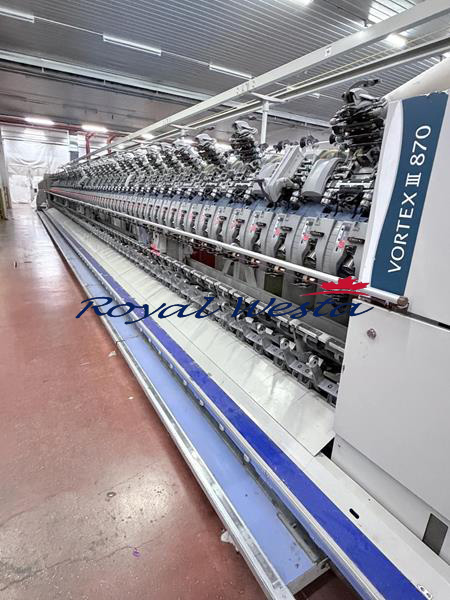

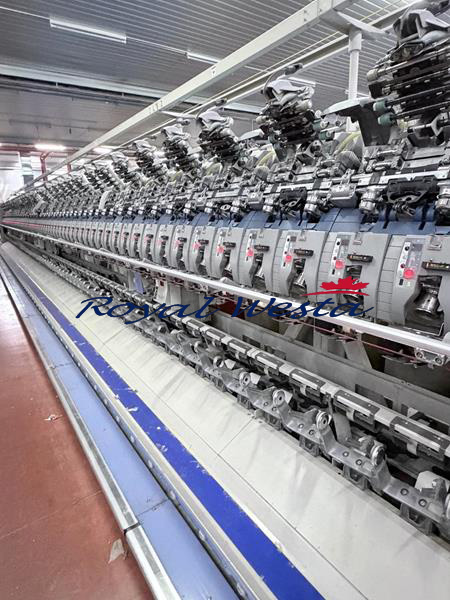

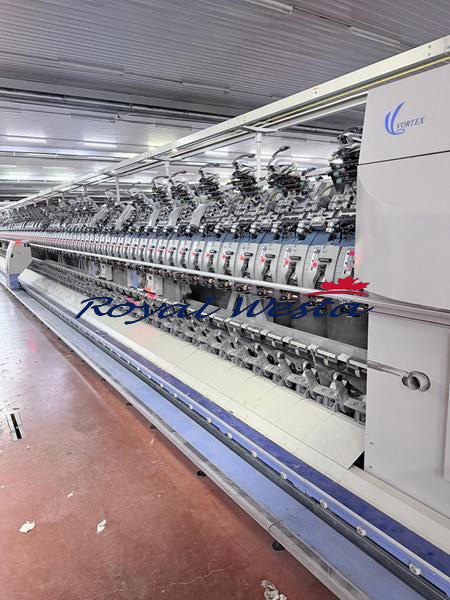

Murata MVS870 Vortex Spinning Frame
Quantity: 22
Year: 2012
Model 870 III
80 spindles

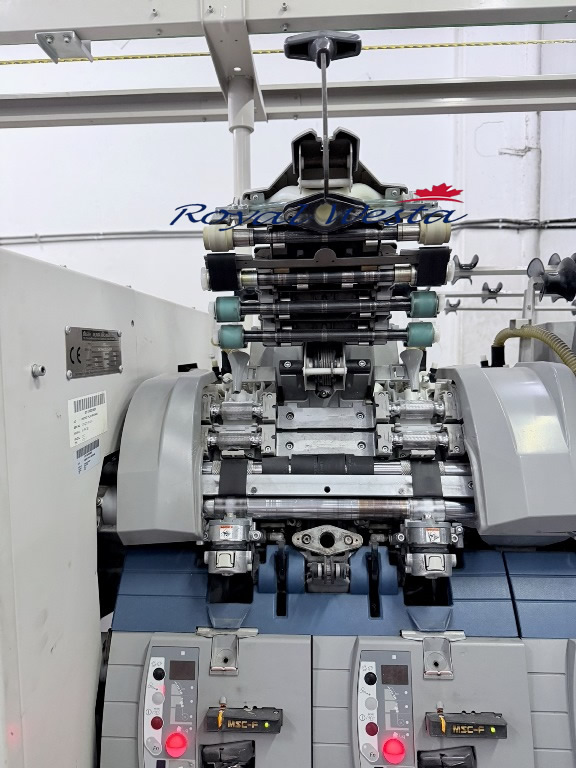

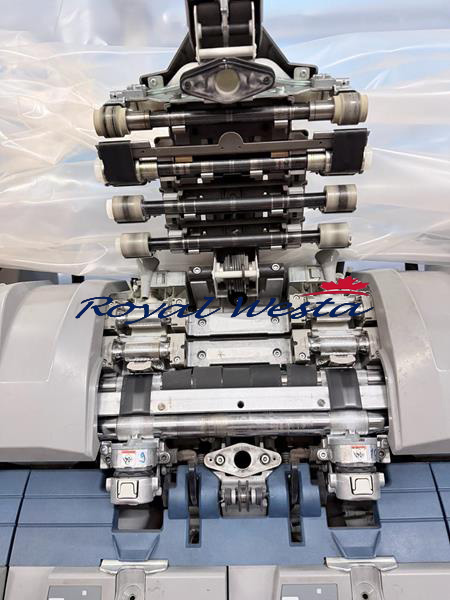

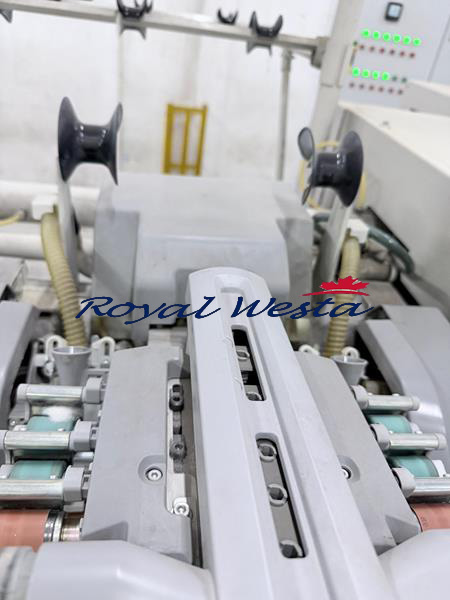

4 lines drafting system, S7S (Spinning Tension Stabilizing) with tension sensor
6” Traverse (146mm)
4 deg. 20min. angle
300mm take up diameter
Magnetic tension ruler
Bottom vent and upper vent

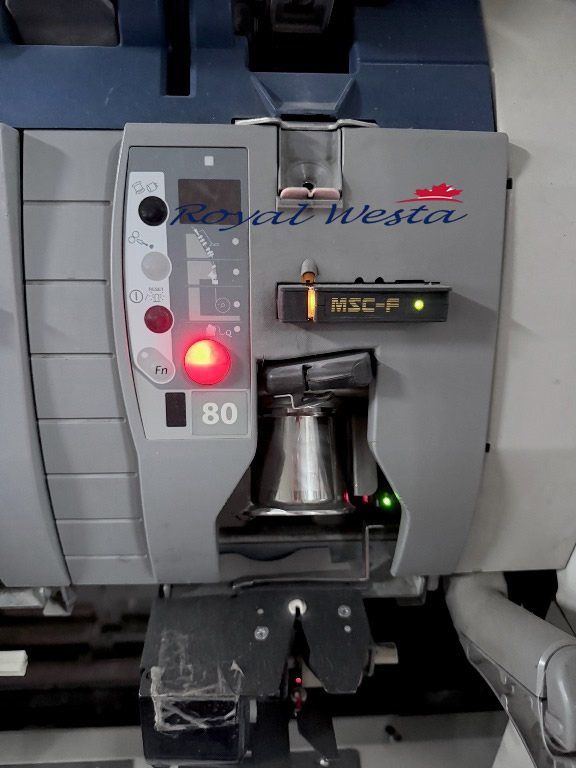

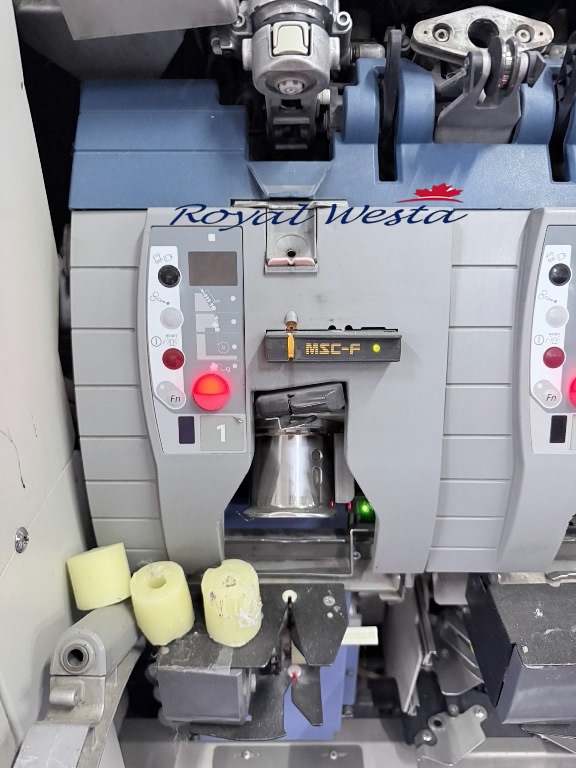

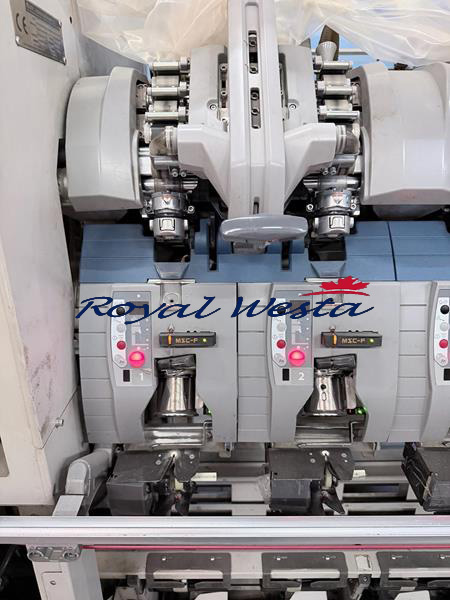

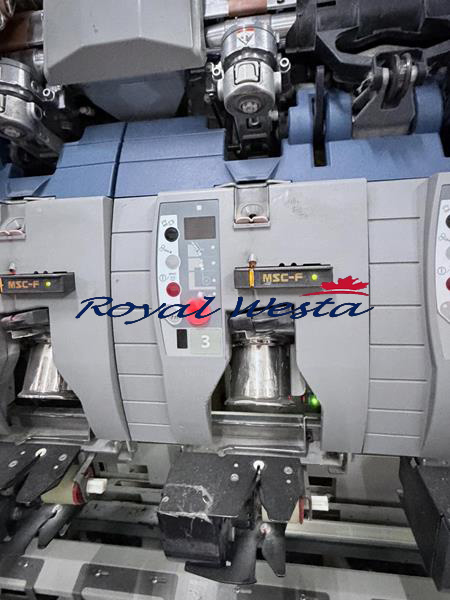

MSC-F (Muratec Spin Clearer with Foreign Fiber Detection)

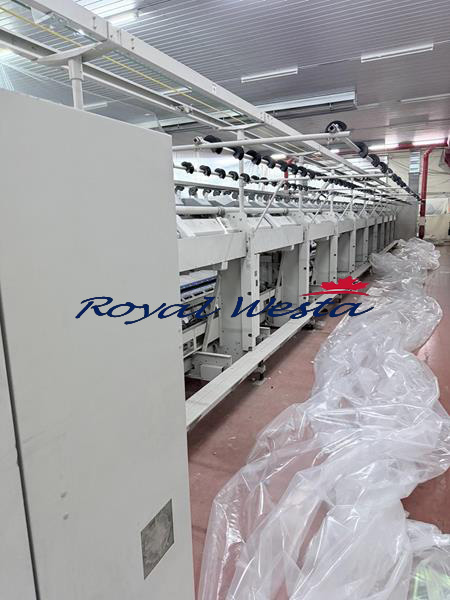

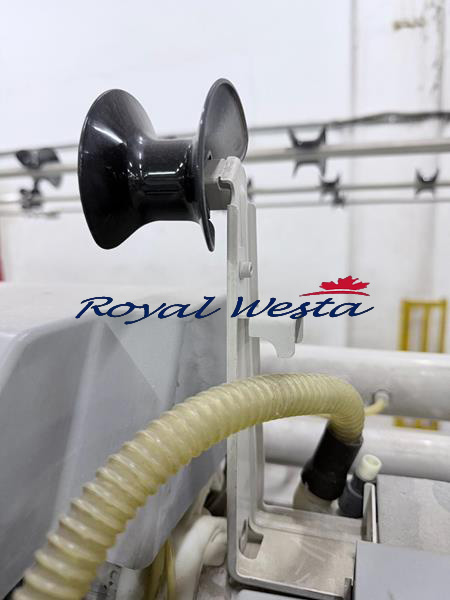

Sliver creel with guide with 3 lines sliver cans
New designed spinning components updated by Murata
Spinning sensor for precision spinning condition monitoring

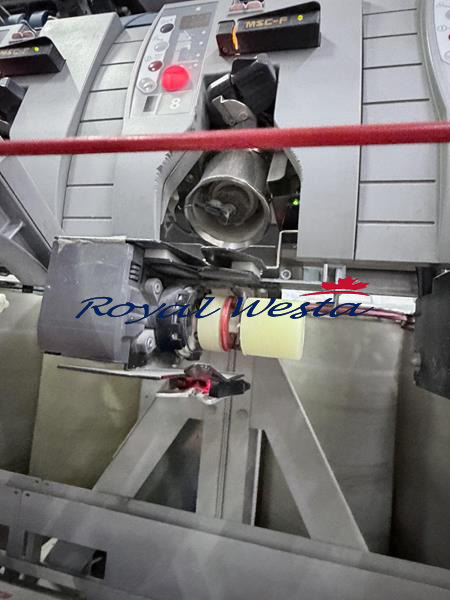

4 splicer carriages per machine - G2Z splicer nozzle

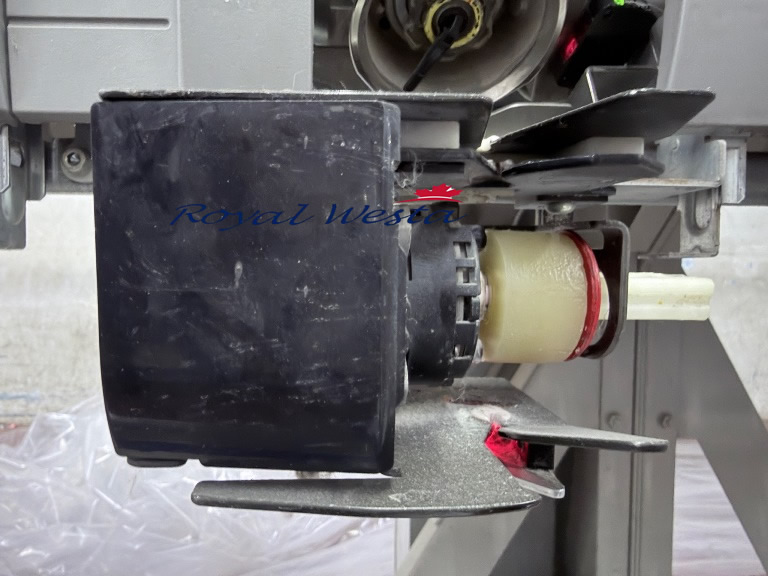

Waxing device

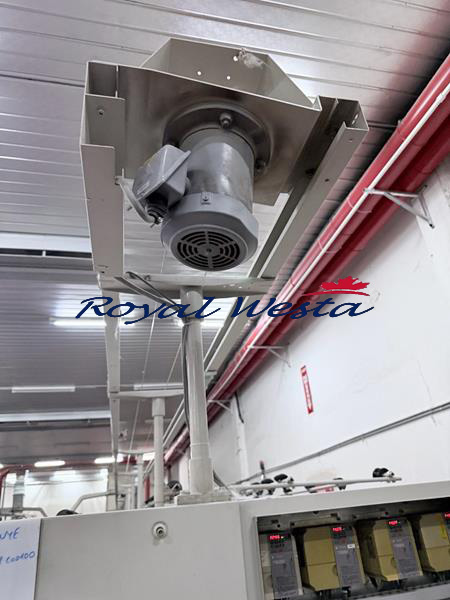

Over-head traveling cleaner

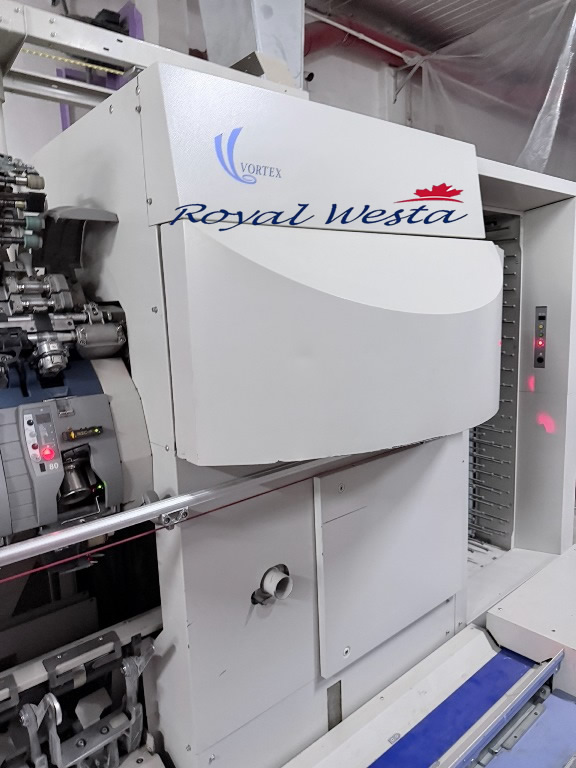

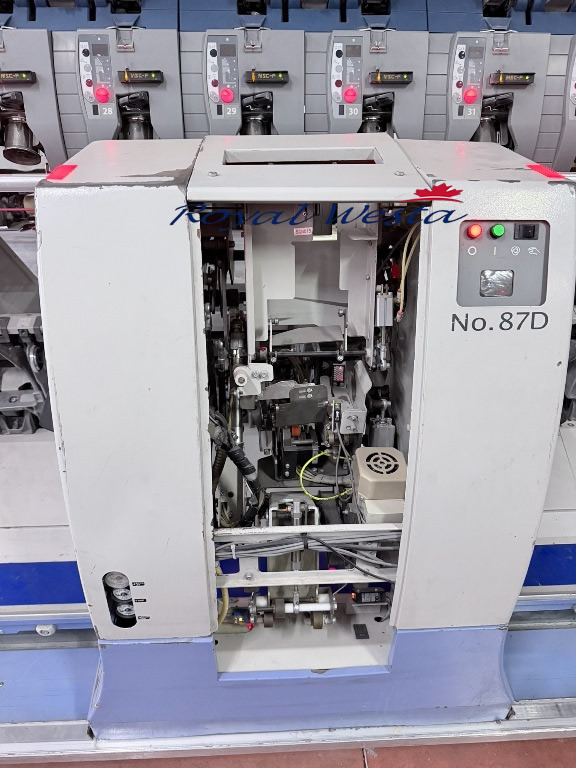

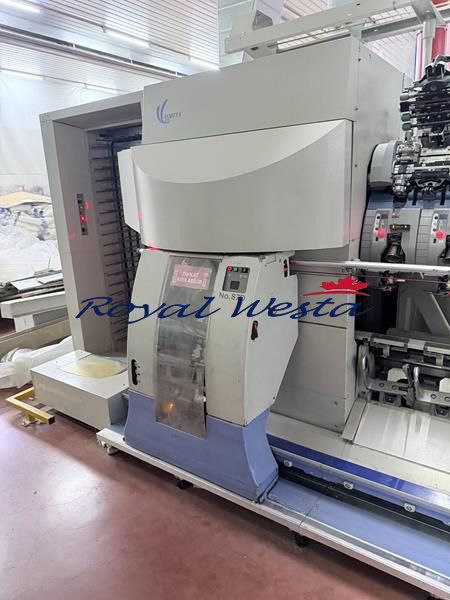

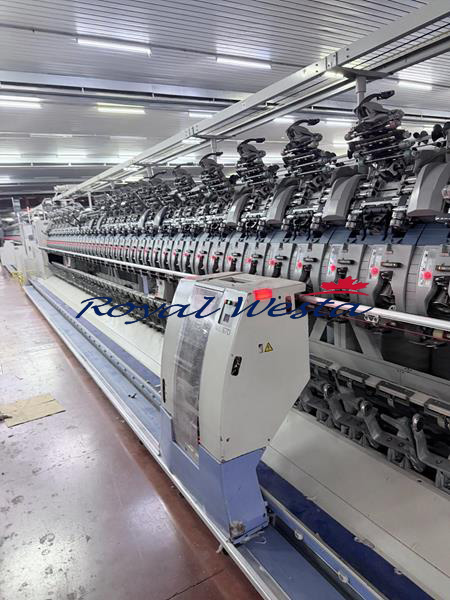

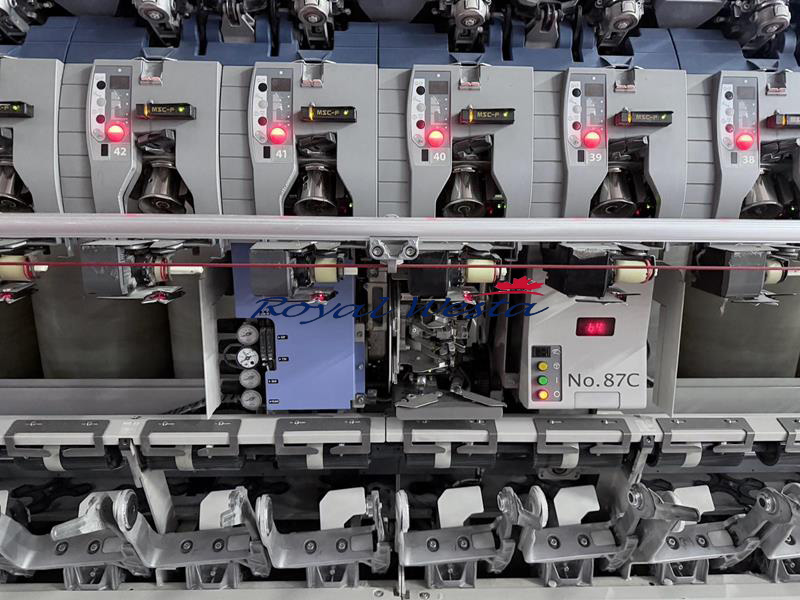

Individual drive Ando Doffer "Type 87D" (1 doffer per machine)

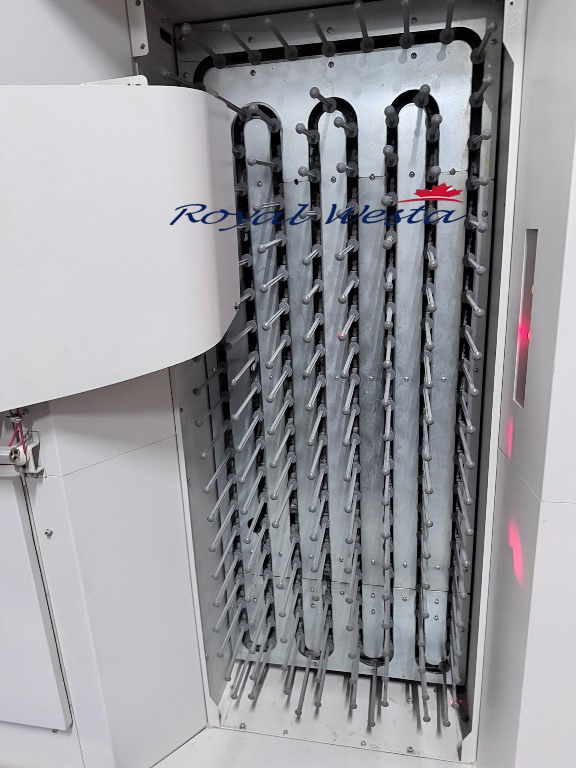

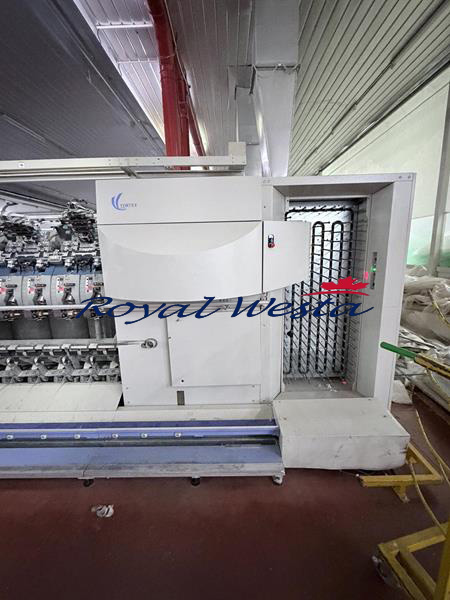

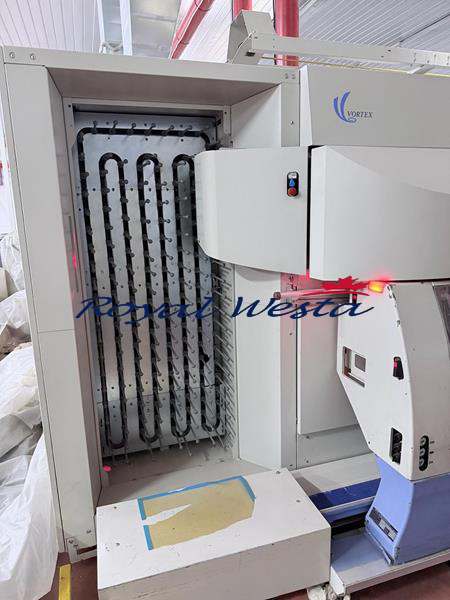

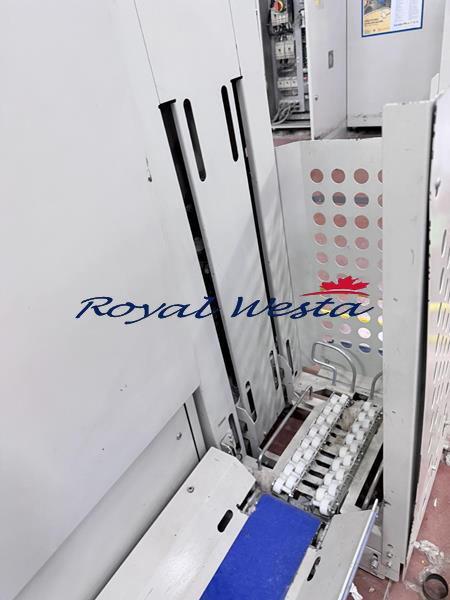

Automated bobbin stocker - Max 60 bobbins/ machine
Yarn length measuring system MSC- F
Package conveyor (Automatic conveyor Feed adjustment

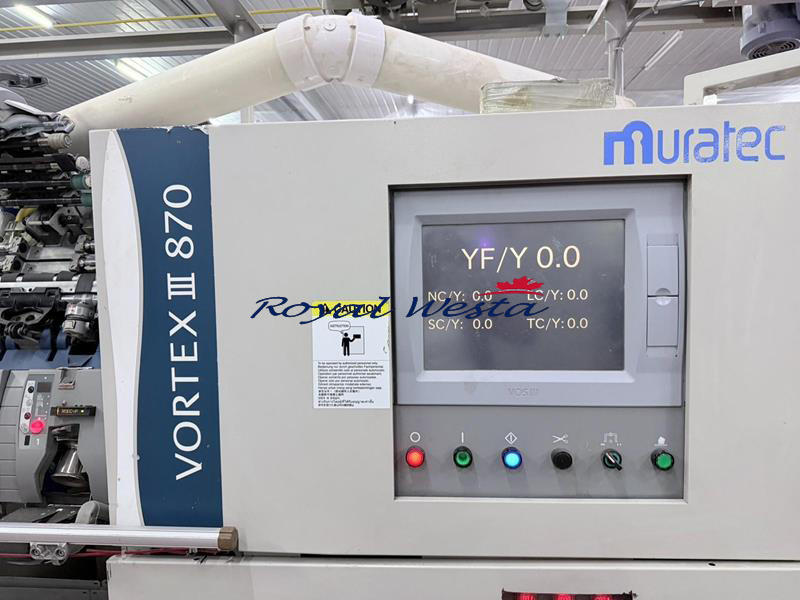

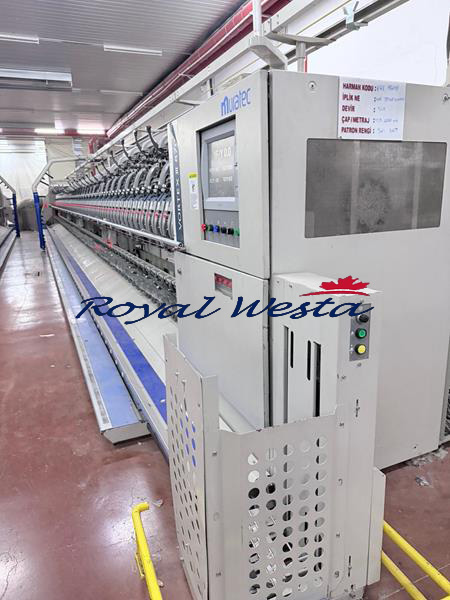

Alarm indicator and operation keys on each unit

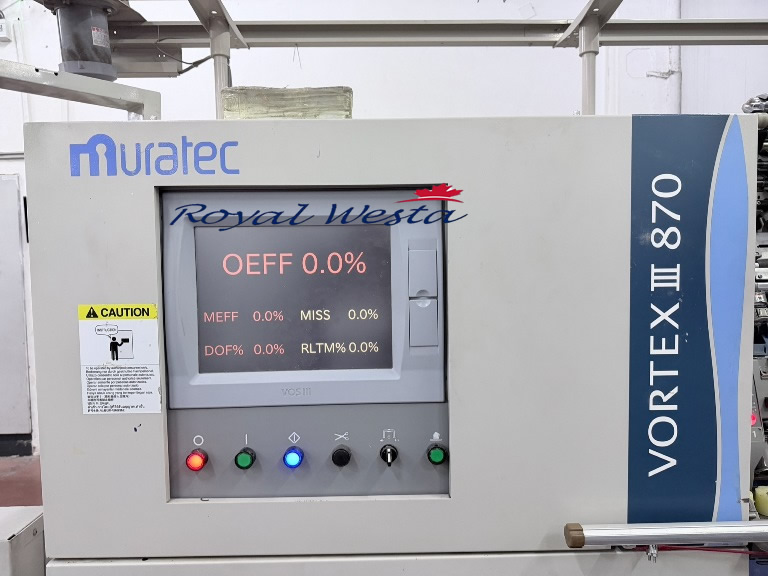

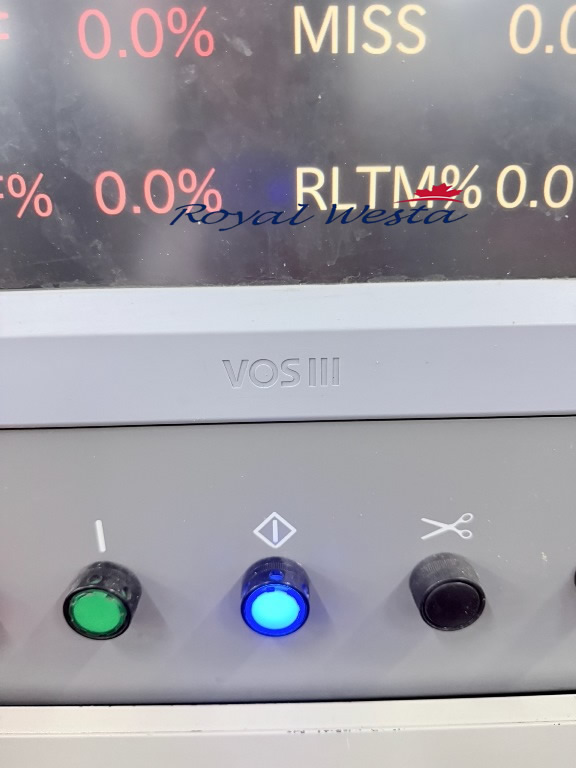

VOS-III (Visual On Demand System)
Package lifter/ per machine

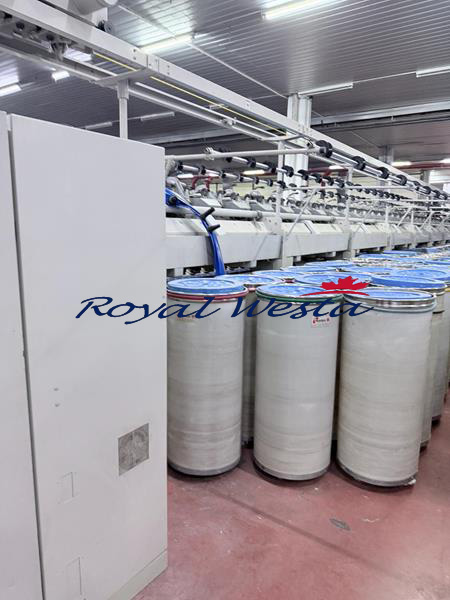

Sliver cans
Additional notes on the machines:
Normally Vortex 870 has 3 splicers and these have 4 on each machine
"""5 machines have polymaster"""

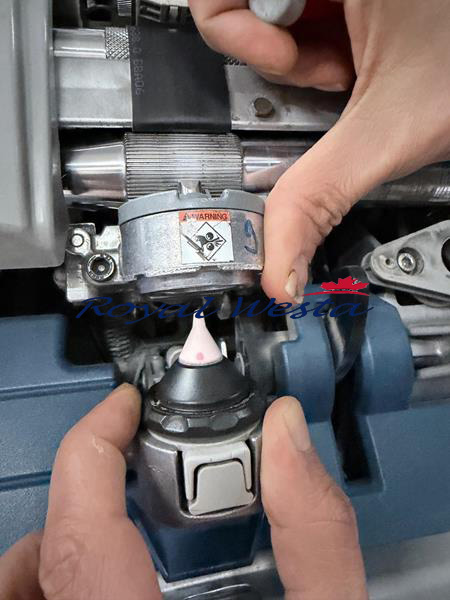

"""5 of the machines are set up with cotton nozzles. Crown attachment."""
"""Rest of the machines have Orient nozzles"""
"""2 machines with ECO nozzles"""
All machines are started and ran May 2026
Murata utilized this mill as a demonstration site for the MVS 870's capabilities and performance.
"""The machines have been maintained to a higher standard than comparable 2012 Murata Vortex MVS870"""
Service and optimization was performed directly by Murata; technical specialists were sent from Japan to modernize and upgrade the equipment, ensuring it remains in peak condition. These upgrades include:

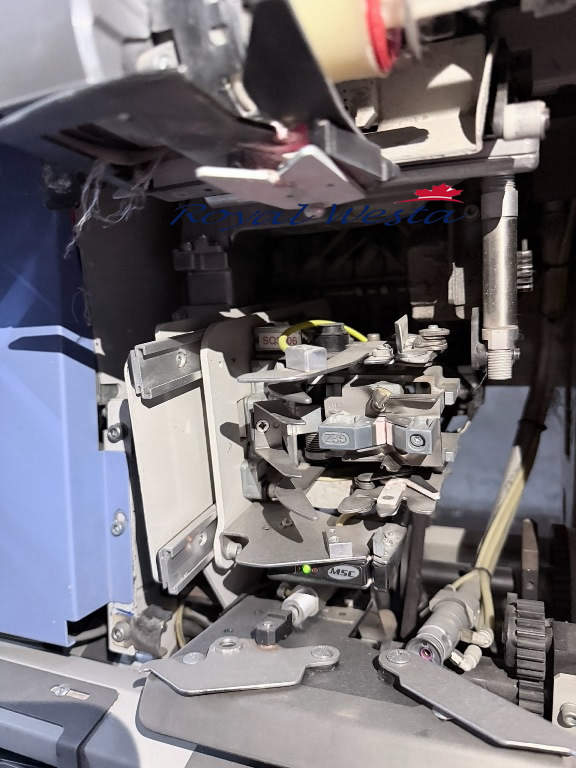

Upgrading the entire splicer box, including additional sensors to enhance precision
Renewed drafting housing including the cradle gun
Unlike most machines from this production year (typically 5°57'), these units have been configured to the highly desired 4°20' conicity.
Updated doffer housing including the strengthening air cylinders
Emergency button added to the control panel

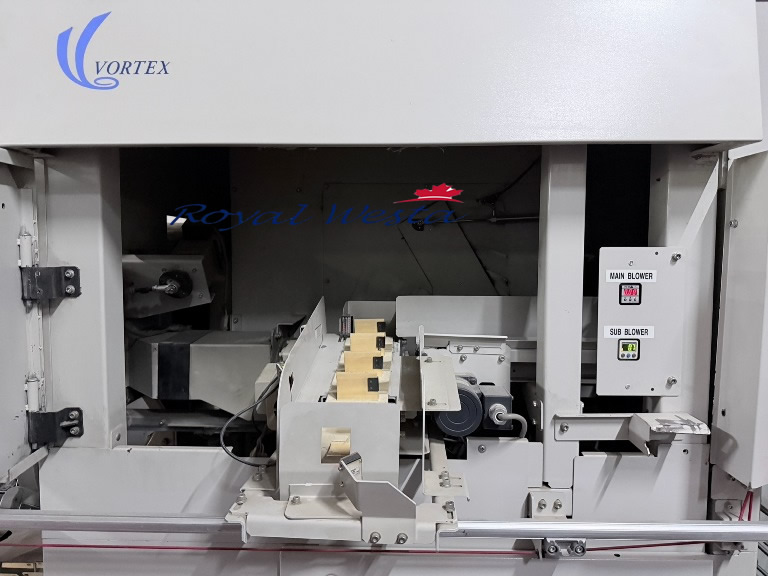

To address a known issue where main suction blowers default, over time, due to vibration and speed of the machines, Murata implemented a welded reinforcement method specifically for these units. This permanent fix eliminates the vacuum loss, specifically performed by Murata to improve and optimize these machines.
Traverse rods are fitted for 96 spindle machines even though these machines are 80 spindle, still providing optimized working speed and energy saving.
Ctrs requirement: 1 machine requires 1x40' Ctr.
