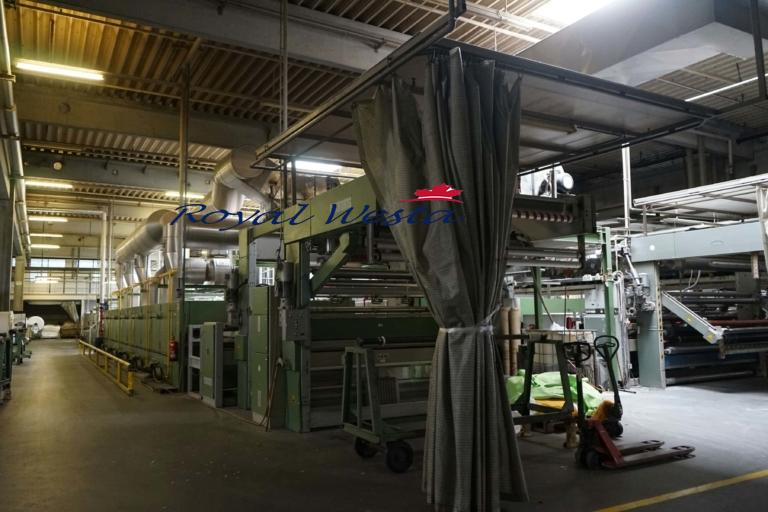

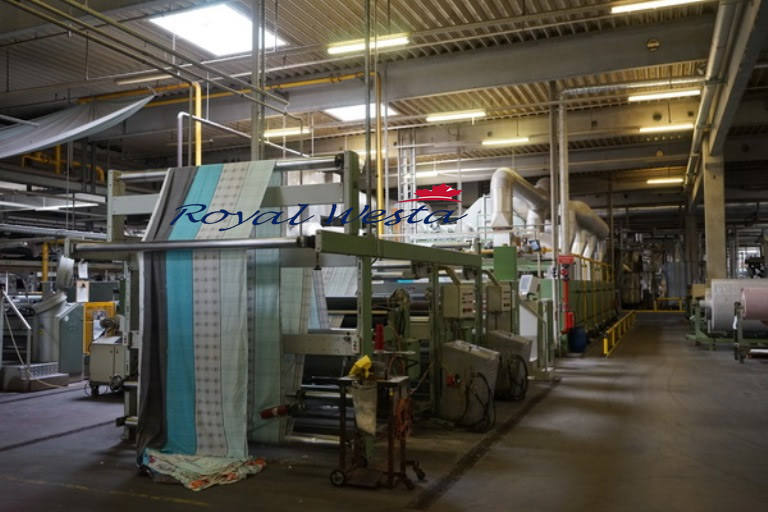

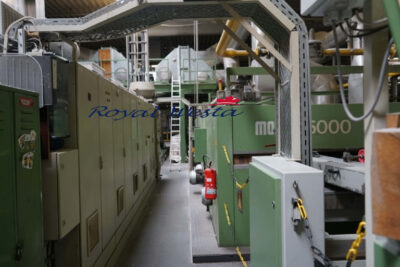

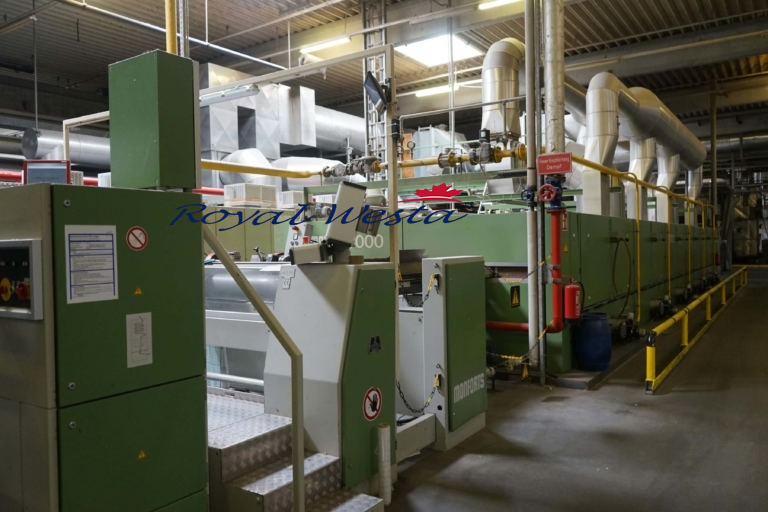

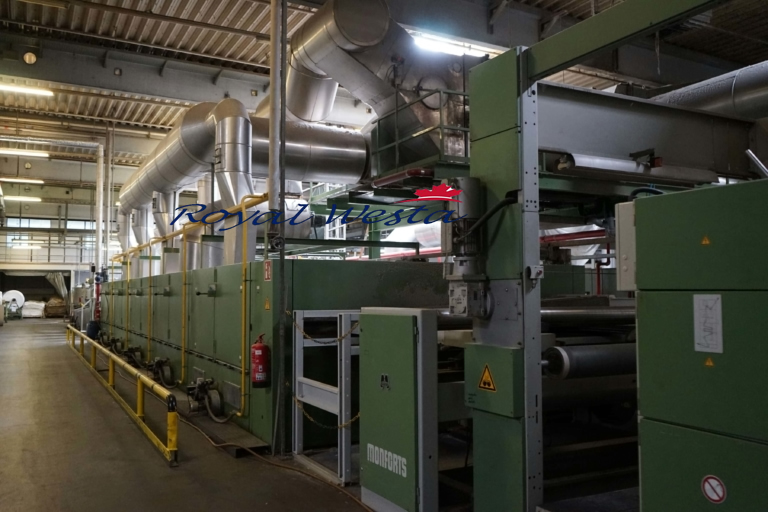

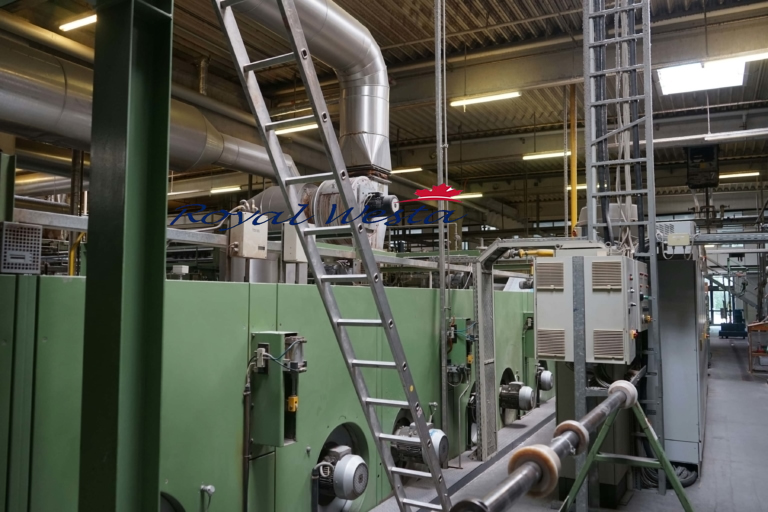

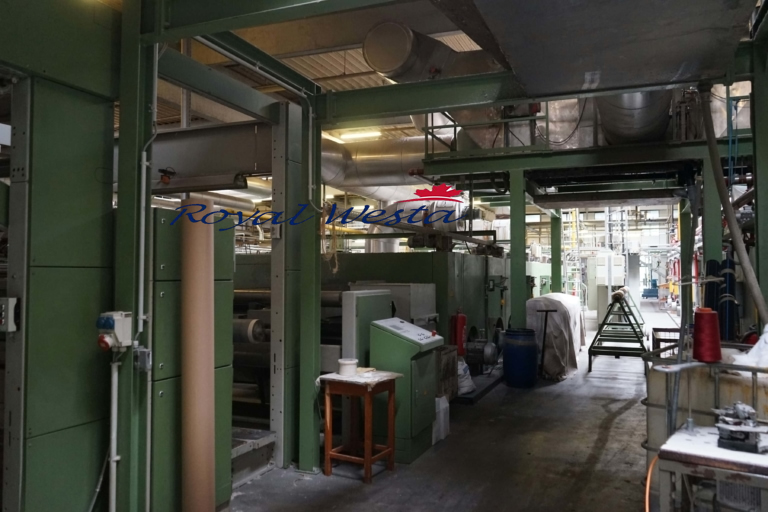

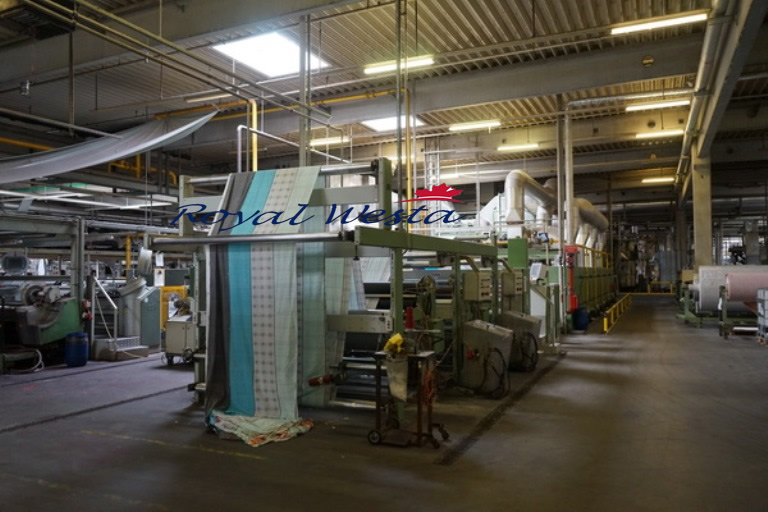

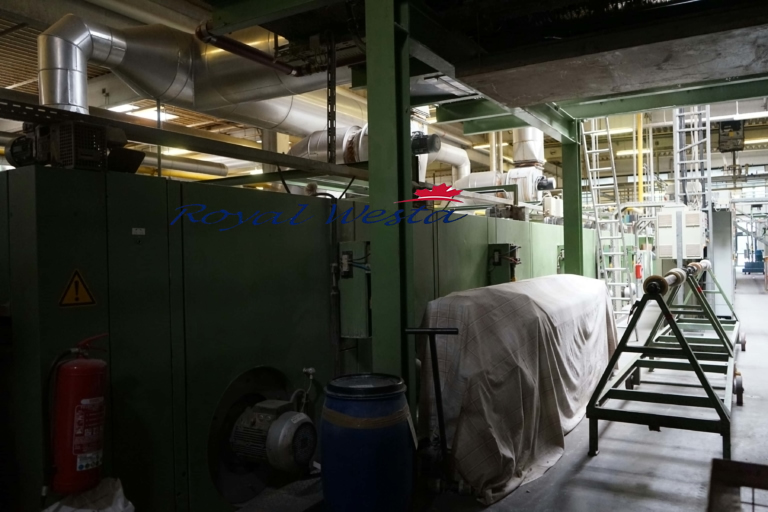

MONFORTS STENTER/HEATSETTINHG FRAME

Quantity: 1
Year: 2003/2004

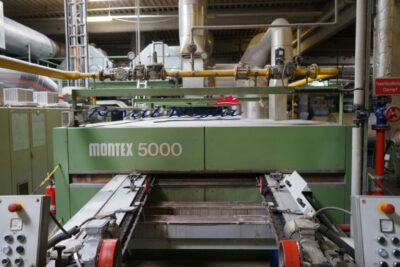

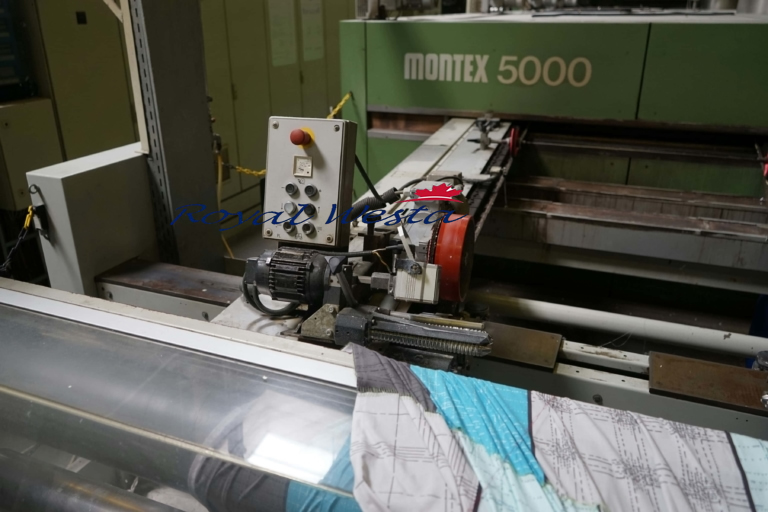

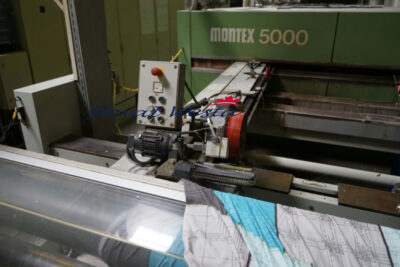

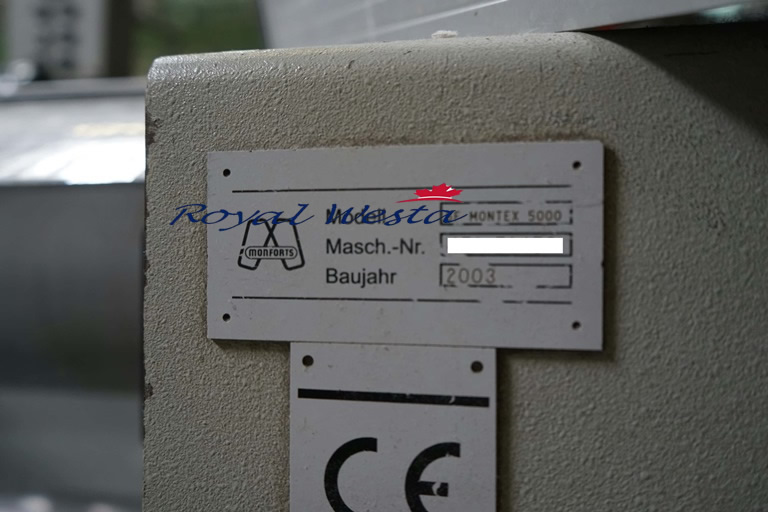

MONFORTS type MONTEX 5000
upper roller width 2.200 mm, suitable for fabric width of up to 2.000 mm, 5 chambers gas heated,

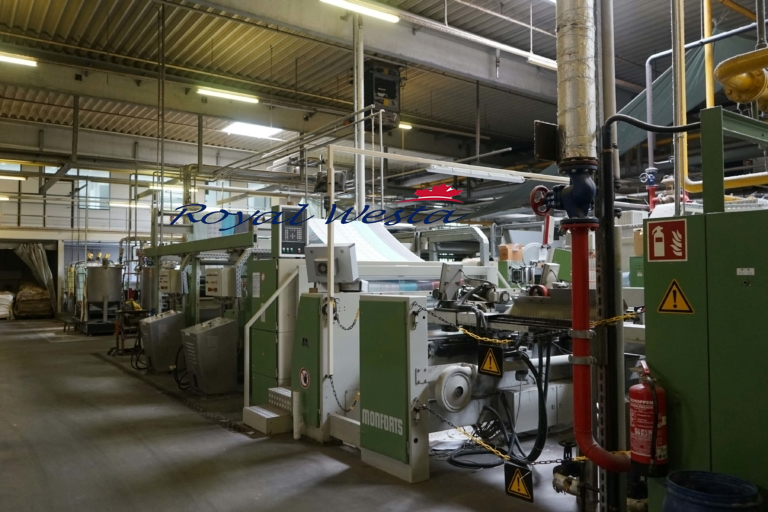

horizontal pin chain, high cloth feeding device, edge uncurlers make ERHARD & LEIMER type KF 2020,

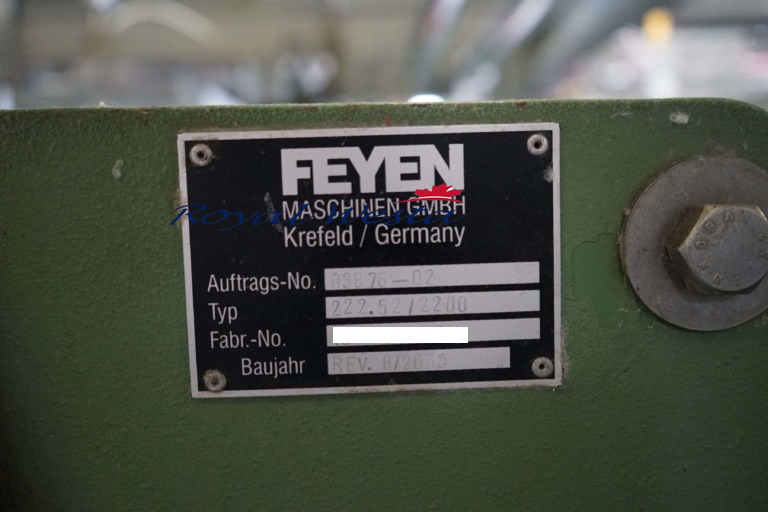

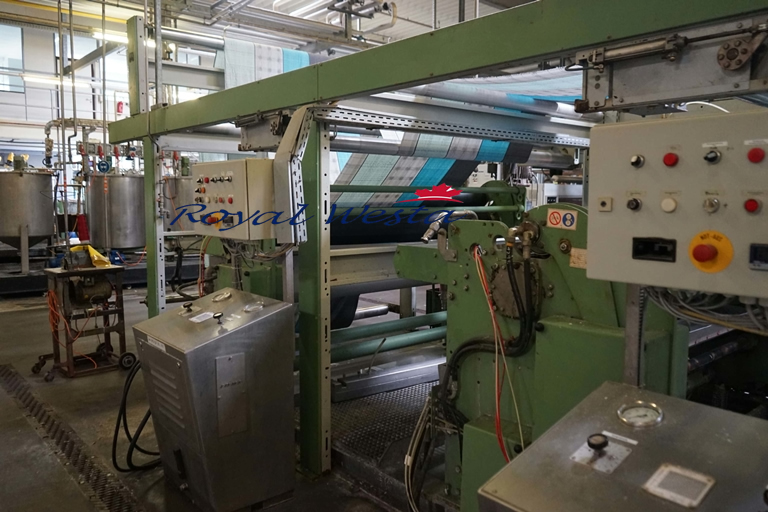

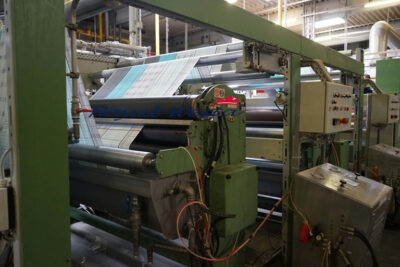

entrance into 2 roll squeezing mangle make KÜSTERS/FEYEN type 222.50.2200, roller width 2400 mm,
high cloth feeding and fabric guiding by stainless steel rollers into 2nd pad mangle make KÜSTERS/FEYEN

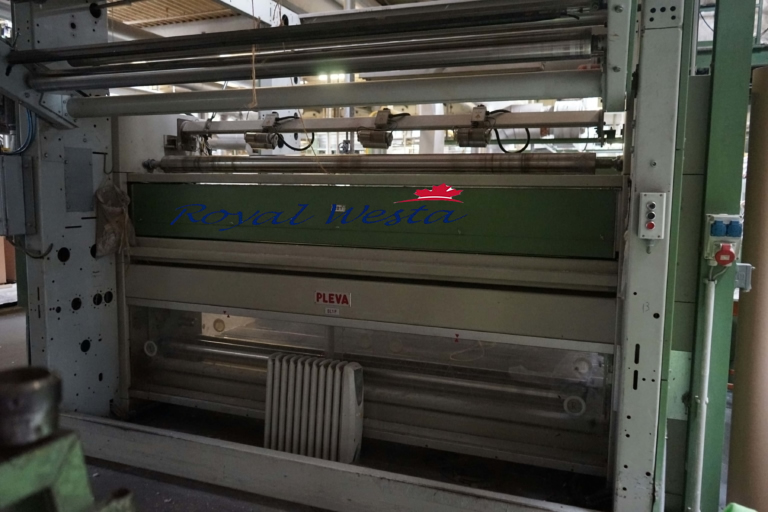

type 222.50.2200, deviation rollers to deviate the 2nd pad mangle, feeding into weft/bow straightener make

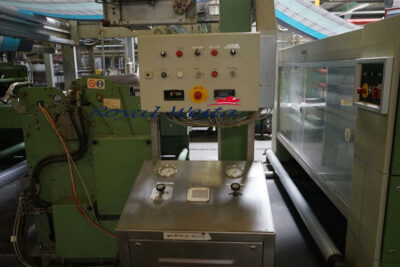

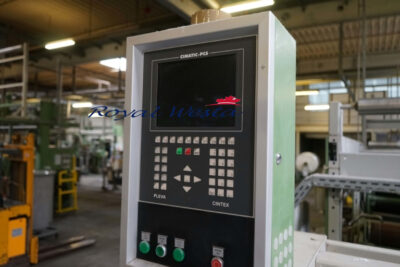

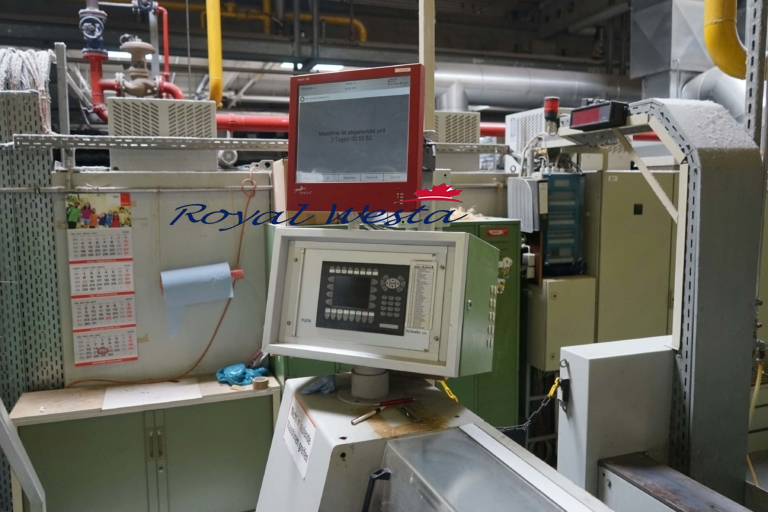

PLEVA with VISUALISATION type CINTEX, entrance into stenter frame with working panel SATELITE and
VISUALISATION, PLEVA moisture control type DSD-1 and SD-1P, optoelectronic width control make

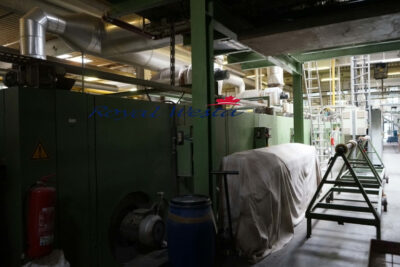

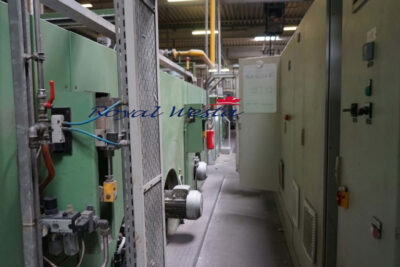

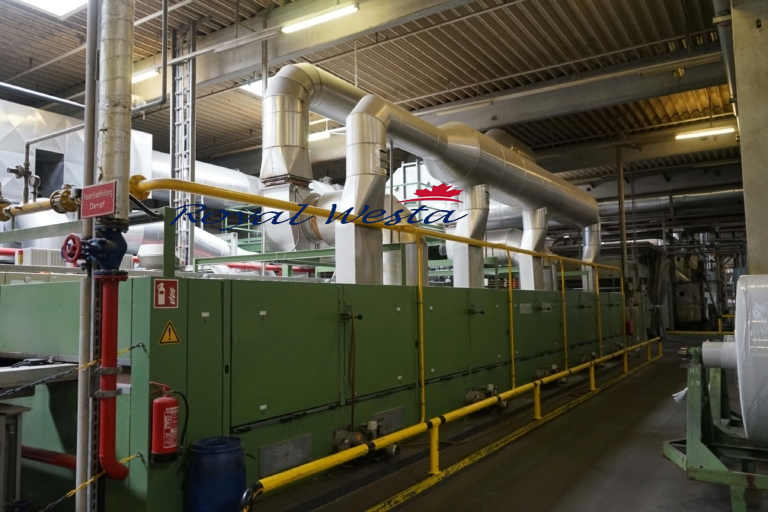

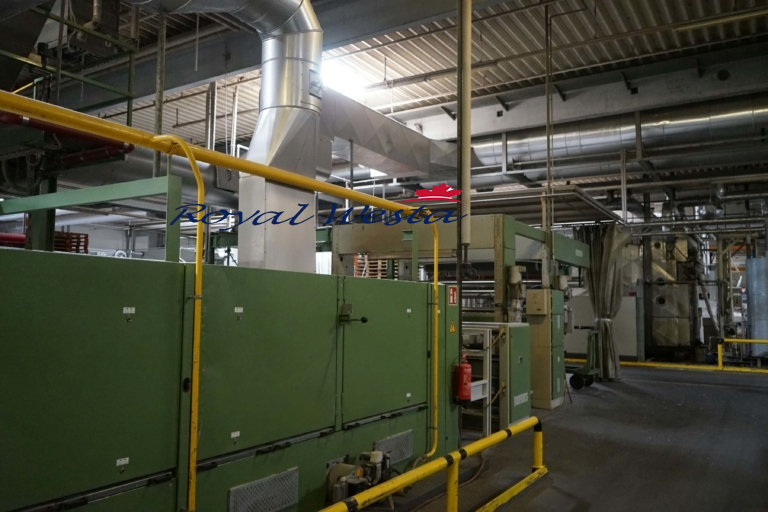

ERHARD & LEIMER type FR1501, overfeeding, horizontal pin chain, 5 chambers gas heating, gas burner

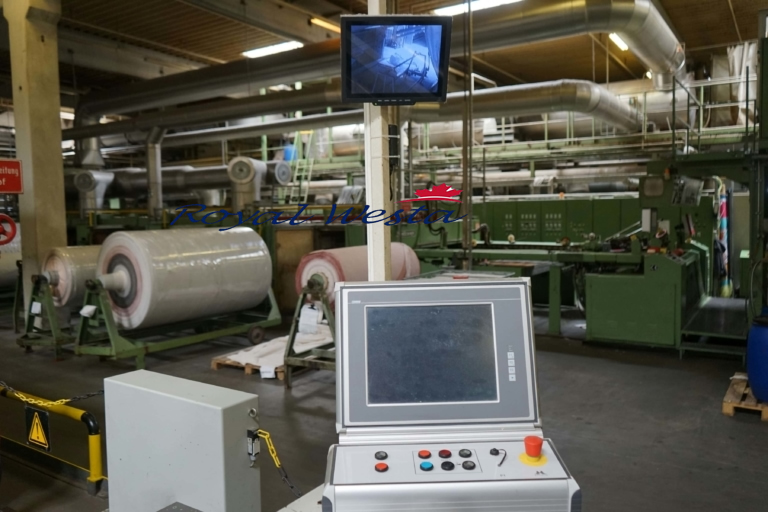

make MAXON type VALUPAC, exit of stenter by cooling zone, plaiter and/or big batcher, SIMATIC touch panel

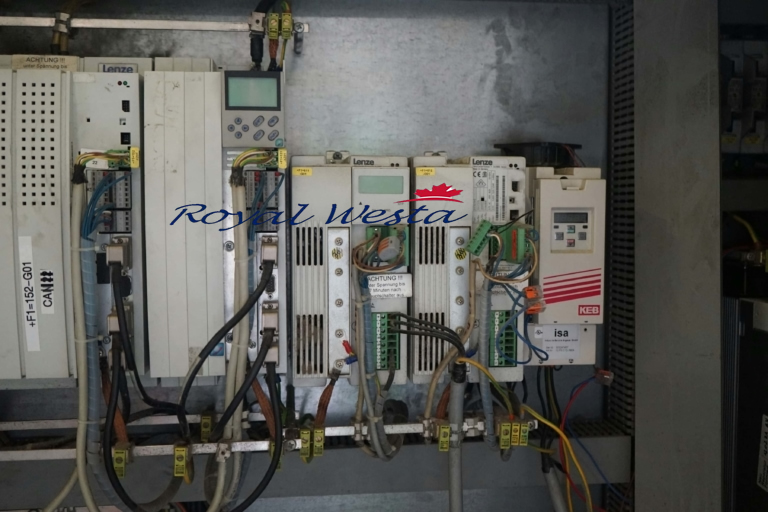

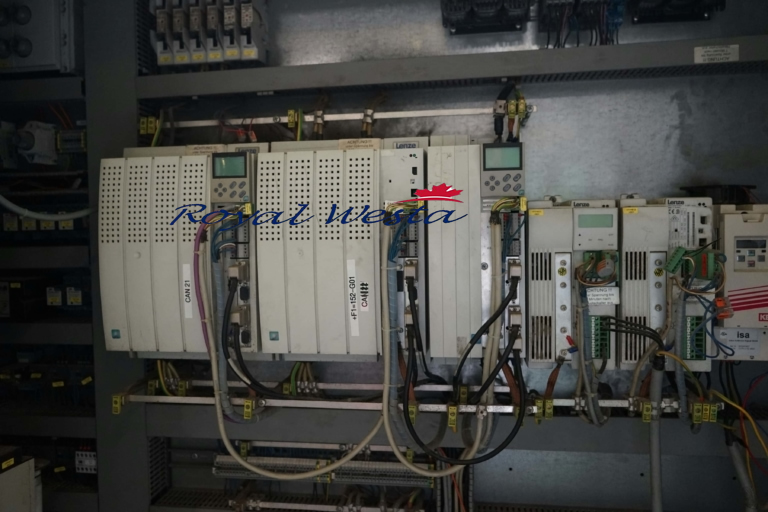

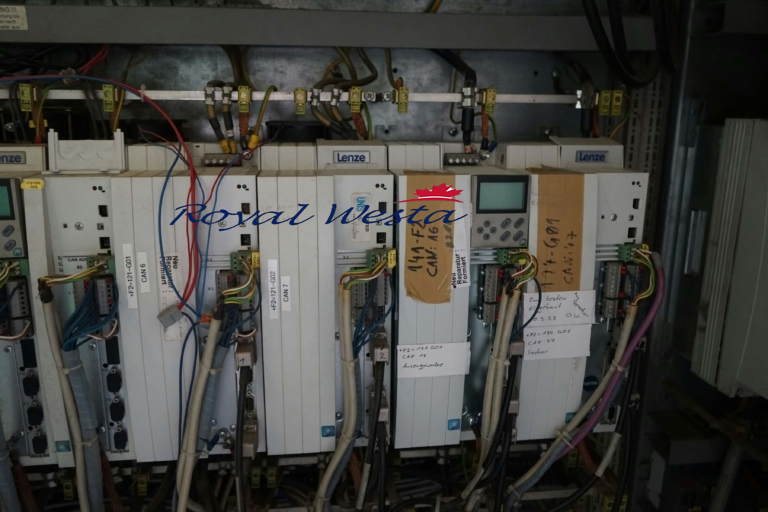

at exit with VISUALISATION, LENZE INVERTER.
