Menzel Continuous Bleaching Line

Quantity: 1

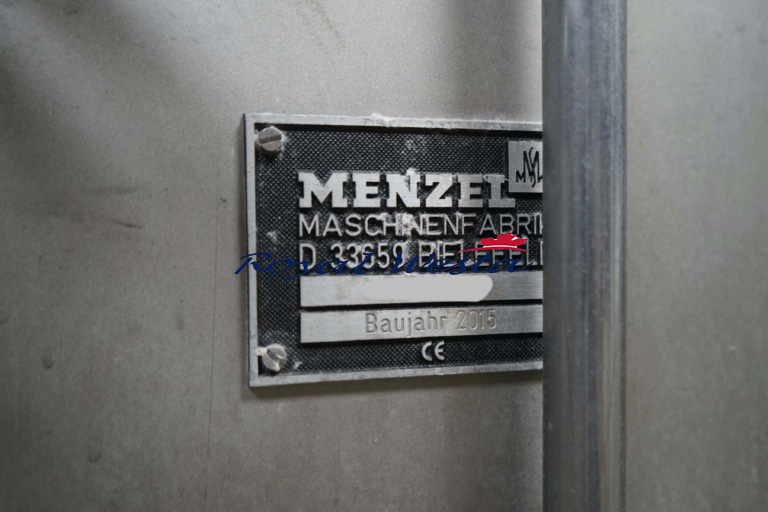

Year: 2015/2016
Upper roller width 3400 mm.
Suitable for fabric width up to 3200 mm or 2 x 1.600 mm.

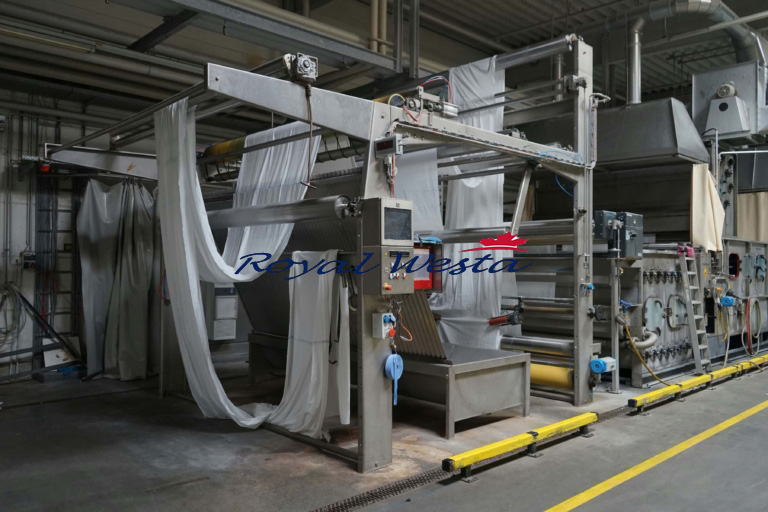

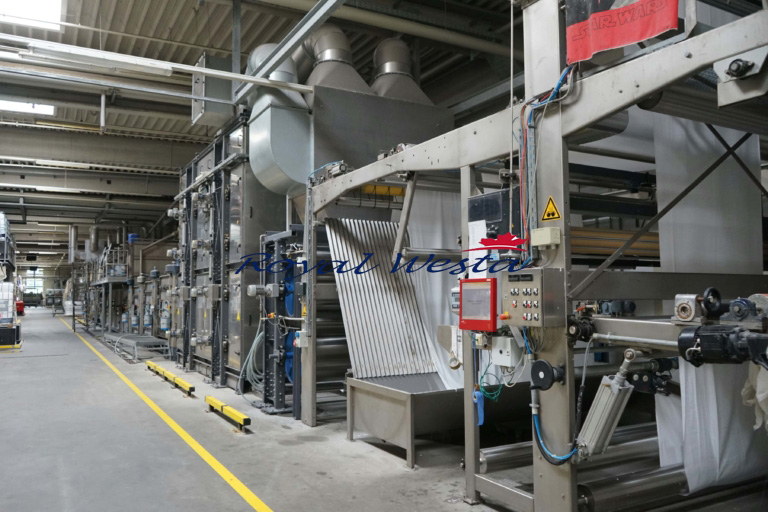

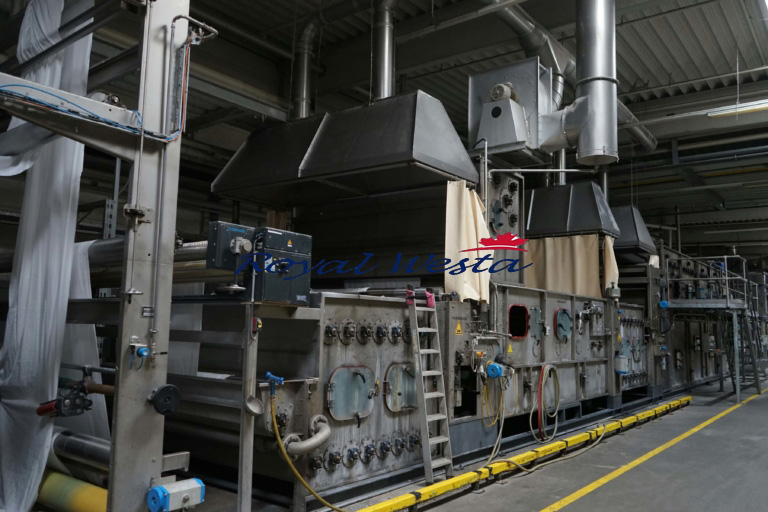

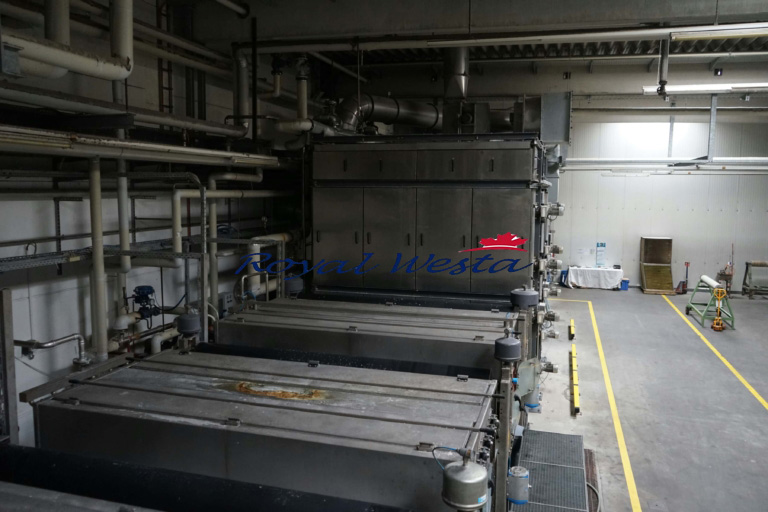

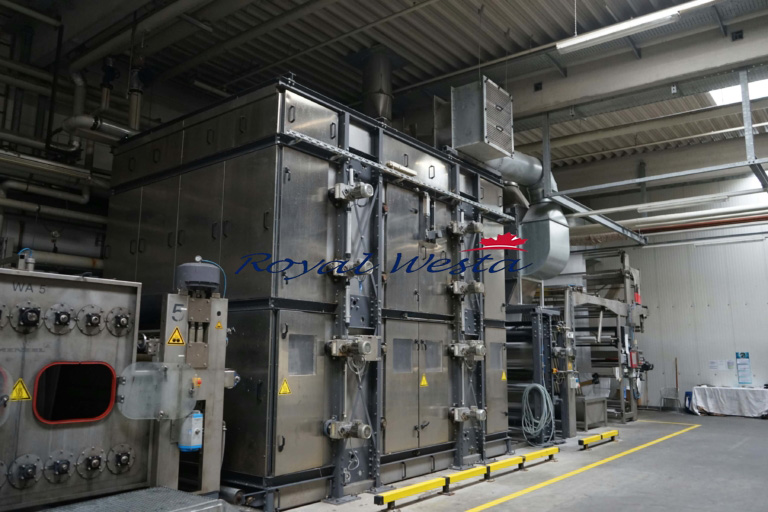

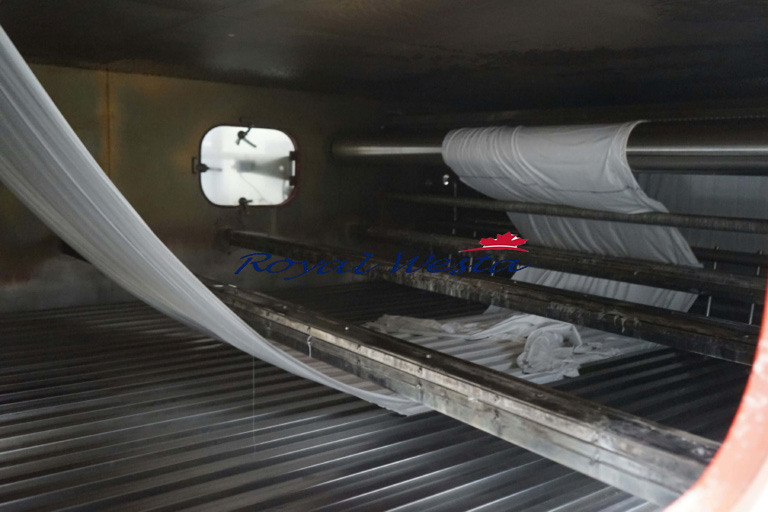

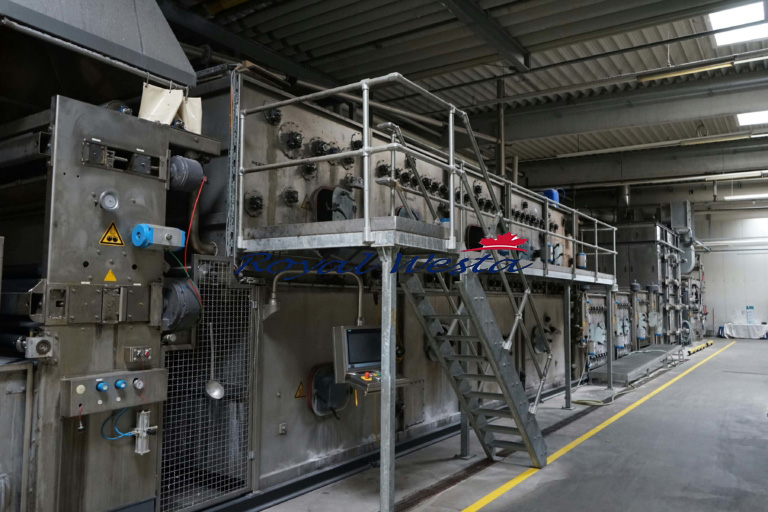

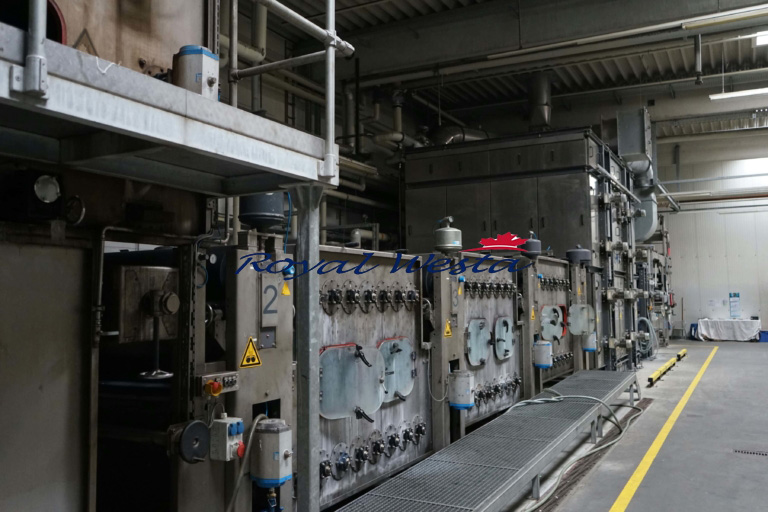

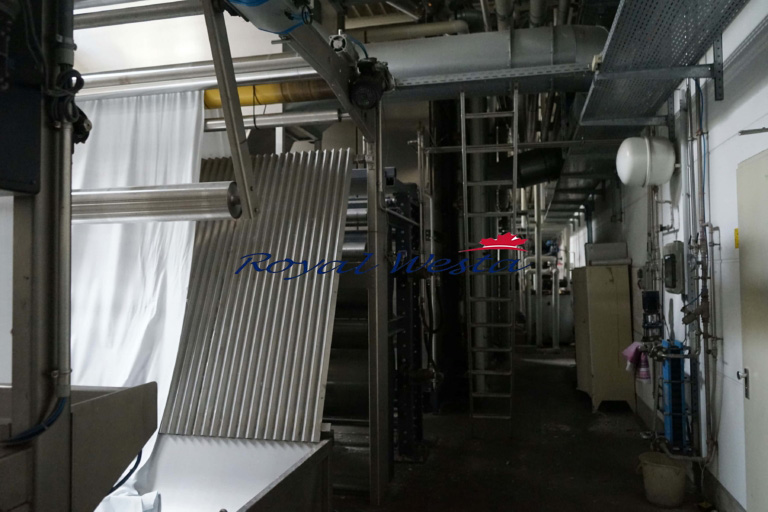

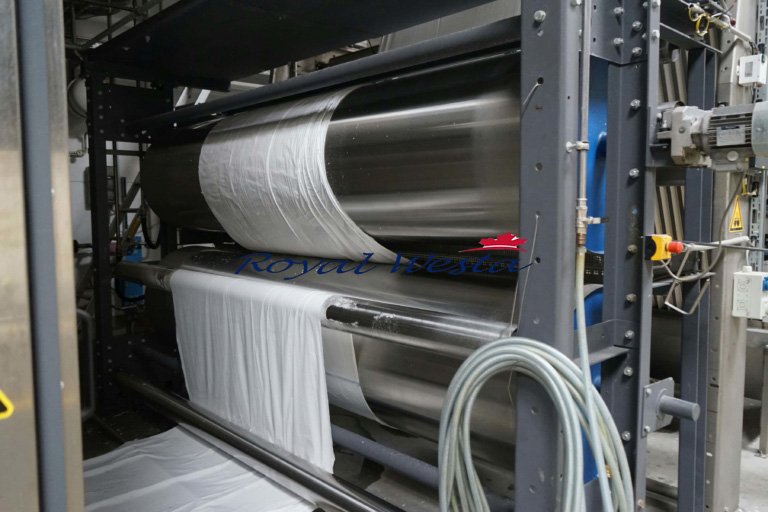

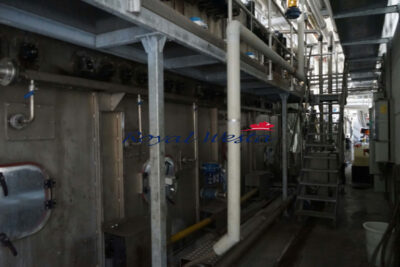

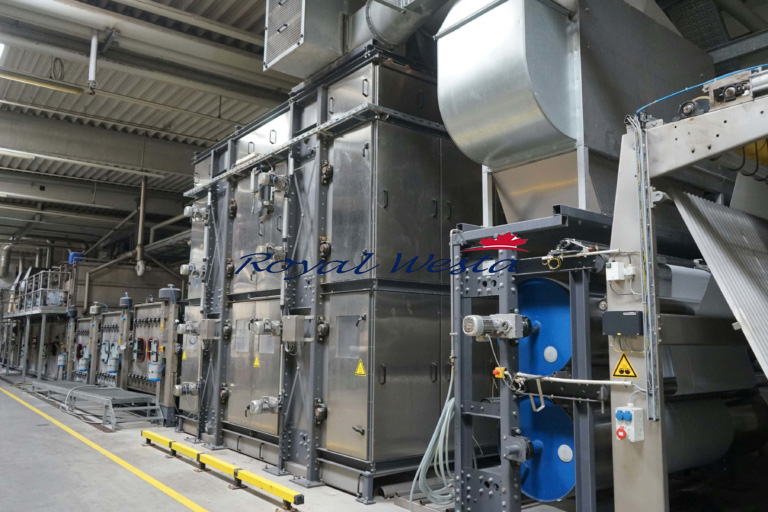

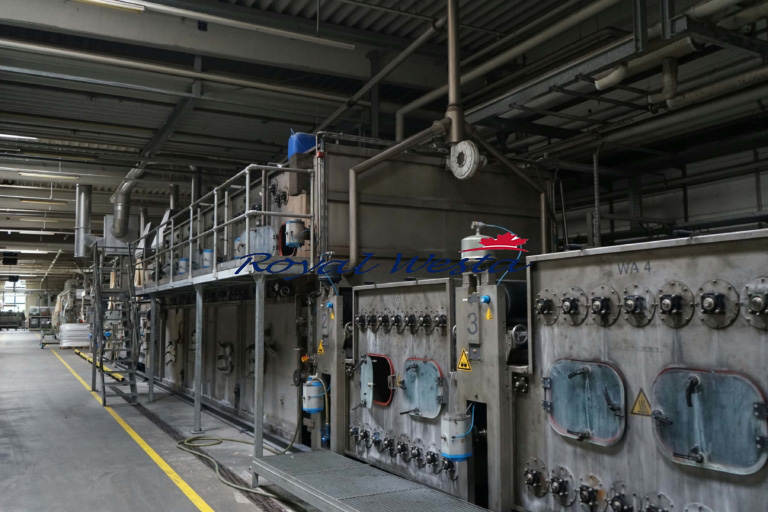

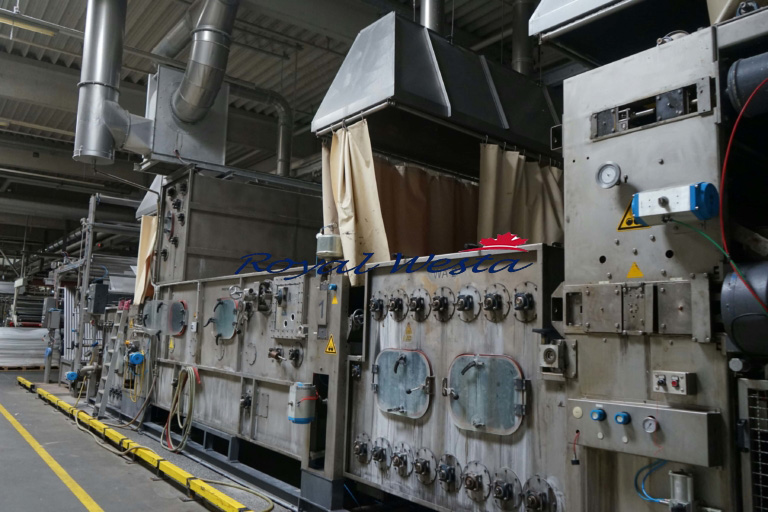

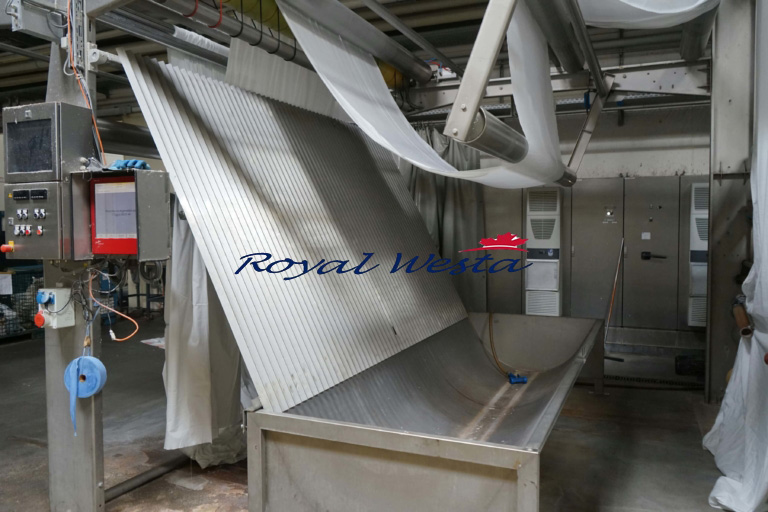

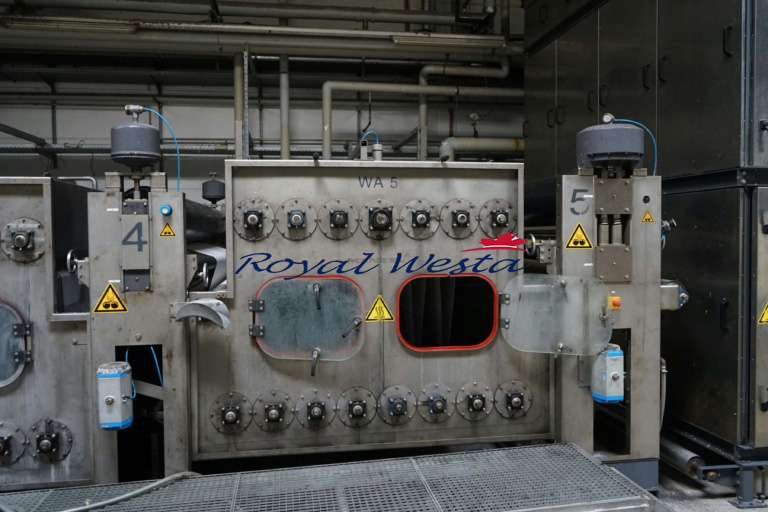

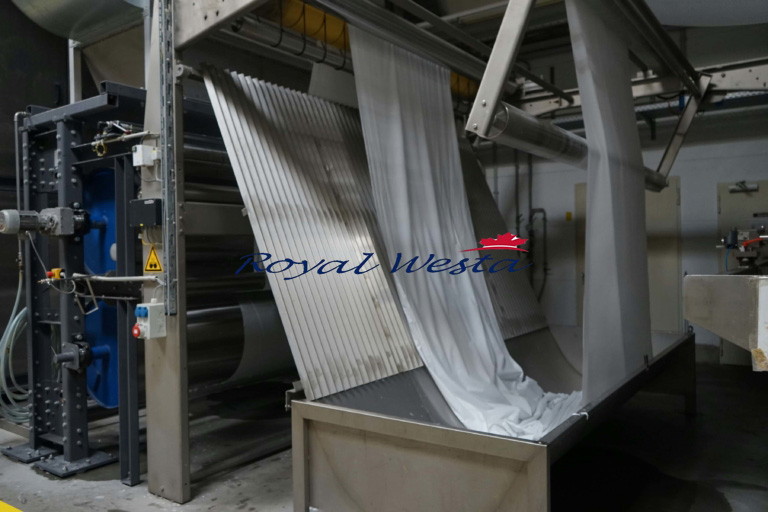

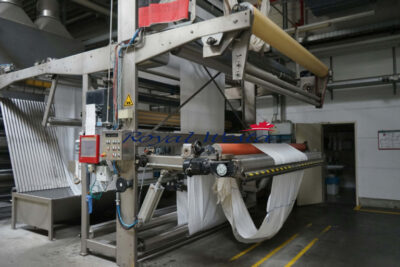

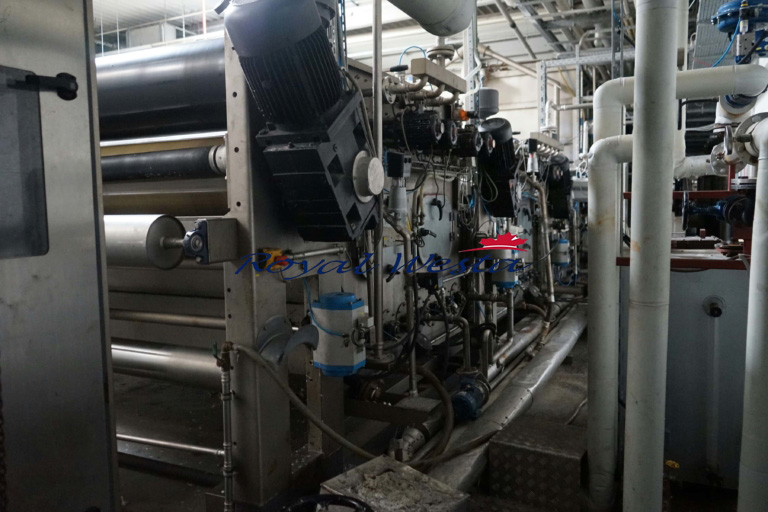

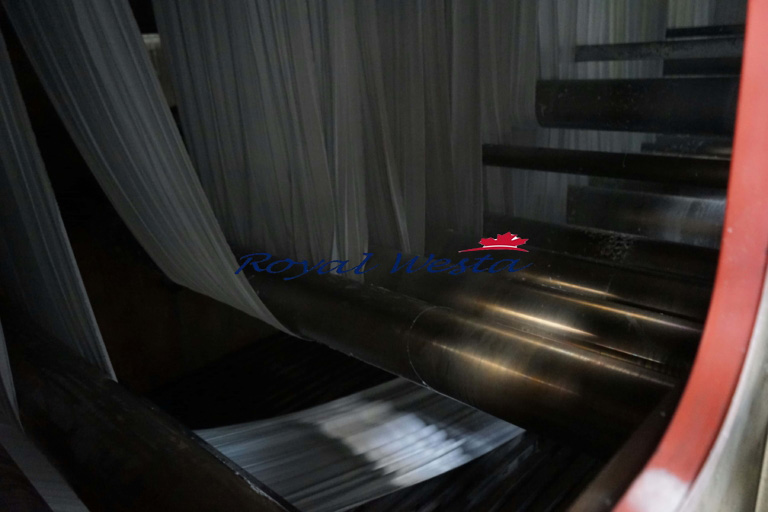

Comprising out of : washing, application, relaxation steamer, washing, drying compartment, high cloth feeding, entrance into J-box for interruption free production with dancing/compensator roller or deviation of the J-box, high cloth feeding with edge uncurlers make ERHARD & LEIMER type KF2020, segment roller as rotary expanding roller for even feeding make ERHARD & LEIMER type SW, entrance into 1st washing compartment with approx.. 25 mtr fabric content with 7 upper/8 lower rollers, squeezing unit, high cloth feeding into relaxation washing compartment with rotary expanding segment roller make EHRHARD & LEIMER type ELSMART. squeezing roller, entrance into 2nd wash compartment with 7 upper/8 lower rollers with approx.. 25 mtr. fabric content, lye application compartment, entrance into steamer with approx. 60 mtr. fabric content tight strand on roller, 1.400 mtr. on relaxation belt compartment, squeezing roller, exit od steamer into 3 washing compartments with each of approx.. 25 mtr. content with each washer installed squeezing roller, feeding into cylinder dryer make WUMAG with it’s housing type MDD 16/2 comprising out of 2 columns of each 8 cylinder with each diameter 800 mm, steam heated, exit of cylinder dryer into J-box for interruption free production and dancing/ compensator roller, with centre cutting unit for 2 x 1600 mm fabric width, heat recovery, dosing station SIEMENS VISUALISATION, INVERTER.
