Menzel Coating Range

General description:
Different methods of production can be realized, machine is designed for coating on a precisely high coating roller or as an air doctor blade.
Equipped with a collision control system.

Machine consists of:
1. Lower frame and coating head with length, beam and knife adjustment,
2. Coating roller with stripping doctor device (which helps to remove residues from the rear roller)
3. Brake, paste limitation, paste supply, control panel
4. Lacquering device - serves for lacquering the before coated material.
5. Consists of a frame, engraved roller, pressure roller, medium basin and medium limitation.

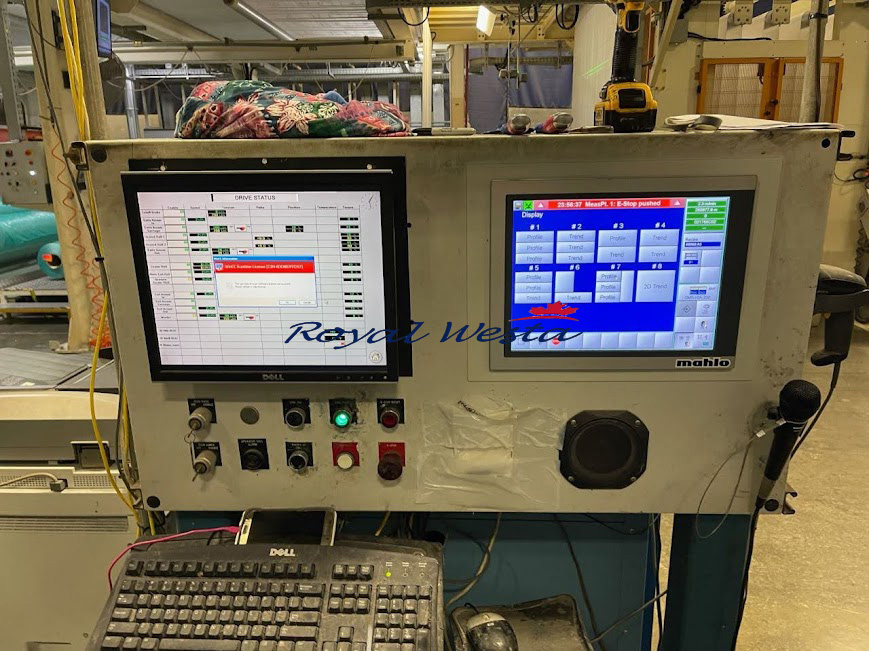

6. Coating beams adjusted with servo drive controlled via the control panel from which all functions of the machine a centrally controlled.
7. Coating knives: adjustable
8. Mahlo coating thickness verifier system, entry and exit
9. 1 Preheating unit for fabric, run with hot water
10. Heat exchanger & transfer by H.E.A.T. Inc
11. Model KM550-80-483 , 80 Kw, max. temp. 550 F, max. press. 75 psig,
12. Voltage: 480V 60 Hz

Specifications:
Year: 2005
Roller width: 2800 mm.
Coating roller with doctor stripping device
Coating beam equipped with 2 coating knives
Material width: 2600 mm.
Speed: 3-35 m/min.
Burner Capacity: Zone 1 (inlet) 150 Kw, Zones 2-5 100 Kw
Voltage: 3x 480 V AC, +/- 10%
Frequency: 60 Hz
Control Voltage: 24 V DC
Compressed air: 6 bar
