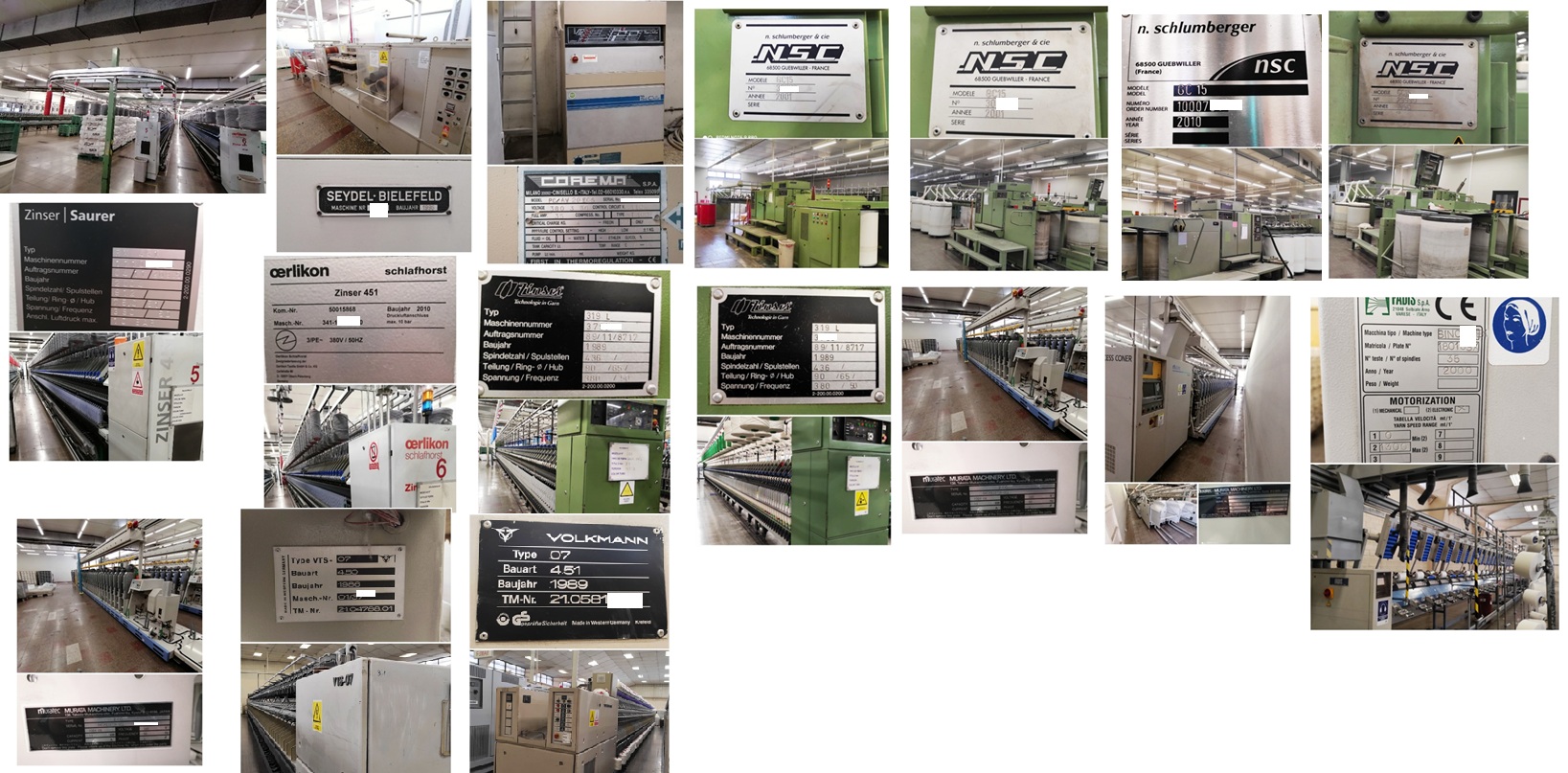

Complete Spinning Line

Spinning Line:

1x Seydel Stretch Breaker with Chiller, Type 870, Year: 1996
COREA BRAND CHILLER MODEL PC/AV 20ECS.

1x Schlumberger GC15 Chain Gillbox, D3 integrated cutter, Year: 2001
INLET 16 CANS OF 800 X 1100 mm AND OUTLET 1 CAN OF 800.

1x Schlumberger GC15 Chain Gillbox, electronic autoleveler, Year: 2001
INLET 10 CANS OF 800 X 1100 mm AND OUTPUT 1 CAN OF 700.

1x Schlumberger GC15 Chain Gillbox, electronic autoleveler, Year: 2010
INLET 10 CANS OF 800 X 1100 mm AND OUTPUT 1 CAN OF 700.

1x Schlumberger GC15 Chain Gillbox, Year: 1998
INLET 8 CANS OF 700 X 1100 mm AND OUTPUT 2 CANS OF 700.

1x Schlumberger FMV32 Vertical Finisher, 16 heads, Year: 1998
INPUT OF 32 CANS OF 700X1100 mm OUTPUT 16 AUTOMATIC COILS, COIL LENGTH 300X70 mm.

2x Zinser 319 L Spinning Machine, 436 spindles each with Luwa blower, Ring dia. 65 mm. Year: 1989
CAN 280 mm, MACHINE LENGTH 21.6 Meters.

1x Zinser RM 451 Spinning Machine linked to Murata, 912 spindles, with Sohler blower, Ring dia. 51 mm. Year: 2004
CAN 260 mm, MACHINE LENGTH 38 Meters.

1x Murata 21-F linked to Zinser, 28 positions, Year: 2004.
WITH BLOWER AND VACUUM CLEANER, LOEPFE TK840 PURGER, YARN MASTER SPECTRA PURGE CENTER, LENGTH 14 meters OUTLET 5º57" LENGTH 170 mm (CURSE 6") THE LENGTH OF THE CONERAR WITH THE SPINNER = 52.45 Meters.

1x Zinser 451 Spinning Machine linked to Murata, 912 spindles, with Sohler blower, Ring dia. 51 mm. Year: 2010
CAN 260 mm, MACHINE LENGTH 38 Meters.

1x Murata 21-C linked to Zinser, 28 positions, Year: 2010.
WITH BLOWER AND VACUUM CLEANER, LOEPFE ZENIT PURGE CENTER, YARN MASTER DIGITAL ONLINE QUALITY CONTROL PURGE CENTER, LENGTH 14 meters OUTLET 5º57" LENGTH 170 mm (COURSE 6") THE LENGTH OF THE CONERAR WITH THE SPINNER = 52.45 Meters.

1x Murata 21G-II, 60 positions, Year: 2011.
WITH COIL CHARGER WITH BLOWER AND VACUUM, LOEPFE ZENIT PURGER, YARN MASTER DIGITAL ONLINE QUALITY CONTROL PURGE CENTER FOR 2 TYPES OF LONG BINS 300mm AND 280 mm WITH HOPPER TYPE FEED CHARGER, LENGTH 27.5 meters OUTLET 5º57" LENGTH 170 mm (CURSE 6")

2x Textra Bobbin conveyor 717, Year: 2000 & 2011
65x BINS OF 700 mm DIAMETER X 1100 mm HIGH WITH WHEELS
30x BINS OF 800 mm DIAMETER X 1100 mm HIGH WITH WHEELS
109x BINS OF 800 mm DIAMETER X1100 mm WITH PERFORATED WHEELS (49 LIGHT BLUE AND 60 RED)
16x ALUMINUM TROLLEYS

All accessories are included for good running as cans, tubes, aluminium trolleys, spare parts.

Twisting Line:

1x Fadis Doubler, Type: SINCROTEX, 35 pos, with blower, Year: 2000
20 UNITS LONG TUBE OUTPUT 225 X 45 DIAM. AND 15 UNITS 170X45 DIAM. CONE FEED 5º5" LENGTH 170 mm.

2x Murata Two for one twister, Type: 363-II, 160 spindles each, Year: 1994
POT 165 X 185 FEED TUBE 225 X 45 DIA. CONE OUTLET 5º57" LENGTH 170 mm.

2x Volkmann Two for one twister, Type: VTS-07, 156 spindles each, Year: 1989-1986
POT 180 X 225 FEED TUBE 225 X 45 DIA. CONE OUTLET 5º57" LENGTH 170 mm.
