AA10/040924/

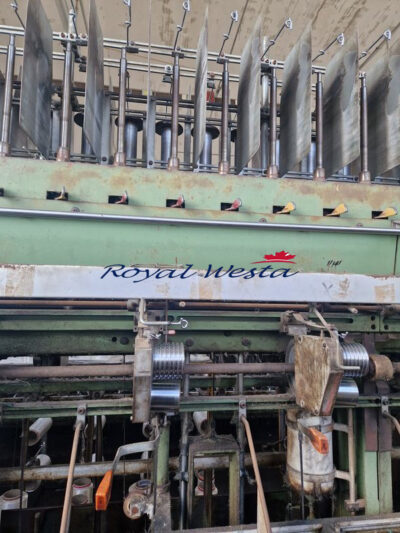

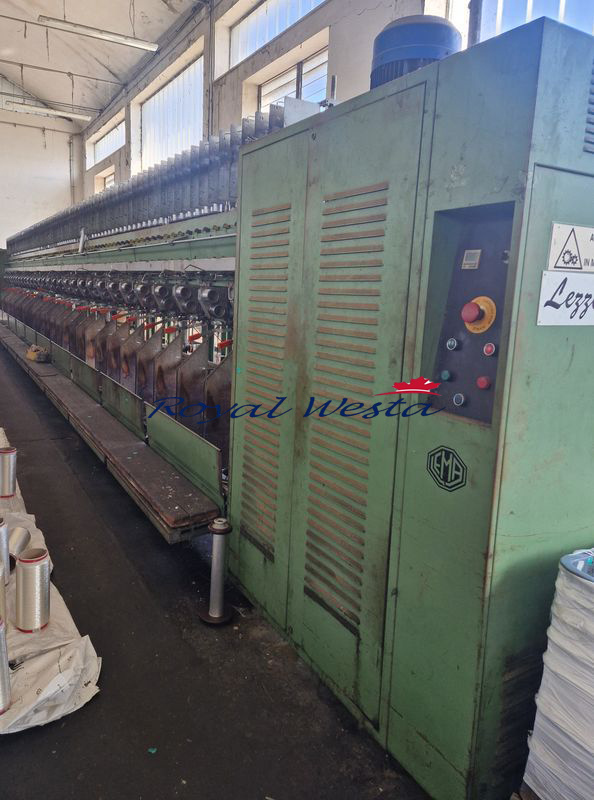

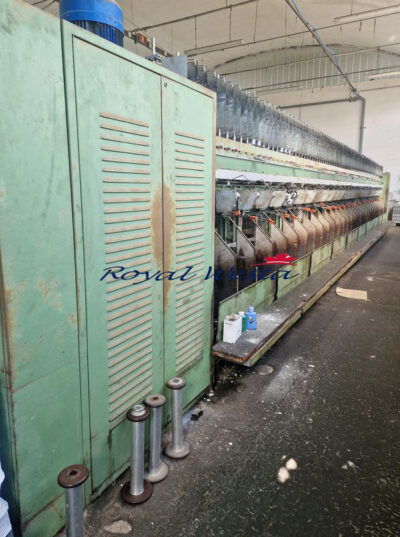

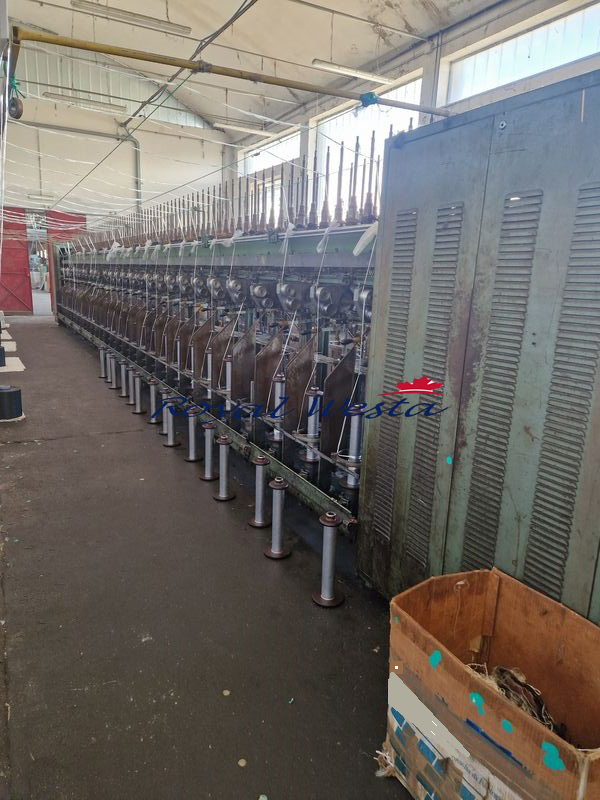

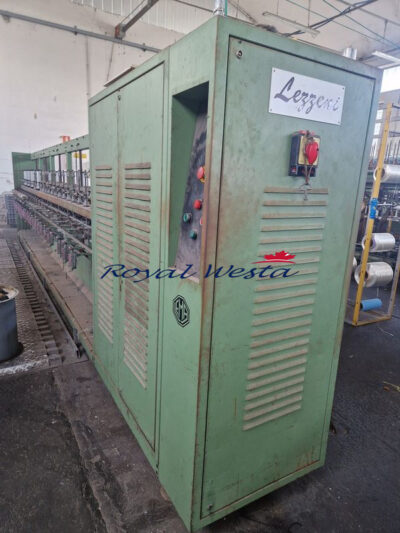

Lezzeni Double Twisters
Quantity: 1
Year: 1992
Double twisters TBRH/400 3 x 1
Feeding system positive drive
Machine with:
Feeding: 180 spindles, suitable for bobbin: run 260 mm., flange dia.110 mm.

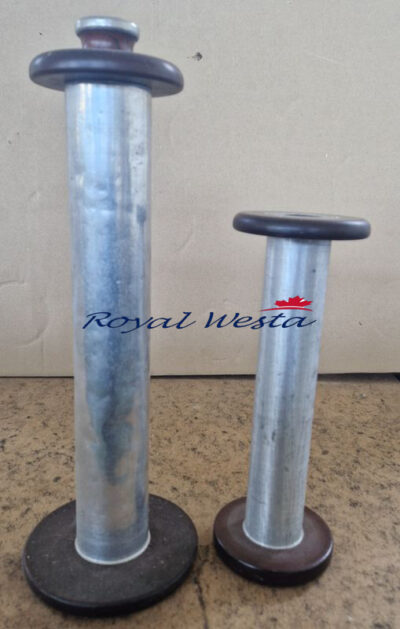

Take up: 60 (30x2) spindles, gauge 400 mm., ring dia.165 mm., on flanged bottle : run 360 mm base flange dia.145 mm., top flange dia.105 mm.
1x LEZZENI pirn winder Mod. SLV, yoc 1992, 46 (23x2) spindles.
Can be used for spare :
1 LEZZENI Twister double twisters TBRH/400 modify in BR without top spindle yoc 1987, feeding system positive drive , Take up 60 (30x2) spindles, gauge 400 mm., feeding 3 ends , ring dia.165 mm., take up on flanged bottle : run.360 mm., base flange dia.145 mm., top flange dia.105 mm.
