AH09/240826/

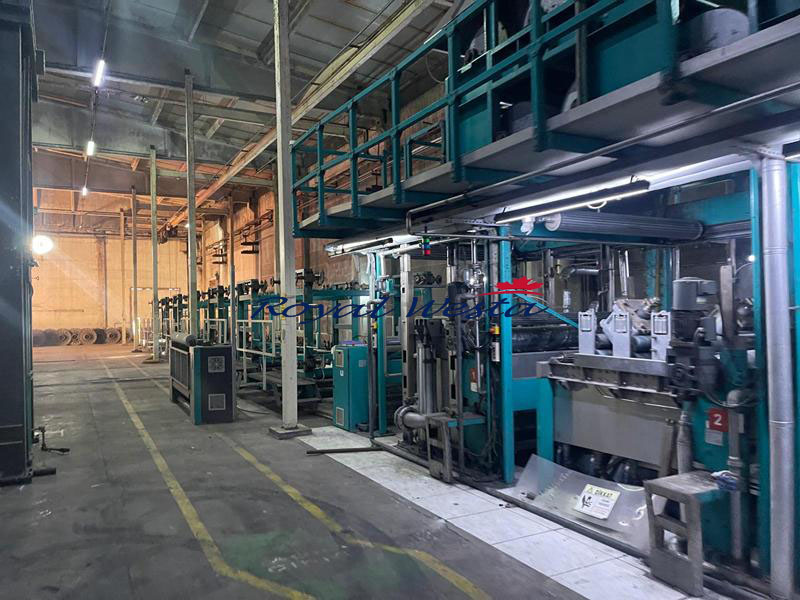

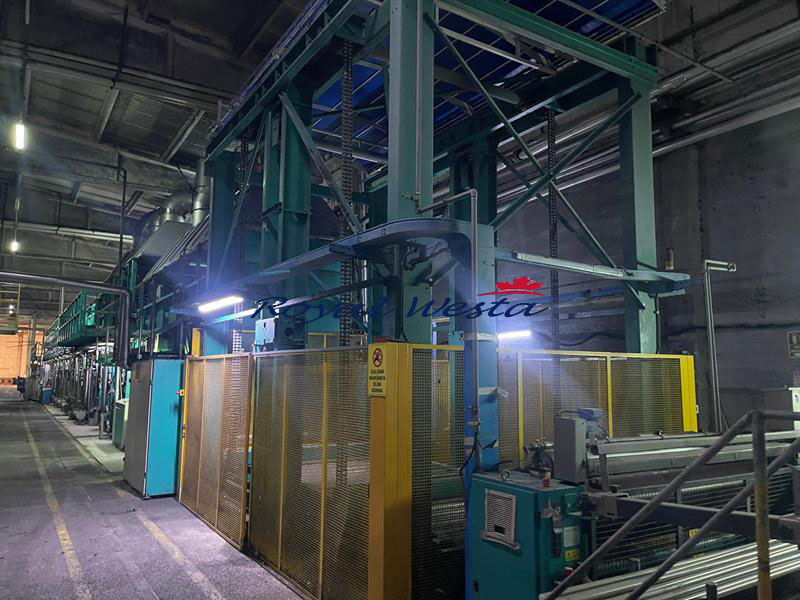

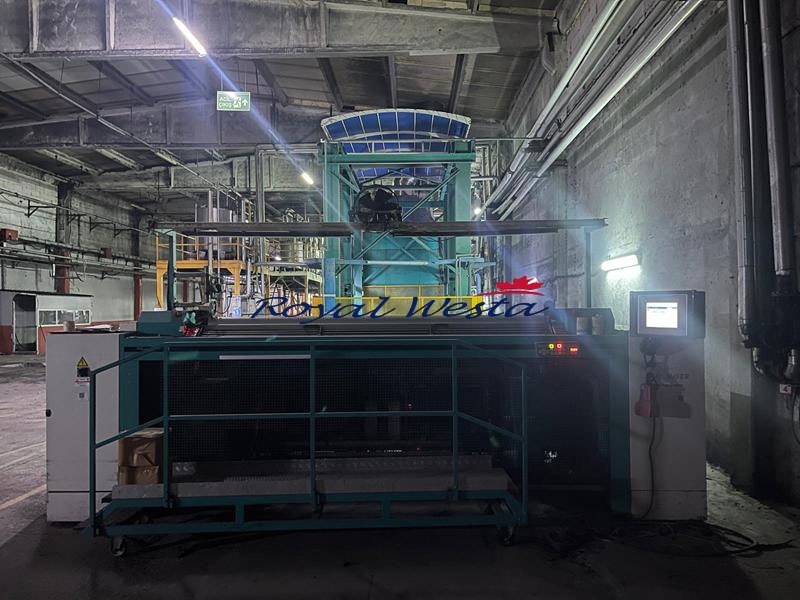

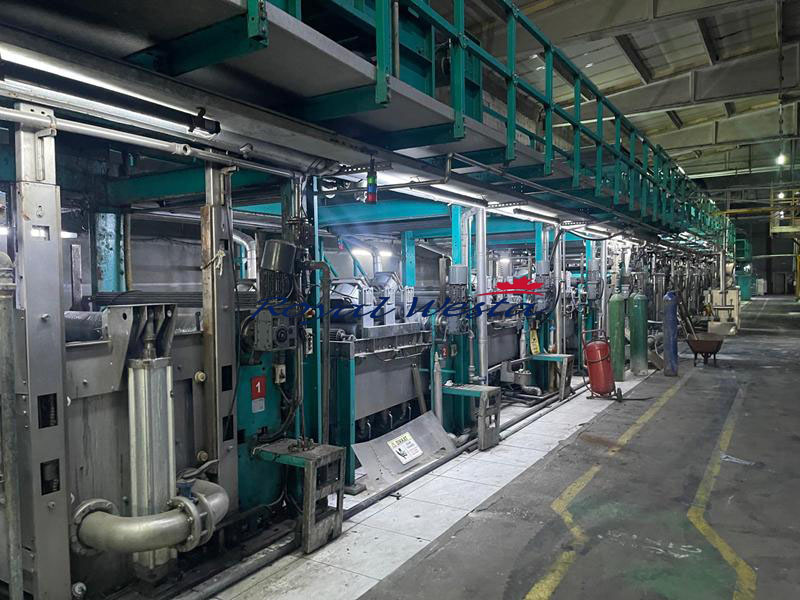

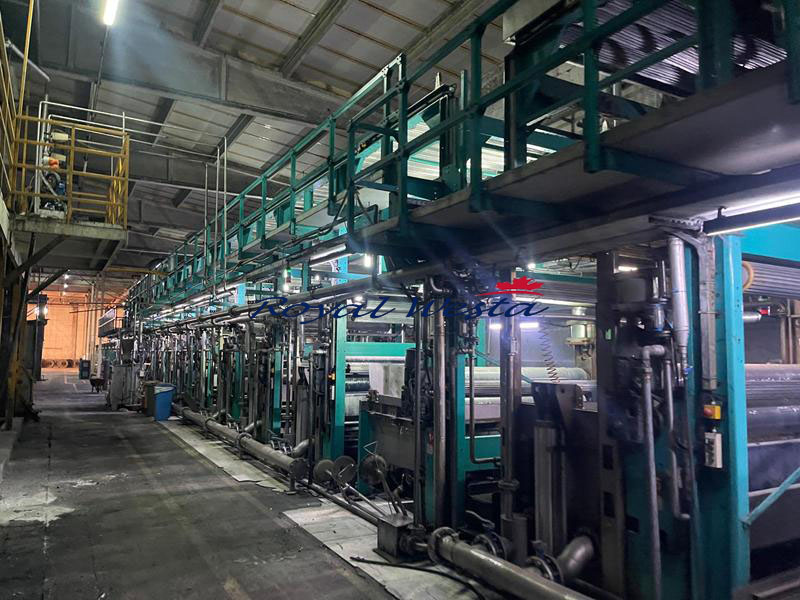

Slasher Indigo Dyeing and Karl Mayer Direct Warping
Year: 2014
Working Width = 1800mm.
INDIGO:
Number of indigo boxes
1x impregnation tank
3x preparation or dyeing tank
8x dyeing tank
3x washing tank
1x Mixing tank for Indigo dye liquor (Indigo), Capacity = 1000 l
2x Mixing tank for sulphur dyestuff, Capacity = 400 l
SIZING:
Beaming machine Working width =2600 mm.
Beaming machine max beam deameter = 1250 mm.
Humidity device = Mahlo
Waxing device = YES (Type – WD)
Number of PreDryer cilinders = 10
Number of Dryer cilinders = 14
Dryer Hood = YES
Number of hood fans = 2
Number of Size boxes = 2
Size box max work width = 1800 mm.
Number of beam Creel – 2 (Total position 28)
Beam creel max width =1800 mm.
Beam creel max diameter =1400 mm
Size Cooking tank 1no. and reserve tank 2nos (1200 L)

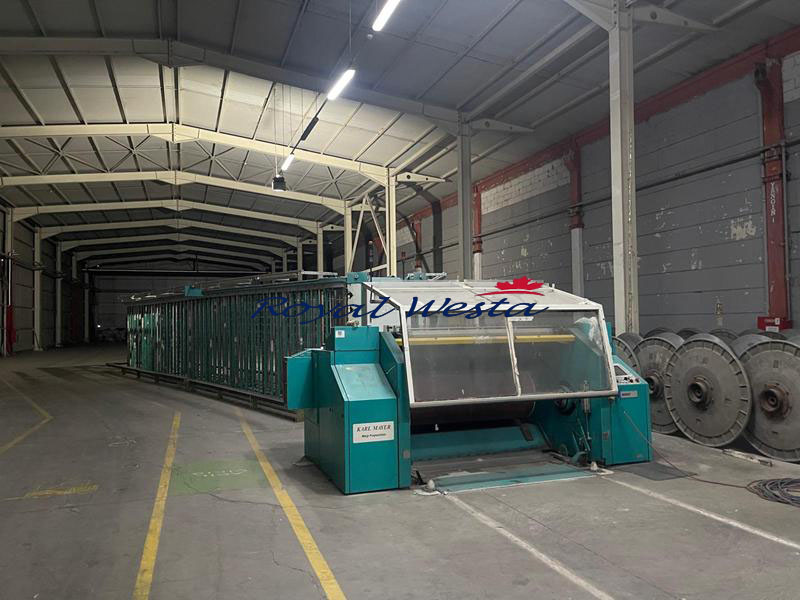

Karl Mayer Direct Warping
Year: 2014
Beaming Working Width : 1800 mm

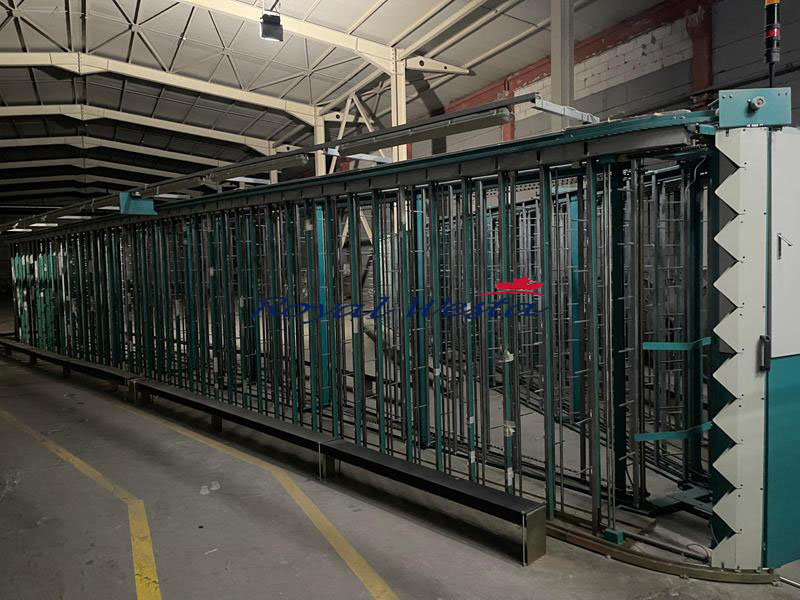

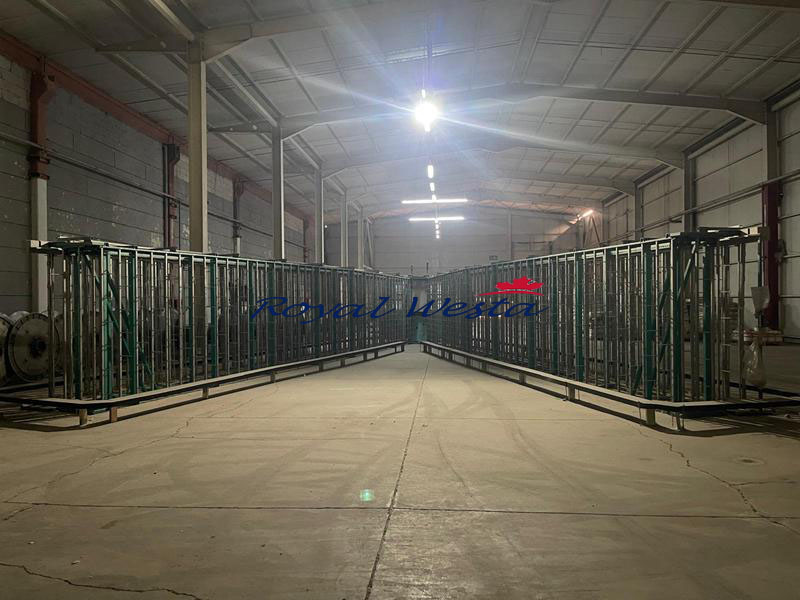

Creel Type : V
No. creel positions: 560
