*AB55/260926/AQ/

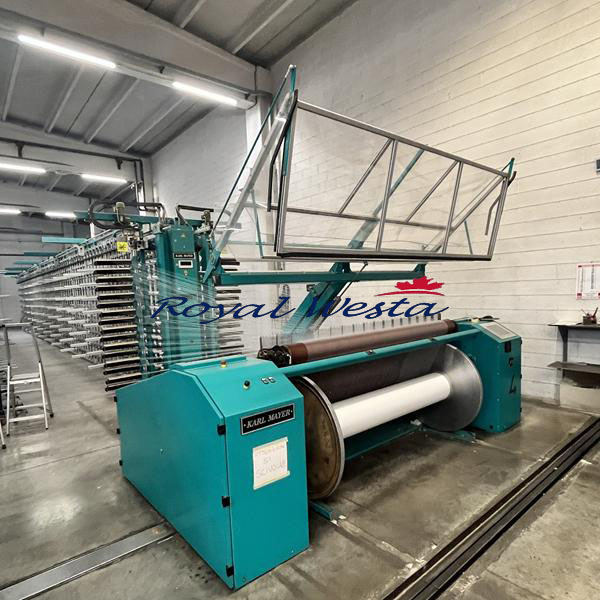

KARL MAYER Sectional Warping
Quantity: 1
Year: 2008

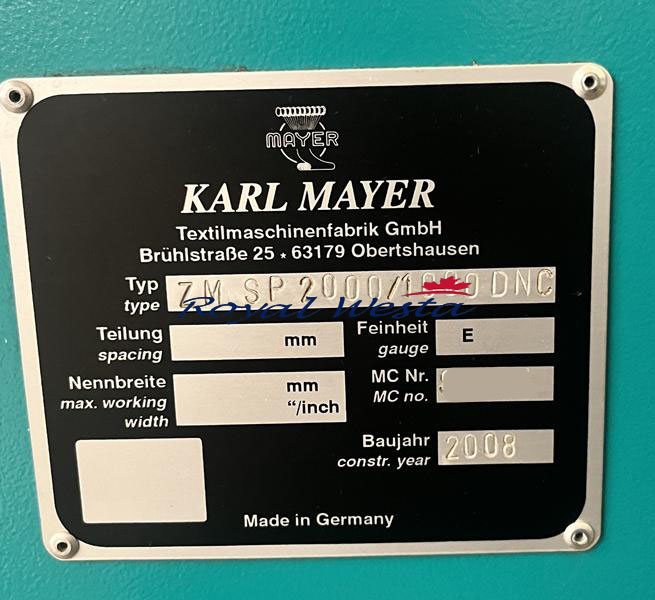

Model: ZM SP 2000/1000 DNC
Made in Germany
Complete with 1,056-position yarn creel.
Main technical features:

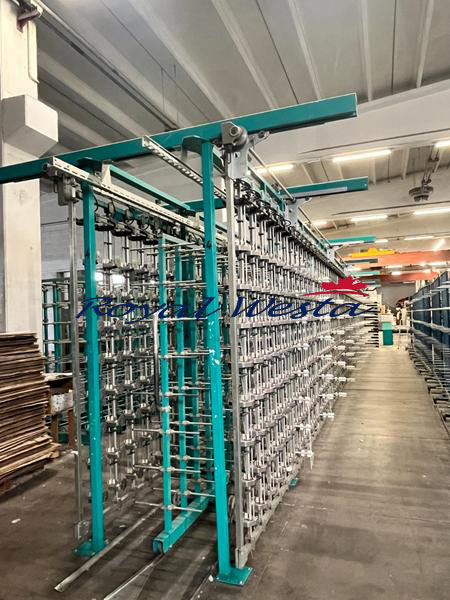

Yarn creel with 1,056 positions
Creel pitch: 260 mm
Complete with individual yarn tensioning and guiding devices

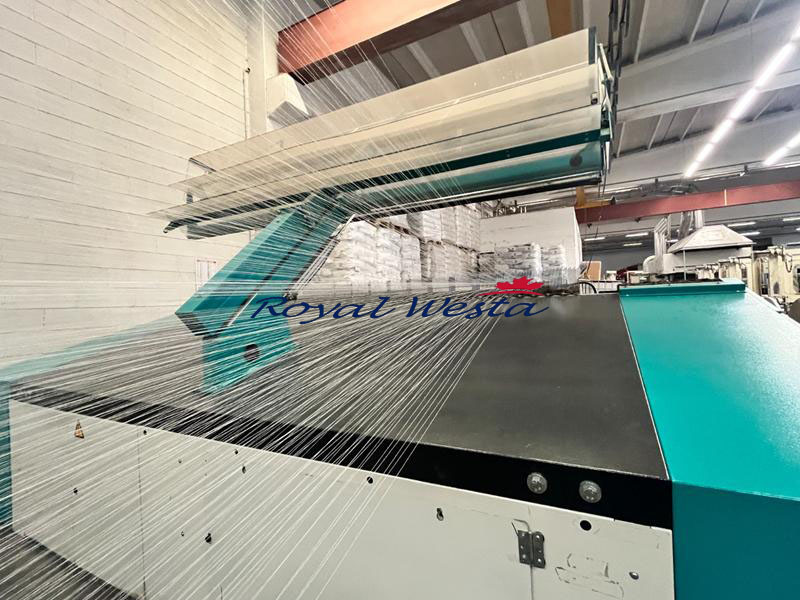

Yarn collecting and guiding system from the creel to the warping head
Yarn distribution and section forming system
Sectional warping drum

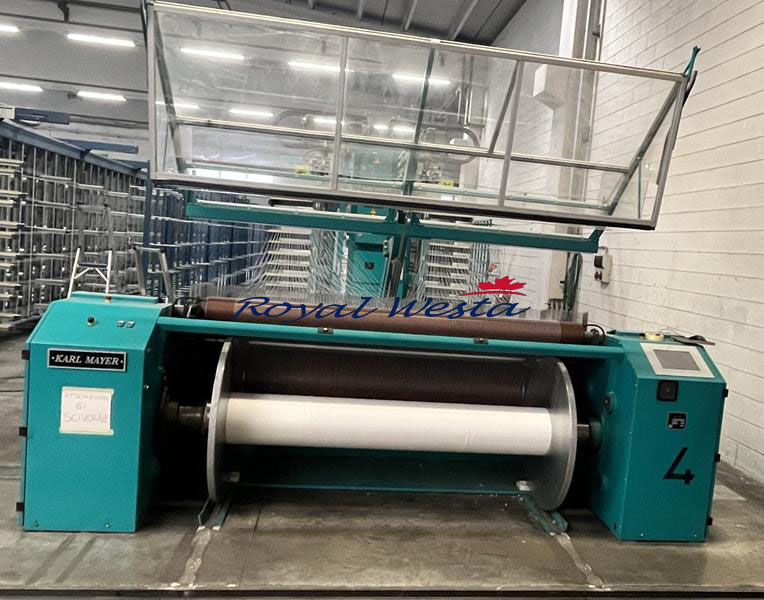

Beaming unit for winding the warp onto the beam
Maximum beam width: 2,000 mm
Maximum beam diameter: 1,000 mm
Speed range: 50–1,000 m/min
Electronic control system with operator panel
Complete with safety devices, guards and installed accessories
Complete machine including 1,056-position creel and accessories
