AI31/041025/
Jakob Muller Needle Looms
AI31/041025D/AA.L-C/F/
2 sets Jakob Muller Needle loom
type NF42 2/66 G Year 2007
with Steel double take down roller for mid-heavy belt
with rubber pressure roller
with 10 harness frame
with 8 repeat chain links
with frequency Inverter
with pick density 3 - 14 pick/cm
with binder thread motion
with warp stop motion device
with re-directional roller
with standard accessories
Condition - Fully refurbished, complete, clean and in good working order.
Note:
( The loom original is NF42 6/27G, we convert it to NF42 2/66 with original Muller parts by Jakob Muller professional technicians )
If you want to weave 12mm -60mm standard plain weave webbing 15 -20 ( convert from inch to cm about 6 to 8 pic/cm ) picks per inch. it should not be a problem at all, because the range of the pick density within 3-14 picks/cm on this loom for mid heavy belt.
If you want to weave the following options of weaving to make some specific tapes(it would be wider in some cases and narrower in some. But mostly they are very thin like plain weave fabric).
the range for NF42 2/66 can weave the tape range from 20 - 64mm tape width. if necessary need to fix the retaining hook i.h + r.h to avoid weft yarn pull back on both selvedge.
OEM spare parts can be supplied or you can direct purchase the spare parts from Muller based on the machine serial number.
Weave: Plain, Harness Frames: 2-6, Reed Width: 120-130 mm, Tension/Rollers: Medium-High warp tension
Weave: Basket 2x2, Harness Frames: 4-6, Reed Width: 120-130 mm, Tension/Rollers: Rubber-coated take-off/rollers for edge control
Weave: Leno, Harness Frames: Optional 2-4, Reed Width: 20-50 mm, Tension/Rollers: Medium tension -Rubber take-off
Weave: Twill 2/2, Harness Frames: 4-6, Reed Width: 20-50 mm, Tension/Rollers: gentle beat up for edge control
Weave: Plain, Harness Frames: 2-6, Reed Width: 120mm, Tension/Rollers: High warp tension
Weave: Twill 2/2, Harness Frames: 4-8, Reed Width: 120mm, Tension/Rollers: Rubber take-off
standard accessories offered along with the machine? Mutran belt, Mutran wheel, spare harness frame ( 2 pcs ), weft needle, weft arm, etc.
Its possible for extra charge to add specific spare parts
Electronic copies (Operational manual and spare parts catalogue) would be given
after sail services such as repair/service/training can be provided but usually not require for cos that already have similar machines because these machines are plug and produce machines with easy maintenance
AI31/041025D/AA.L-C/F/

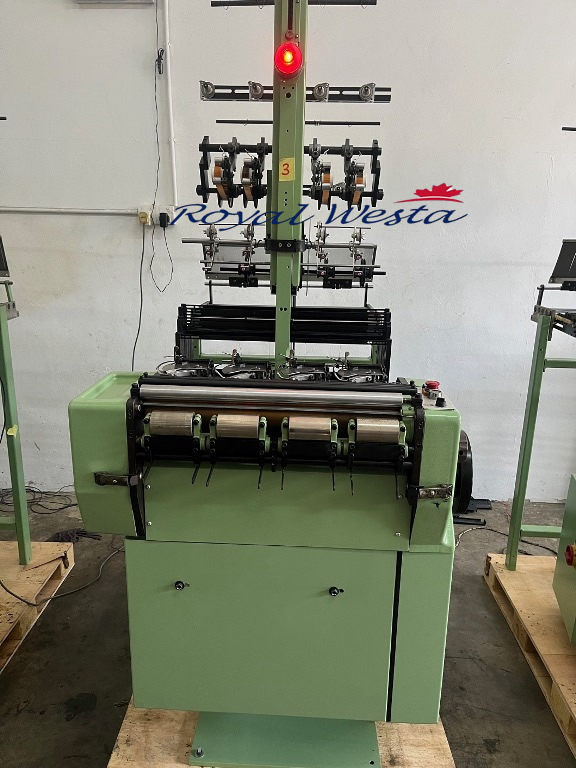

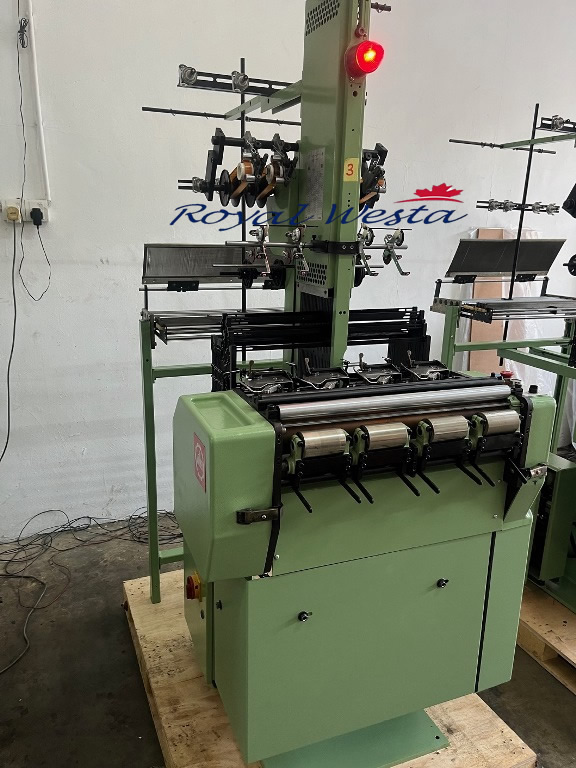

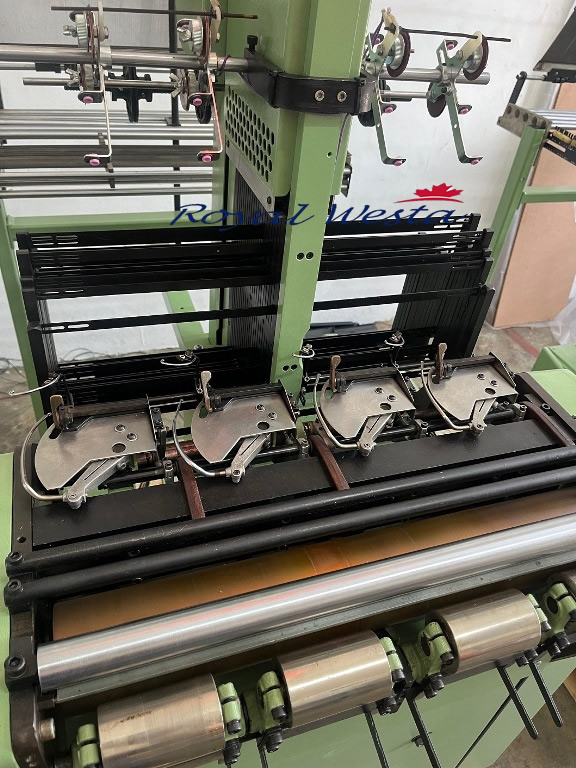

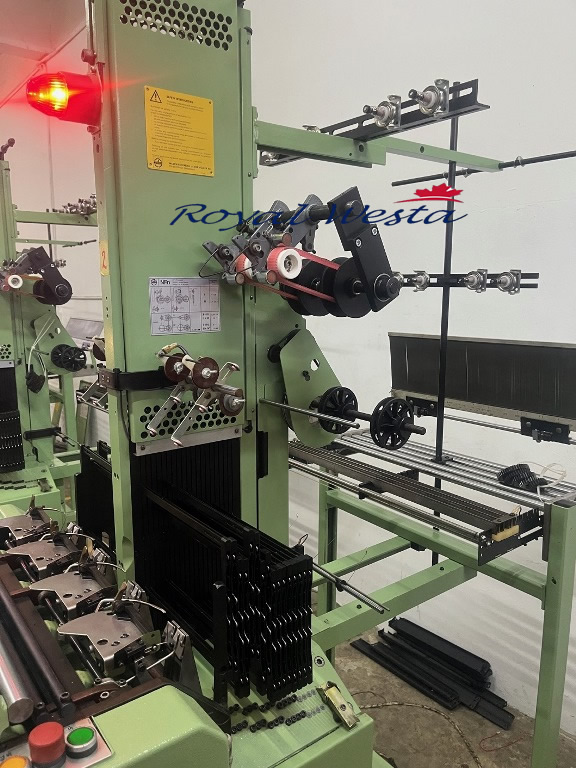

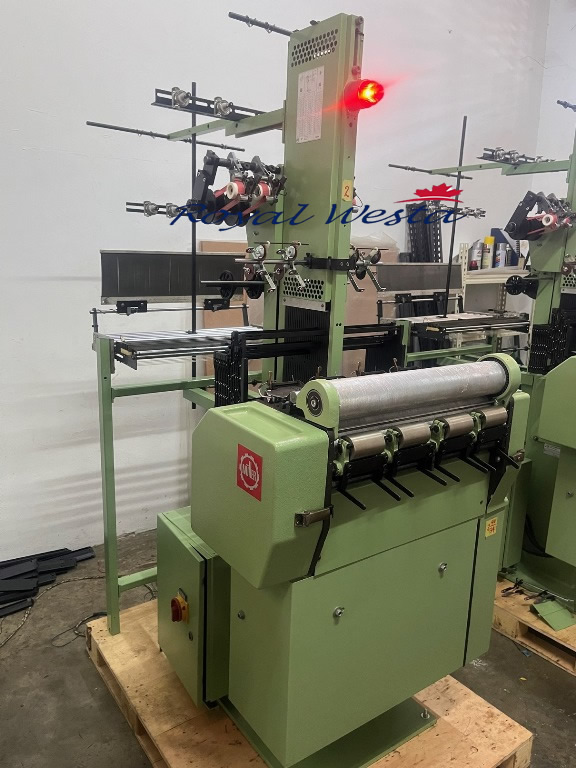

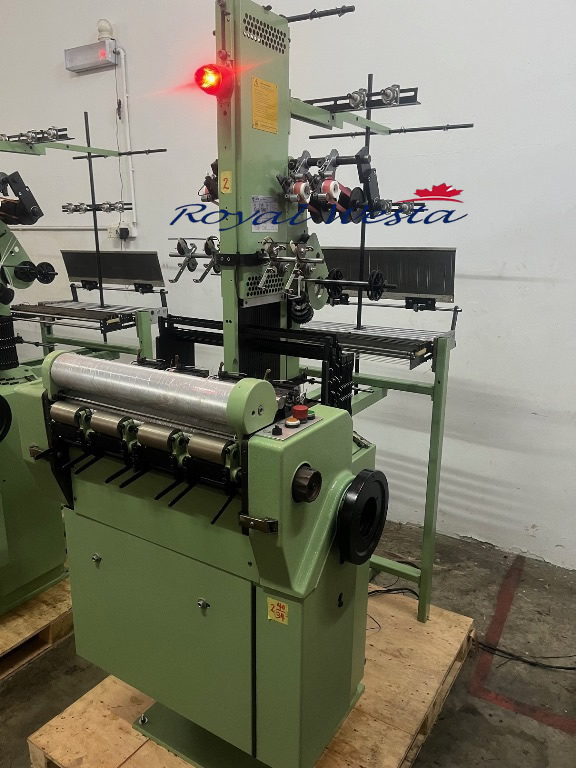

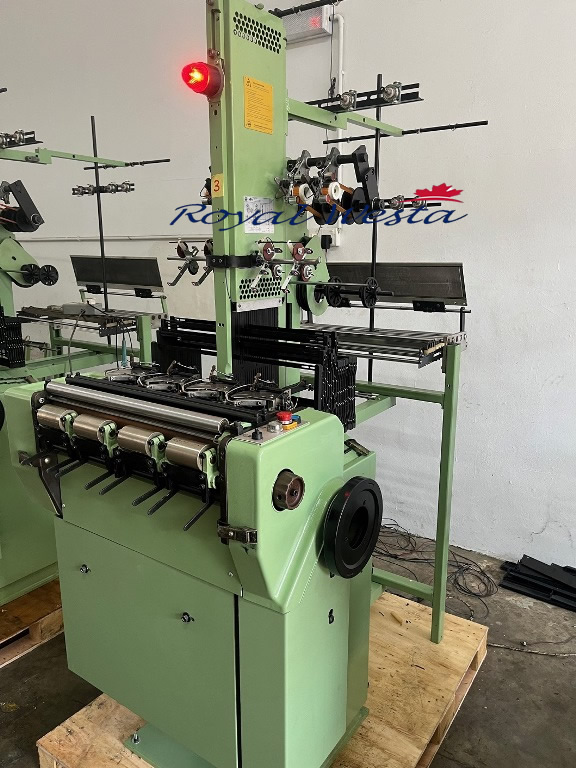

3 sets Jakob Muller Needle loom
type NF53 4/66 Year 1996

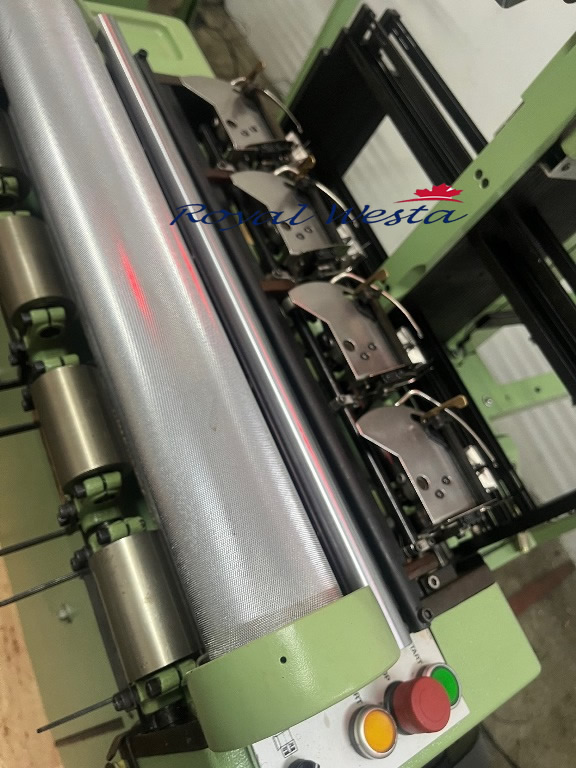

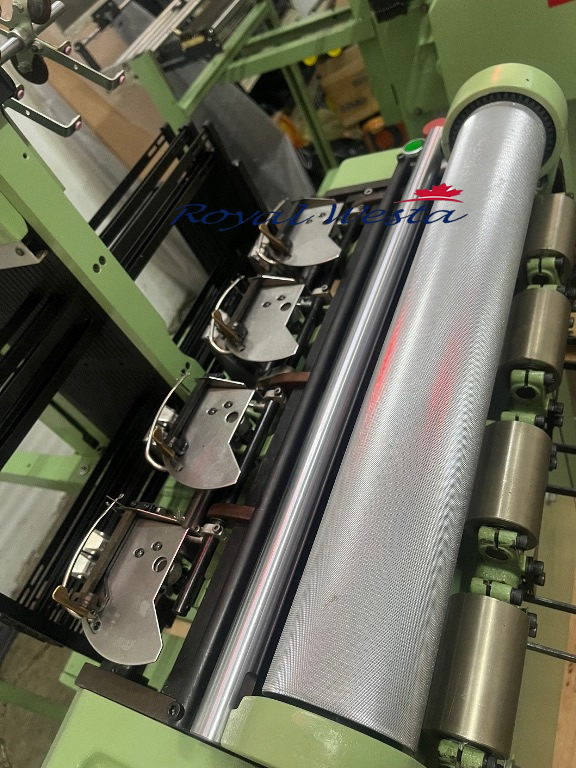

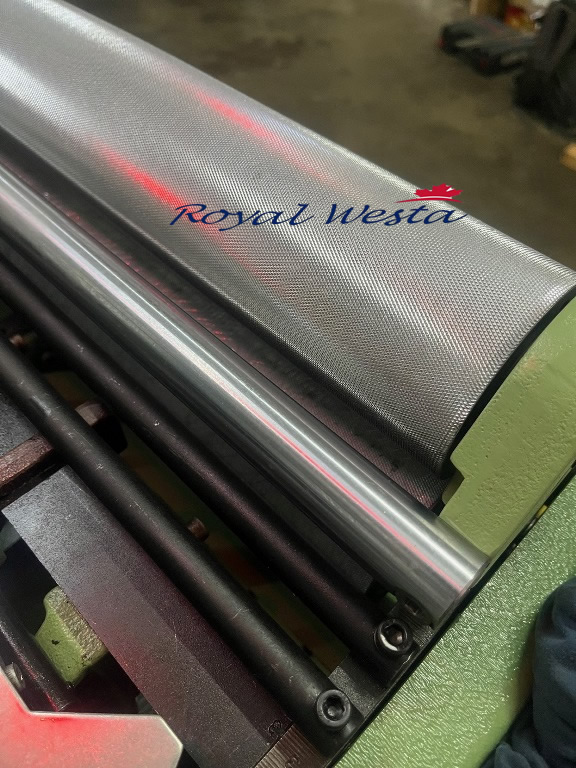

with rubber take down roller or steel Knurled roller ( optional )
with steel pressure roller or rubber pressure roller ( optional )
with 16 harness frame
with 8 repeat chain links
with pick density 3 -40 pick/cm
with binder thread motion
without slow motor
with warp stop motion device
with re-directional roller
with standard accessories
Condition - Fully refurbished, complete, clean and in good working order.
Voltage : 230/400VAC 50hz, 275/480VAC 60hz.
