AC08/140726/BY/

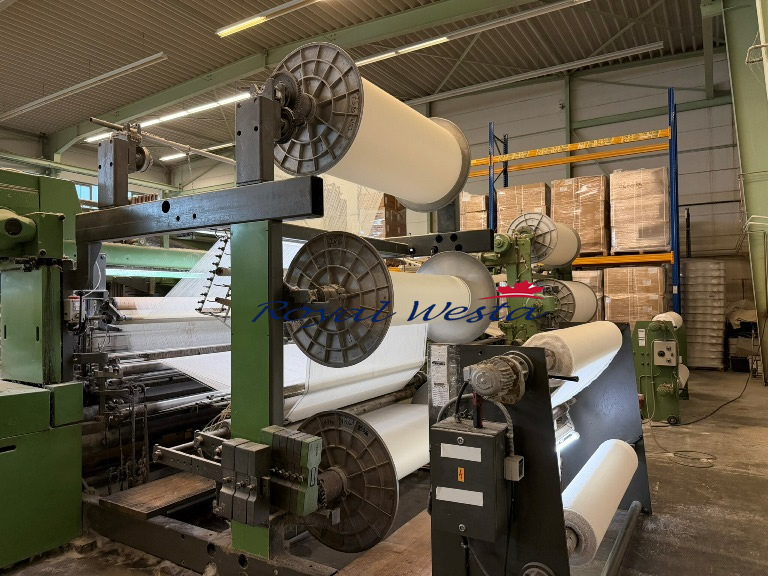

Gusken Looms for Velvet

Quantity: 5

AC08/140726E/P-A.L/M/

1x GMV 82, Year: 1981, modernised and with weft insertation system of GMV 90, running.

AC08/140726E/L-A.L/M/

1x GMV 82, Year: 1977, modernised and with weft insertation system of GMV 90, stopped.

AC08/140726E/AA-A.L/M/

1x GMV 90, Year: 1983, Stäubli dobby, running.

AC08/140726E/AA-A.L/M/

1x GMV 90, Year: 1983, Stäubli dobby, running.

AC08/140726E/T-A.L/M/

1x GMV 80, Year: 1978, Stäubli dobby, running.

Machines equipped with 3 beams- 2 beams for the ground and one beam for the pile.
With needle rollers
Cutting device 2:1
3 warp stop motion with four detection bars
Wheels for weft density and pile delivery available
Technical documentation available
All machines are well maintained and running on high class double face velours - at highest quality level.
All Güsken looms working with GMV 90 Weft insert system- rapiers and guiders.
All machines equipped with:
Maximum Pile height for all the machines 22mm between top and bottom cloth
Ready made fabric width 140/142 cm
Available warp and pile beam diameters 800 and 1000 mm: 4,5 beams per loom
Cloth rollers: 3 per loom
