Grass Tufting Factory

AB74/120525E/RP-AI/M/AX/

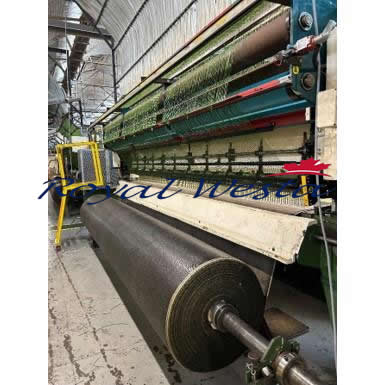

Tufter – Supplied by TMS circa 2006, refurbished by Danley 2024

5/8 Gauge
4.04m maximum tufting width.
PIV driven dual yarn feed rollers (front) 6” rollers
PIV primary backing feed
Manual Bed
Pile height range 35mm to 65mm
Stitch range 120 – 270 per lin metre
Module knife blocks. 1mm thick knifes.
Running speed 350rpm maximum
Manual Primary Backing Lifter/stand.
Mending frame with lapper.

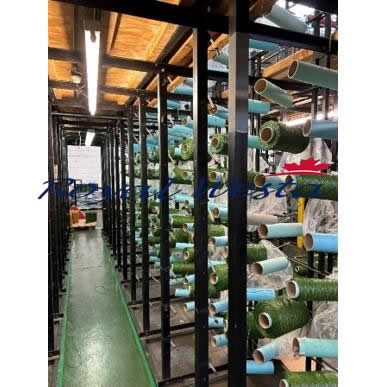

3/16 magazine creel.

AB74/120525E/YI-AI/M/AX/

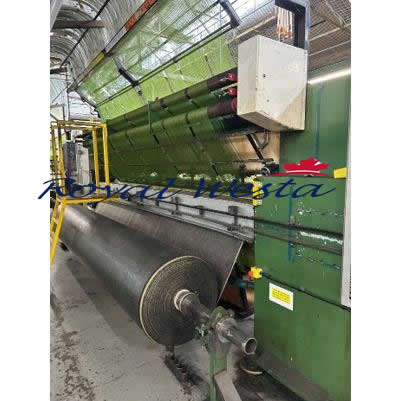

Tufter – Supplied by Thom Eng circa 2000.

3/16 gauge.
4.03m max tufting width
DC Drive system
PIV driven single yarn feed rollers (front). 4” rollers
PIV primary backing feed
Manual Bed
Pile height range 7mm to 18mm
Stitch range 150 – 360 per lin metre
Module knife blocks. 1mm thick knifes.
Running speed 350rpm maximum
Manual Primary Backing Lifter/stand.
Mending frame with lapper.

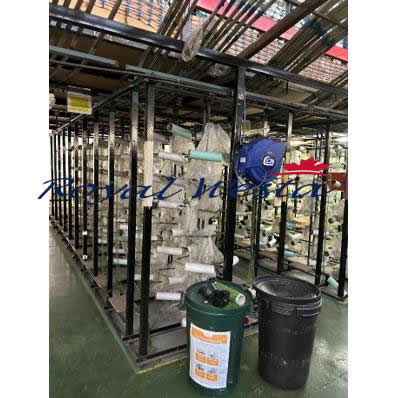

3/16 Magazine creel.

AB74/120525E/RL-AI/M/AX/

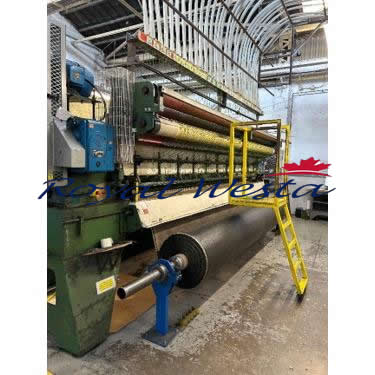

Tufter - Supplied by Thom Eng circa 2004

5/8 Gauge
4.04m maximum tufting width.
PIV driven single yarn feed rollers (front) 6” rollers
PIV primary backing feed
Manual Bed
Pile height range 35mm to 65mm
Stitch range 120 – 270 per lin metre
Module knife blocks. 1mm thick knifes.
Running speed 350rpm maximum
Manual Primary Backing Lifter/stand.
Mending frame with lapper.

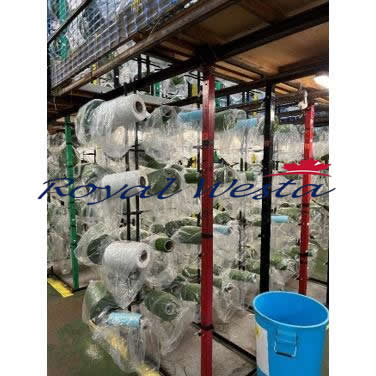

Double storey 5/8 magazine creel.

AB74/120525E/RP-AI/M/AX/

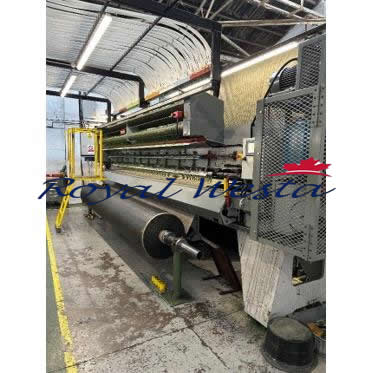

Tufter – Supplied by TMS 2021

5/8 Gauge
4.05m maximum tufting width.
PIV driven single yarn feed rollers (front) 6” rollers
Estex end out detection system
PIV primary backing feed
Manual Bed
Pile height range 35mm to 65mm
Stitch range 120 – 270 per lin metre
Module knife blocks. 1mm thick knifes.
Running speed 400rpm maximum
Manual Primary Backing Lifter/stand.
Mending frame with lapper.

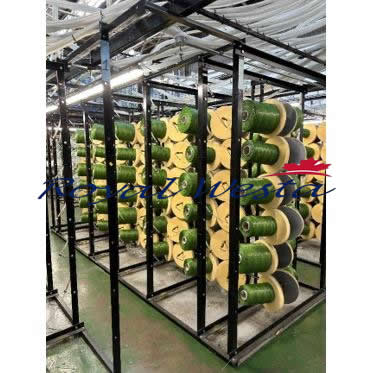

Single storey 5/8 magazine creel.
Tubed to wide bore tubing.

AB74/120525E/ARI-AI/M/AX/

Coating Line

Supplied by Gyson/CTS Australia
Installed and commissioned Feb 2001
Overall length 35.5m. Maximum width 5.6m. maximum height 4.5m
Designed for the coating of artificial turf with SBR Latex.
Dohle Ultra Super butt seamer sowing machine.
J bin with electrical side shift.
Latex pump and foamer with compressed air input ports. Water cooled.
Direct coater, roller over roller design. Water chilled application rollers, upper roller height adjustable. Auto tracking latex weirs. Traverse latex feed. Driven turf pretension system.
Normal running Latex dry weight application of 700g/sqm at 1.8 linear metres per minute. Latex dry application weight of 1000g/sqm at 0.9 linear metres per minute.
Auto tracker stenter wings, leading to fixed track section.
5 x Black tube LPG gas heater units.
LPG gas fired recirculation oven, 4 chambers, split into separate upper and lower zones. Upper zones for heated air, lower zones with external forced cold air feed. (8 zones)
Hot solder tipped irons for turf perforations. Adjustable hole frequency, timing auto linked to line speed.
Turf Accumulator, auto anti-drop and carriage guiders.
Up and over turf carriage frame.
Measuring station and inspection floor.
Crosscut and auto feed to Roll up unit.
Rollup unit, with independent roller drives.
Fully Operational.

The machines have been running until First of May.
