AB46/100426/AR/
Giudici Texturizing
Quantity: 6
Giudici Texturizing

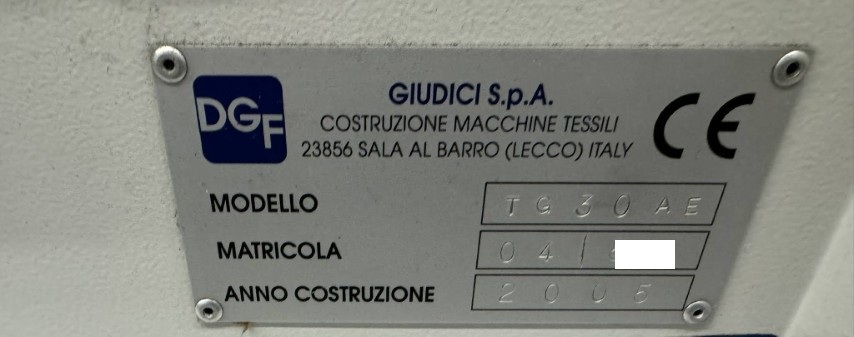

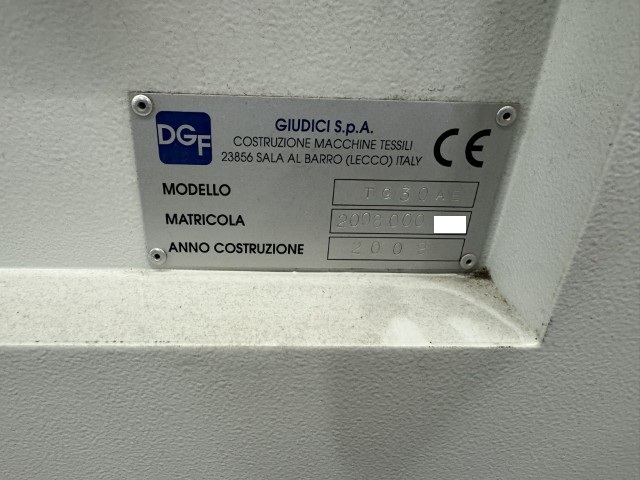

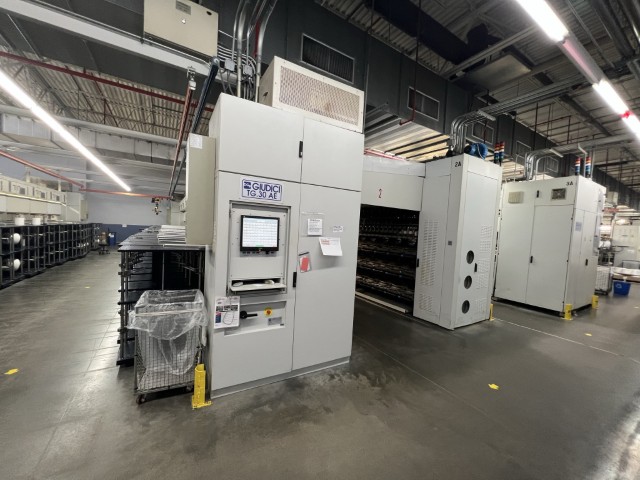

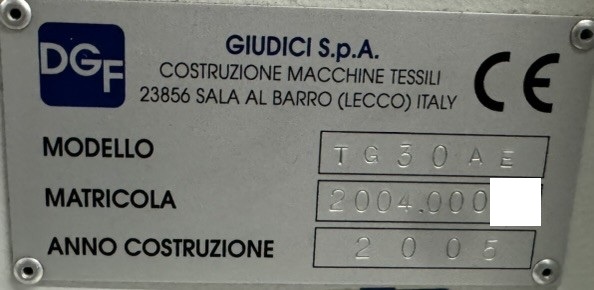

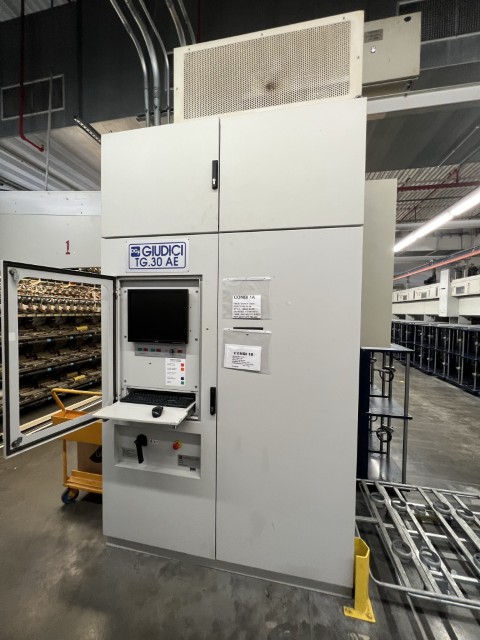

03 TG30AE Single heater machines 2005-2009

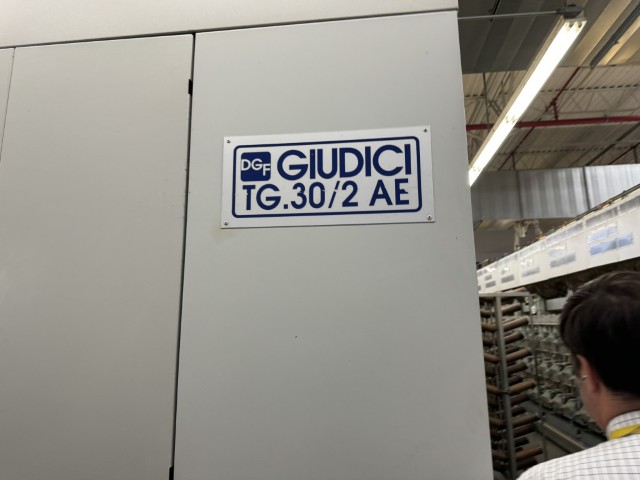

03 TG30/2AE Double heater machines 2005-2007

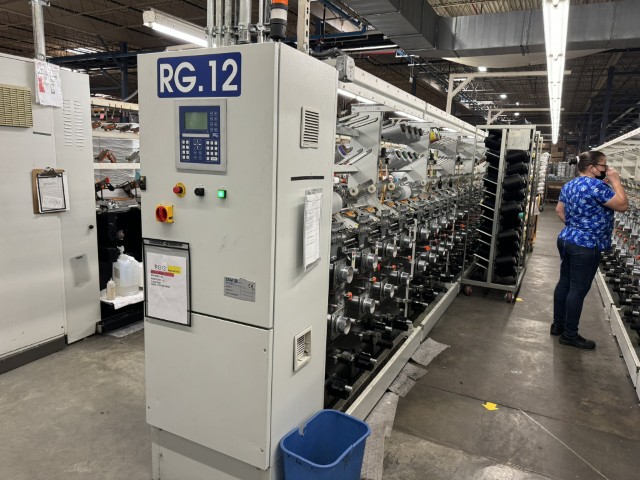

01 Giudici RG12 2012
01 Giudici RG6F2 1996

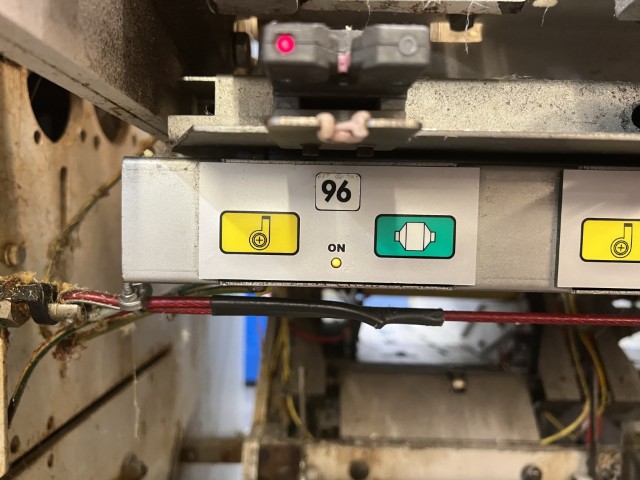

Heater: Single & Double, No of positions: 96
Spandex: With Lycra spandex attachment, Doffing: Automatic
Mechanical speed: up to 1100 m/min (process speed depending on process parameters and supply yarn / package)
Package shape: cylindrica
Initial traverse length: 190 mm

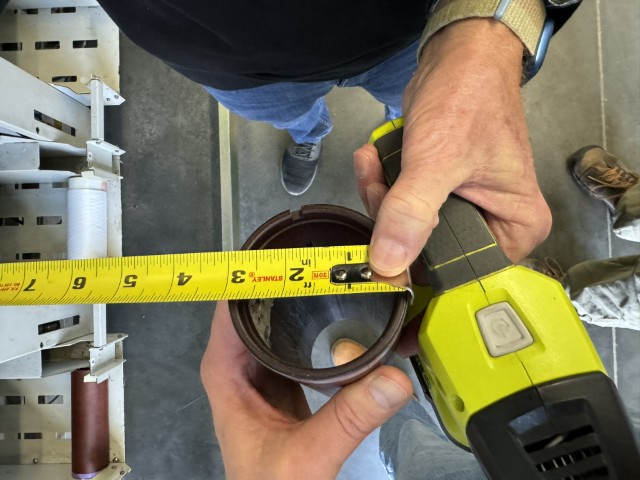

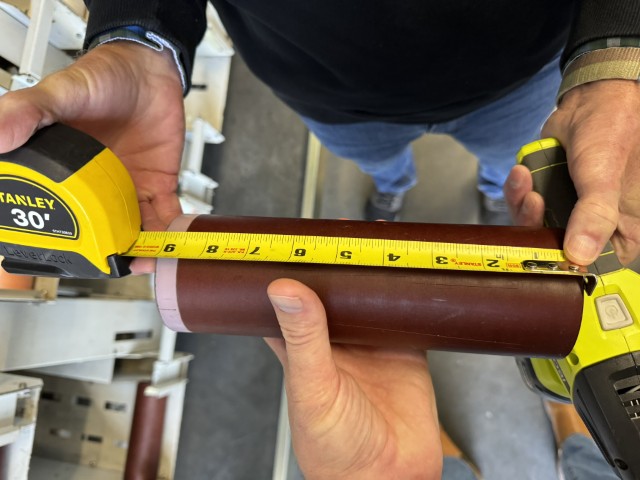

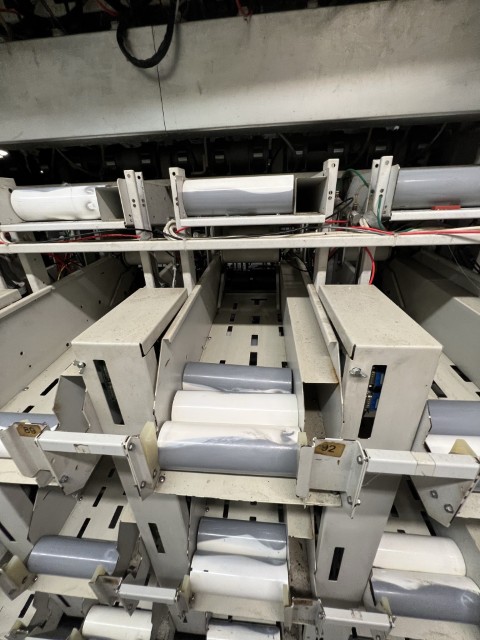

Take-up tube dimensions: Length 229 mm & 280 mm, ID 69 mm
Take-up package diameter: running 165 mm (up to 250 mm)
Package weight: 190 mm traverse length: up to 4 kg

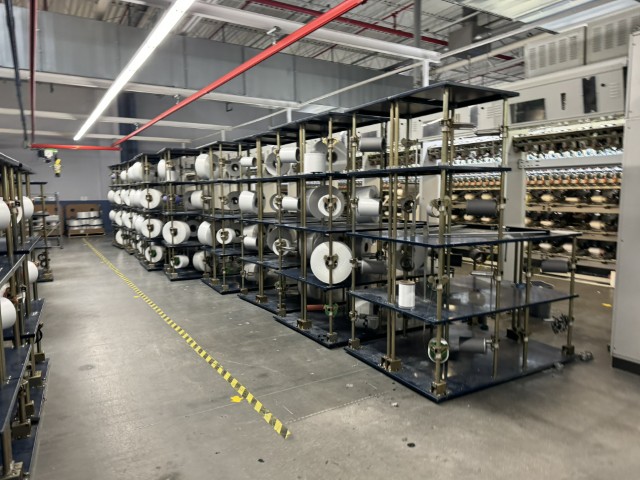

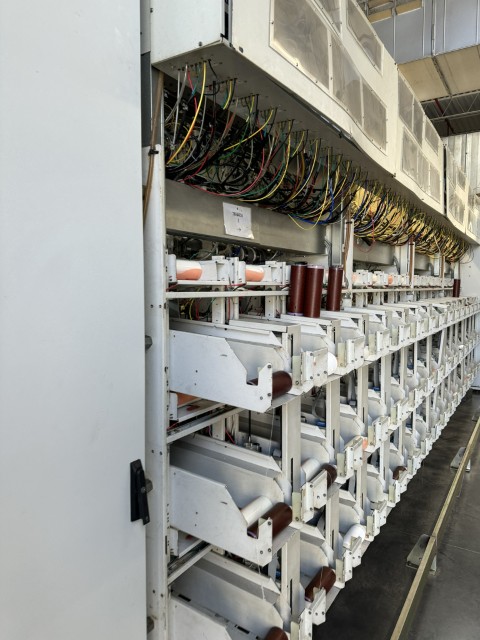

Supply package (on trolley creel): 1 end and stand-by per position:
– up to ø 400 mm, 290 mm tube length or – up to ø 450 mm, 150 mm tube length
Fibre material: PA, PP/POY
Fiber running material: PA/NYLON
Count range: 7…330 dtex
Running denier: 140 D 3 Ply, 54D/40 Filament
Running Speed: 600-800 m/min
Mechanical speed: up to 1100 m/min

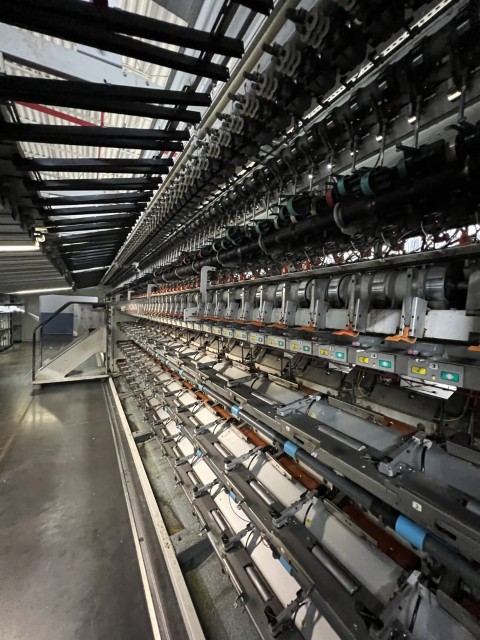

Layout / No of positions: Single sided / 96 & 64 positions
Drive: individually controlled line shafts
Electrical power (basic power supply): 480V, 60 Hz, 3 phases, loadable neutral, ground (adaptable to other power supplies)
Power consumption: Heating power consumption at 220 °C: 0.19 kW per position, Motors & electronic power consumption at 800 m/min: 0.24 kW per position
Recommendation for compressed air
process air requirement: Compressor with air dryer, oil filter and air tank pressure at pressure 10 bar.
Consumption per doffing: 0.27 m3 per each complete doff
Compressed air: 7 bar (machine operation including auto doffing

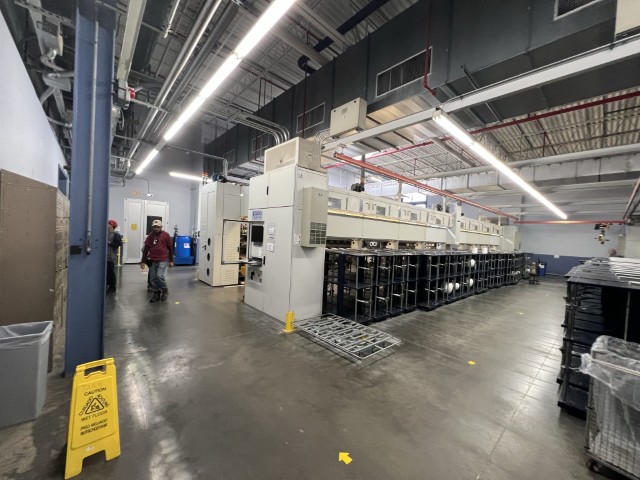

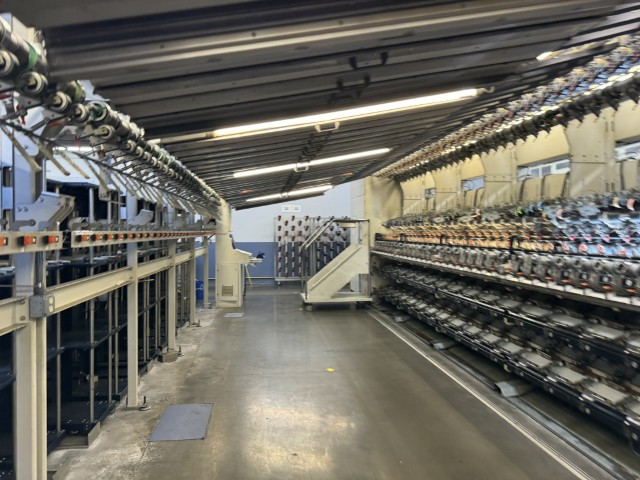

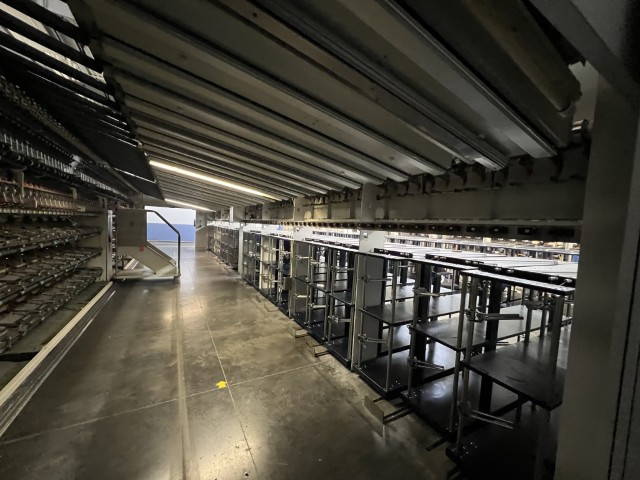

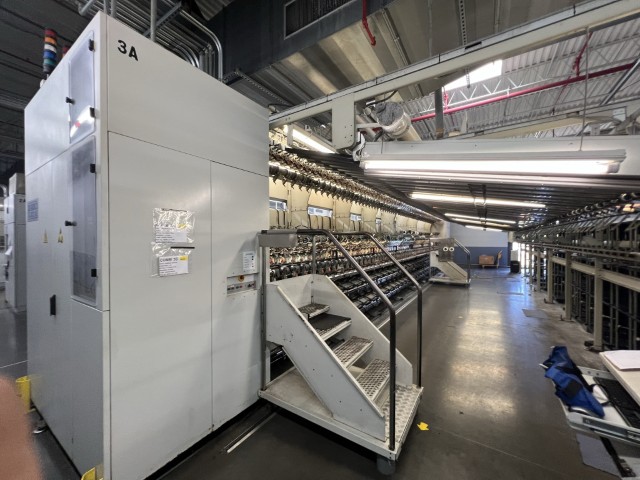

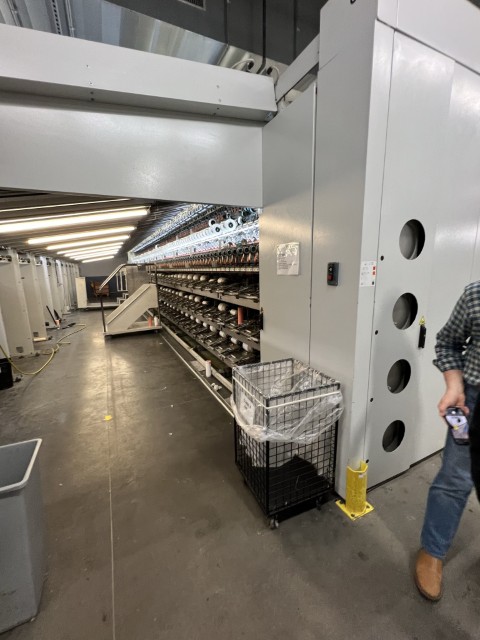

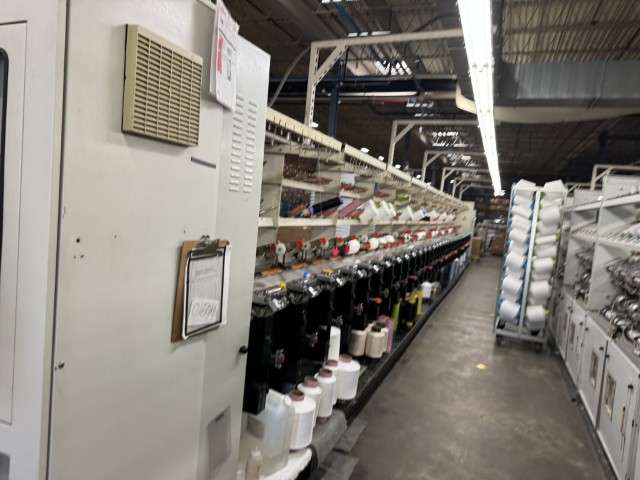

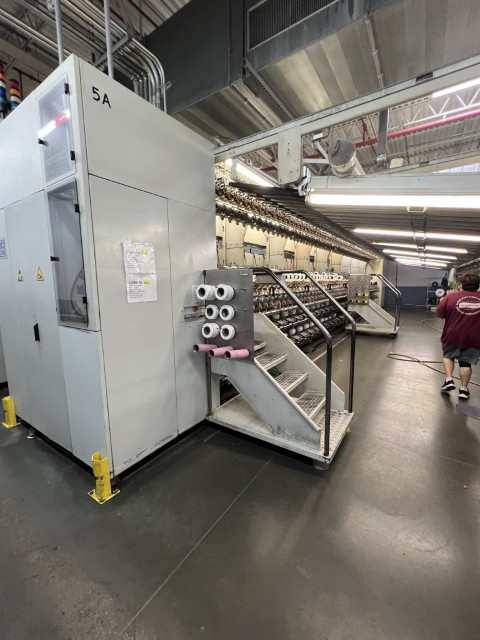

Still installed, and still with power, but production stopped approx 6 months ago. Machines are maintained to European standards and show nicely.
