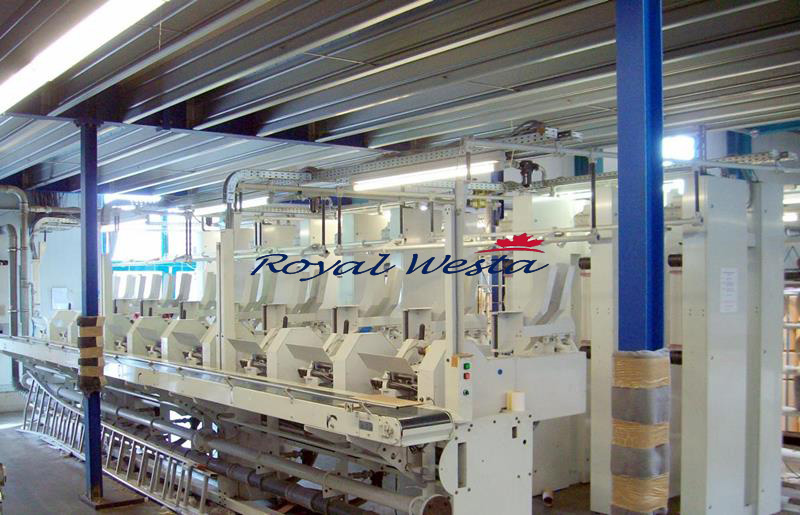

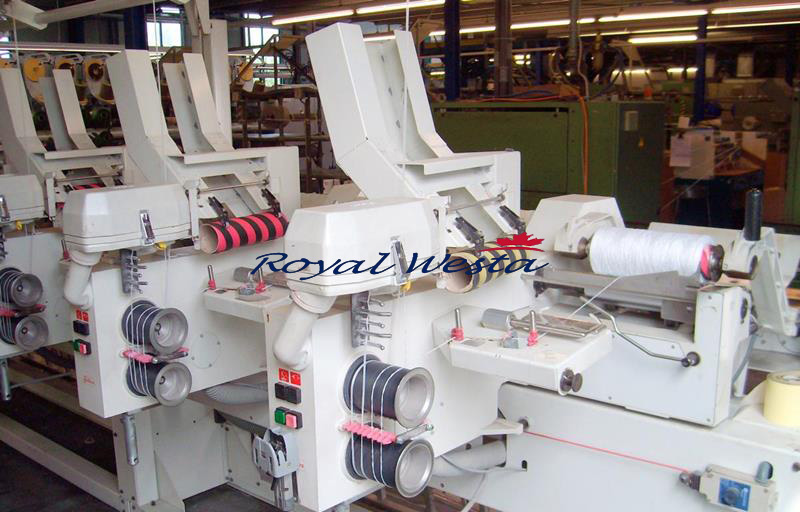

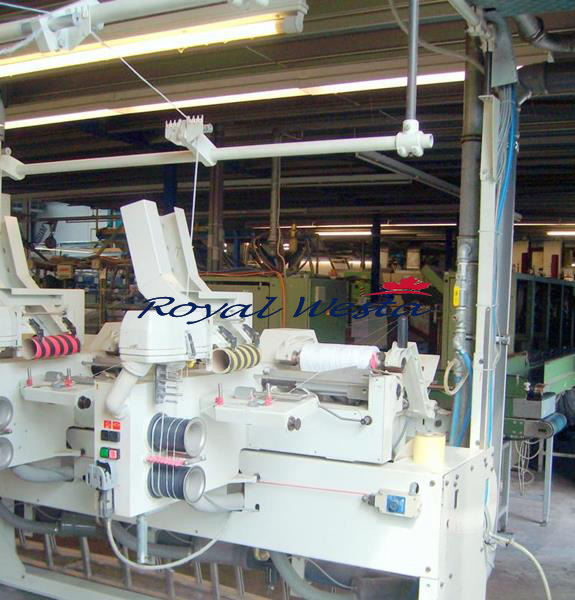

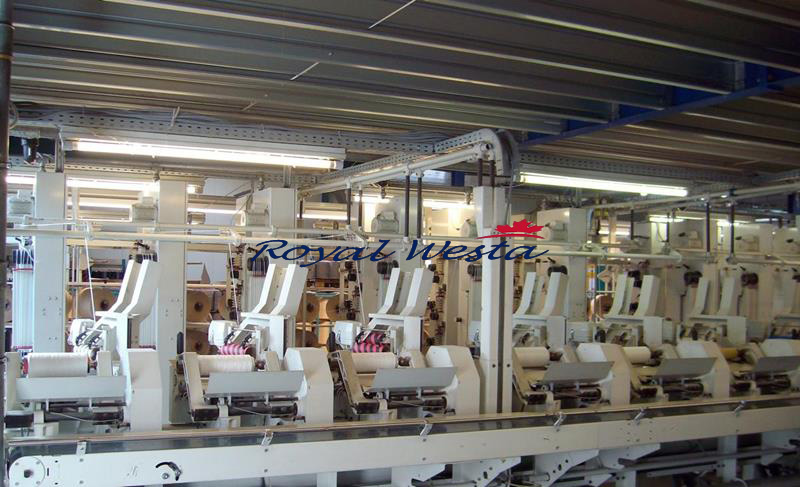

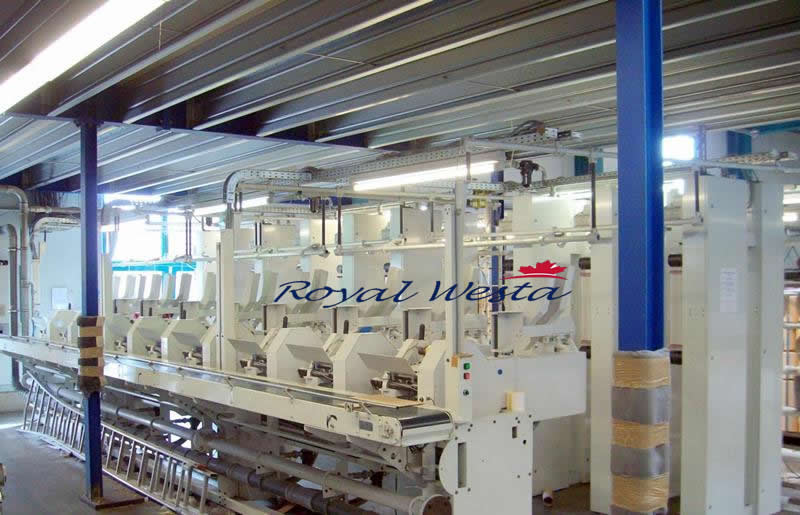

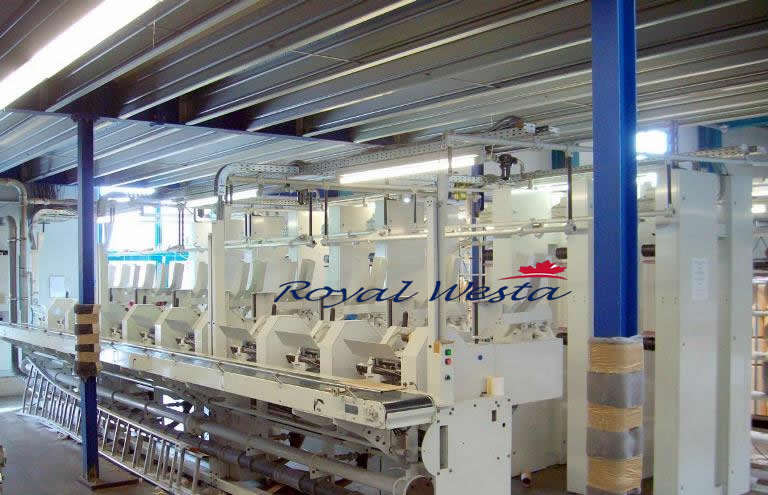

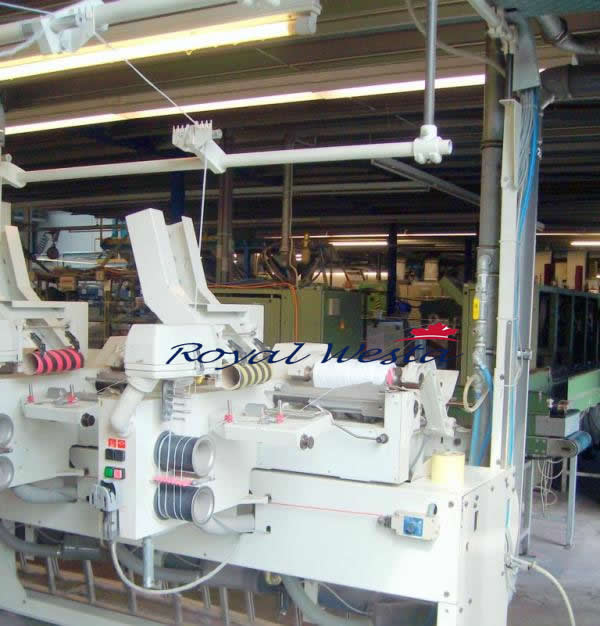

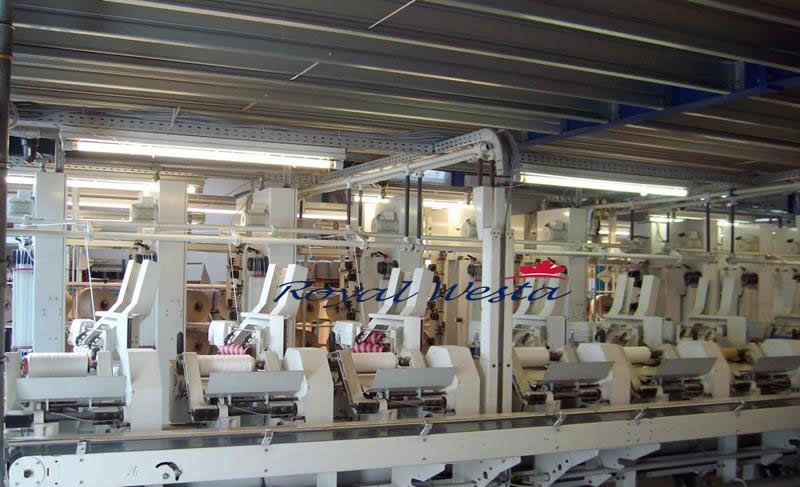

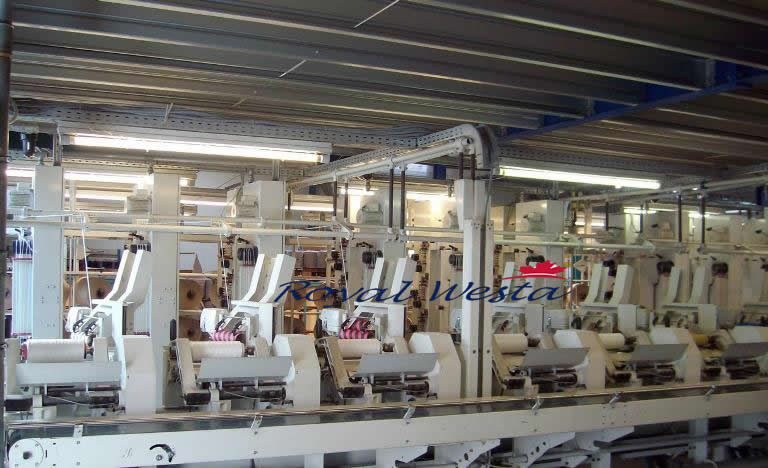

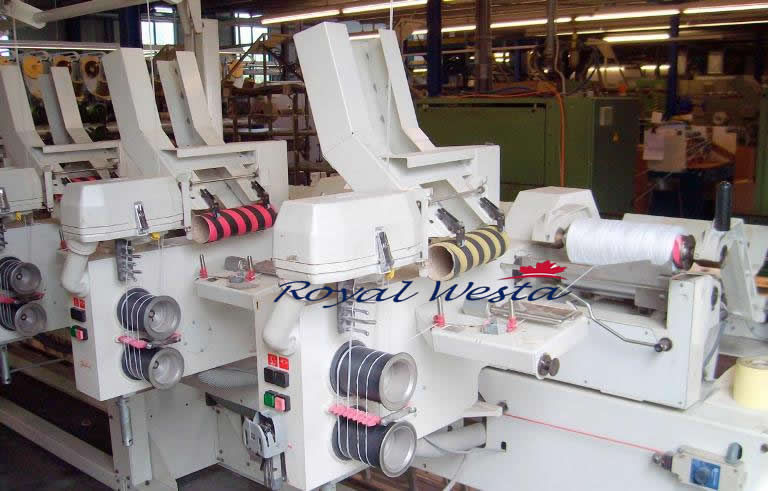

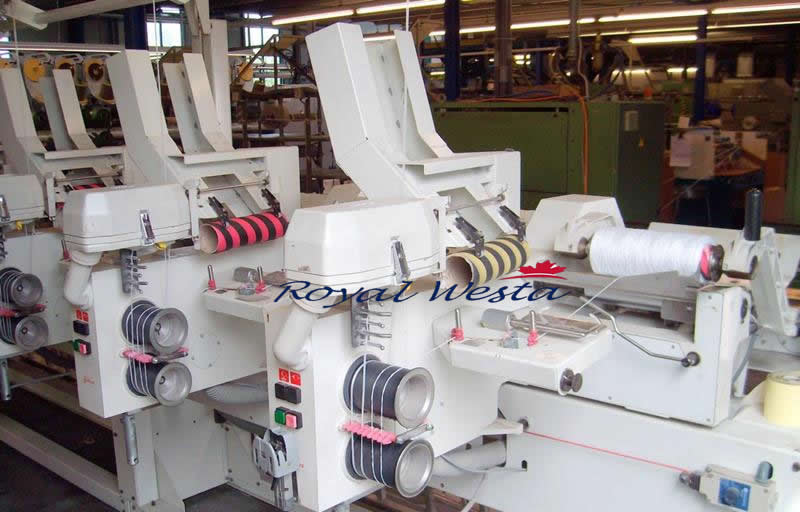

Gilbos Dynajet Assembly Winder

Quantity: 1
Year: 1999-2001
Model 2 with 12 spindles, 6 pcs from 1999, 6 from 2001

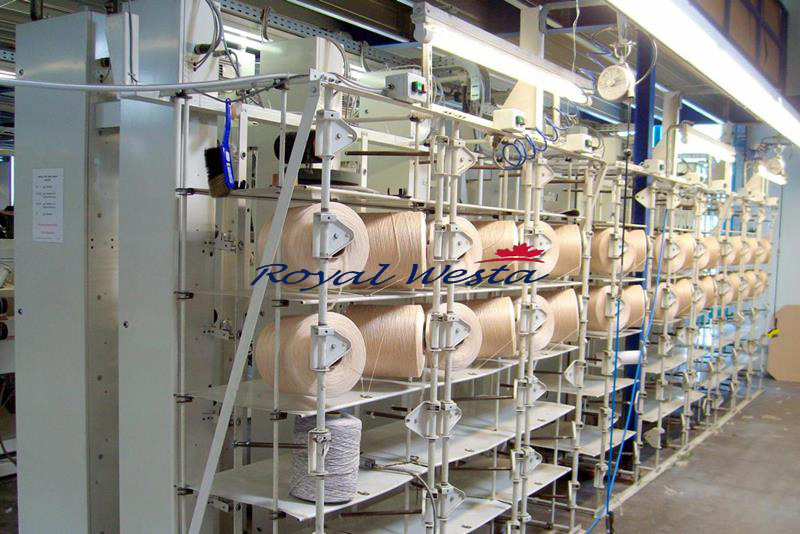

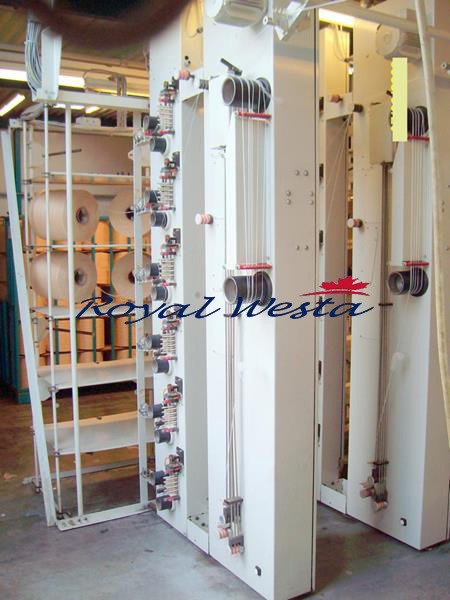

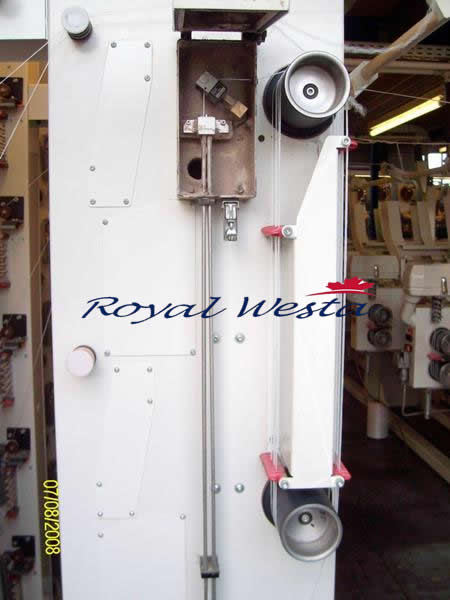

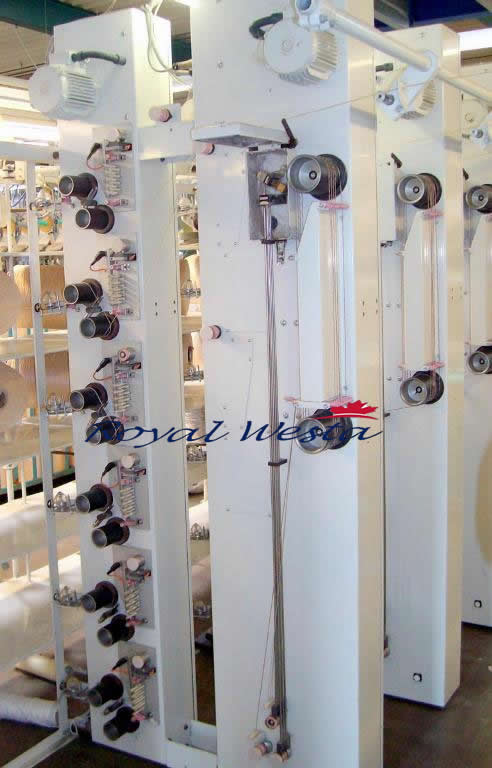

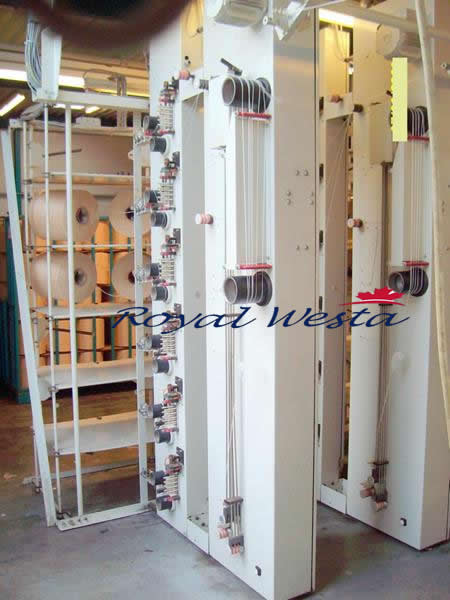

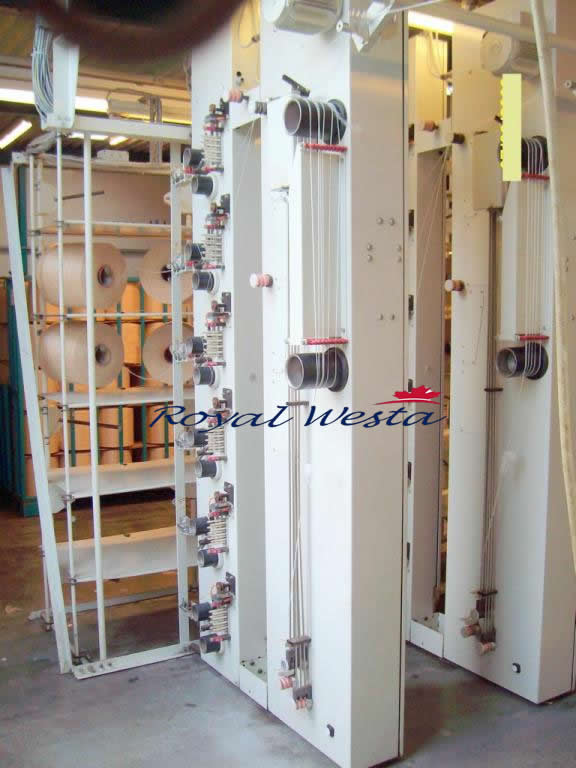

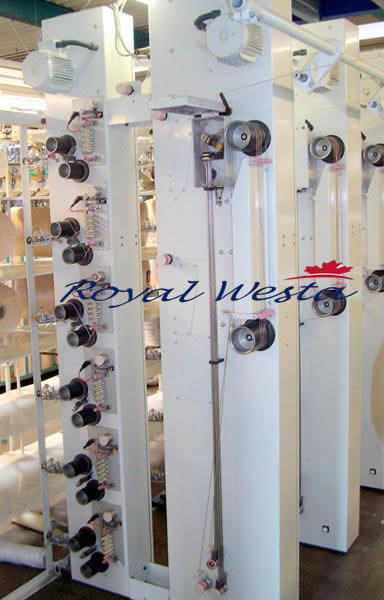

With outstanding creel for 6-ply + 6 reserve.
6 Ply ( Capable of processing 6 Yarns simultaneously)
High Speed Winding
Type of winding: random
Winding speed: up to 1000 m/min or 1100 yds/min
Package build up: on cyclindrical tubes Ø 73 mm x 290 mm
with freely programmable winding angle between 13° and 21°
doffing: standard - 15 s cycle time - 8 tubes in magazine
Traverse length: 254 mm
Package Diameter: up to 400 mm
Package weight: up to 12 kg or 26,5 lbs
Material: BCF, CF or Spun - PES, PP, Pa, natural fiber
count range: 600 up to 20 000 dTex or 540 up to 18 000 den
Layout: gauge 800 or 1000 mm, 3 spindles per section
n° of spindles: 6 + 6
spindles, guides & feeder rollers: by digital inverter
electrical supply: 3 x 400V or 3 x 480V + Pe – 50 or 60 hz
Total connected load: 16 kVA (winder: 4 kVa per 3 spindles)
creel modules: depending on configuration
air consumption: 0,25 to 3,0 nm3 /min/spindle or 8,82 to 106 scFM
compressed air supply: min. 8 bar or min. 116 psi
compressed air Quality: clean, dry and oil free air
air connection: ½ inch + 3 inch
Machine and process Control: Hyperion and Orion control system
