AA22/110526/
FOR Conventional Nonwoven Card
Quantity: 1
Year: 2003
Type: 06803/D153C1AP
Width: 3600mm

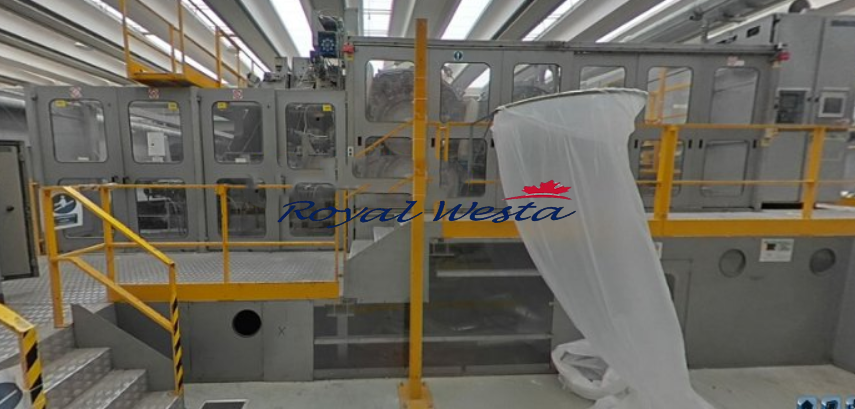

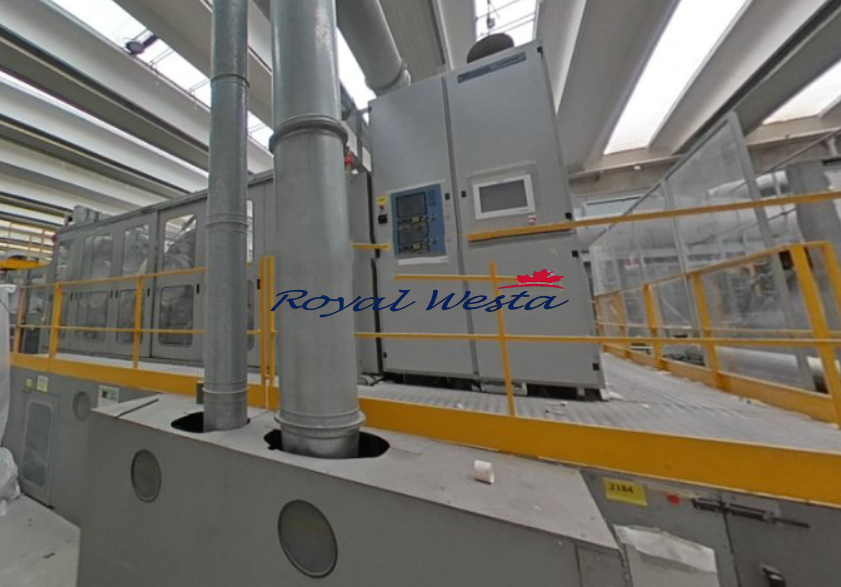

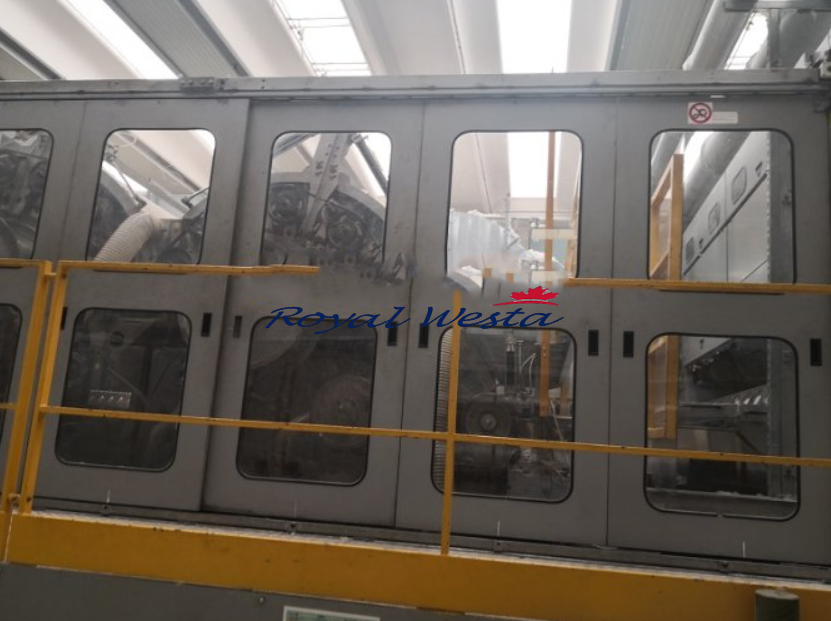

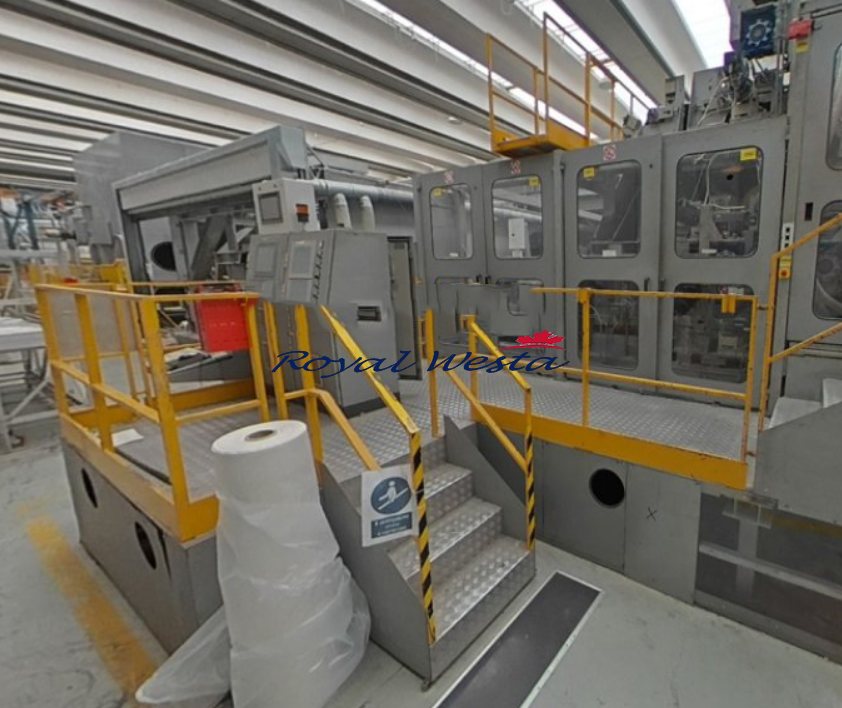

Double/triple doffer roller card, designed for nonwoven production lines, suitable for processing PA, PES, PP and Viscose fibers at maximum speed of 150 m/min. Very suitable solution for high-uniformity webformation in technical and industrial nonwoven applications.
Composed as follows:
Trutzschler MSL 1600 feed trunk
Trutzschler FBK chute feed, ww: 3700 mm
Inlet + breast section - dia 1270 mm with 5 workers/strippers
Intermediate section with 2 doffers and 2 transport rollers
Main swift - dia 1500 mm, with 5 workers
Double or triple doffer exit: top doffer - dia 655 mm, intermediate doffer - dia 655 mm, lower doffer dia - 850 mm, scrambler rollers - dia 203 mm.
