AC01/170326/AQ

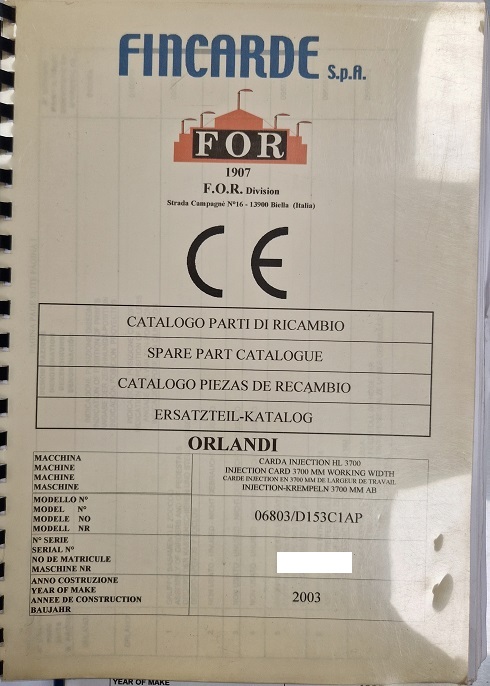

F.O.R. INJECTION CARD 2003 – 3.700 W.W. – MODEL 06803/D153C1AP

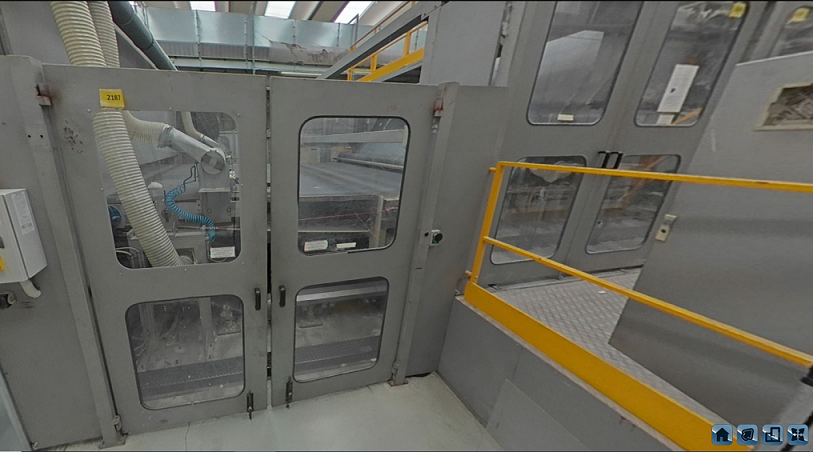

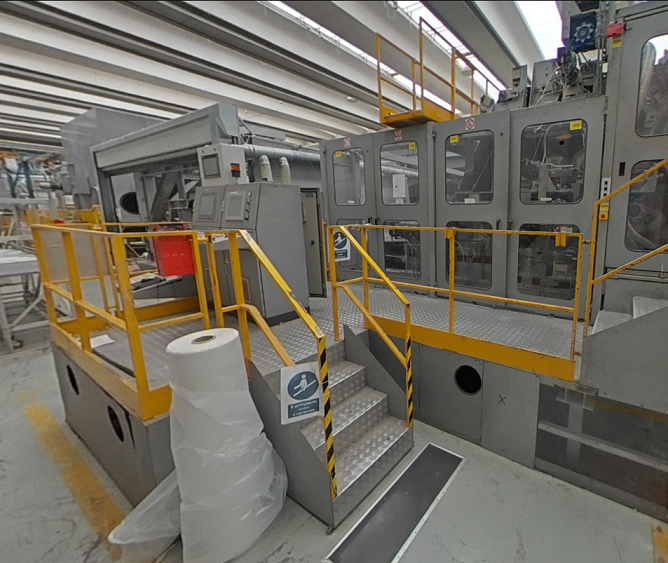

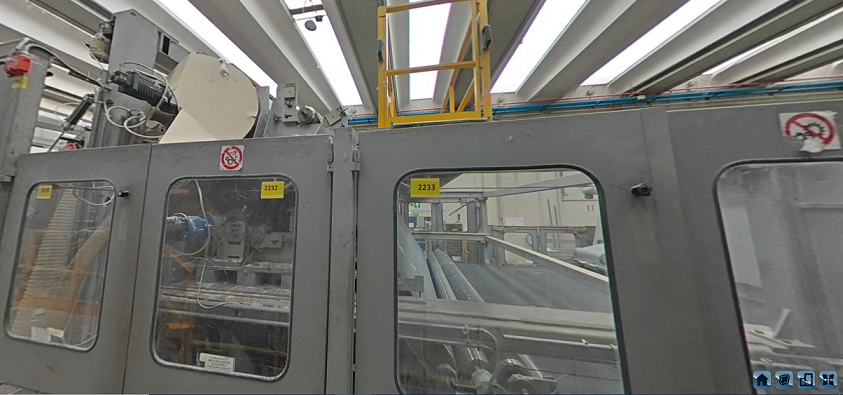

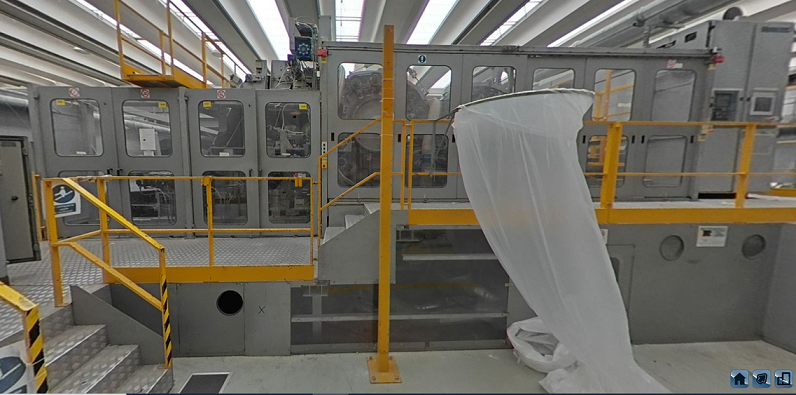

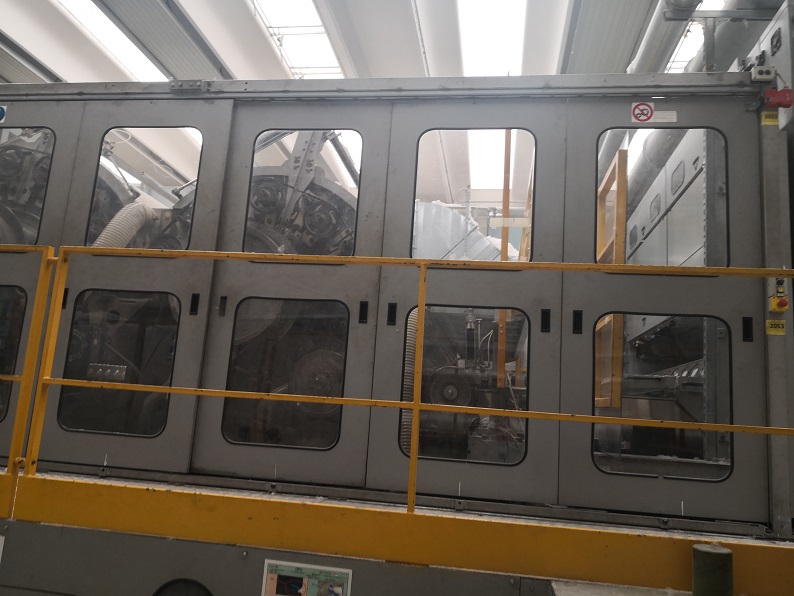

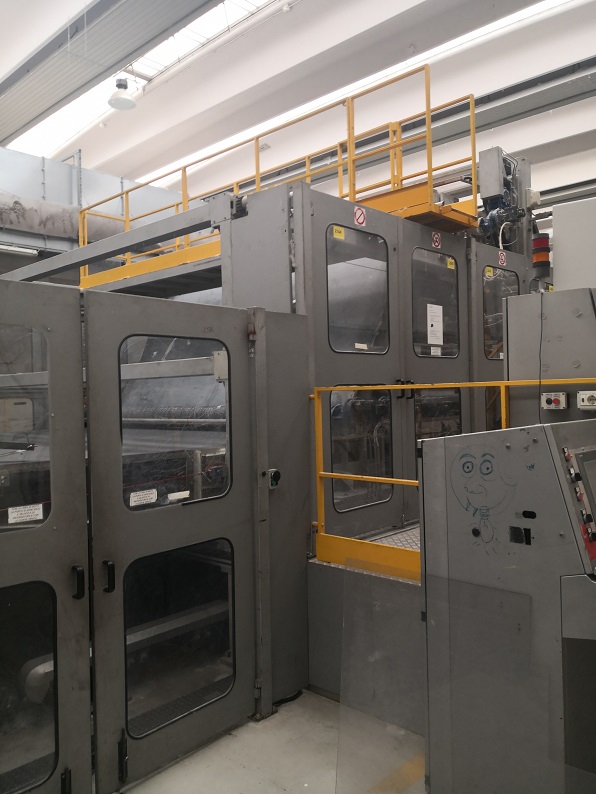

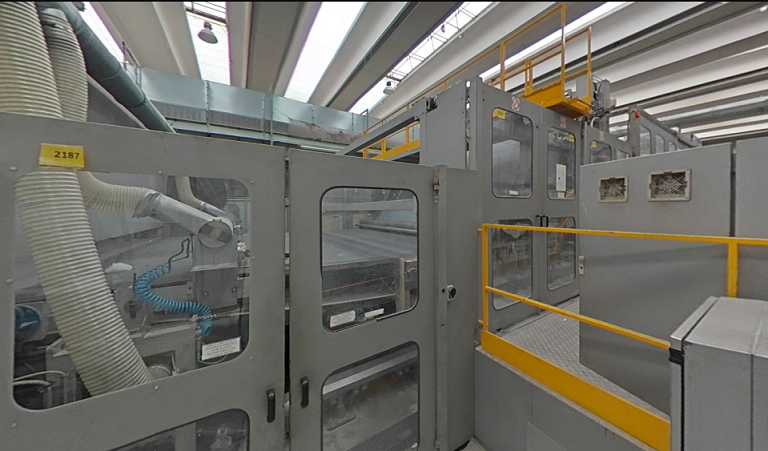

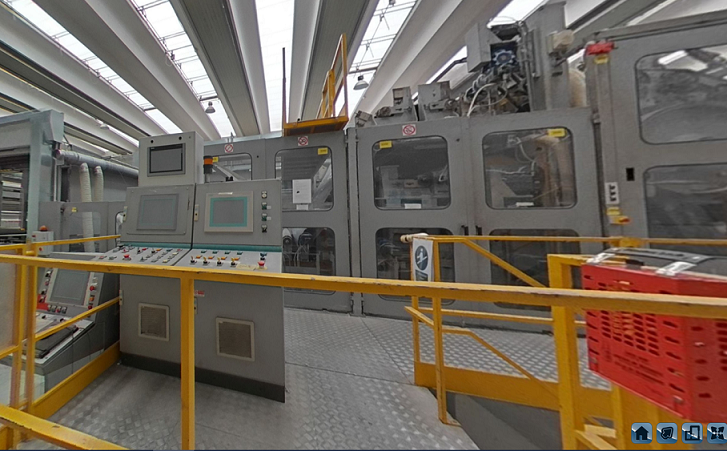

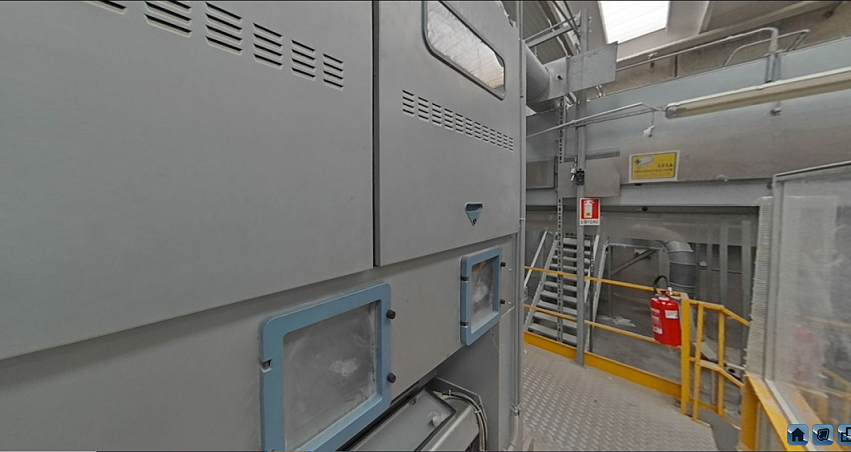

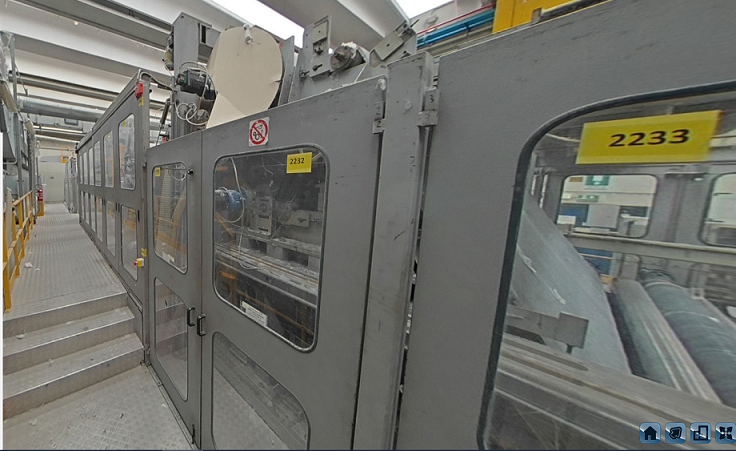

Nr. 1 FOR Roller Card, model Injection 06803/D153C1AP, year 2003, working width 3800 mm (3650 mm at card exit), Double/Triple Doffer configuration.
Designed for nonwoven production lines, suitable for processing PA, PES, PP and Viscose fibres. At a maximum Speed of 150 m/min

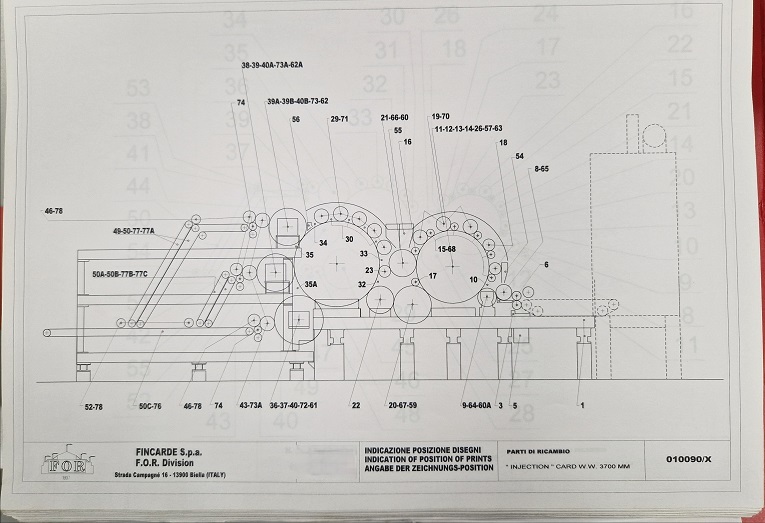

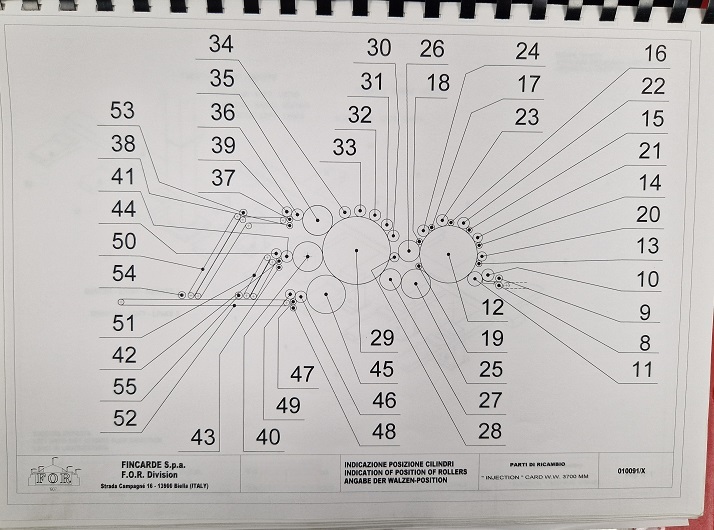

Configuration:
Inlet + Breast section 1270 mm with 5 worker/stripper pairs
Intermediate section with 2 doffers and 2 transport rollers
Main cylinder Ø 1500 mm with 5 workers.
Double/Triple doffer exit
Top doffer Ø 655 mm
Intermediate doffer Ø 655 mm
Lower doffer Ø 850 mm
Scrambler rollers Ø 203 mm
Complete with:

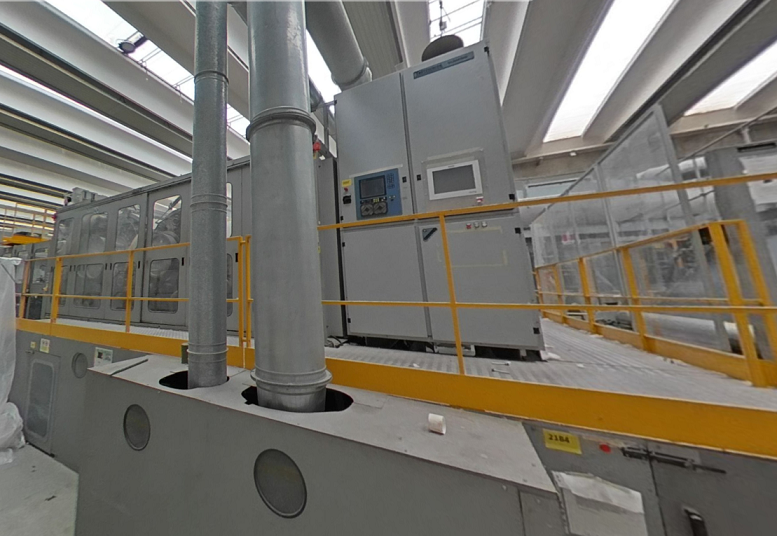

Truetzschler FBK 3700 mm – Year 2003
Truetzschler MSL Model BSL 1600 – Type 9251002 – Year 2003
Suitable solution for high-uniformity web formation in technical and industrial nonwoven applications
