AA08/270326/AQ

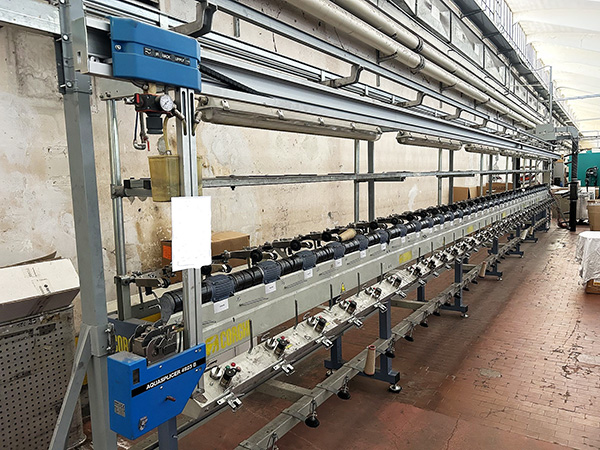

Electronic cone winder CORGHI mod.BR-36
36 heads - single face, pitch 6" (152 mm), drum 2,5 turns variable step diam.82 mm
conicity 4°20' or 5°57’ - arm "C" with tailstock
counter-rotating driven waxing device, one yarn brake for each head
mechanical yarn clearers with micrometric control, cone stop at desired diameter
yarn presence sensor BTSR, variable speed from 300 to 1200 m/min, meter counter, Mesdan ATS system Aquasplicer mod.4923 B
Magitex with sleeve discharge, Volt 400 three-phase - 50/60 Hz
y.o.c. 2003
