AB60/080926/

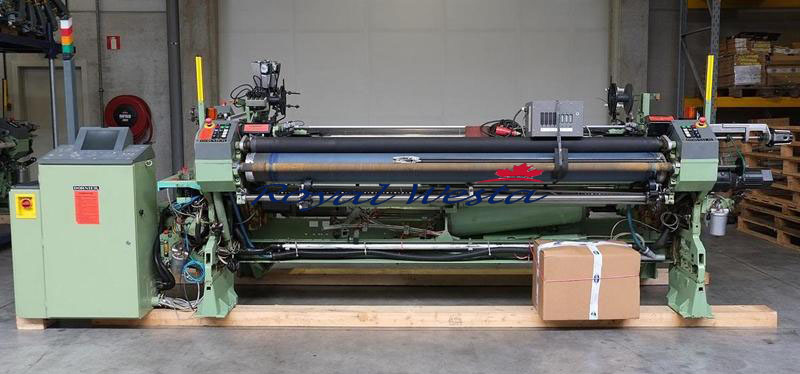

DORNIER HTVS4/J-250 Rapier Loom
Quantity: 1
Year: 2000
Type HTVS4/J-250
Nominal working width 2500mm

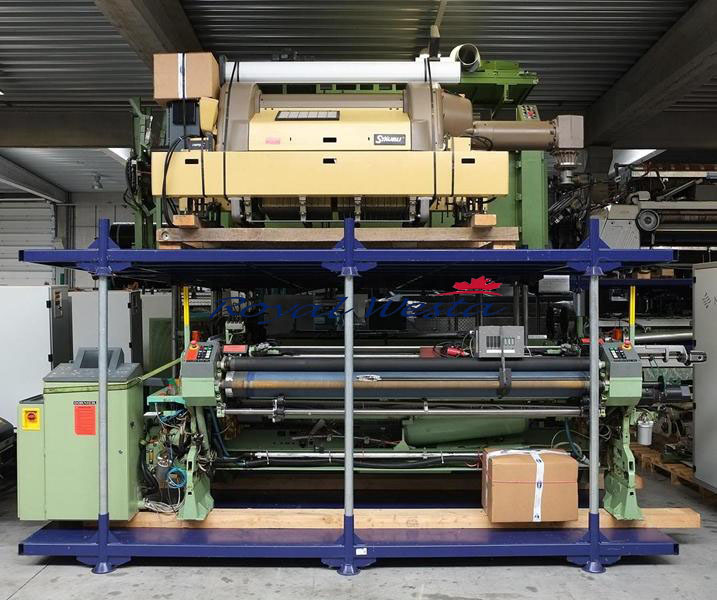

Equipped with Jacquard STAUBLI type LX1600B format 3072 (2680 hooks installed) year 2000.

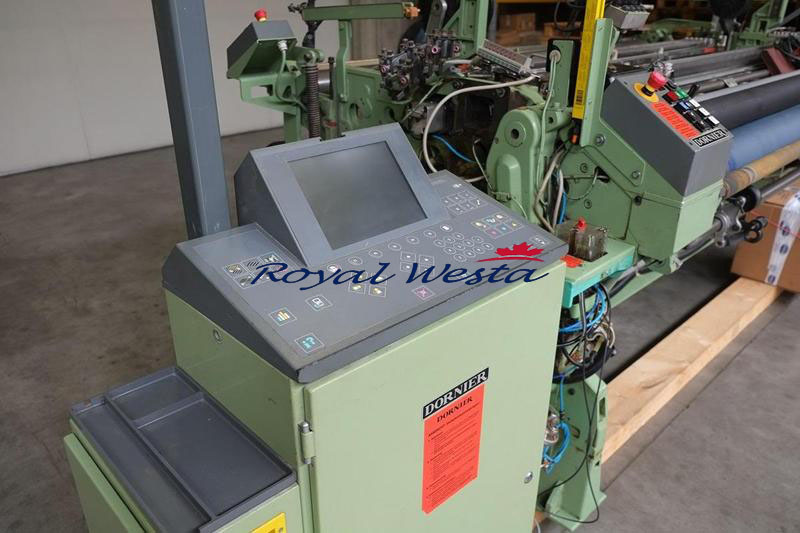

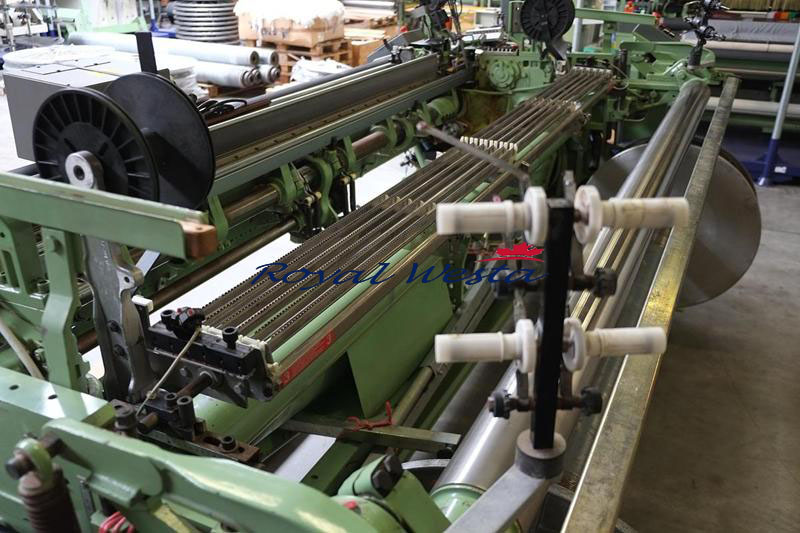

Equipment : ELO, ETU, 4 electronic weft selectors ECS2, 4 weft feeders IRO Orion, 1 control box weft feeder,1 feeder support, 1 bobbin stand, 1 Grob warp stop motion with 6 detection bars, 5.000 droppers, 1 warp tension roll, 1 warp beam diameter 800mm flanges, 2 electronic waste cutters, 1 waste suction motor, positive gripper RHS + LHS, templet RHS + LHS, AT2 Dialog panel, waste dustbin, Staubli controller J5, cardan axe, Staubli selvedge 1/1 crossing RHS + LHS, foreseen for external batching motion but without external batching motion.
