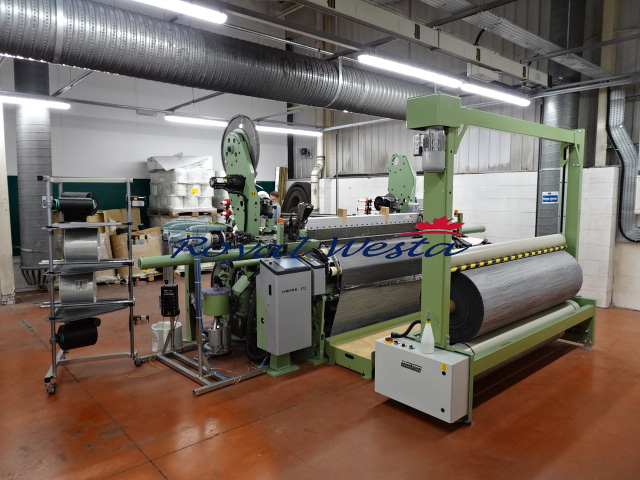

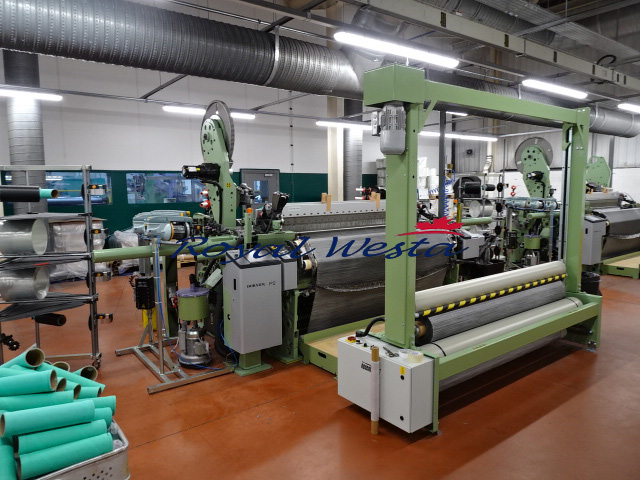

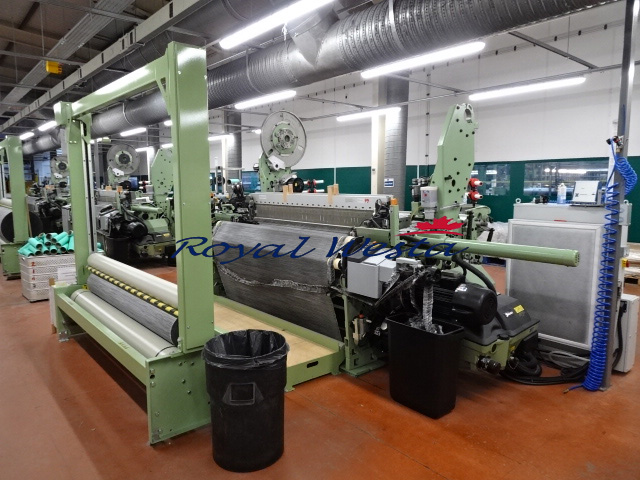

Dornier P2 for Carbon Fibre or Glass Fibre Weaving

Quantity: 2
Year: 2022
(Carbon Proof)
2200mm Model TKN 4/S G20
STAUBLI type 3020/2 20 shaft
MACHINES ARE IN PRODUCTION AS AT JAN 2026

Weft insertion: Positive centre transfer and open shed weft insertion
Shedding: Electronic dobby machine

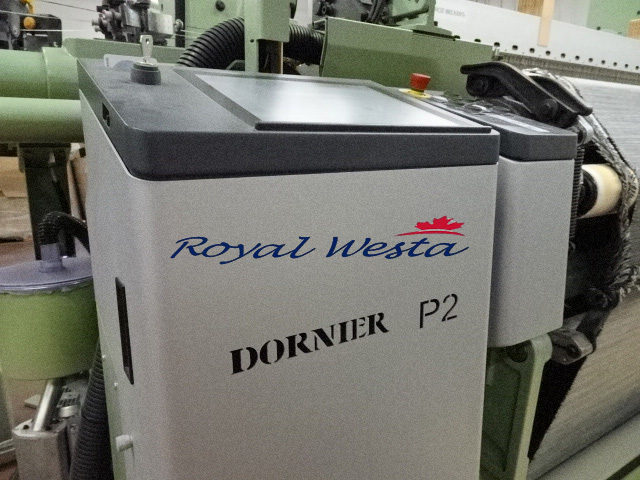

Electronics/Control: FT-version (fast Ethernet Iechnology) with 12" touchscreen DORNIER
ErgoWeave® and integrated speed control
Main drive: DORNIER SyncroDrive
Application: Reinforcing fabrics made of glass roving
Reed drawing-in width: Max.217 cm, Min. 146 cm
Maximum mechanical machine speed: 520 rpm (at maximum drawing-in width) 550 rpm (at minimum drawing-in width)
Production speed: Optimum achievable production speed of the machine depends on drawingin width, pattern design, quality of weft yarn material and weft yarn packages,
quality of the warp as well as on speed limitations of the shedding motion.
Depending on weaving machine configuration and specification additional
limitations in speed and drawing-in width are possible.

NOTE: MORE DETAILS ON PDF DOC ON THE LINK
