Cotton Spinning Small Open End Line

Year: 2007
Composition:

1x Cotton Blow room – (capacity 500-800 kgs/h cotton):
Blendomat – 36 m rails for 36 bales, 2 rollers bale plucker
Staend.Br – condenser
SP-EM – metal separator
CL-C3 - Cleanomat (fine cleamer)
MX-1-10 – multimixer
SP-DX - Dustex

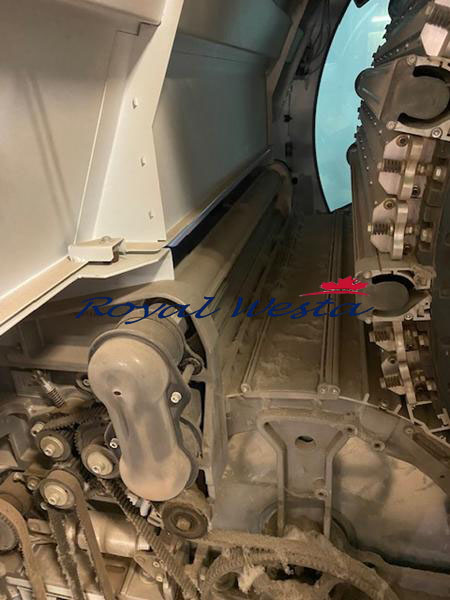

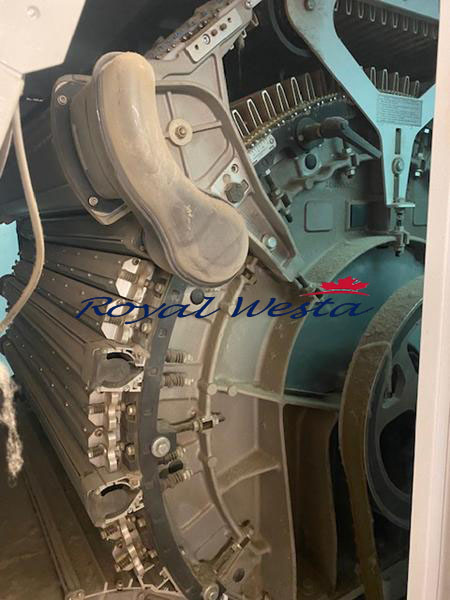

3x Flat cards model TC-03 ( 60-90 kgs/h /each):
DFK chute feeds
3 liker in ; 12 stat.flats front and 6 st.flats back
IDF – autolevellers

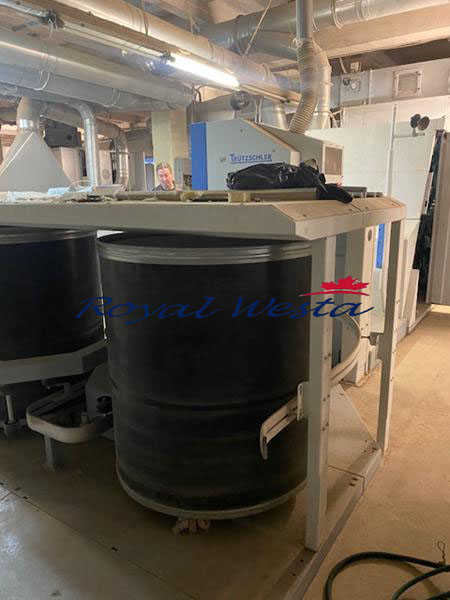

Automatic can changer – cans dia 1000x1200 mm

2x Drawing frames TD-03 ( prod. Speed 600-800 m/min):
Creel for 8 slivers/cans
Cans delivery – 450 x1000 mm

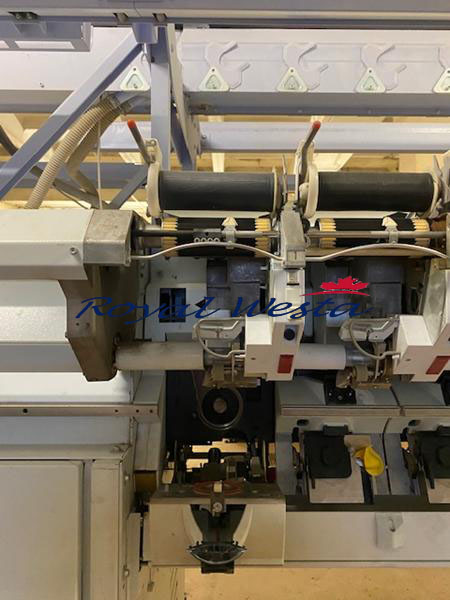

2x Rotor spinning machines AUTOCORO 360 of 168 rotors/each:
Delivery – 6” cylindrical ( waxing)

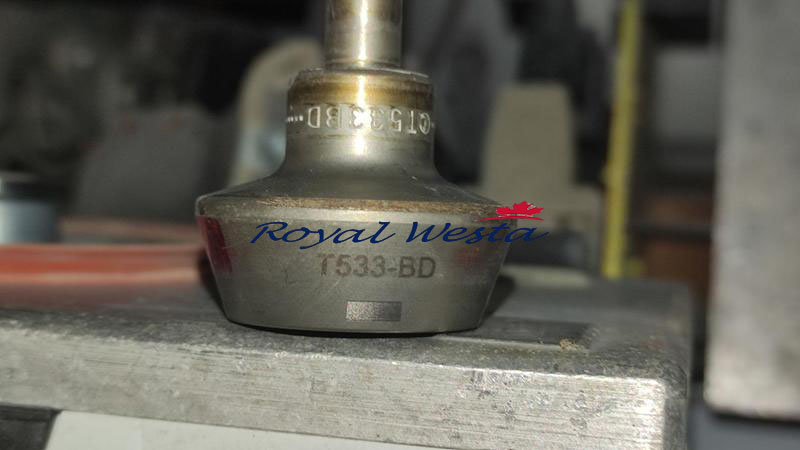

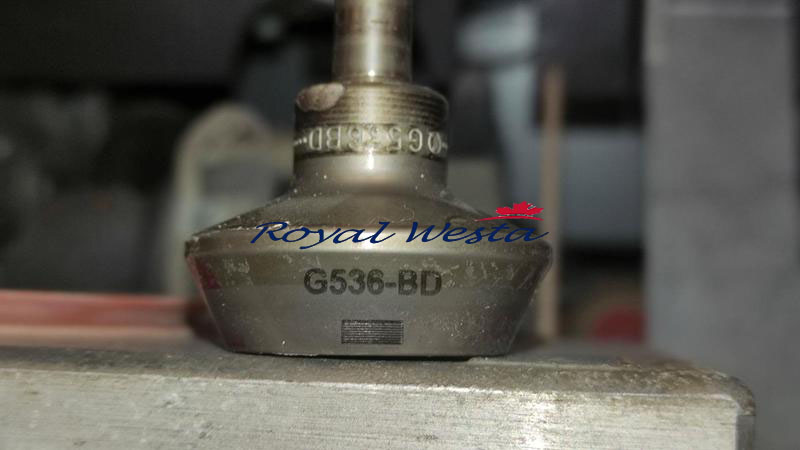

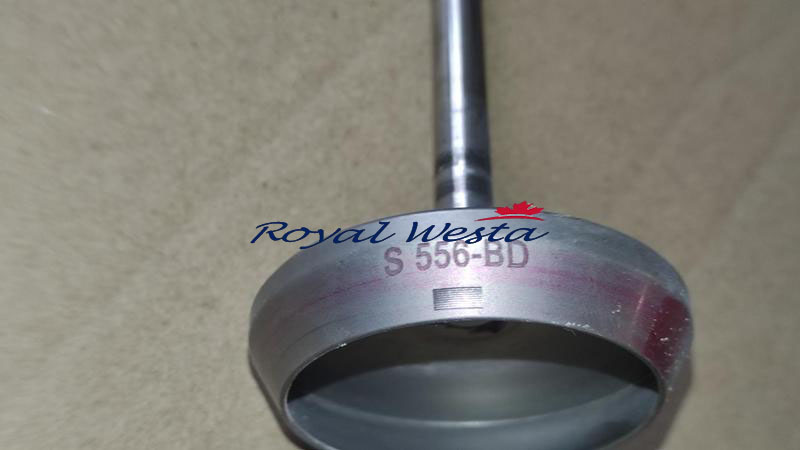

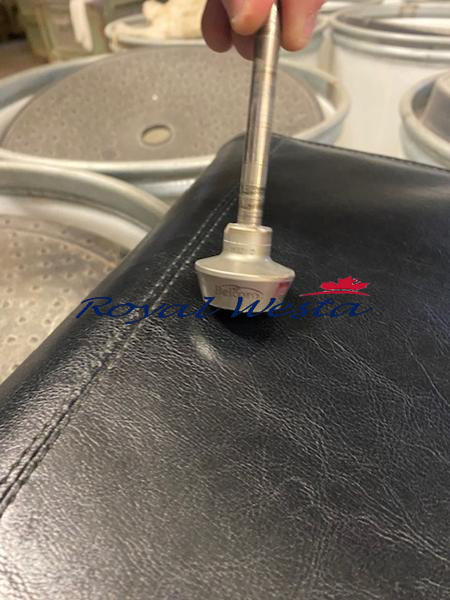

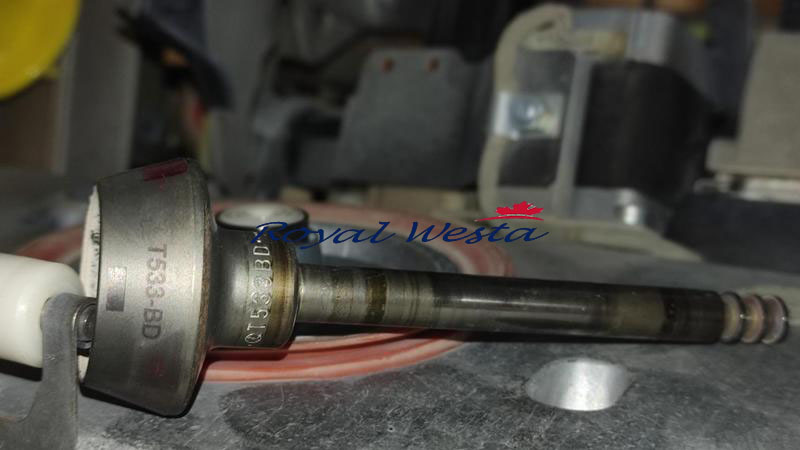

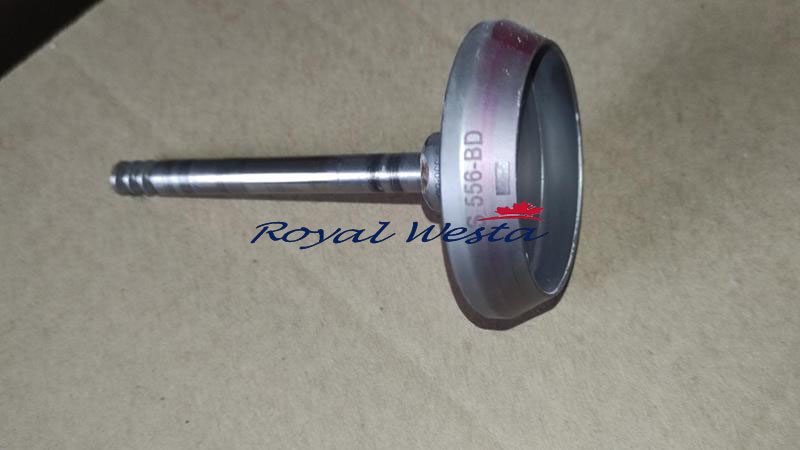

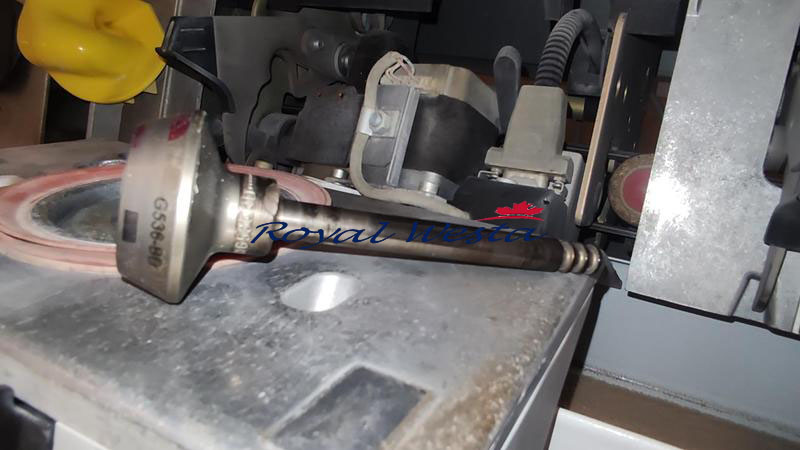

Rotors – type BD ( cotton) ( S556-BD & G536-BD on second machine)

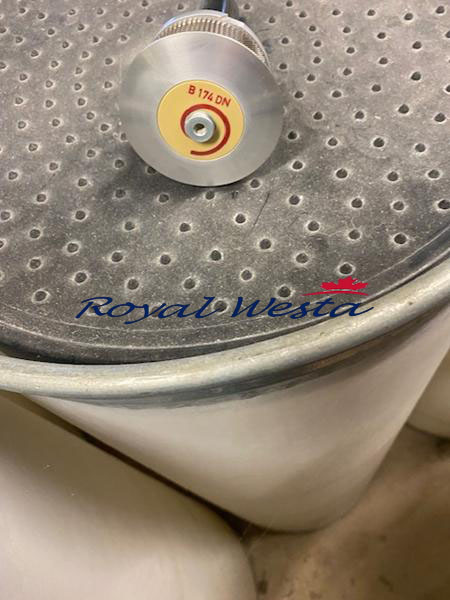

Combers – B 174 DN

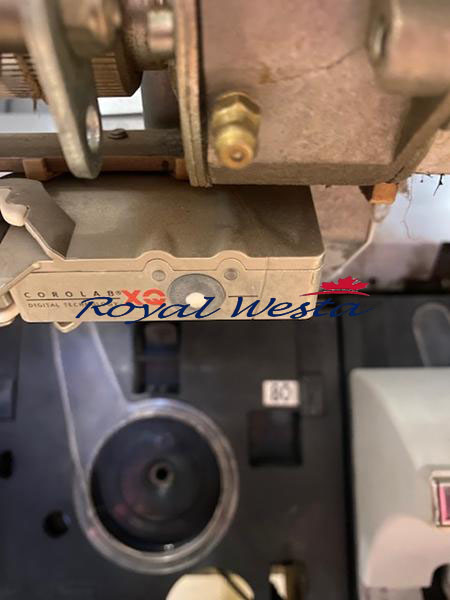

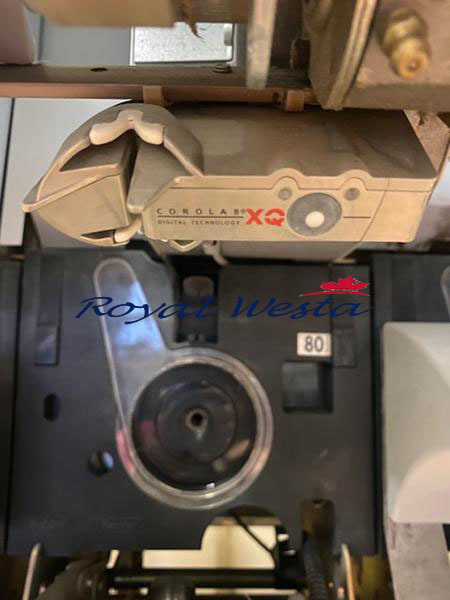

Yarn clearers – Corolab XQ
2 robots on one machine and 1 robot on second machine

Automatic rotor spinning Equipped with :
IDS – Intelligent Drive System ( setting rotor speed, take -up tension, spinning vacuum, yarn twist and draft infinitely adjustable via frequency converter)
EVA – electronic vacuum adjustment electronically controlled 65-95 mbar
-Conveyor belt for removal of packages on each side

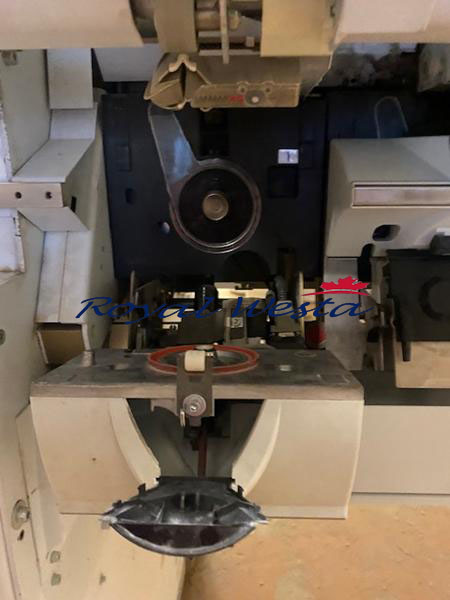

-Spinbox – Corobox SE 12 for rotor speeds 40.000 to 150.000 rpm as function of sliver and yarn count
-Twin disc bearings for yarns of up to 60 mm long natural and blends
-SDSI – single drive intake individual motor drive sliver intake for slivers up to 7 ktex ( nm 0.14 and drafts 20-450 folds
-Complete with opening rollers, rotors and navels
-COROMAT – 2 pcs with EIS event identification system, yarn piecing and doffing
-Cleaning head for mechanical and pneumatic cleaning of rotors, spin box, navel and doff tube
-Laser light barrier to control rotor speed and piecing cycle – piecing tester

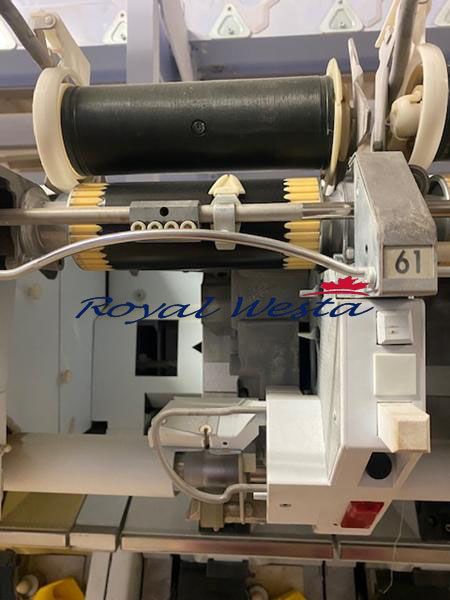

-SRZ winding units for cylinder Coro-Pack packages for compact yarn up to 300 mm dia
-Max take up speed 220m/min at 30 degree angle
-measuring system for yarn packages
-COROLAB XQ Yarn monitoring system.

Factory was producing 100% cotton yarn – Nm 4 – Nm 40.
ALL machines complete , running condition, Mill floor but under power.
