AG97/260925E/ARAI-LI/F/BY/
Containerized CHP MWM Gas Generator 2.3 MW with TCG 3020 genset NEW
Quantity:1

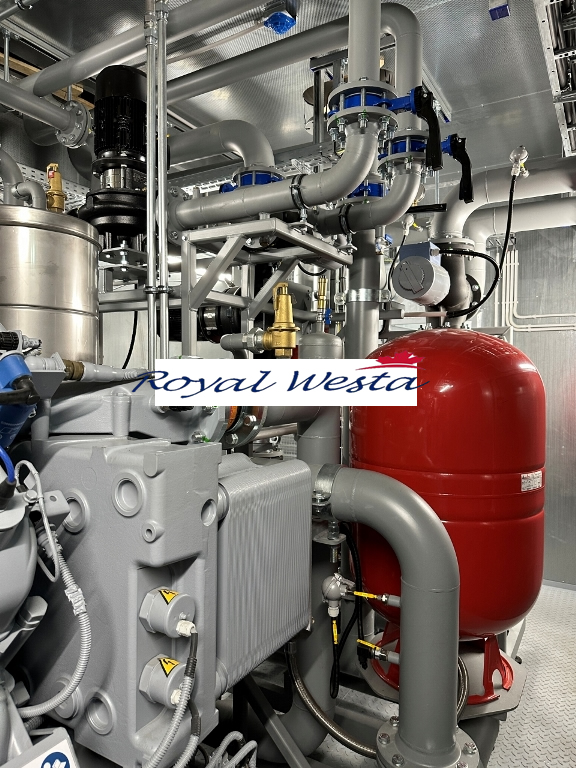

This containerized MWM 3020 V20R natural gas generating set with heat recovery system for production of 95C hot water is made in year 2025 and has never been installed.

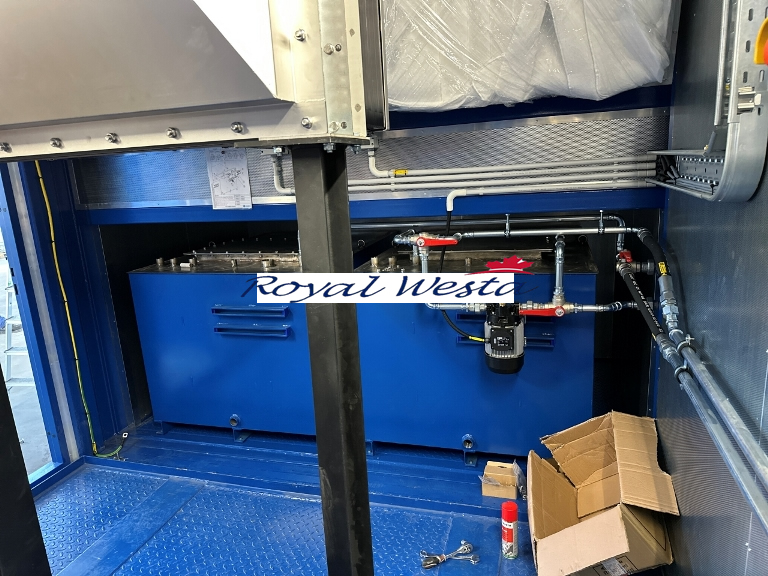

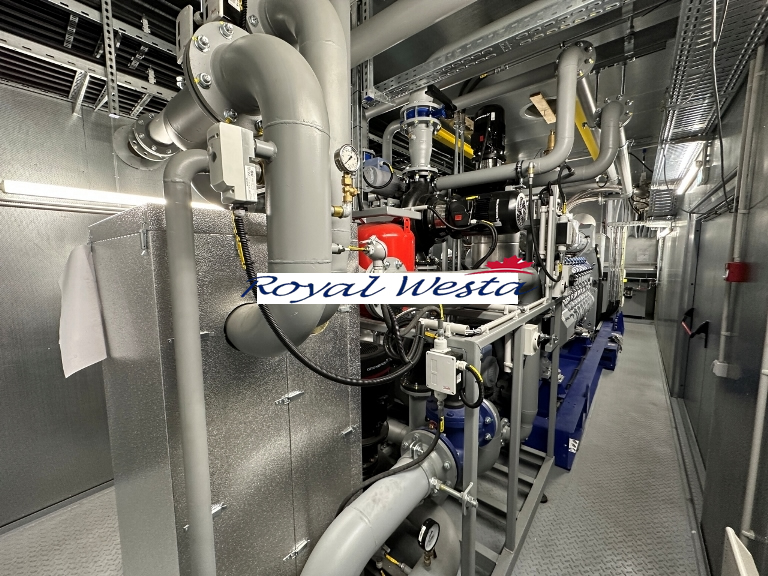

Transportable steel container with good accessibility and optimum space provision for maintenance and operation. Container is divided into two separate rooms – the machine and the control room. Inside of the containers is lined with mineral wool, insulation membrane, and perforated metal plating. Lubricating oil supply fresh oil tank and waste oil tanks with volume 950 liters are installed in the container.
Air inlet ventilation block, insulated exhaust gas silencers, hot water boiler and cooling radiators are supplied loose and needs to be installed on the roof of container.

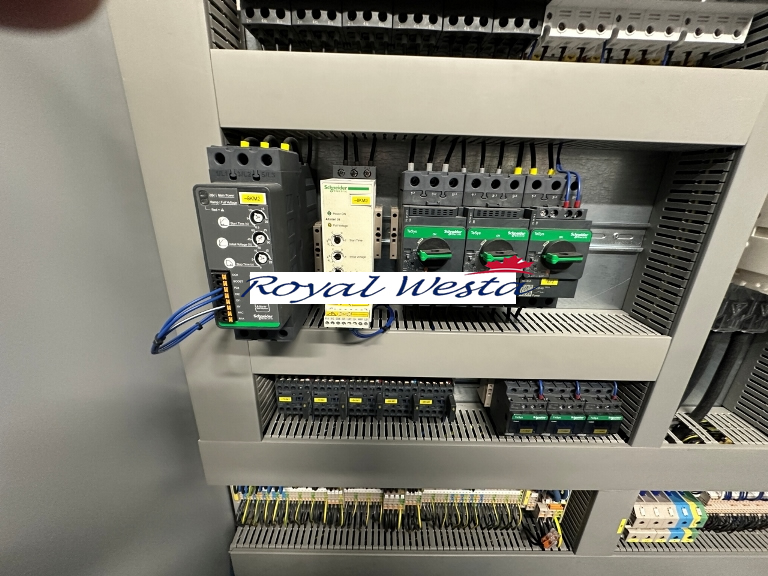

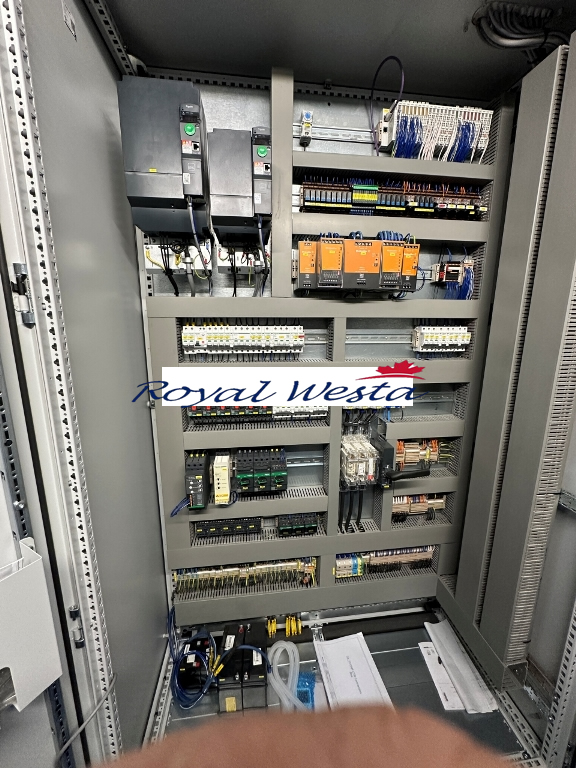

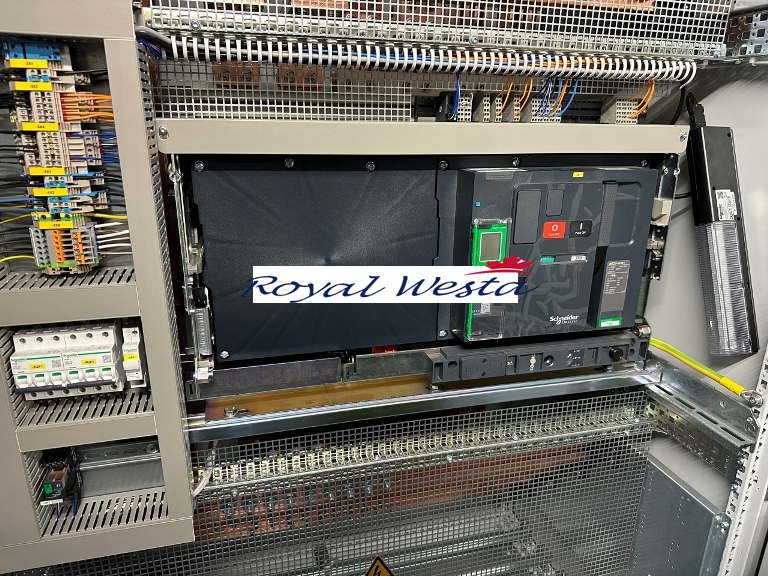

Plant operations are controlled with MWM digital power plant control TPEM (Total Plant & Energy Management) with Schneider PLC.
Packaging of this unit is made by professional European company with good references.
Delivery includes 1 set of electronic docs in English or in the original language.
Payment term:
50 % advance payment in 5 calendar days after contract signing.
50 % in 10 calendar days after the written confirmation about unit readiness for shipment prior to pick up
Warranty: There is a 12-month defect liability period following the initial start-up of the unit, but no more than 18 months from the date it was delivered
Technical data:

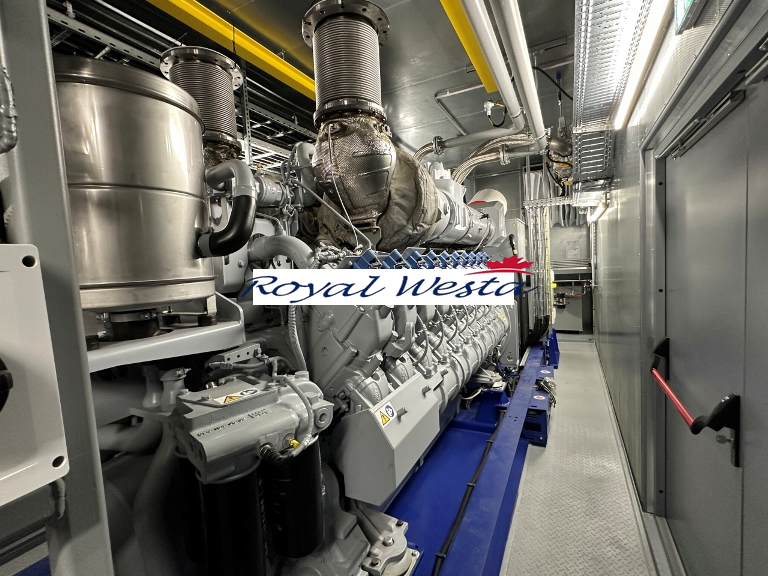

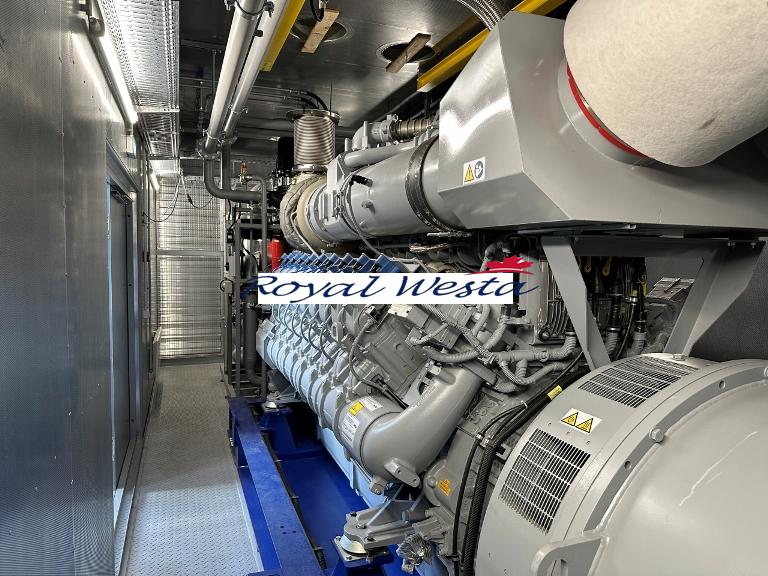

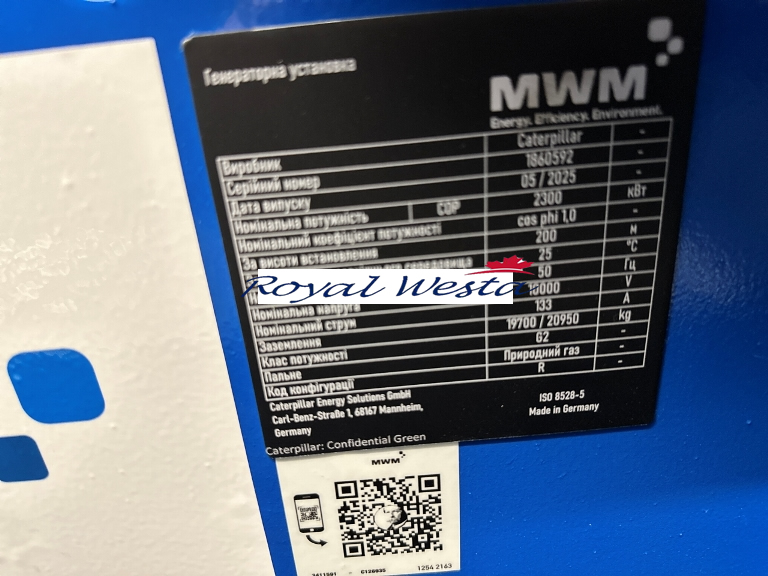

Engine :MWM TCG 3020 V20R

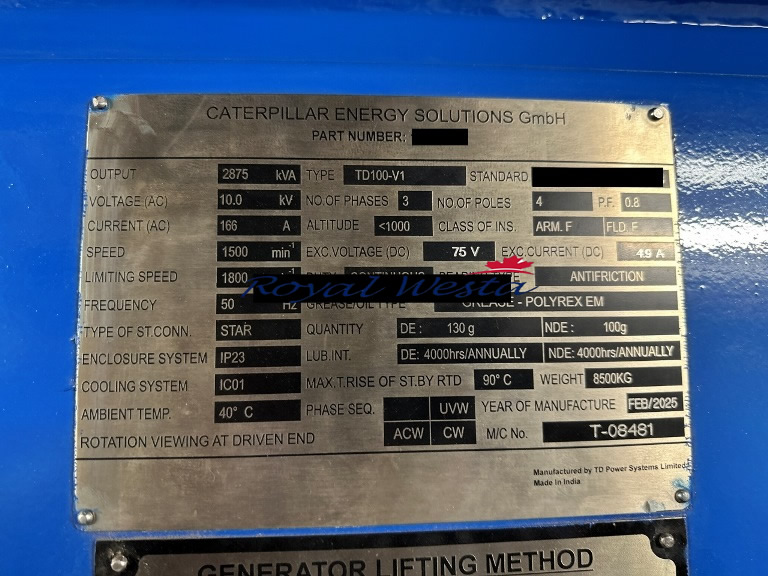

Generator:CAT 2875 kVA / 10 kV / 50 Hz
Power capacity at alternator :2300 kW
Hot water capacity at 95C :2255 kW
Electrical efficiency:42.4 %
Thermal efficiency :43.6 % +/- 8%
Plant control system :MWM TPEM with Schneider PLC
Certification : CE
Warranty : Factory warranty

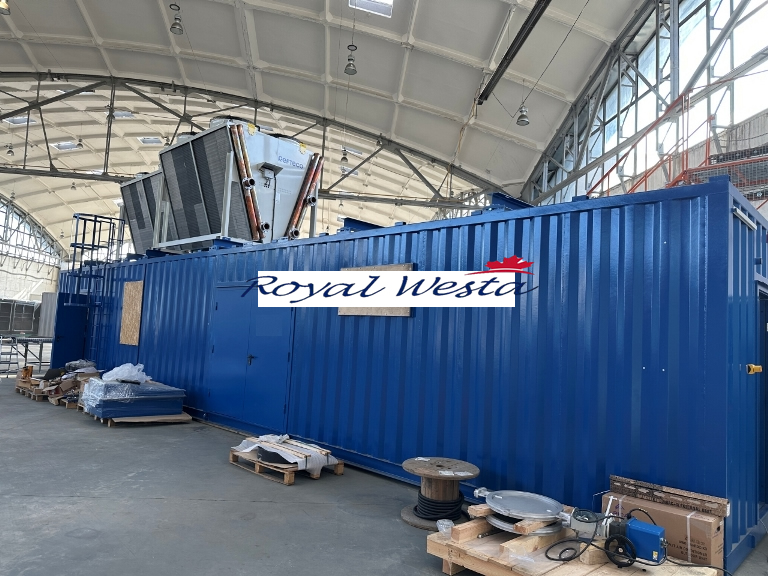

Container main dimensions :16.4 x 3.0 x 3.0m (L x W x H without machinery on the roof)
Container operation weight Approx 50 ton
