COMPLETE WOOLEN LINE

NOTE: Prices shown are Mill Floor Basis. Some machines such as Carding Machines are Ring Spinning Machines are large machines and because they are in Europe, dismantling, packing and loading costs would be a large amount and needs to be considered by purchasers.

Production Capacity, Count Range and Sequence of Manufacturing::
Count range NM 2-12, Nm2, if using 2 ends. Nm10 by using fine wool, Nm 12 possible by using fine synthetic fibres.

sequence of machinery process flow in plant. Carding is the second process step after fibre opening and mixing. The next and third step is ring spinning.

Each woollen card output of production, 3m-card= 80- 125kg/h, 2,50m card= 65- 100kg/h depending from yarn count. Speed in practise 35-40m/min.

AA03/181125E/SP-S/M/

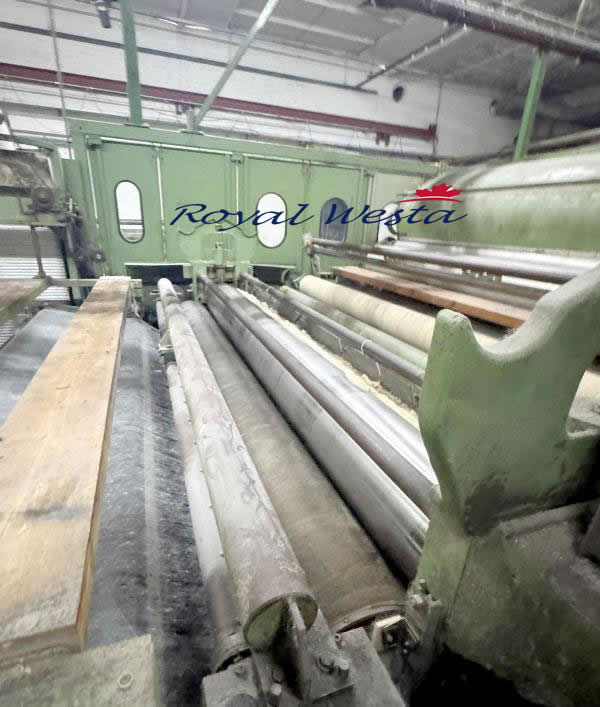

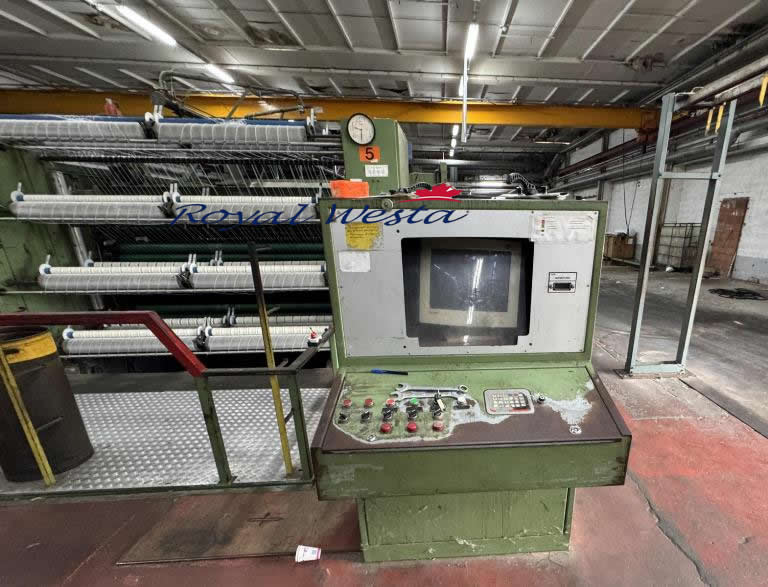

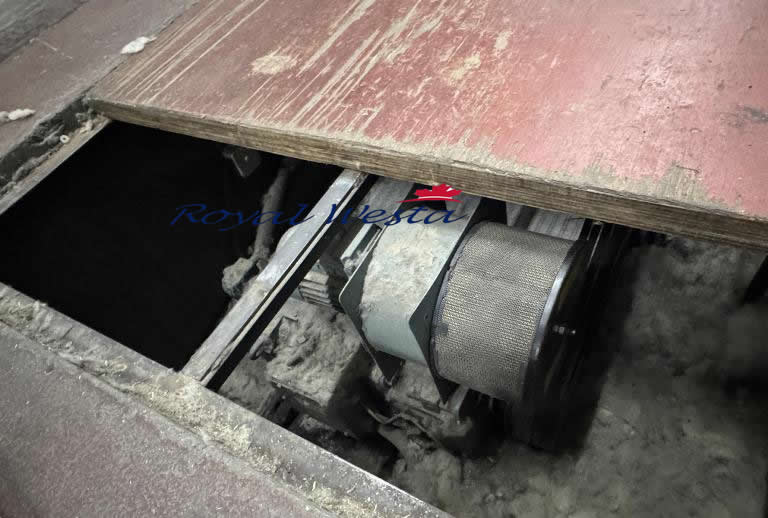

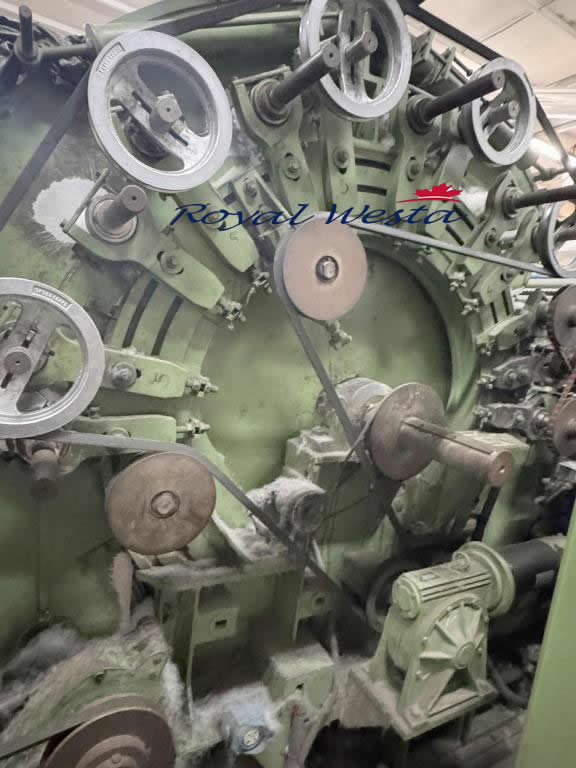

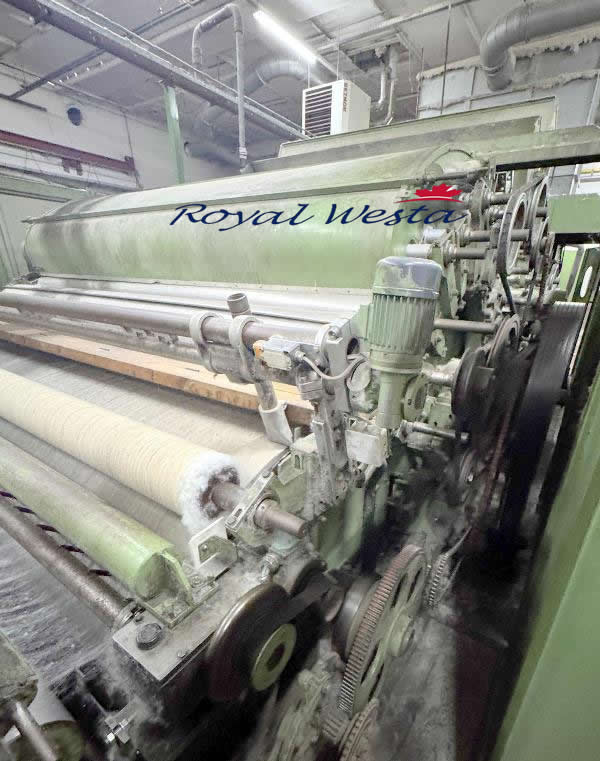

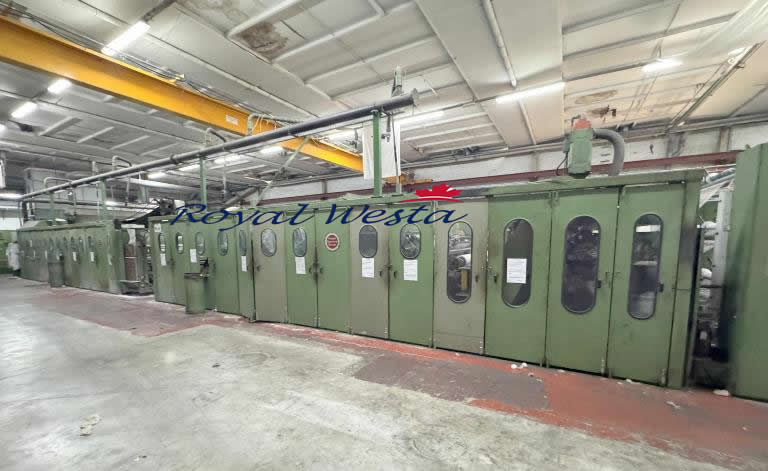

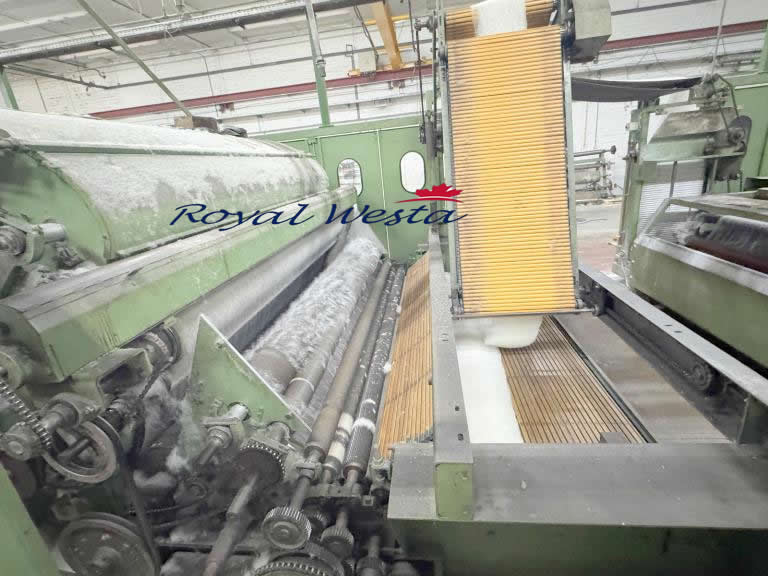

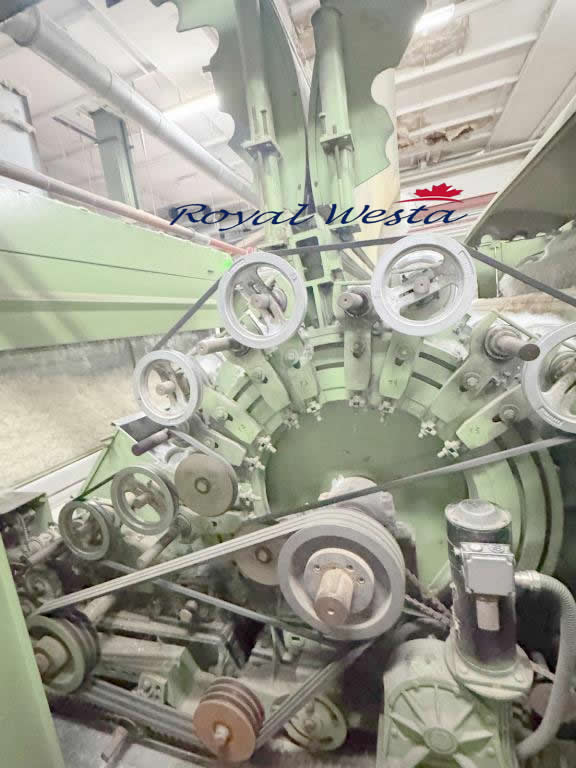

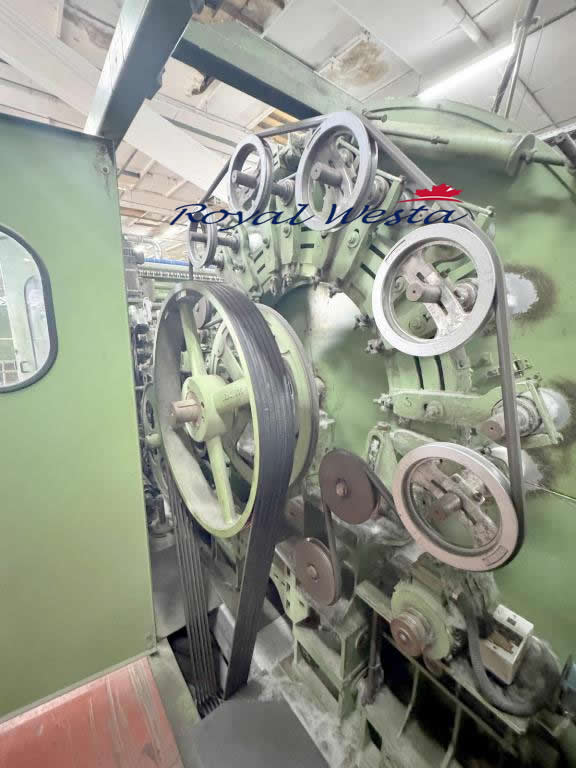

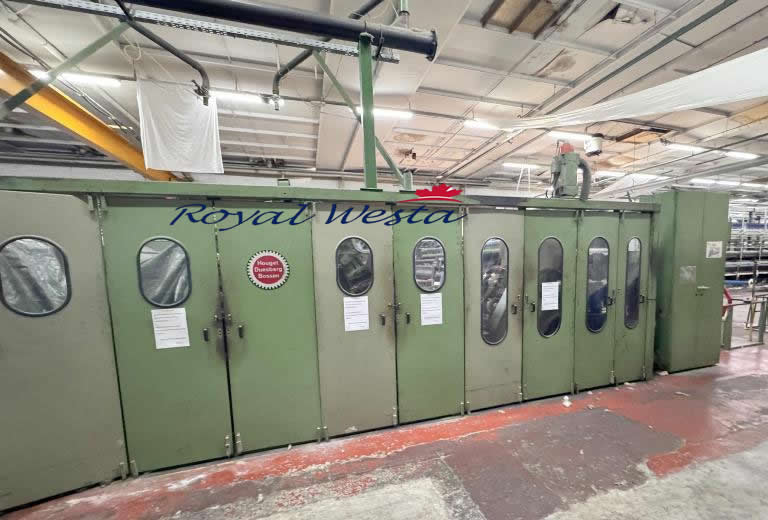

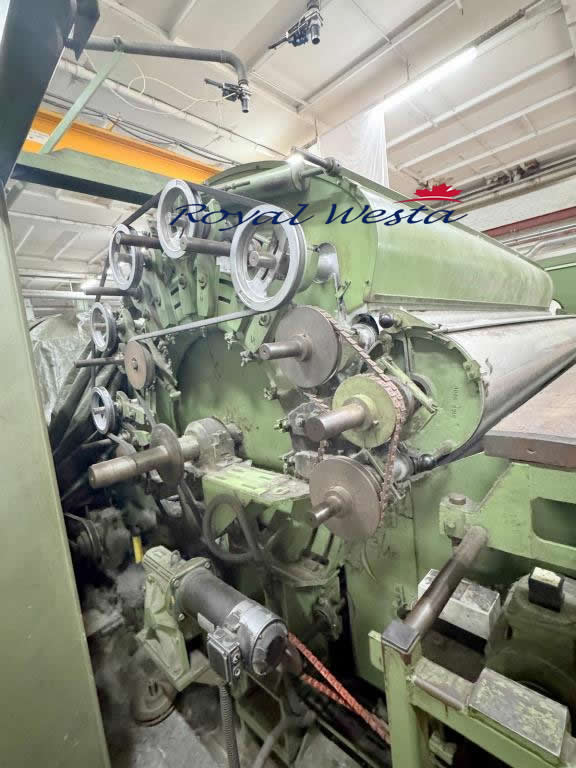

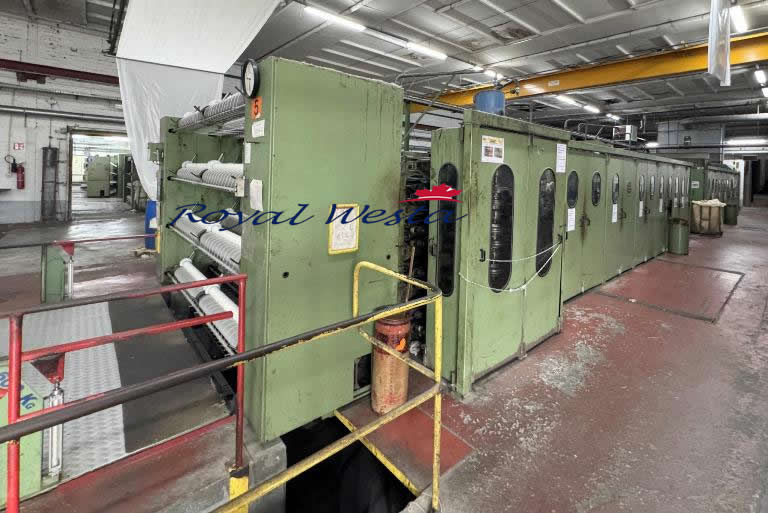

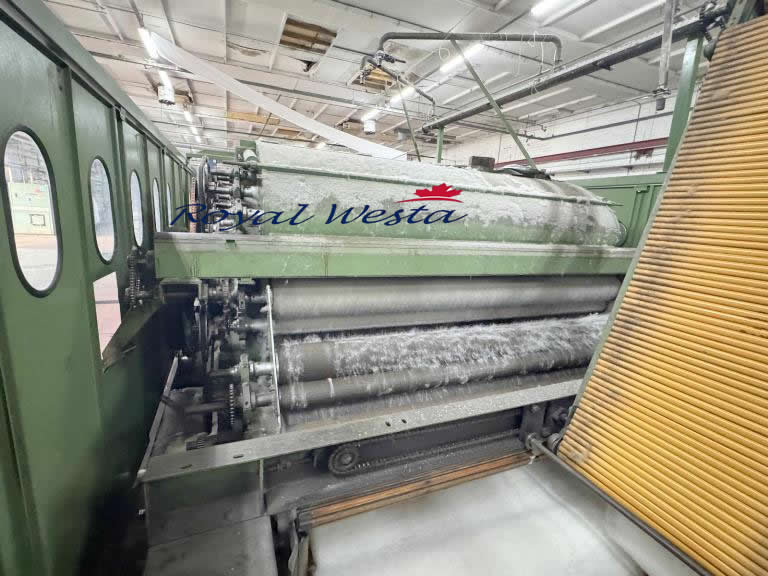

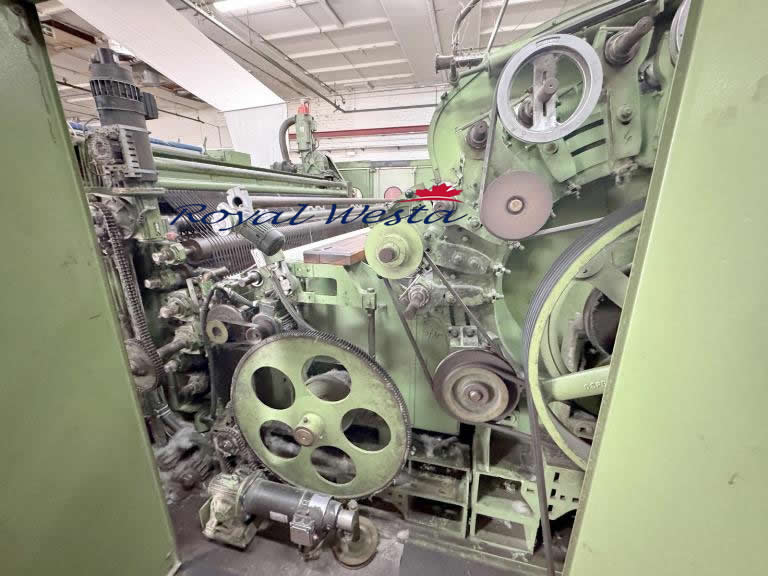

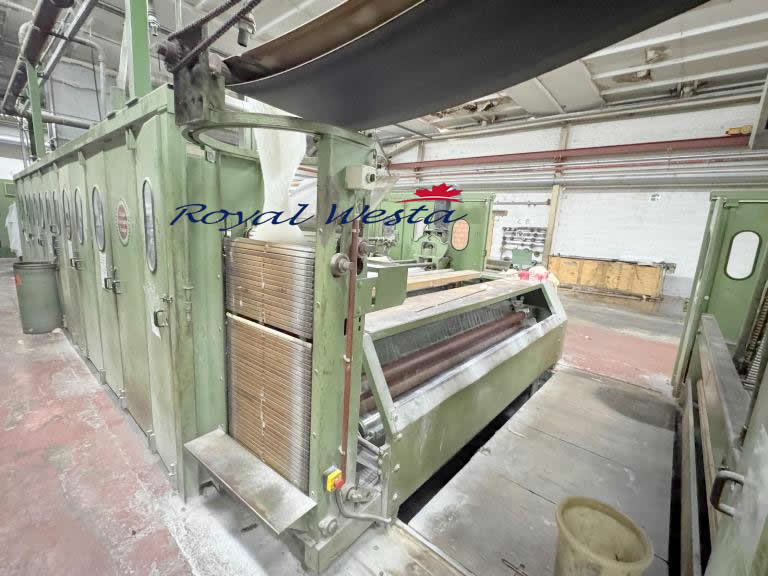

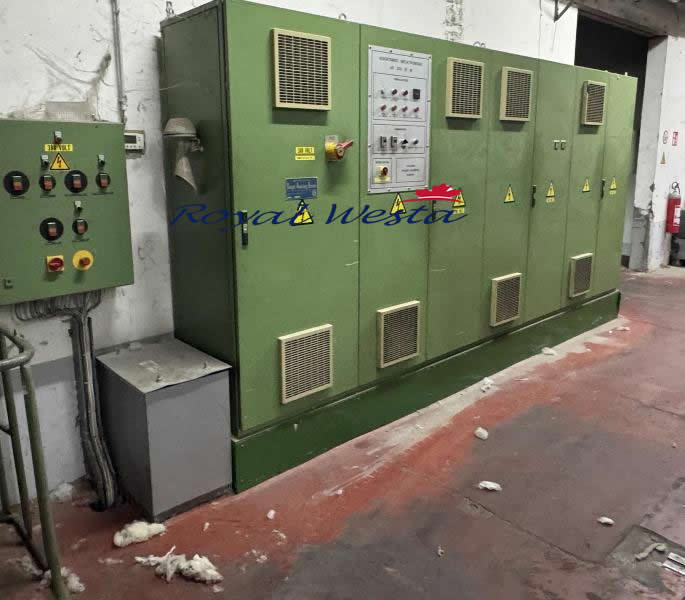

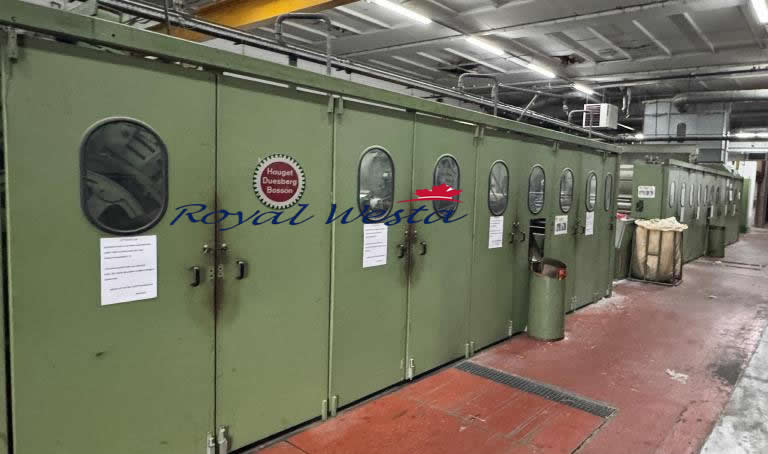

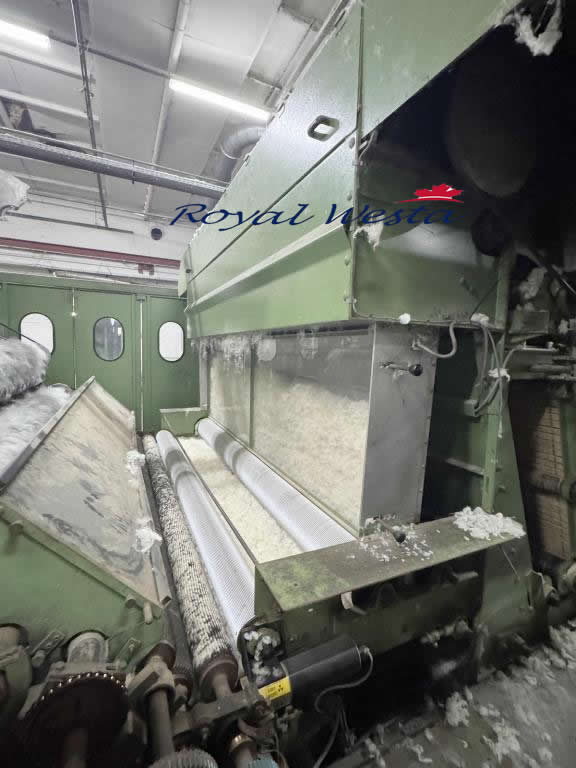

3-swift Woollen Card HDB, Galaxy

Quantity: 1, Year: 1990
ww 3.000 mm, with Mecatronic drive, 208 good ends
hopper feeder and shut feeder on top with height of 3,00m,

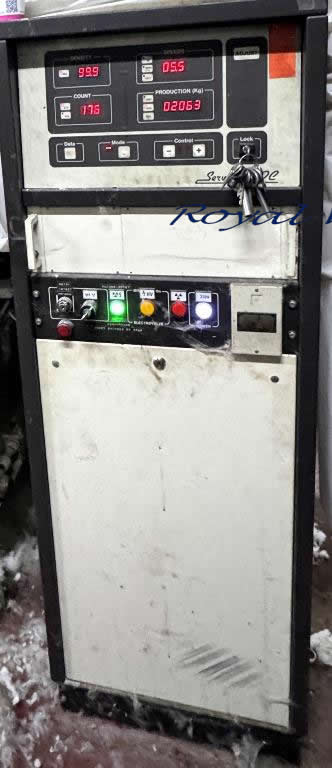

Servolap control, changed to radiological system without radioactive source, with certificate
breast section with main cylinder dia.1.250 mm with 4 pairs worker and stripper
first swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
Peralta, wideband layer
second swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
transfer roller
third swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
high speed flying comb, delivery speed 40m/min

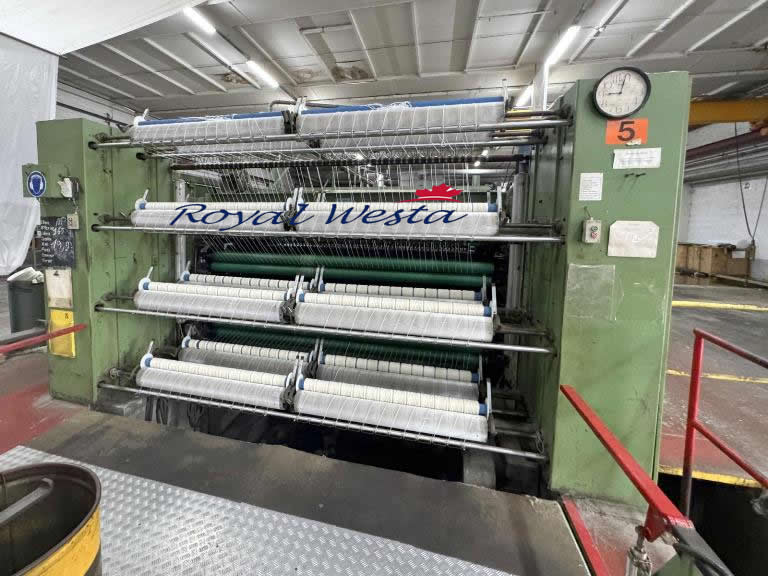

triple apron condenser, 208 good ends
double winder frame with 16 bobbins each 13 ends
Machine is in good running condition, stopped 30.8.2025.
All main cylinders and doffers are equipped with a pneumatic cleaning system.
A complete pneumatic extraction system with vacuum pump and filter containers is also available for sale.

AA03/181125E/OA.L-T.L/M/

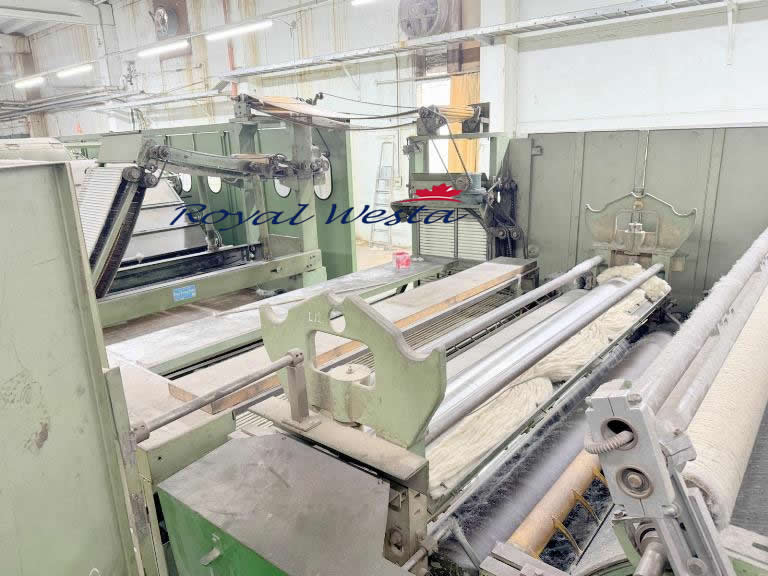

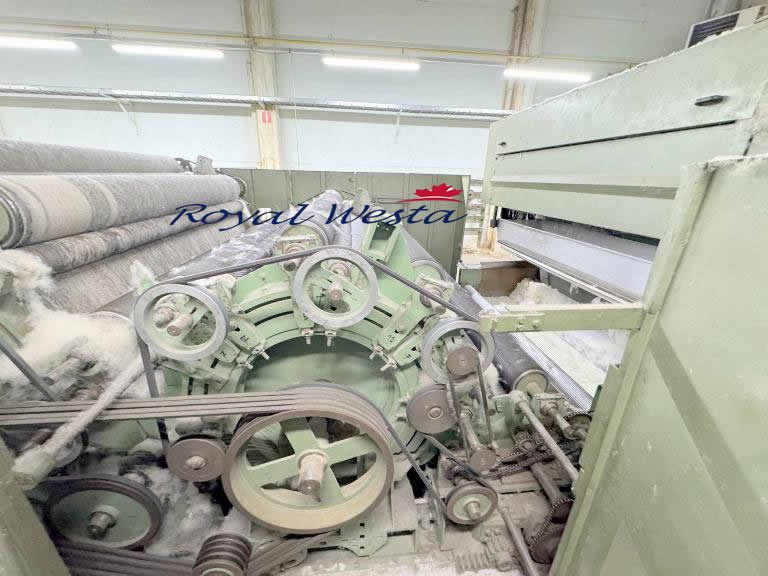

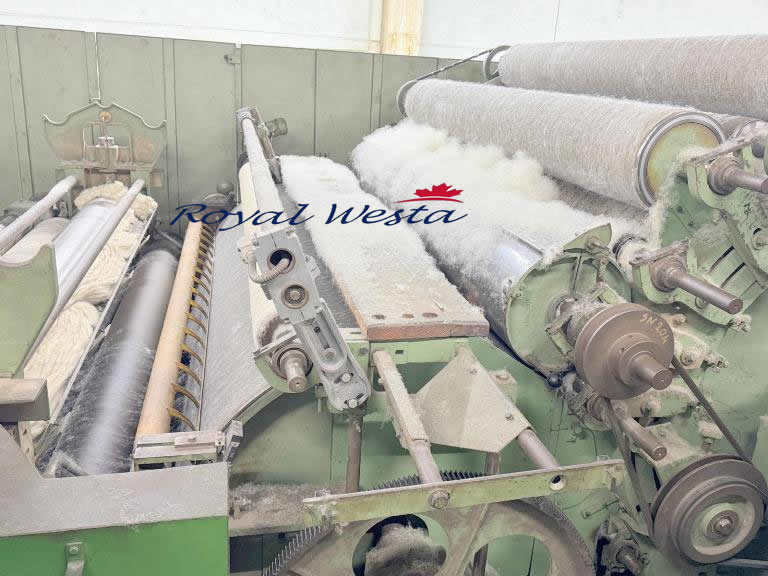

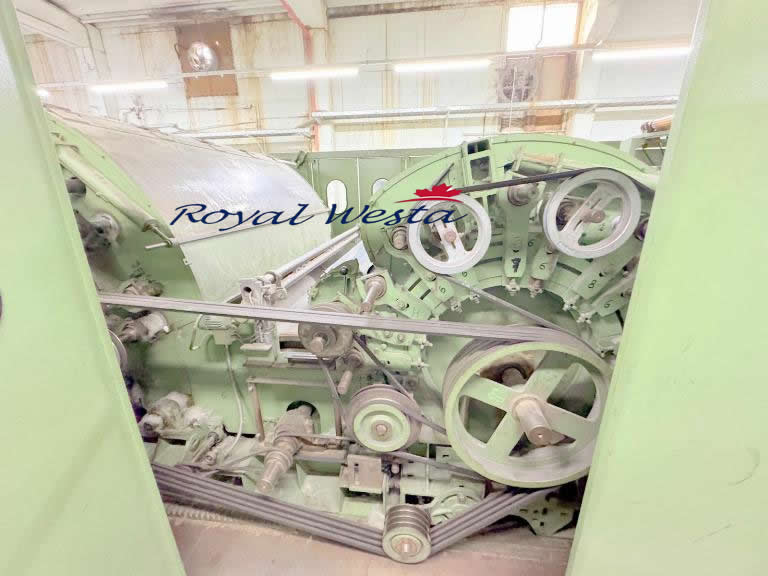

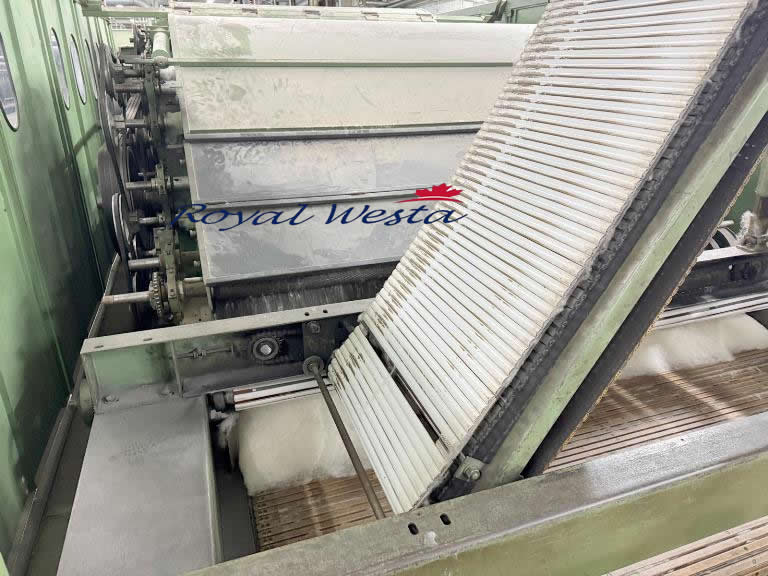

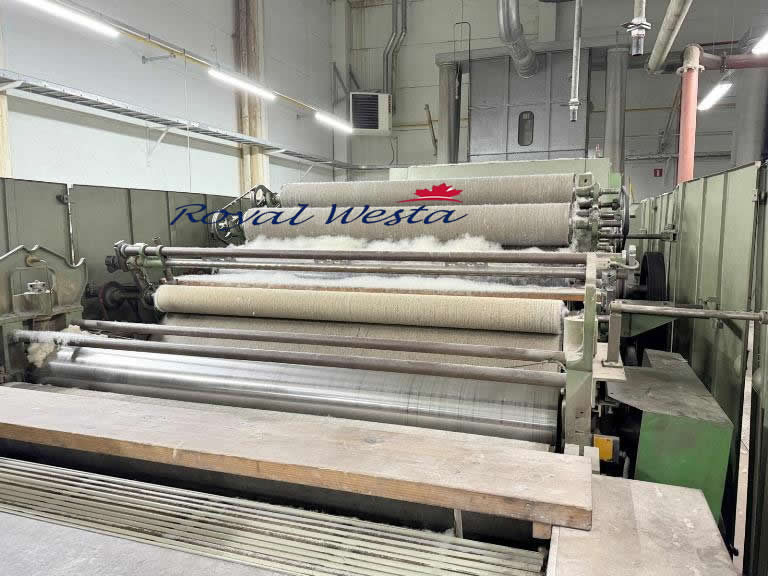

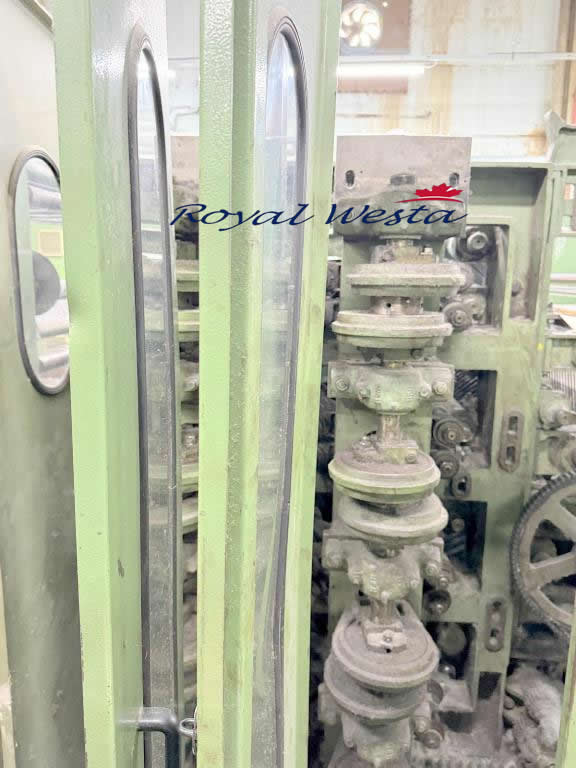

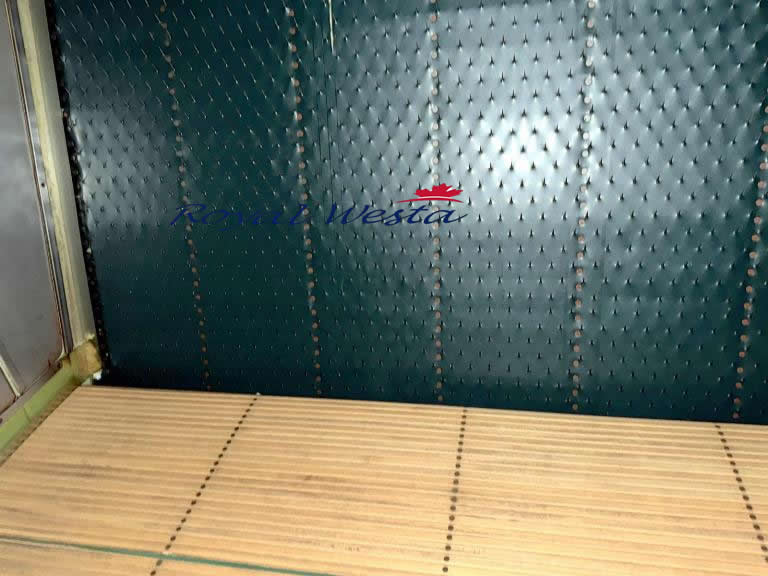

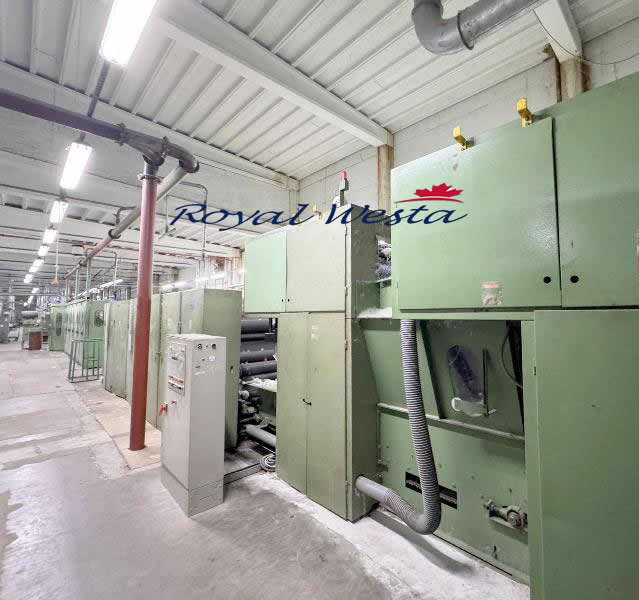

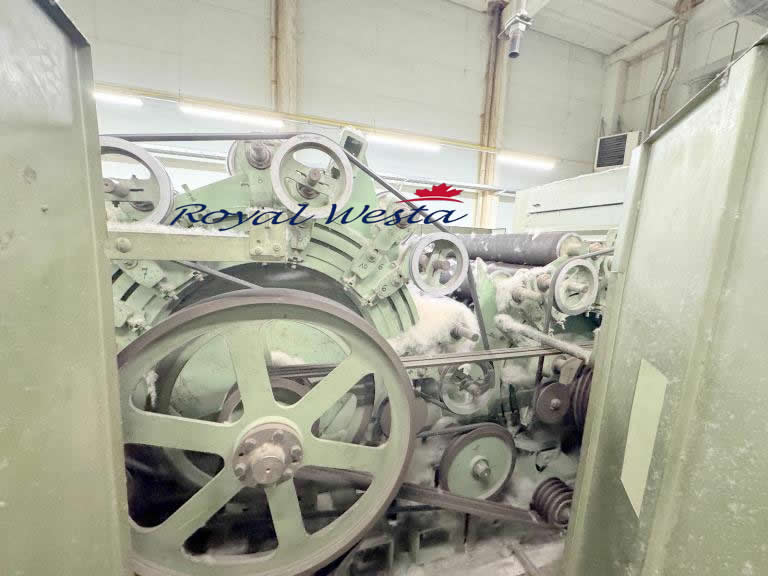

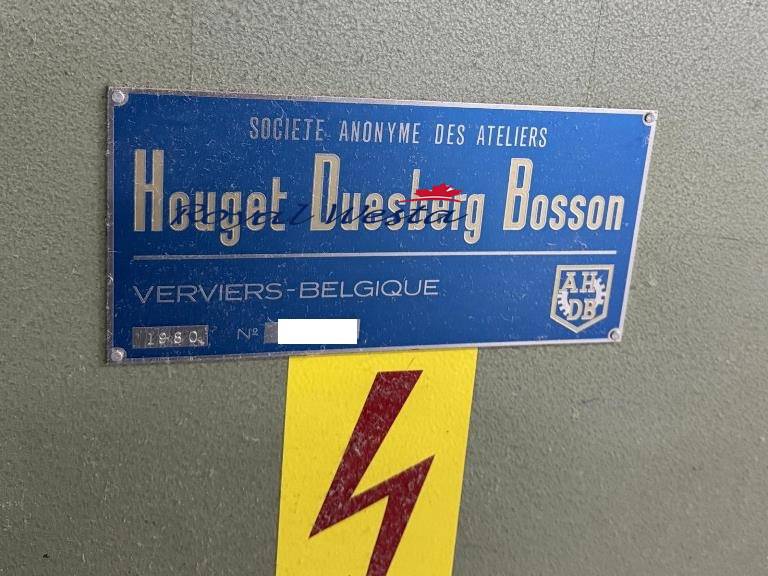

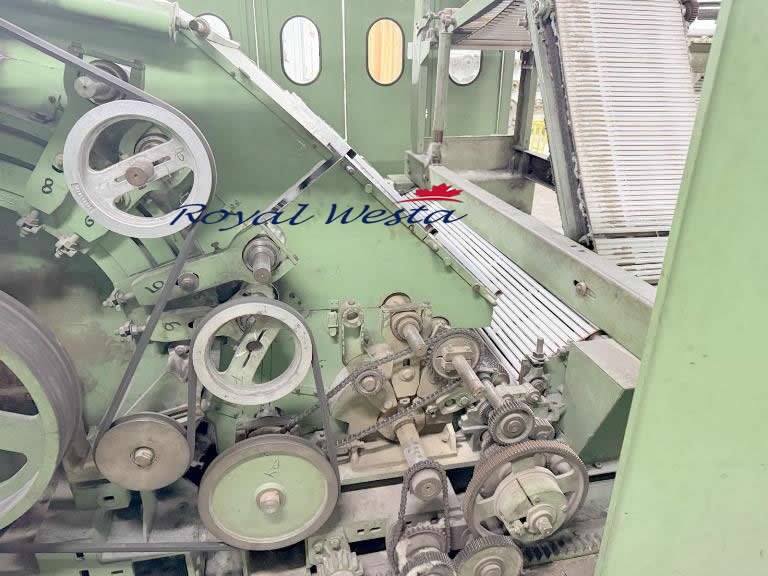

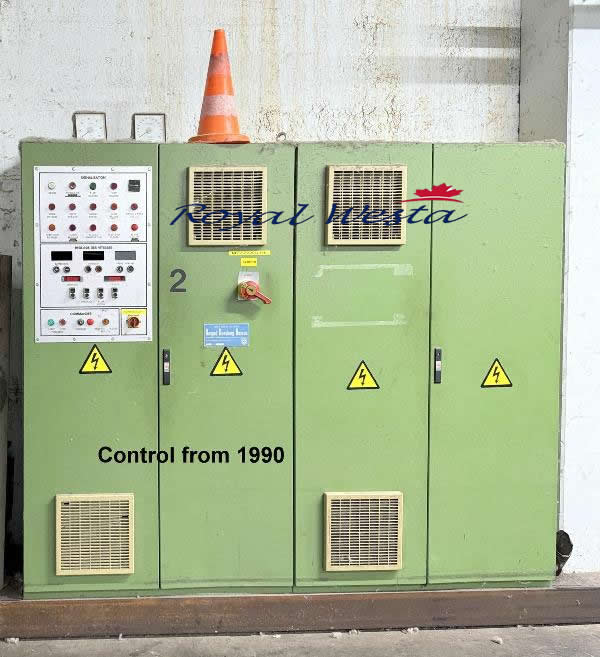

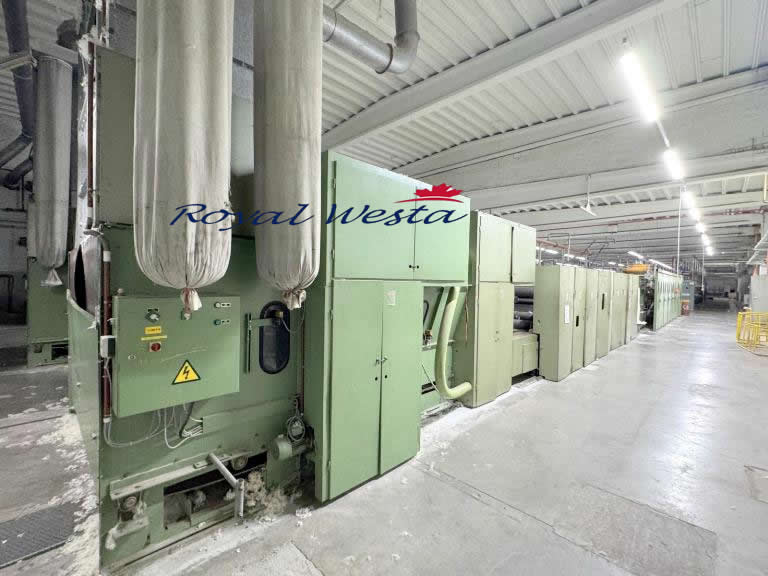

3-swift woollen HDB Galaxy Card

Quantity: 1, Year: 1980, modernized 2000
ww 2.500 mm,160 good ends
hopper feeder + shut feeder on top with height of 3,00m, linked with second hopper feeder

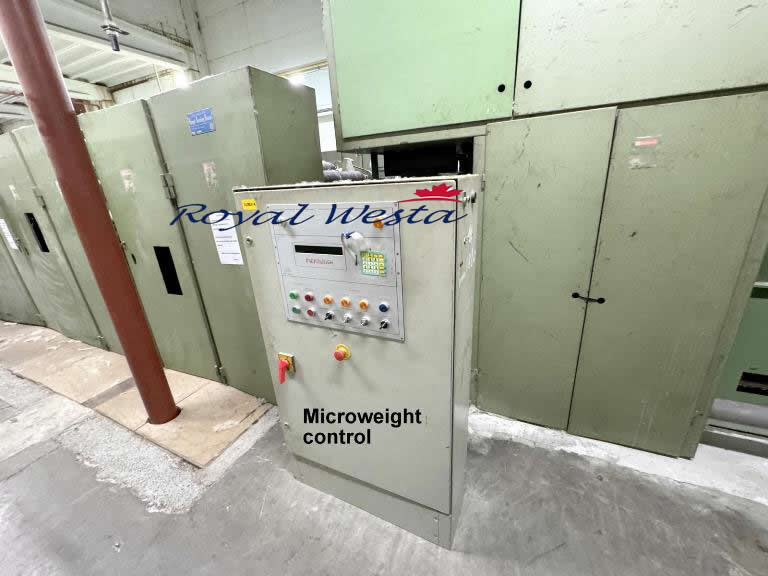

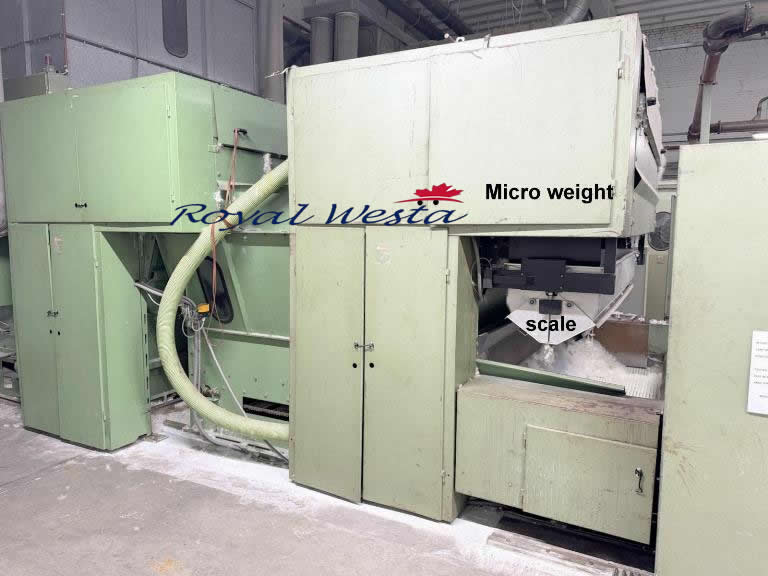

retrofitted with electronic scale Microweight, which ensures that the hopper feeder card operates
with a tolerance of +- 1%!
breast section with main cylinder dia.1.250 mm with 4 pairs worker and stripper, rigid wires
first swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
Peralta, wideband layer
second swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
transfer roller
third swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
high speed flying comb, delivery speed until 40m/min

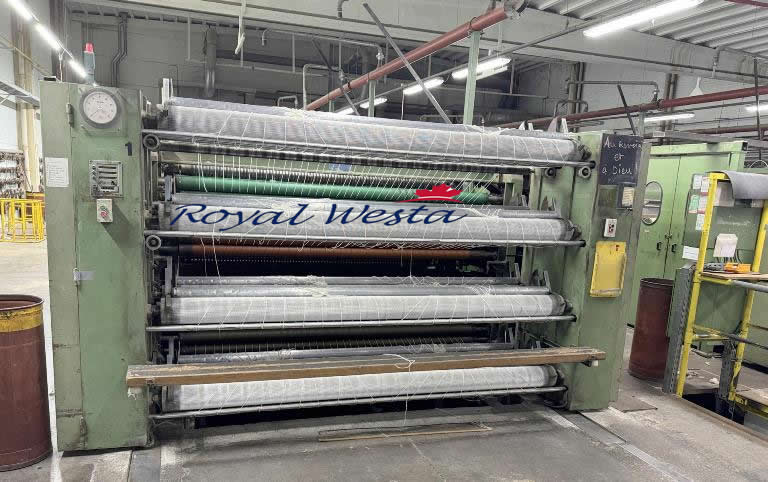

double apron condenser, 160 good ends
double winder frame with 8 bobbins each 20 ends
Machine is in good running condition, stopped 30.8.2025.
All main cylinders and doffers are equipped with a pneumatic cleaning system.
A complete pneumatic extraction system with vacuum pump and filter containers is also available for sale.

AA03/181125E/OA.L-T.L/M/

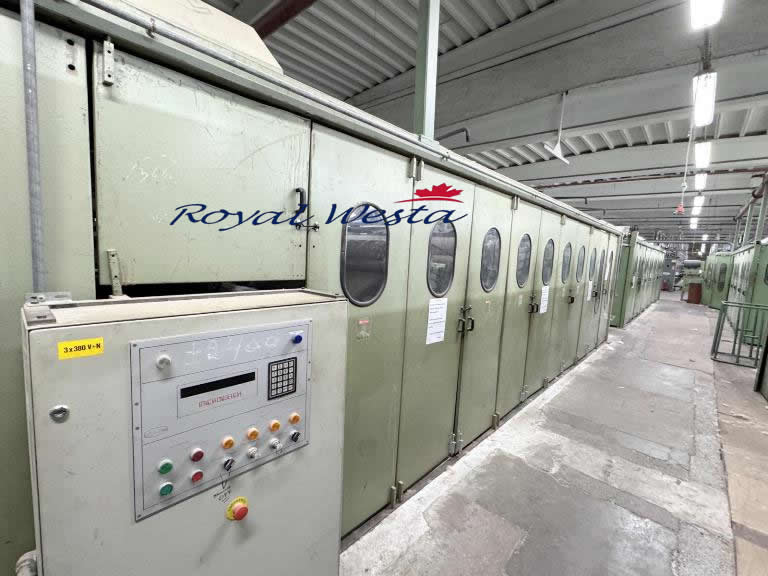

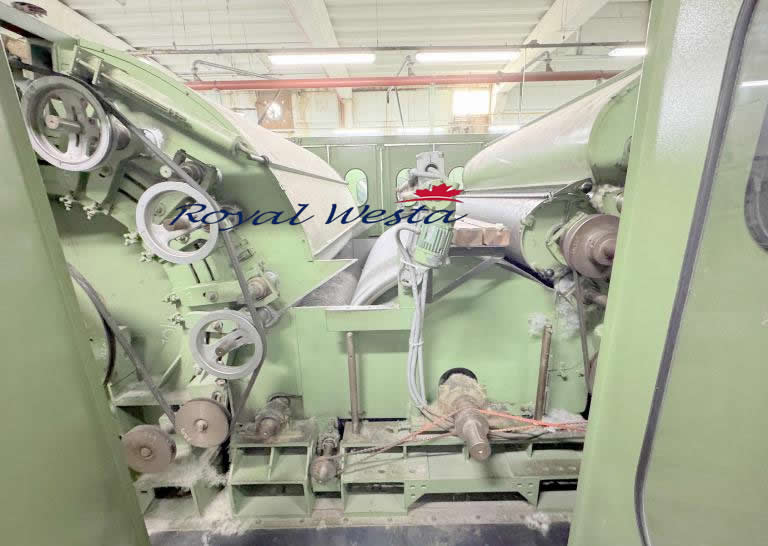

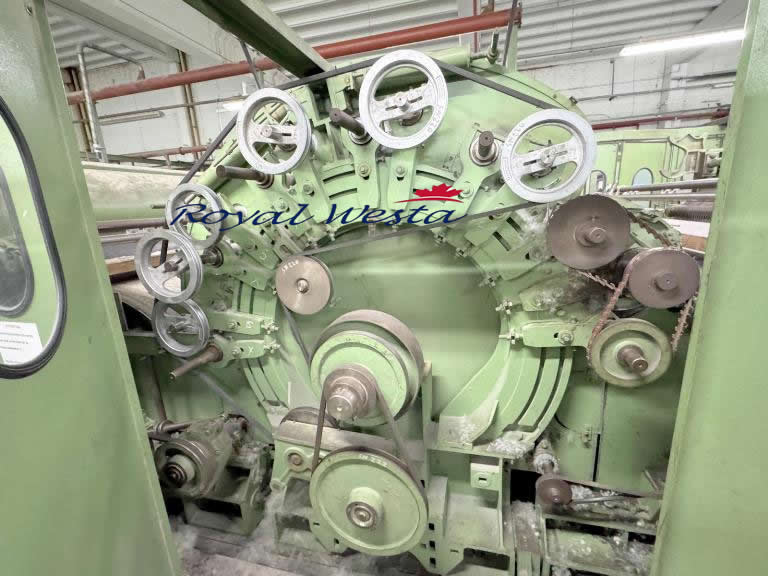

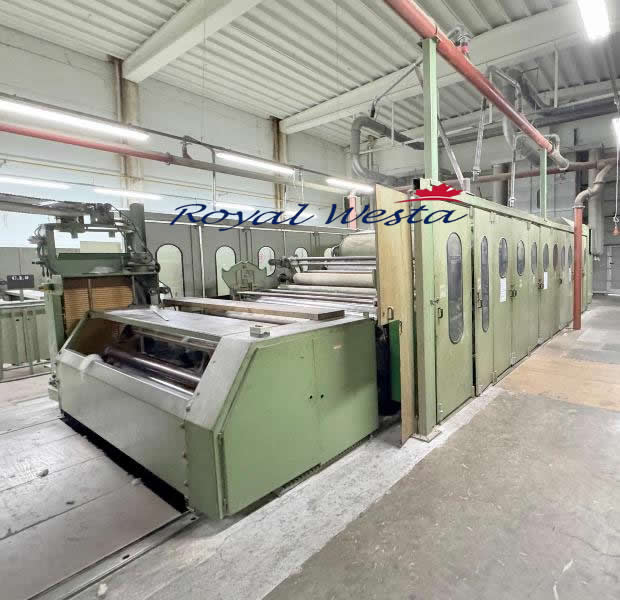

3-swift woollen HDB Galaxy Card

Quantity: 1, Year: 1981, modernized 2000
ww 2.500 mm,160 good ends
hopper feeder + shut feeder on top with height of 3,00m, linked with second hopper feeder

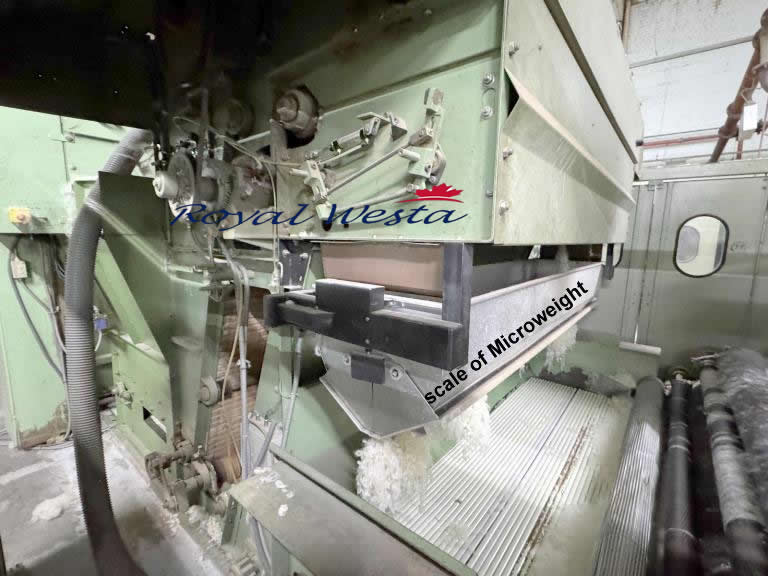

retrofitted with electronic scale Microweight, which ensures that the hopper feeder card operates
with a tolerance of +- 1%!
breast section with main cylinder dia.1.250 mm with 4 pairs worker and stripper, rigid wires
first swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
Peralta, wideband layer
second swift:
main cylinder dia.1.250 mm with 5 pairs worker and stripper, doffer 1.050 mm, fancy roller, flexible clothes
transfer roller
third swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
high speed flying comb, delivery speed until 40m/min
double apron condenser, 160 good ends
double winder frame with 8 bobbins each 20 ends
Machine is in good running condition, stopped 30.8.2025.
All main cylinders and doffers are equipped with a pneumatic cleaning system.
A complete pneumatic extraction system with vacuum pump and filter containers is also available for sale.

AA03/181125E/C.L-I.C/M/

HDB Mounting Frame

Quantity: 1, For winding and grinding of flexible clothes , ww 3,00 m, with grinder roller

AA03/181125E/C.A-I.C/M/

HDB Mounting Frame

Quantity: 1, For winding and grinding of flexible clothes, ww 3,00 m, with grinder roller, with, support and special device for mounting flexible clothes

AA03/181125E/P.L-A/M/

Jungbauer Pneumatic Extraction Plant

Quantity: 1 , Year: 1982, with vacuum pump 30kW, 2 filter containers anf fine filter

AA03/181125E/YS.L-Y.L/M/

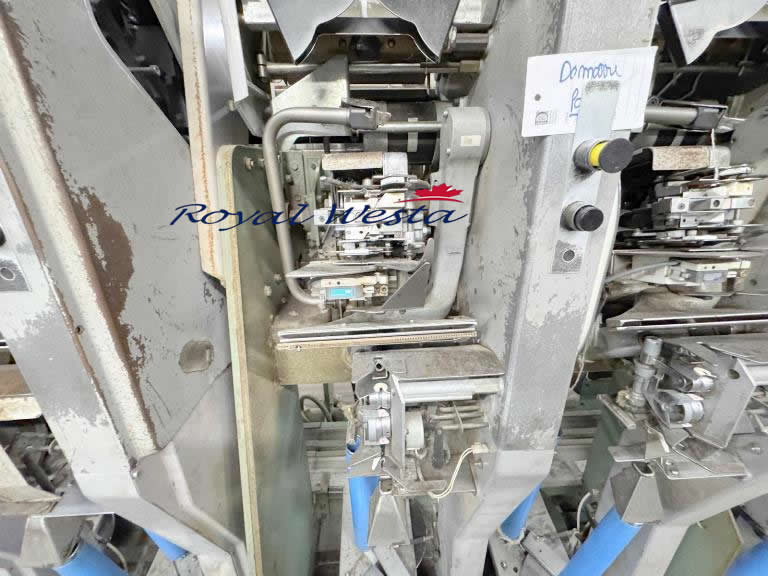

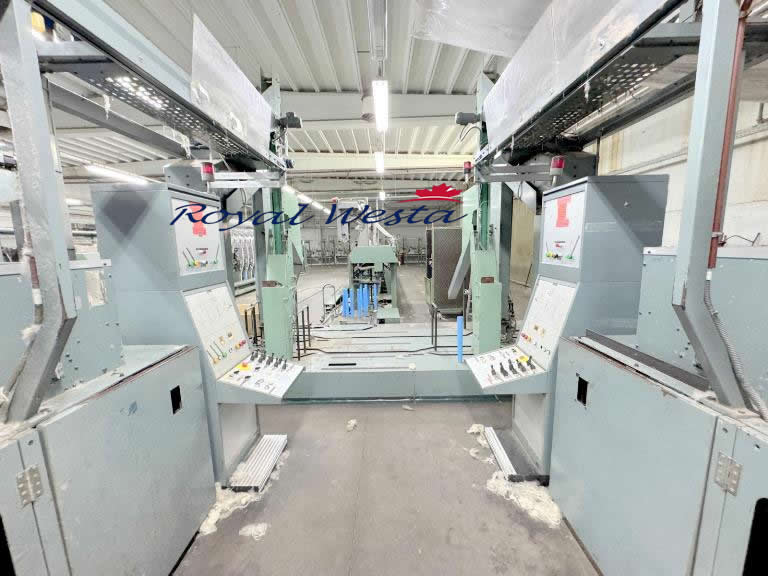

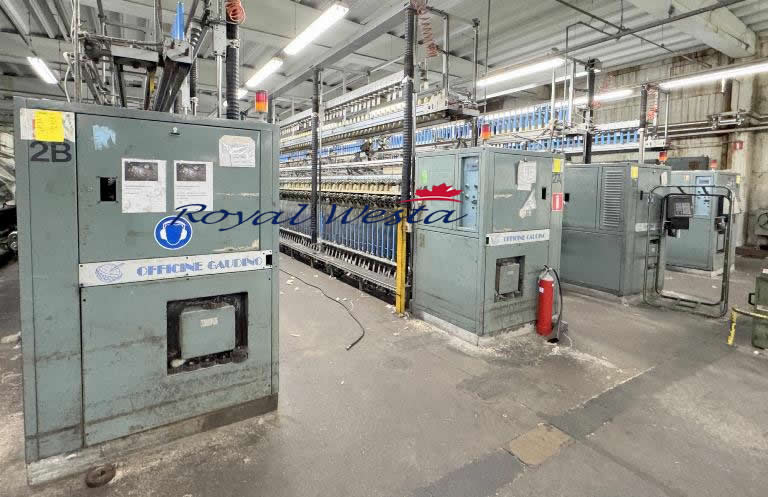

Ring Frames Gaudino

Quantity: 2, Year: 1990 , each 160 spindles, pitch140mm, ring diameter 110mm, tubes 500mm,
false twist spindle drafting system, automatic cops doffer, condenser bobbin transport system
linked with
1 Murata automatic winder
12 spindles, 10” traverse, tubes 280mm, electronic clearer, splicer, automatic doffer

AA03/181125E/YS.L-Y.L/M/

Ring Frames Gaudino

Quantity: 2, Year: 1990, each 160 spindles, pitch140mm, ring diameter 110mm, tubes 500mm,
false twist spindle drafting system, automatic cops doffer, condenser bobbin transport system
linked with
1 Murata automatic winder
12 spindles, 10” traverse, tubes 280mm, electronic clearer, splicer, automatic doffer

AA03/181125E/ALY-AY/M/

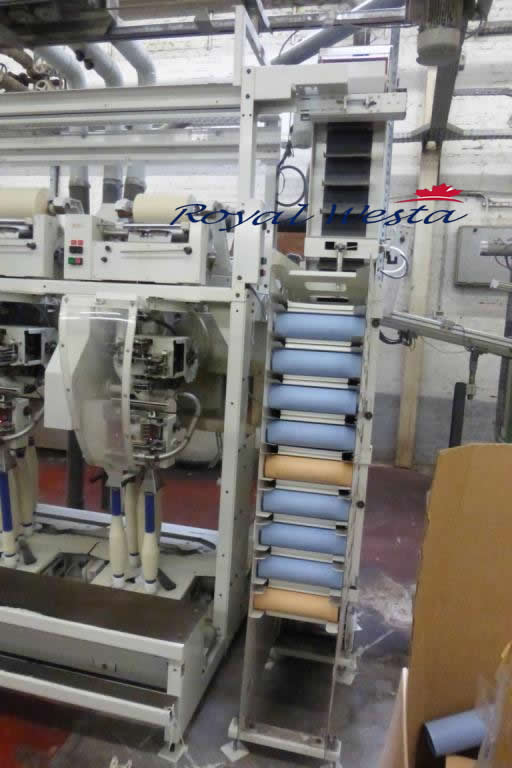

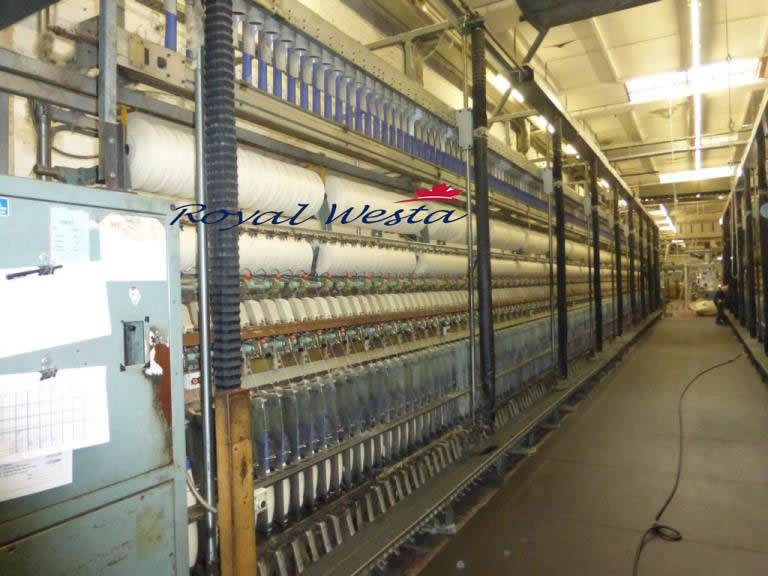

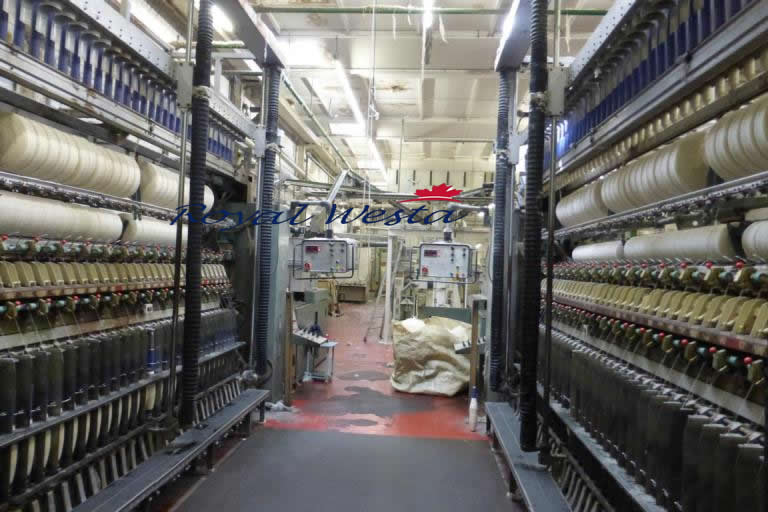

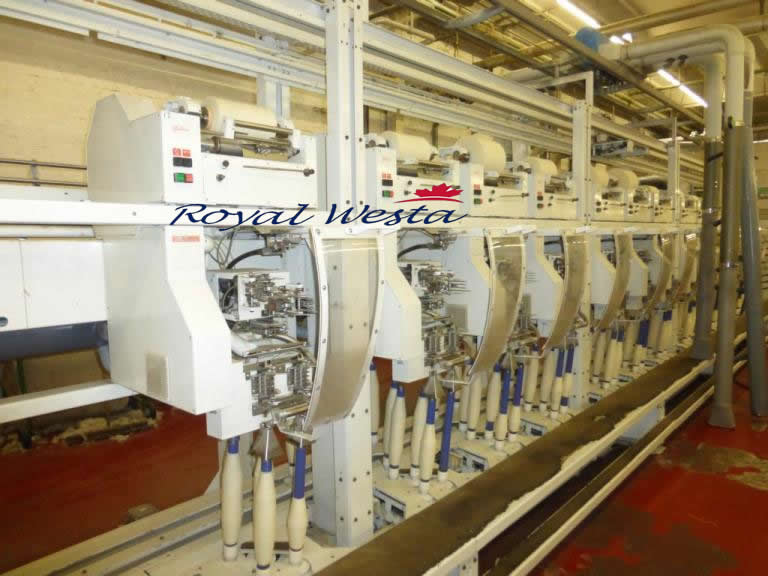

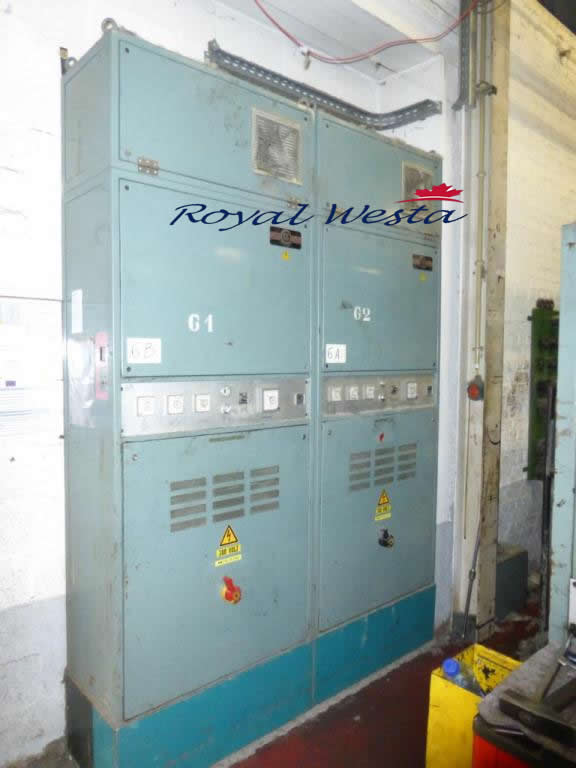

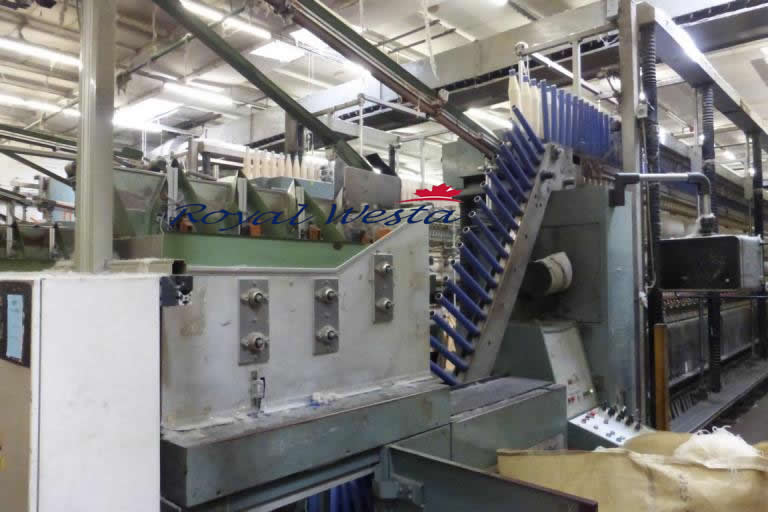

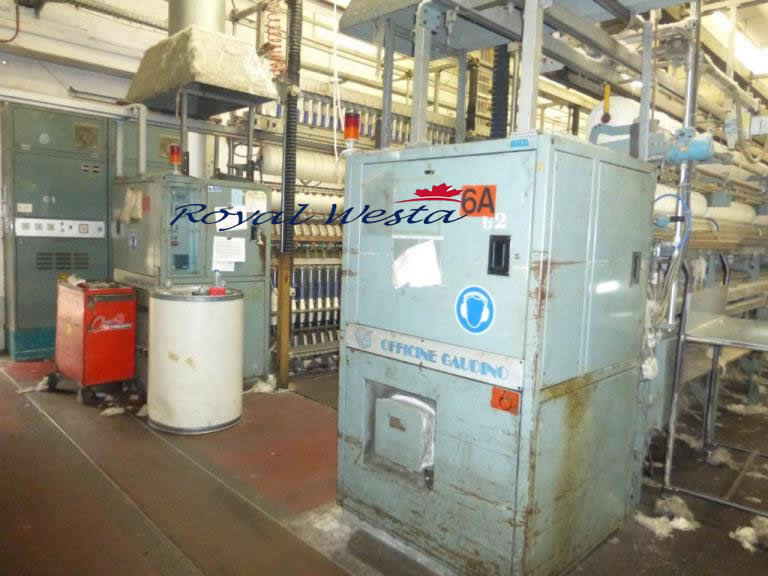

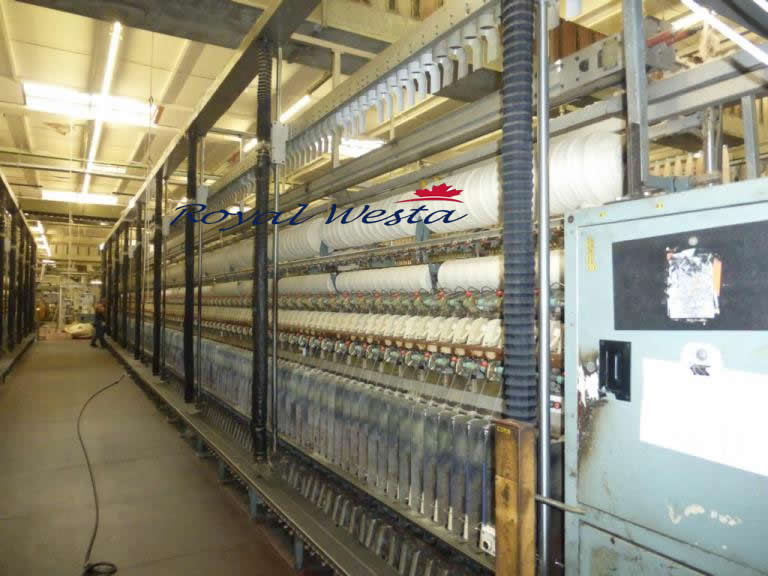

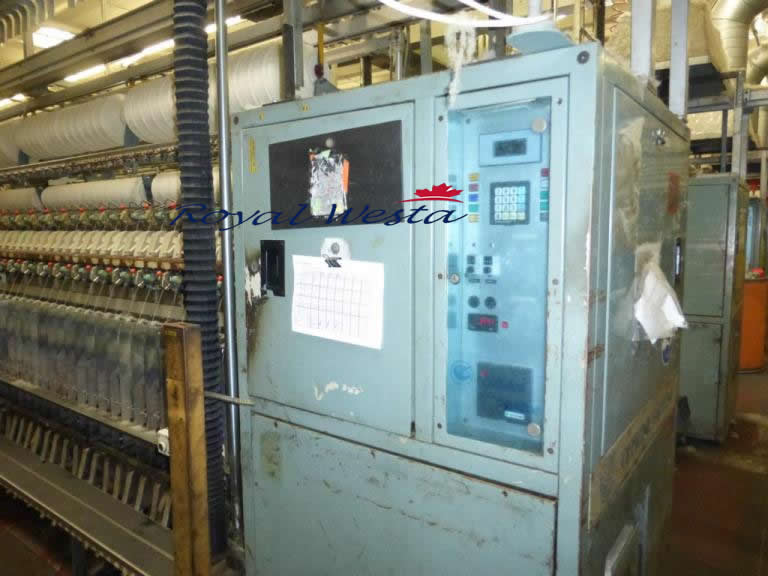

Ring Frames Gaudino

Quantity: 2, Year: 1990 , each 208 spindles, pitch120mm, ring diameter 90mm, tubes 450mm,
false twist spindle drafting system, automatic cops doffer, condenser bobbin transport system
linked with

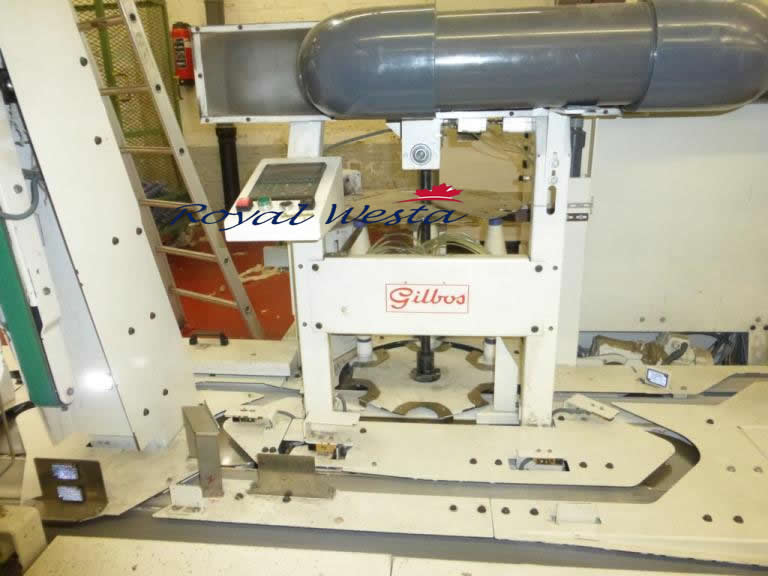

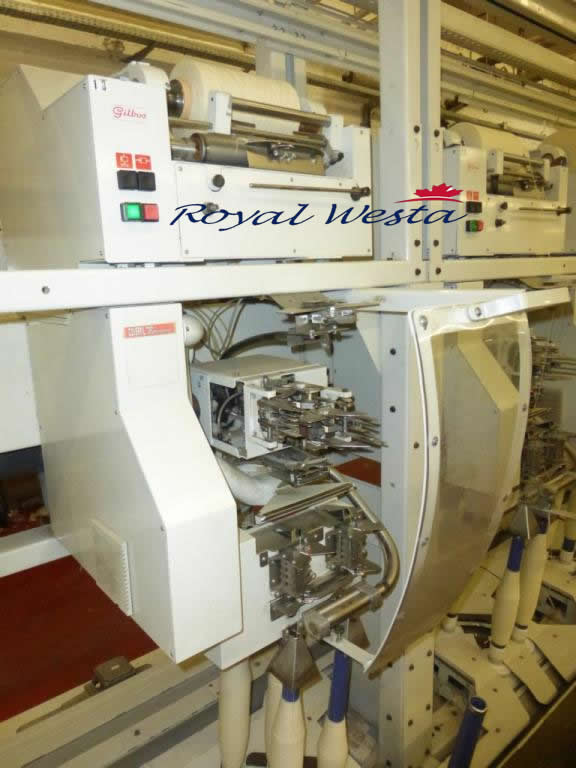

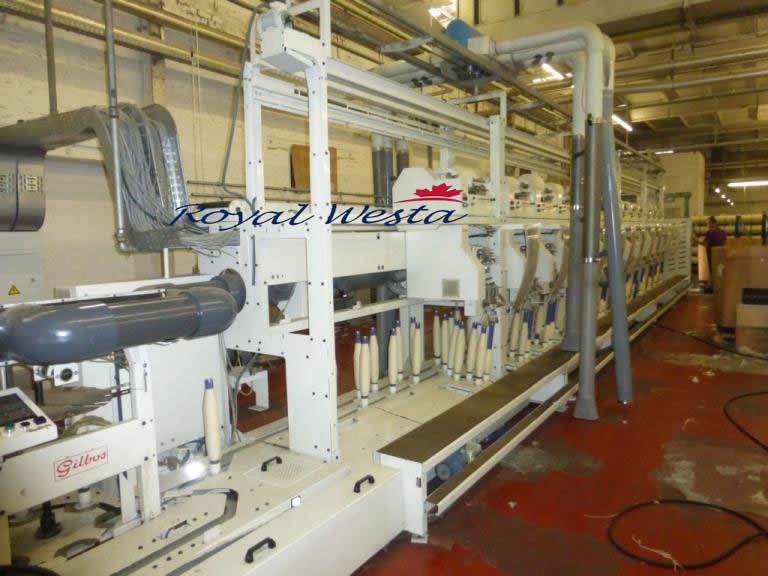

1 Gilbos automatic Twin Coner, year 2007
assembling winder, 2-ply, 13 spindles, 10” traverse, tubes 280mm, electronic Loepfe clearer,
splicer, automatic doffer

AA03/181125/

Gilbos Automatic Twin Coner

Quantity: 1, Year: 1998 , assembling winder, 2-ply, 18 spindles, 10” traverse, tubes 280mm, electronic clearer Loepfe, splicer, automatic doffer, machine is in good condition, dismantled in sections

AA03/181125E/TY-T/M/

Gilbos Assembling Winder

Quantity: 1, Year: 2007, 12 spindles, 10” traverse, tubes 280mm, outstanding creel, 2-ply, automatic doffer,electronic sensors, stop device, outstanding creel, 2-ply

AA03/181125E/YC-Y/M/

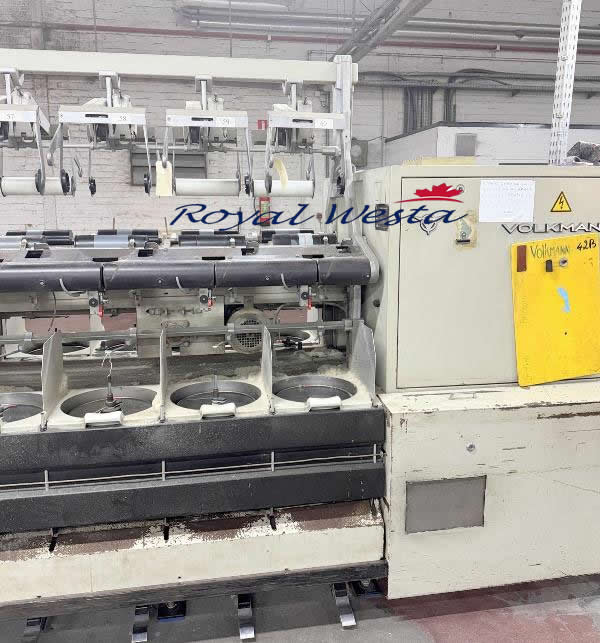

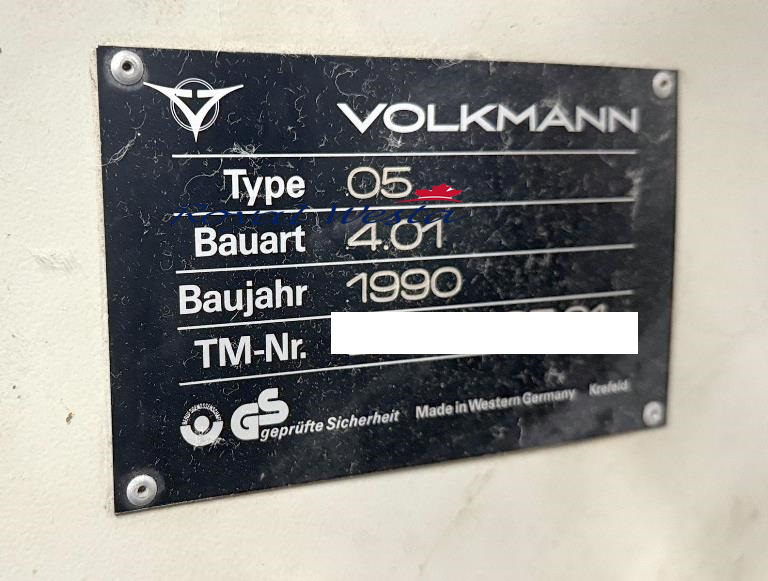

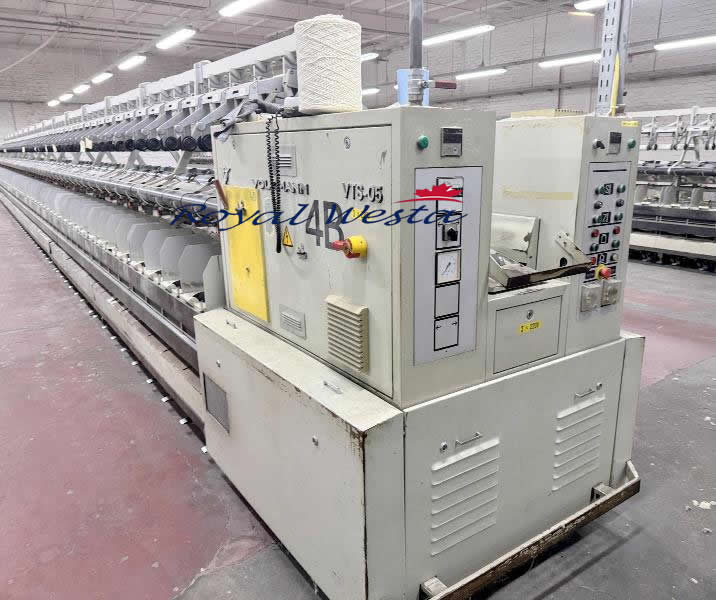

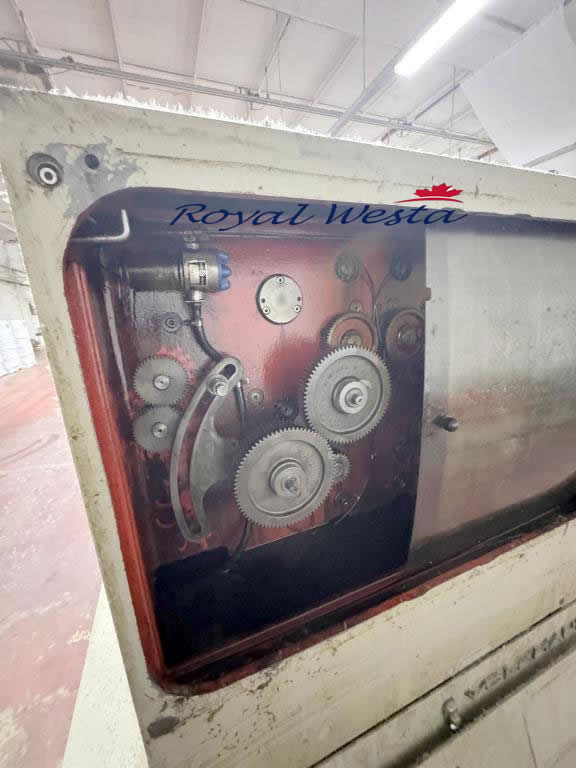

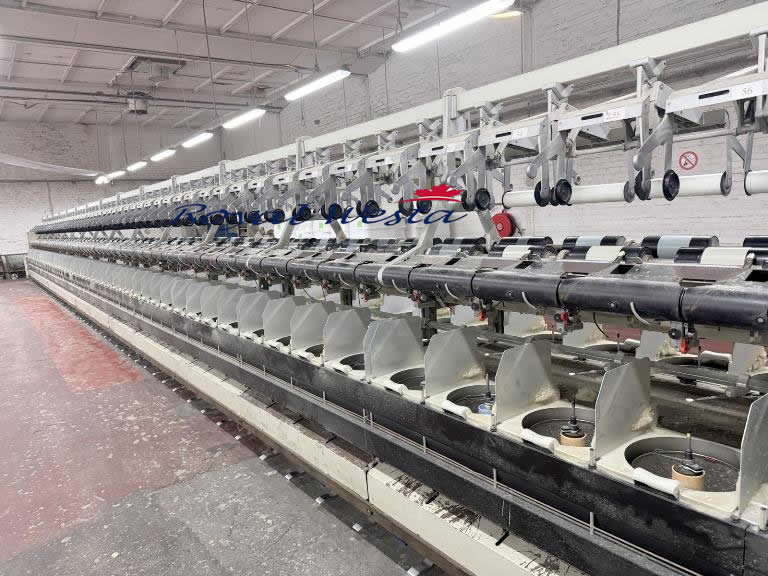

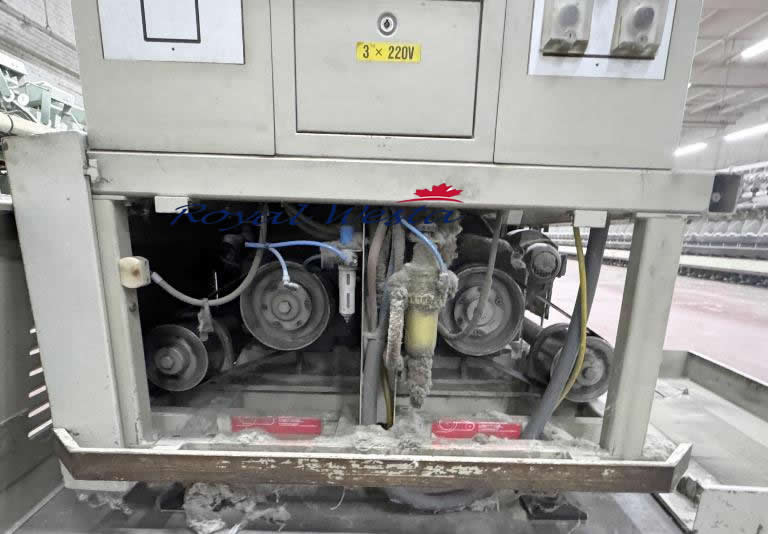

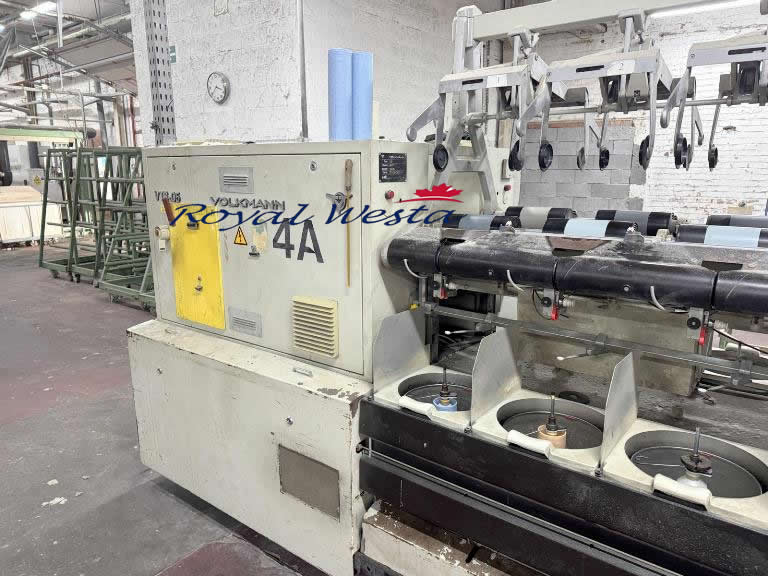

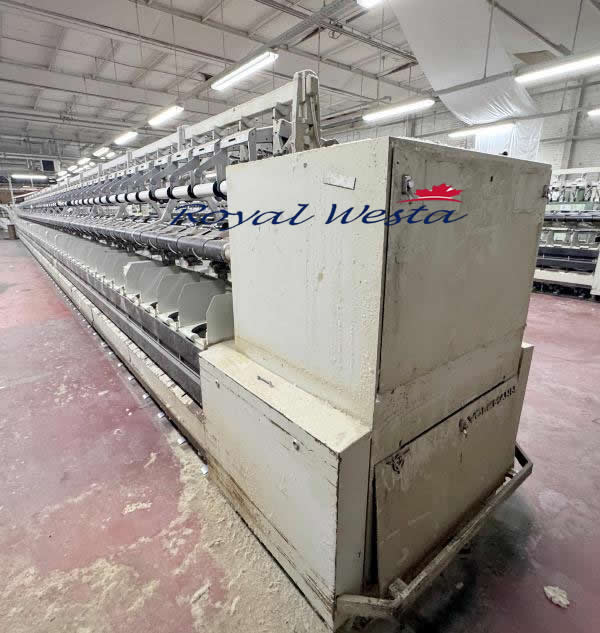

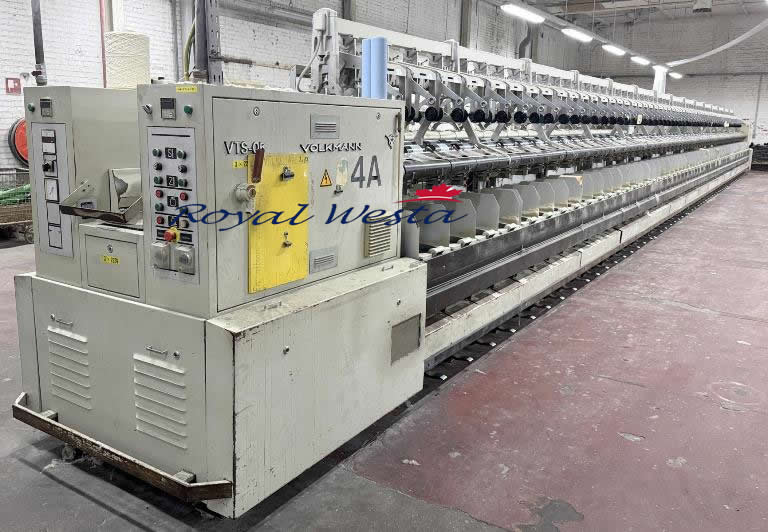

Volkmann Two for one Twister VTS-05

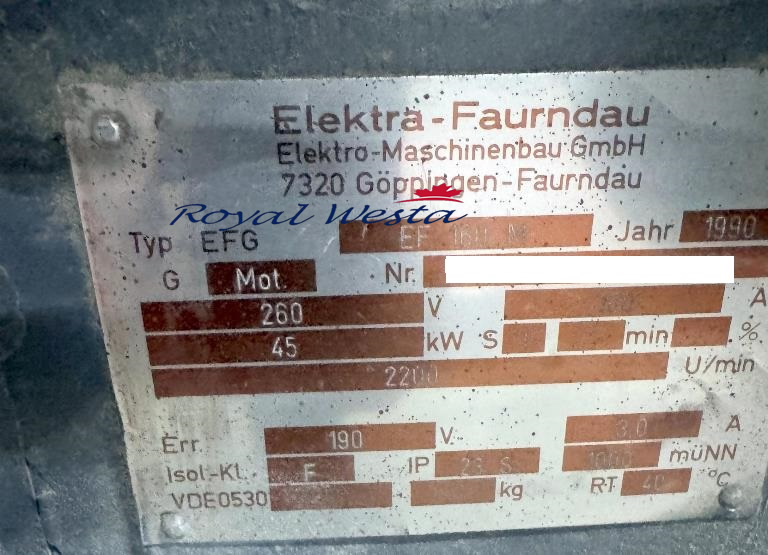

Quantity: 2, Year: 1989/1990, 120 spindles, each side independent, with own gears and motor 45kW, 380V/3Ph/50Hz, feeding 10” assembling bobbins, Volcojet air threading, delivery 10” cylindrical tubes tubes, conical tubes also possible

Blending plant:

AA03/181125E/O-A/M/

Laroche opener

Quantity: 1, Year: 1985, ww 1,-m, with step cleaner, exhauster and filters

AA03/181125E/O-A/M/

HDB Shaker

Quantity: 1, Year: 1984, ww 1,40m,with suction exhauster for suction and filter

AA03/181125E/S-A/M/

HDB Carding Willow

Quantity: 1, Year: 1984 ww 1,50m, with hopper feeder and 1 suction exhauster

AA03/181125E/O-A/M/

HDB Carding Willow

Quantity: 1, Year: 1977, ww 1,40m with hopper feeder and cyclone on top, 1 suction exhauster

AA03/181125E/P-A/M/

HDB Bale Opener

Quantity: 1, Year: 1984, ww 1,50m with HDB, conveyor 8m length

AA03/181125E/AR-A/M/

HDB bale weighing opener

Quantity: 5, Year: 1987, ww 1,40m, with bale tipper, with electronic scale, upgraded, feeding onto a common conveyor belt

AA03/181125E/AT.L-A.L/M/

Bin Emptier HDB

Quantity: 1, Year: 1984, ww. 4,-m, for bins 6,-m height, with telescope suction pipe 15m

AA03/181125E/C.A-I.C/M/

Bins HDB

Quantity: 6, Year: 1984, ww. 4,-m height 6,-m, length 16,-m, with sliding back walls for smaller quantities

AA03/181125E/I.T-I.A/M/

Container with Agitator For Spinning Finish

Quantity: 2,  content 1.000l each

AA03/181125E/I.T-I.A/M/

Container with agitator for Spinning Finish

Quantity: 2, content 2.000l each

AA03/181125E/S-A/M/

Temafa bale opener

Quantity: 3, Year: 1985, ww 1,40m, bale tipper , feeding conveyor 8m length, additional shut feeder on top for feeding additional components

AA03/181125E/C-I.C/M/

Opener Apri

Quantity: 1, Year: 1990 ,for wool and nonwoven stripes, working width 300mm, with exhauster

AA03/181125E/S-A/M/

Vertical Bale Press

Quantity: 1, Year: 1980, for bales LVD, ca.fibre feeding by condenser and conveyor,bales 70x110x 80-100cm, weight 150 -250kg

AA03/181125/

Andar Chemset linie for 22 threads

Quantity: 1,4 bowls, dryer without creel , without automatic winder ,production 300kg/h

AA03/181125E/AI.L-A/M/

Sample Cards

Quantity: 2, ww 300 mm
