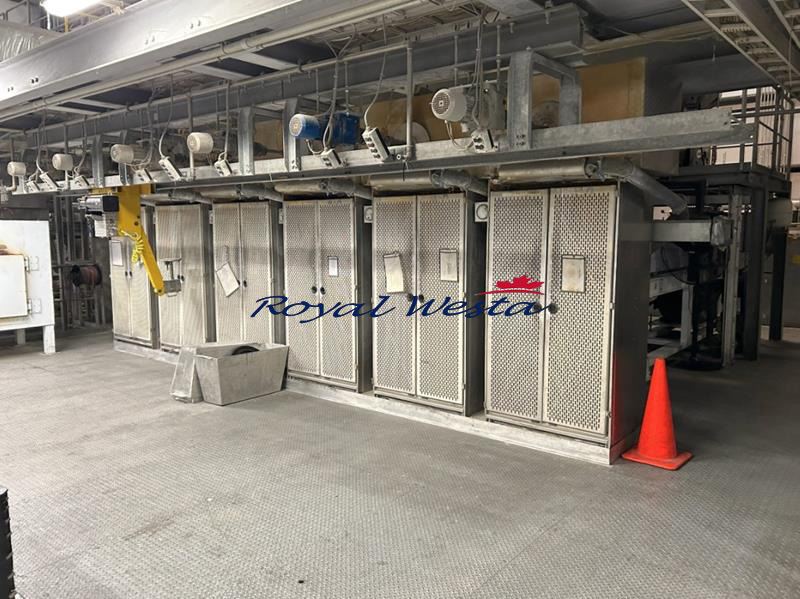

Complete S5 BCF Extrusion Lines for Large Denier Carpet Yarn

Quantity: 11
Producing PET & Nylon Carpet Yarn

Details are as follows:
Year of Manufacture from 2006 to 2013

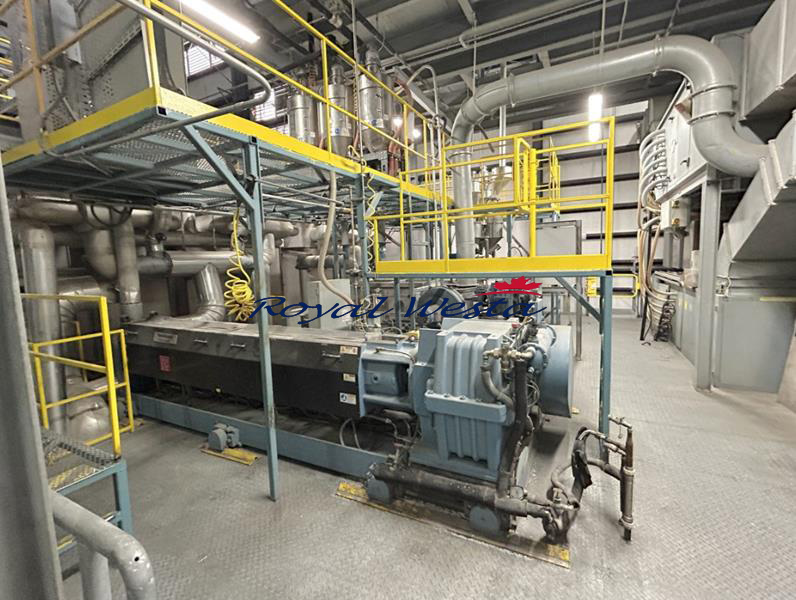

Barmag and Davis Standard Extruders. 3 inch, 4 inch & 6 inch diameters.
Denier ranges from 1000 – 2400 den

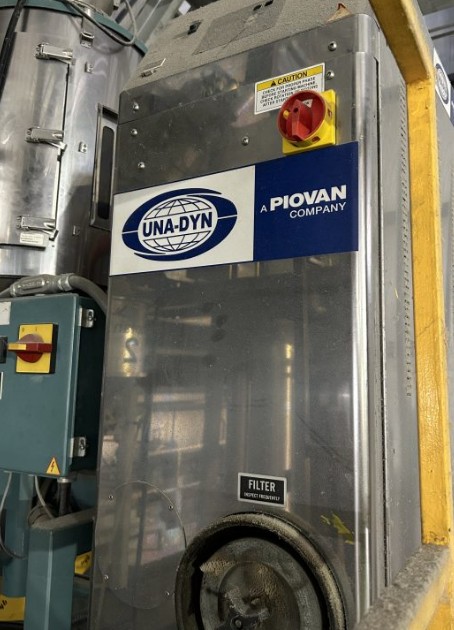

Walton-Stout, Unadyn and Sly dryers

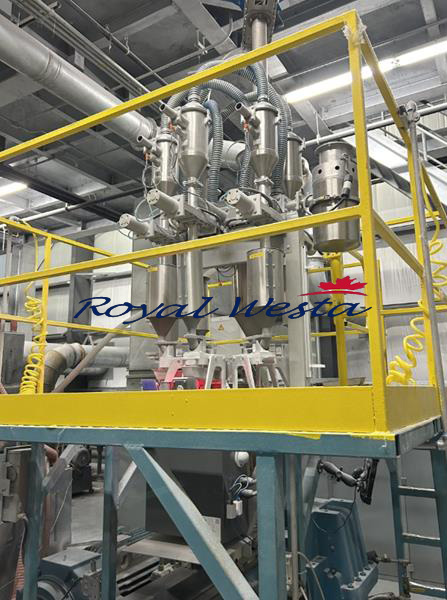

Colortronics, Doteco and ABS dosing units
8x 2 Position lines – Est capacity 8,000 lbs/day per line
6x 4 Position lines – Est capacity 16,000 lbs/day per line
1x 6 Position line – Est capacity 24,000 lbs/day

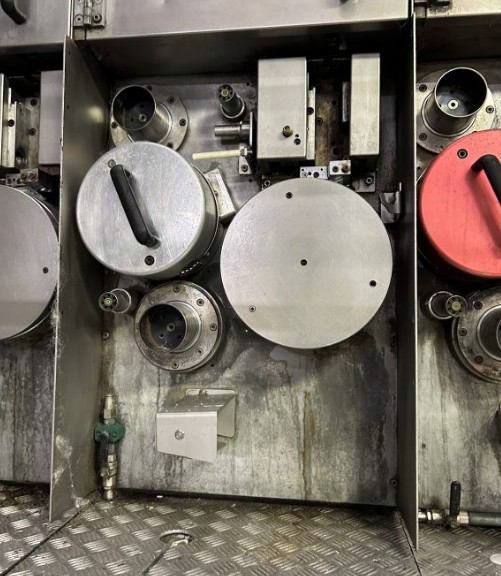

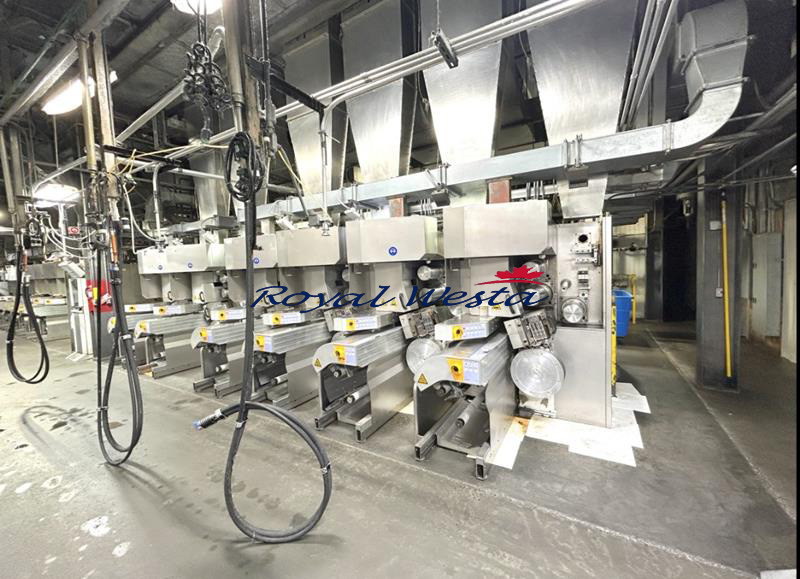

Neumag and Sly, Draw / Texturize / Wind

DETAILS OF EACH LINE:
LINES WITH COMBINED DOWTHERM AND QUENCH AND PLATFORM BETTER BE SOLD TOGETHER

LINE 1: Neumag S5
Year: 2006
Plant: 1
Positions: 4
Dryer: Walton Stout 1500
Dosing: Colortronics
Extruder: Davis Standard
"""Dowtherm System: A individual"""
"""Quench: Individual"""
Additive Drying: Yes
Inverters: Master Drive
Denier Range: 1000-2400
==========
LINE 2: Neumag S5
Year: 2006
Plant: 1
Positions: 2
Dryer: Walton Stout 1500
Dosing: Colortronics
Extruder: Davis Standard
"""Dowtherm System: A individual"""
"""Quench: Individual"""
Additive Drying: Yes
Inverters: Master Drive
Denier Range: 1000-2400
==========
LINE 3,4,5: Neumag S5
Year: 2006
Plant: 1
Positions: 2
Dryer: Walton Stout 1500
Dosing: Doteco
Extruder: Barmag
"""Dowtherm System: A Combined"""
"""Quench: Combined"""
Additive Drying: Yes
Inverters: Master Drive
Denier Range: 1000-2400
==========
LINE 8: Neumag S5
Year: 2008
Plant: 1
Positions: 6
Dryer: Walton-Stout 1500
Dosing: ABS
Extruder: Barmag
"""Dowtherm System: A individual"""
"""Quench: Individual"""
Additive Drying:
Inverters: Master Drive
Denier Range: 1000-2400
==========
LINE 9 & 10 : Neumag S5
Year: 2008
Plant: 1
Line 9 is 4 Positions, Line 10 is 2 Positions
Dryer: Walton-Stout 1500
Dosing: Colortronics
Extruder: Davis Standard
"""Dowtherm System: A Combined"""
"""Quench: Combined"""
Additive Drying:
Inverters: Master Drive
Denier Range: 1000-2400
==========
LINE 11 & 12 : Neumag S5
Year: 2010
Plant: 1
Both are 2 Positions each,
Dryer: Walton-Stout
Dosing: Colortronics
Extruder: Davis Standard
"""Dowtherm System: A Combined"""
"""Quench: Combined"""
Additive Drying:
Inverters: Simatic
Denier Range: 1000-2400
==========

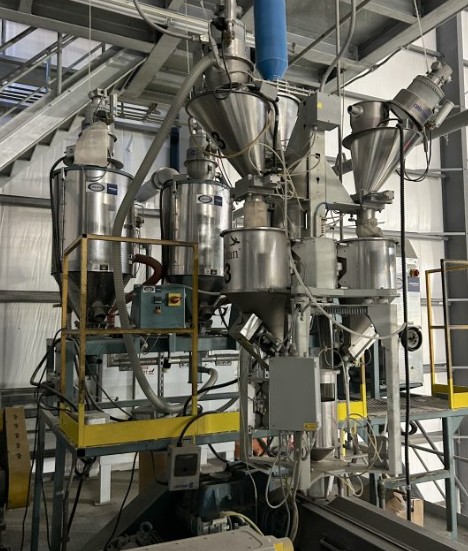

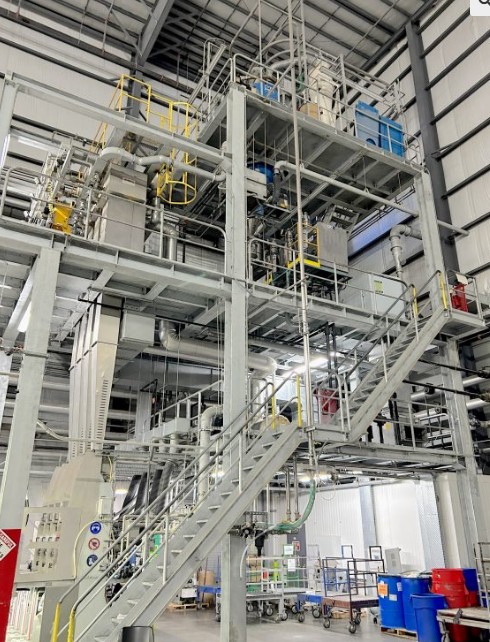

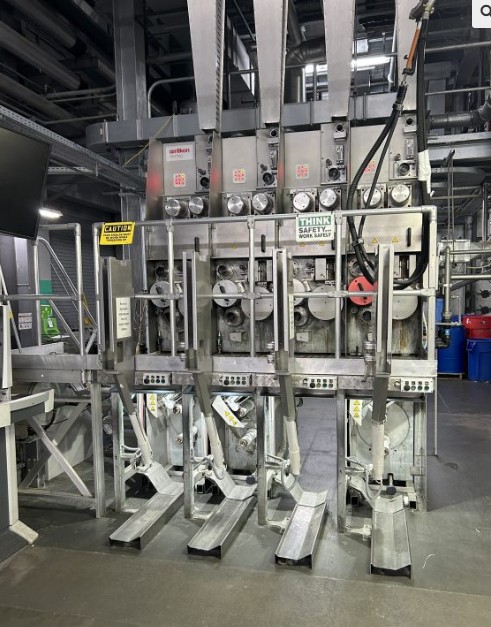

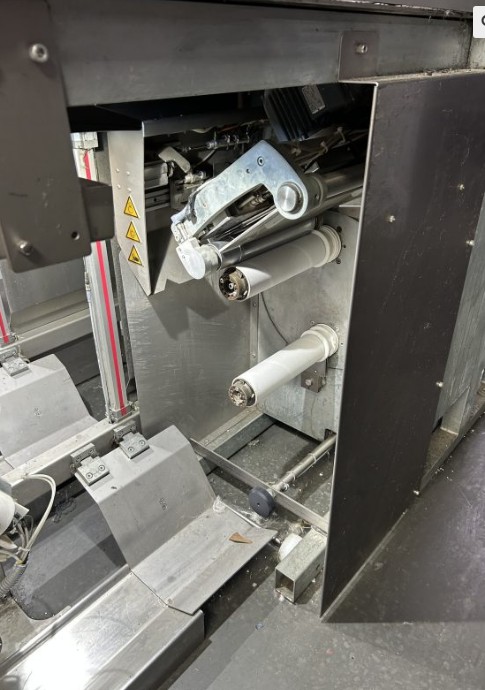

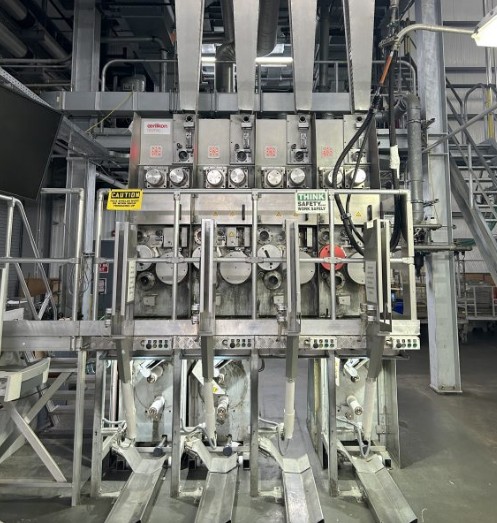

LINE 14: Sytec
Year: 2011, INSTALLED 2012
Plant: 2
Positions: 4

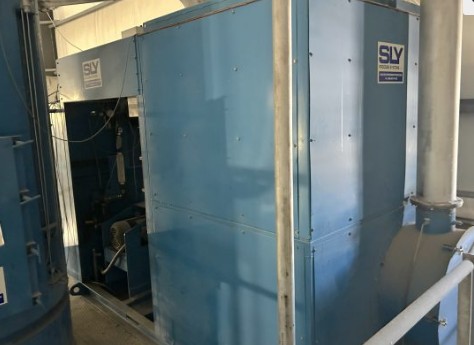

Dryer: Sty

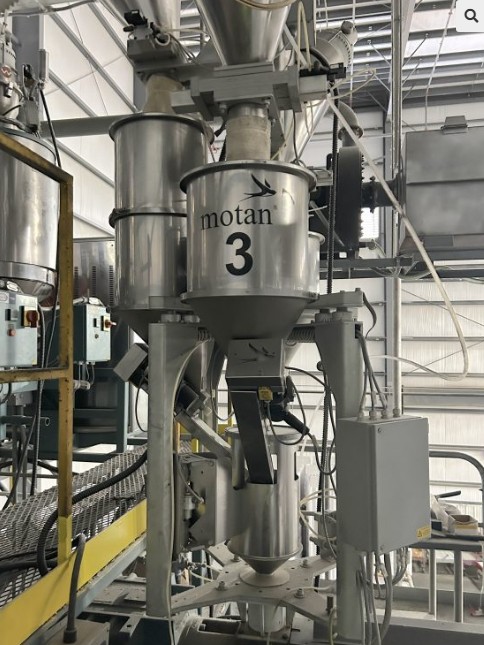

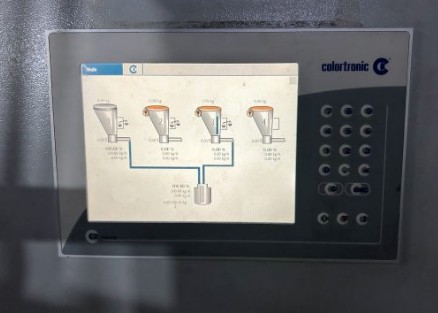

Dosing: Colortonics
Extruder: Davis Standard

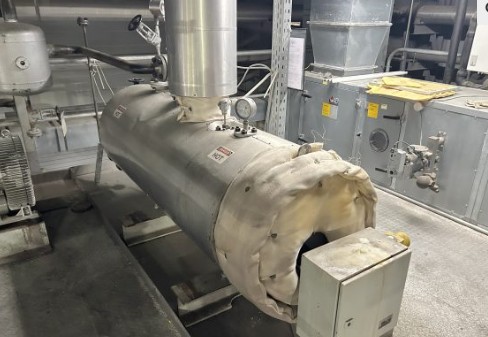

Dowtherm System: A Individual

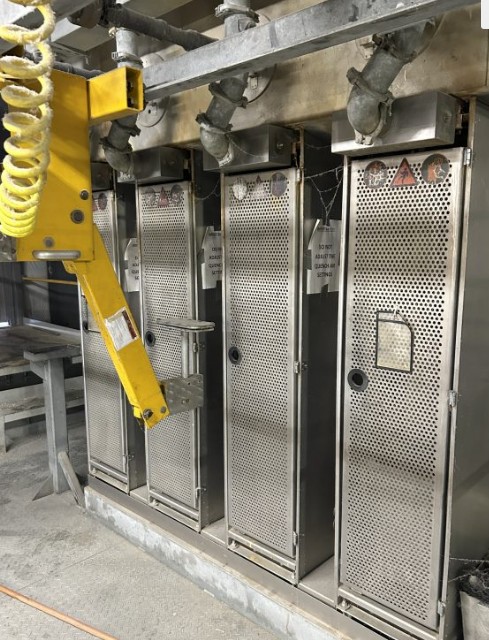

Quench: Individual
Additive Drying: Yes
Inverters: Simatic
Denier Range: 1000-2000

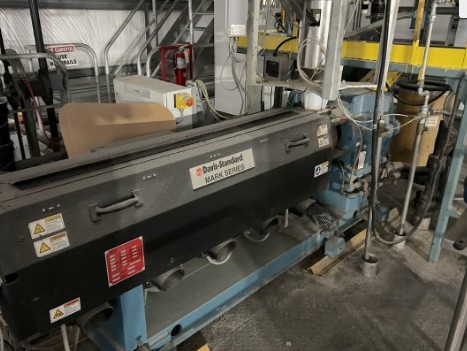

2.5″ diameter Davis Standard extruder; 30:1 L/D
480V / 3Ph
On separate platform from other extruders
==========
LINE 18 & 19: Neumag S5
Year: 2013
Plant: 2
Positions: 4
Dryer: Sty 2000
Dosing: line 18 Doteco, line 19 ABS
Extruder: Davis Standard
"""Dowtherm System: A Combined"""
"""Quench: Combined"""
Additive Drying: Yes
Inverters: Simatic
Denier Range: 1000-2400
==========
