AG41/040825/BT/

Complete Preparation, Spinning, Finishing Line

Preparation Line:

AG41/040825E/RR-R/M/

1x Seydel 870 (Breaker) France, Year: 1994, Tow, Area Needed(m): 15L*3W*4H, Average production: 7000Kg, Feeding: Tow, Out put: 1Can.

AG41/040825E/CP-R/M/

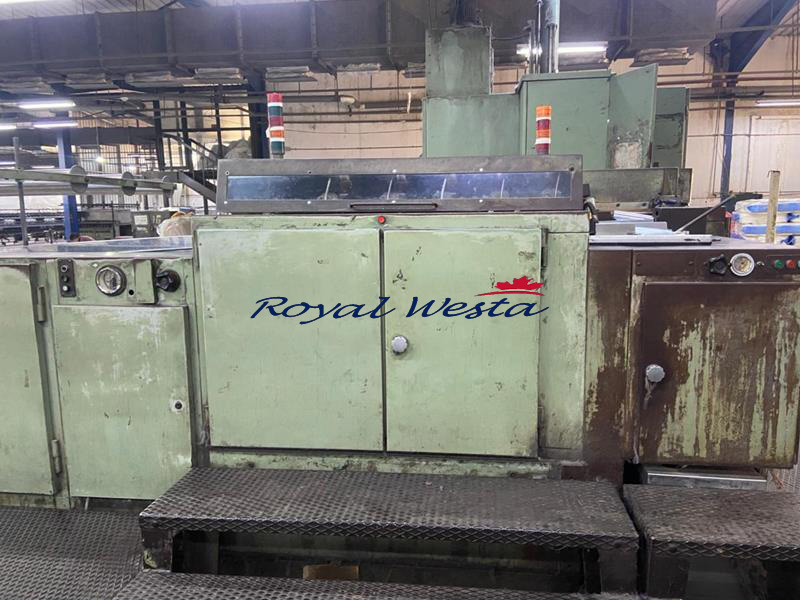

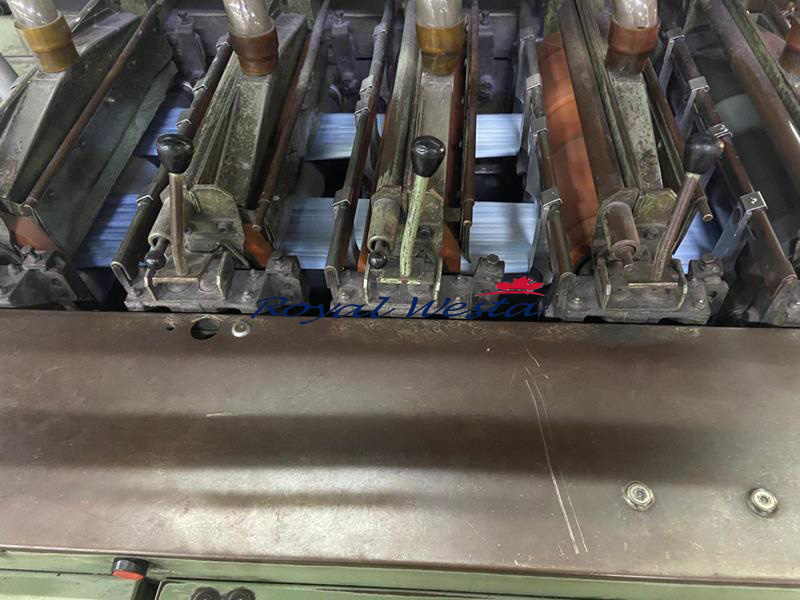

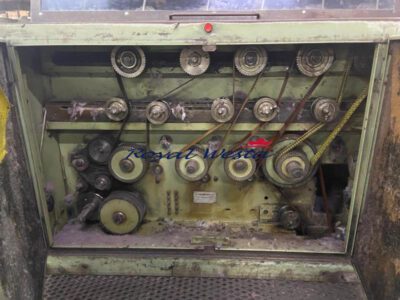

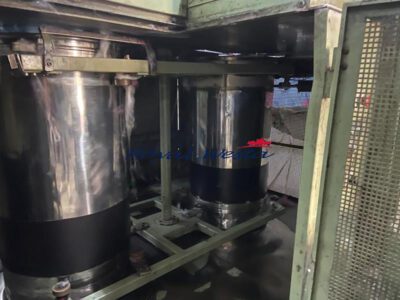

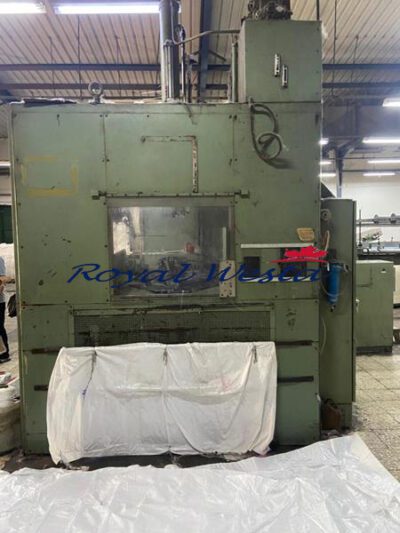

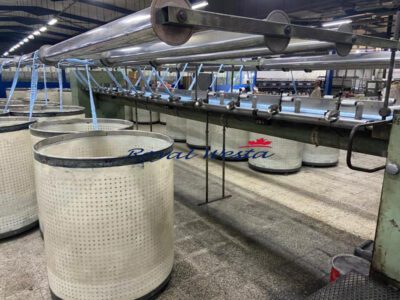

1x Schlumberger RL10 Rebreaker France, Year: 1991, Tops Product, Area Needed(m): 12L*4.5W*4H, Average production: 5500Kg, Feeding: 8-14 feeder, Output: Tops .

AG41/040825E/O-A/M/

1x Schlumberger Gc12 France, Year: 1987, Mixing Colors, Area Needed(m): 12L*4.5W, Average production: 3500Kg, Feeding: 10 feeder, Output: 1 Can 120cm*70cm.

AG41/040825E/O-A/M/

1x Schlumberger Gc12 France, Year: 1987, Line (A) 1ST Area Needed(m): 12L*4.5W, Average production: 3500Kg, Feeding: 8 feeder, Output: 1 Can, 120cm*100cm.

AG41/040825E/O-A/M/

1x Schlumberger Gc12 France, Year: 1986, Line (A) FinalArea Needed(m): 10.5L*4W, Average production: 3500Kg, Feeding: 8 feeder, Output: 2Can, 110cm*70cm.

AG41/040825E/O-A/M/

1x Schlumberger Gc12 France, Year: 1980, Line (B) 1ST, Area Needed(m): 10L*3.5W, Average production: 3500Kg, Feeding: 8 feeder, Output: 1 Can, 120Cm*100cm.

AG41/040825E/O-A/M/

1x Schlumberger Gc12 France, Year: 1980, Line (B) Final, Area Needed(m): 8L*3W, Average production: 3500Kg, Feeding: 8 feeder, Output: 2Can, 120cm*70cm.

AG41/040825E/AAL-AI/M/

1x Schlumberger Gc40 Autoleveller France, Year: RE2021, Middle Stage, Area Needed(m): 10.5L*4.5W, Average production: 8000Kg, Feeding: 8 feeder, Output: 1 Can, 120Cm*70cm.

AG41/040825E/CP-R/M/

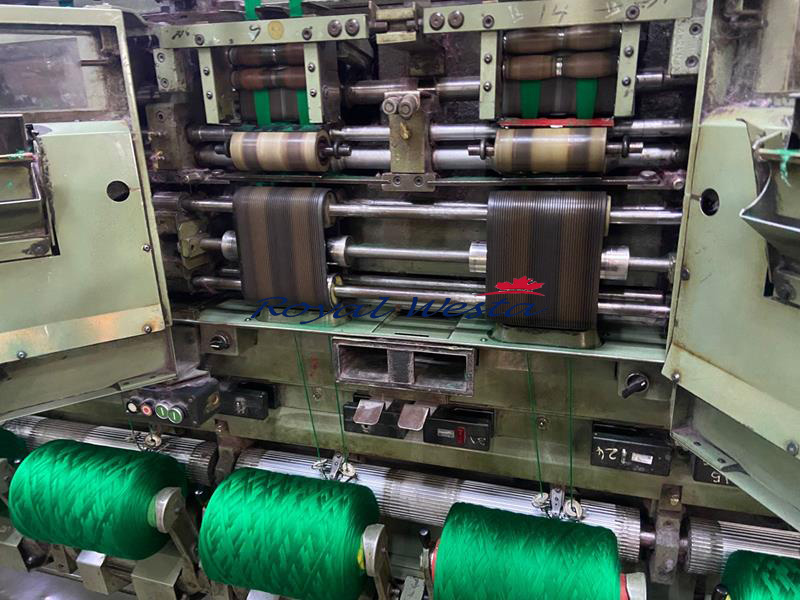

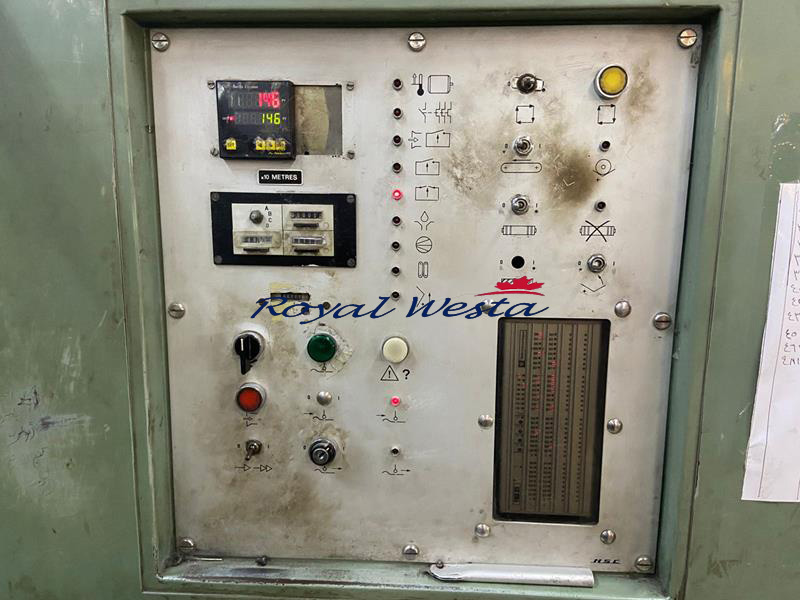

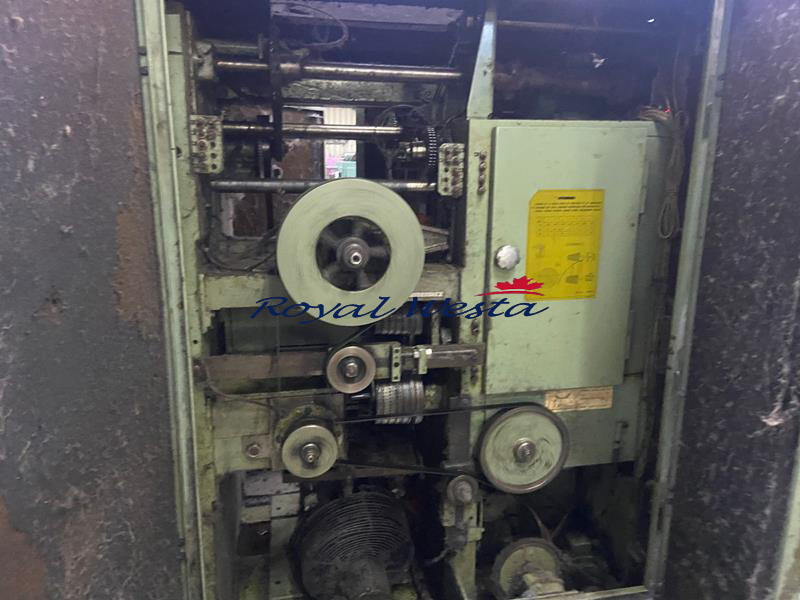

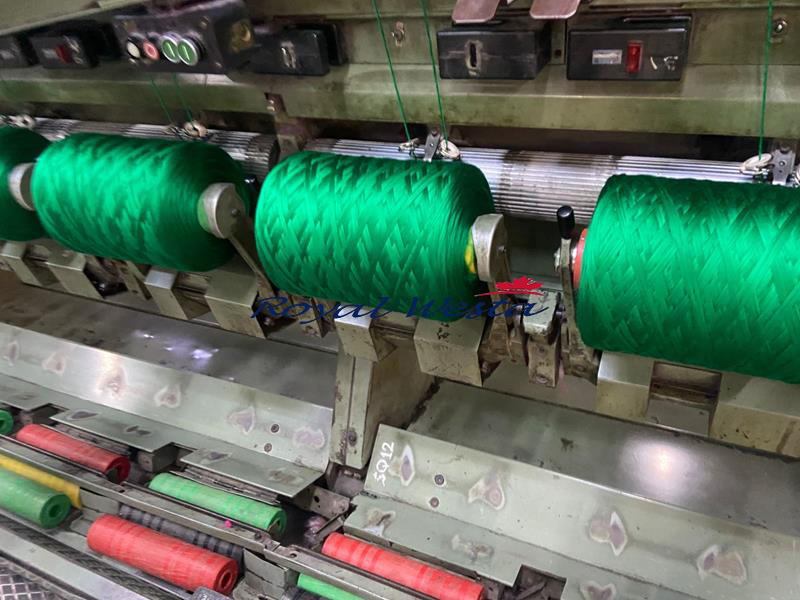

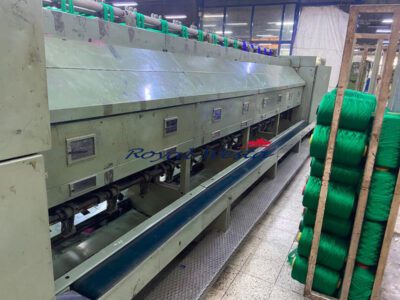

1x Schlumberger FMV30 France, Year: 1986, False Twist, Area Needed(m): 12L*7W, Average production: 3200Kg, 32/16 spindles, Output: double, Gauge: 420mm.

AG41/040825E/CY-C/M/

1x Schlumberger BM14 France, Year: 1987, Low Twist, Area Needed(m): 15L*7W, Average production: 3200Kg, 64 spindles, Output: single, Gauge: 140mm.

Spinning Line:

AG41/040825E/S-A/M/

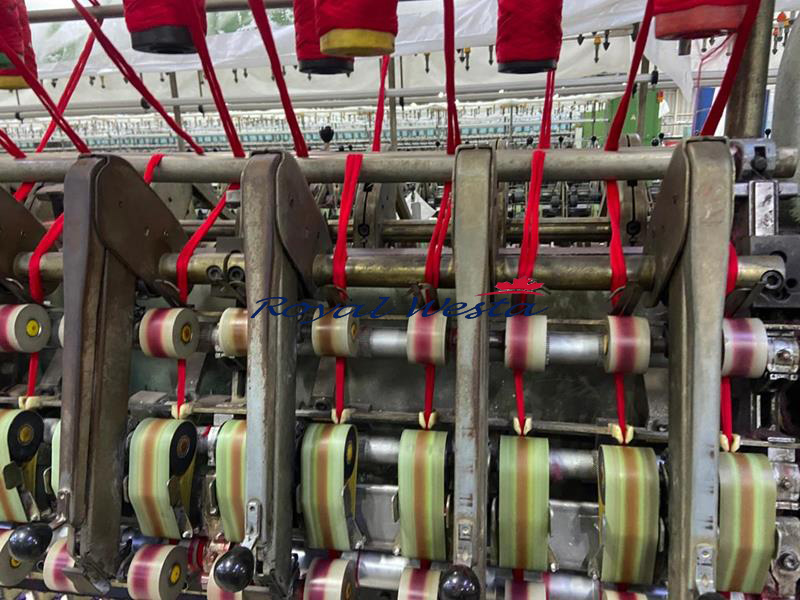

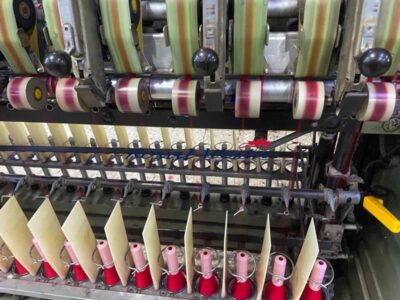

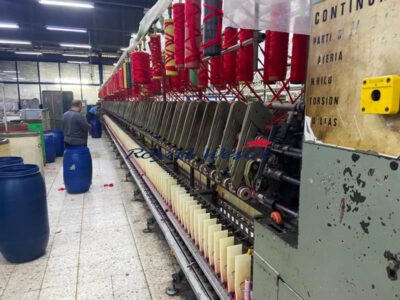

1x Continua N.5 Spain, Year: 1980, 416 Spindles, Ring Dia. 60, Spindle centre 60, Area Needed(m): 21L*1.5W +1.5M W Each side, Average production: 500Kg 2Nm-35Nm.

AG41/040825E/AA-A/M/

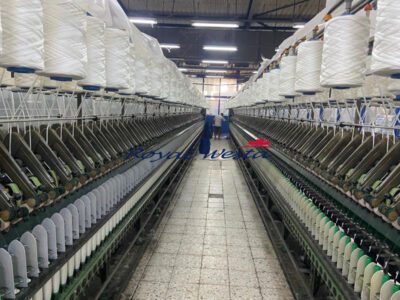

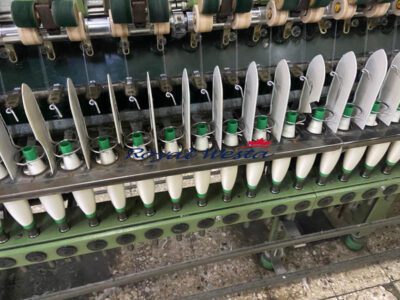

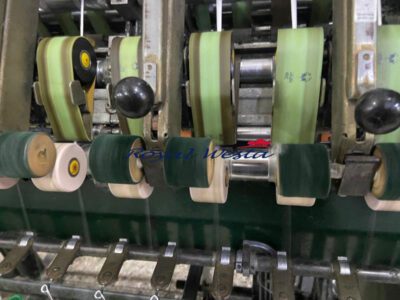

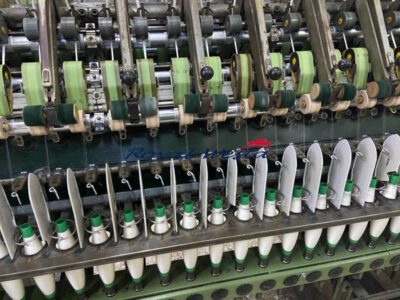

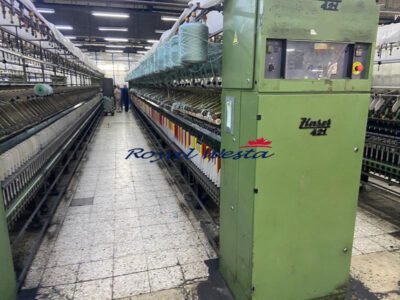

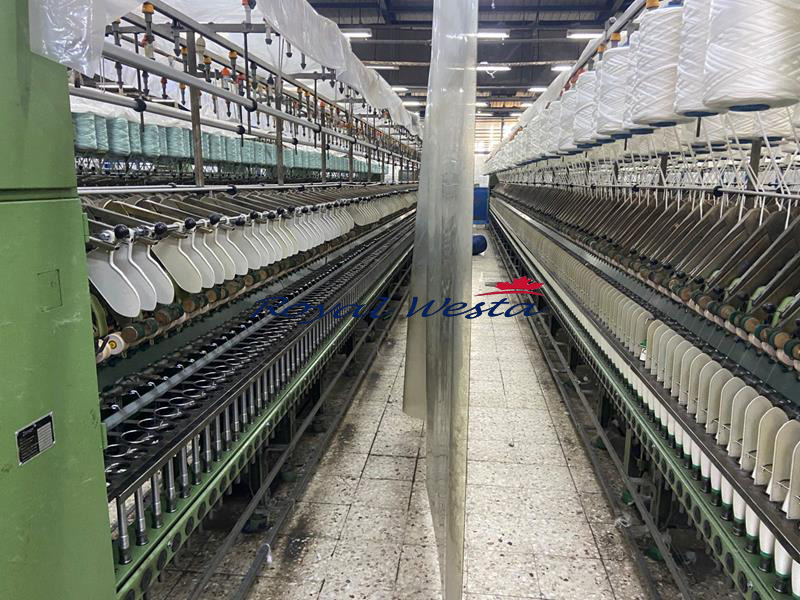

8x Zinser 421E Germany, Year: 1996, Area Needed(m): 23L*1.5W +1.5M W Each side, Average production: 350Kg-400Kg (Total:2800Kg-3200Kg), 10Nm-85Nm. Spindle centre 82.5.
No.1- Spindles: 480, Ring dia: 56.
No.2- Spindles: 460, Ring dia: 56.
No.3- Spindles: 456, Ring dia: 54.
No.4- Spindles: 484, Ring dia: 52.
No.5- Spindles: 484, Ring dia: 52.
No.6- Spindles: 484, Ring dia: 52.
No.7- Spindles: 484, Ring dia: 54.
No.8- Spindles: 456, Ring dia: 54.

Finishing Line:

AG41/040825E/OO-O/M/

1x Winding Schlafhorst X5 Germany, Year: 2013, Spindles: 50/5section, Delivery 4’20, Area Needed(m): 19.5L*2.5W +2m Each side, Average production: 2500Kg, 3 Partitions Clip cone. Bobin exit 4”20. All machines are manual feeding.

AG41/040825E/OO-O/M/

1x Winding Schlafhorst X6 Germany, Year: 2016, Spindles: 50/5section, Delivery 4’20, Area Needed(m): 19.5L*2.5W, Average production: 2500Kg, 2 Partitions Clip cone. Bobin exit 4”20. All machines are manual feeding.

AG41/040825E/SY-S/M/

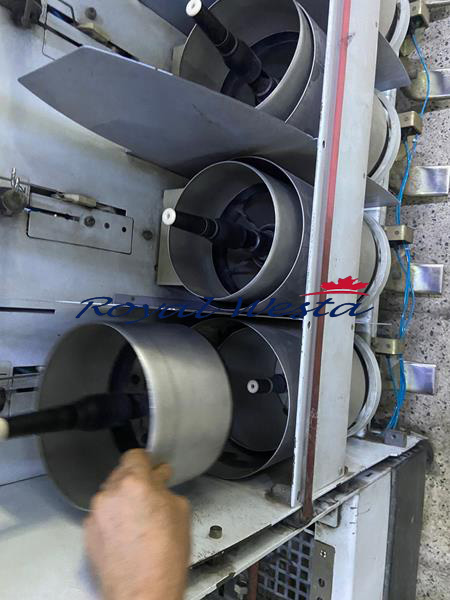

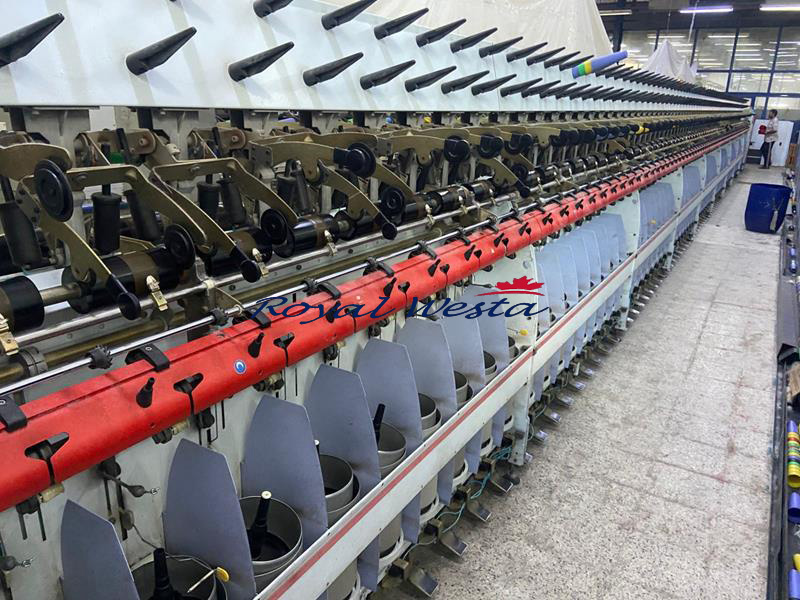

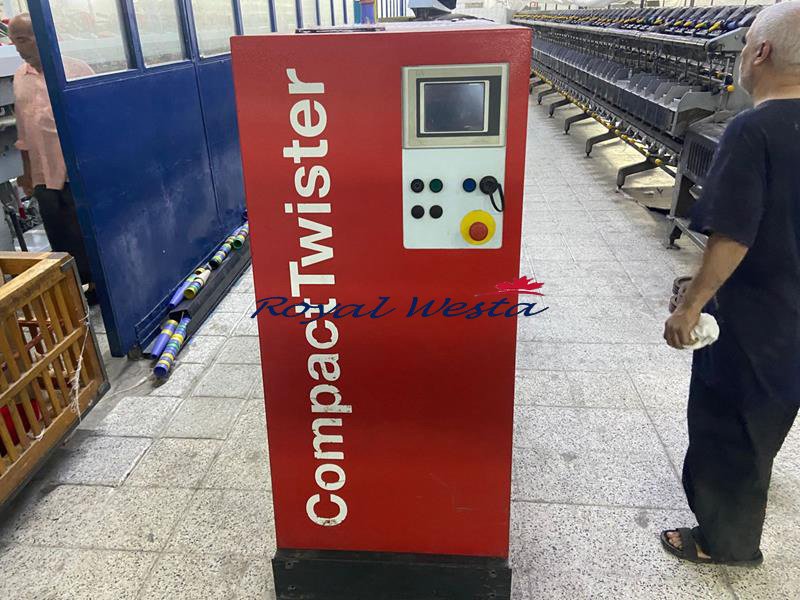

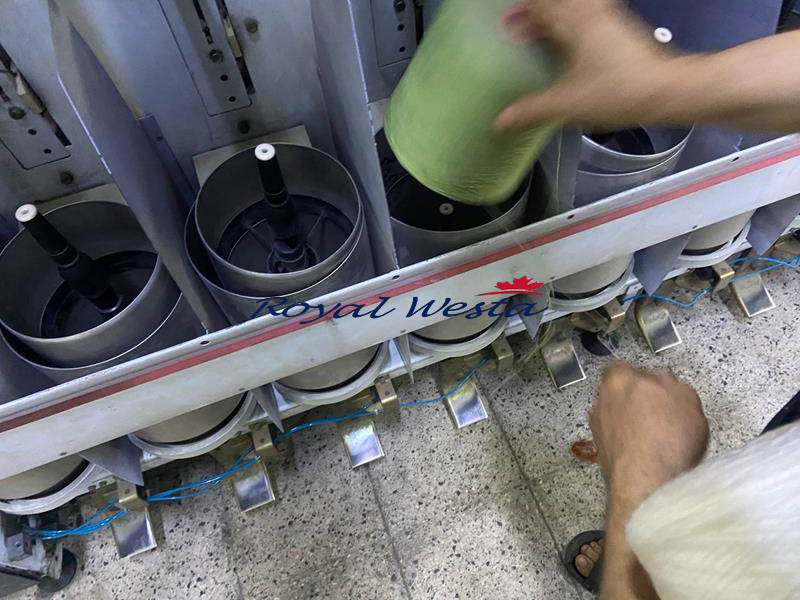

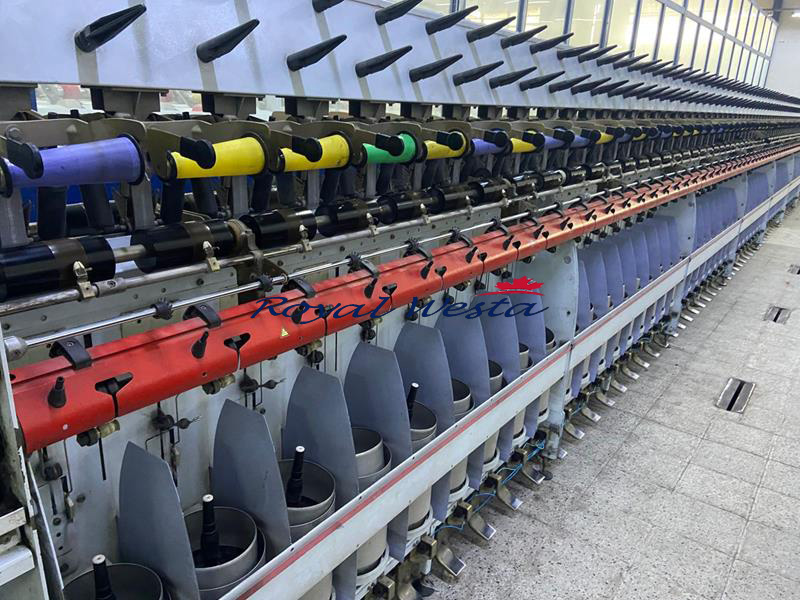

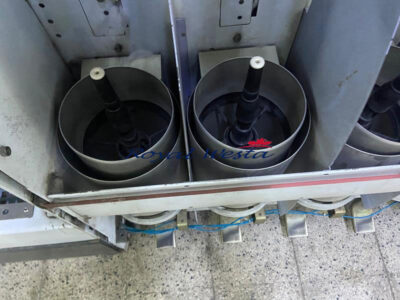

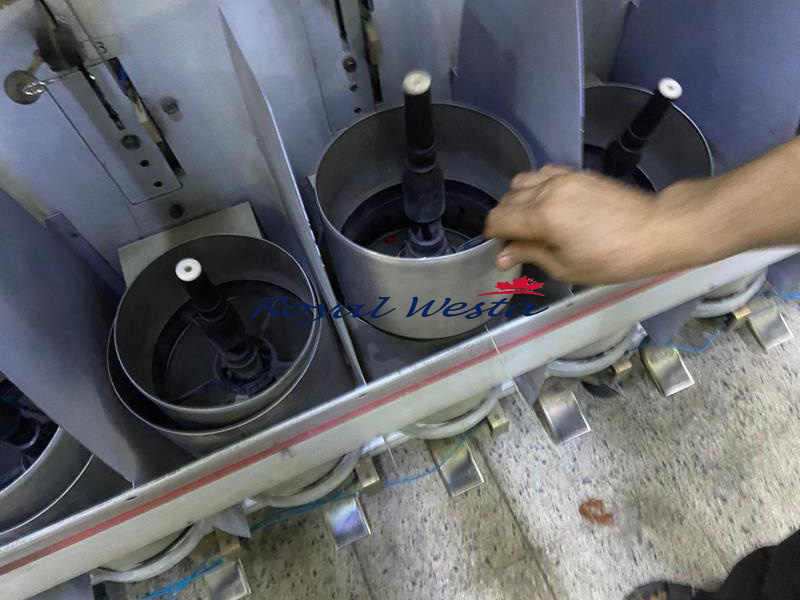

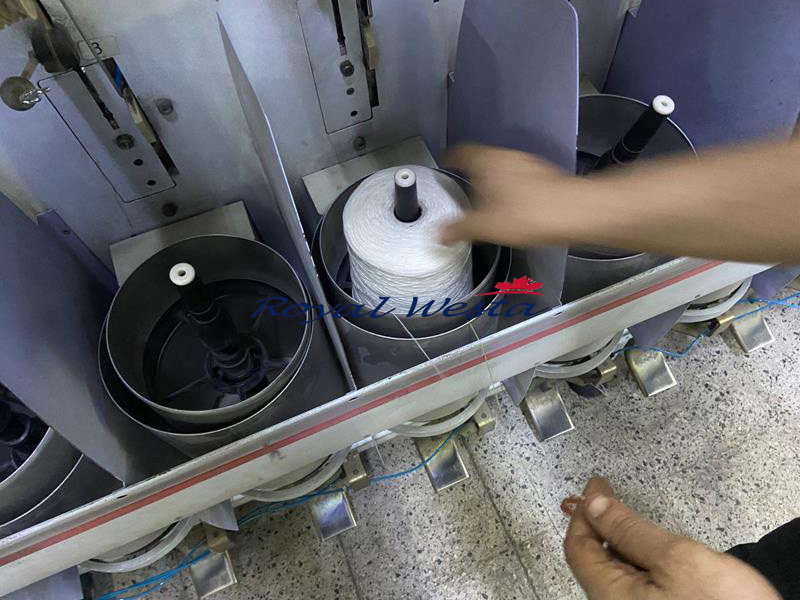

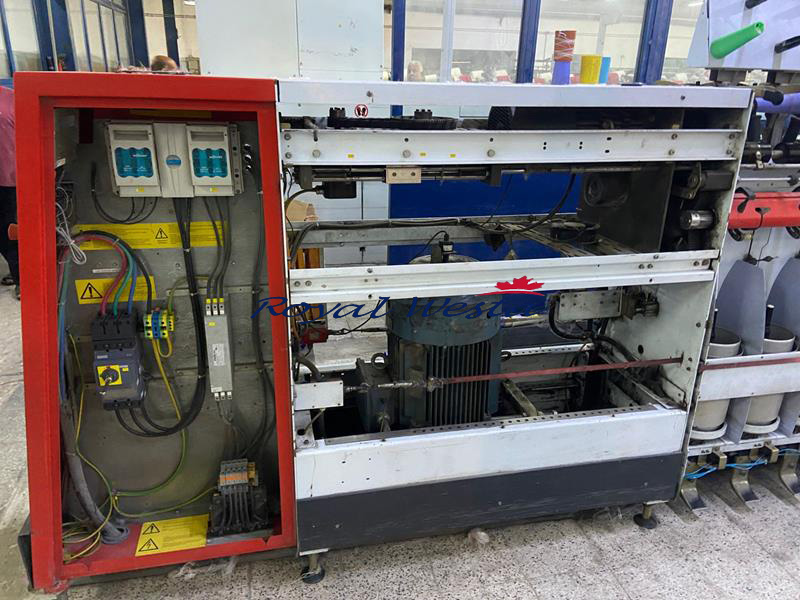

1x Compact Twister Volkmann Germany, Year: 2013, Spindles: 162, Guage: 230mm, Delivery 4’20, Area Needed(m): 22.5L*1W +2m Each side, Average production: 900 Kg, 10Nm-85Nm. double feeding, Intake small cone, Output 4”20. Twin pack, Feeding with 2 4’2 cone, Deliver 1 twisted.

AG41/040825E/S-A/M/

4x Twister Volkmann Germany, Year: 1968, Spindles: 120, Guage: 245 mm, Delivery 4’20, Area Needed(m): 18L*1.5W +2m Eachside, Average production: 500 Kg (Total:2000Kg), 5Nm-45-Nm. double feeding, Intake small cone, Output 4”20.

AG41/040825E/S-A/M/

3x Superba + Winding Shlafhorst 138 France-WP/Fu, Year: 1994, Delivery 4’20, Area Needed(m): Total 13L*7.5W, Average production: 500Kg (Total:1500Kg).

AG41/040825E/S-A/M/

4x Superba + Winding Shlafhorst 138 France-WP/Fu, Year: 1994, Delivery 4’20, Area Needed(m): Total 16L*7.5W, Average production: 500Kg (Total:2000Kg).

AG41/040825E/AA-A/M/

1x Superba + Winder France-WP/Fu, Year: 2004, Delivery 4’20, Area Needed(m): 3.5L*2W, Average production: 500Kg.

Machines are in production.
All machines are in perfect condition.
We have big stock spareparts for all machines.
Till next november.
