AA02/100824D/YPI-RI/M/
Fiber and Tow Dyeing Line
Automatic Fiber Cake Pressing Lines for Fiber Dyeing & Bleach Processing.
All Equipment is NEW and never in production, year 2012.
Quantity: 2 lines
Cake pressing:
1x (New) Obermaier Reserves with Belt Weighing

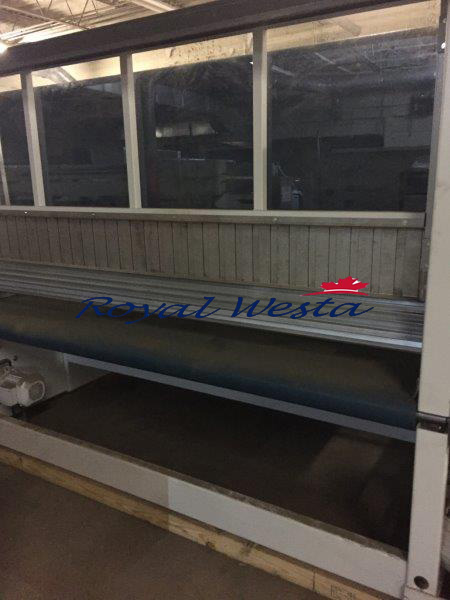

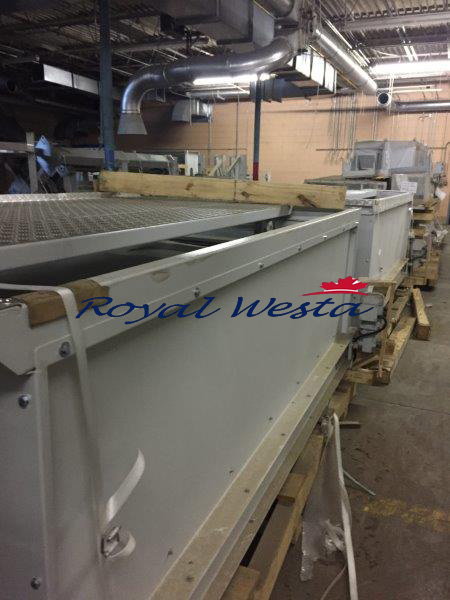

Model PSW 1500, Working with 2000mm, 1500 kg/hr with 750kg storage capacity, Load Cells, Control Panels, Reserve with condenser, Suction fan, 4m feed belt, Inclined spiked apron, Volumetric feeding, Weighing belt, Transfer belt

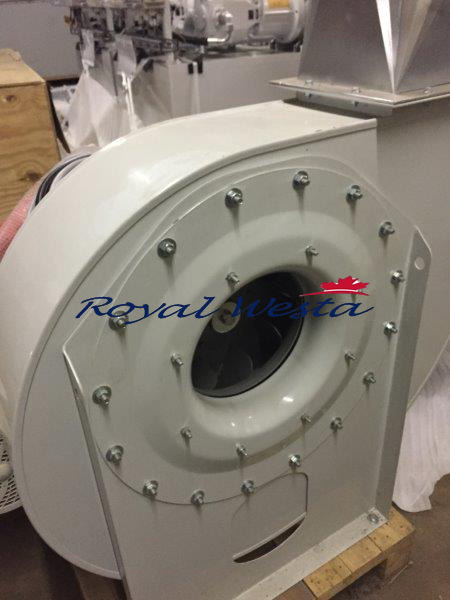

1x (New) Stiavelli Irio Fans
Type XVA 561 / N9A, CPCB RDO, 2746 rpm / 11kw

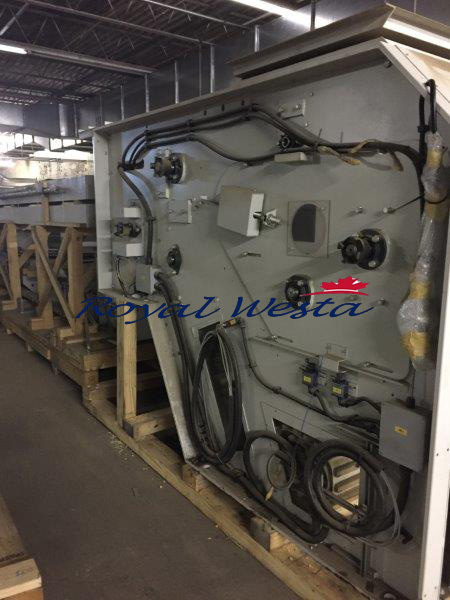

1x (New) Obermaier Automatic Hydraulic Cake Presses
Model HP 1200, Press frame / Press carrier with turntable, 2 Filling Frames with chute and rotary opener with dust screen, Auto lift plate, 6 Transport baskets, 3 Cakes per basket, 2 Blowers / 10200 M³/Hour, Year: 2012

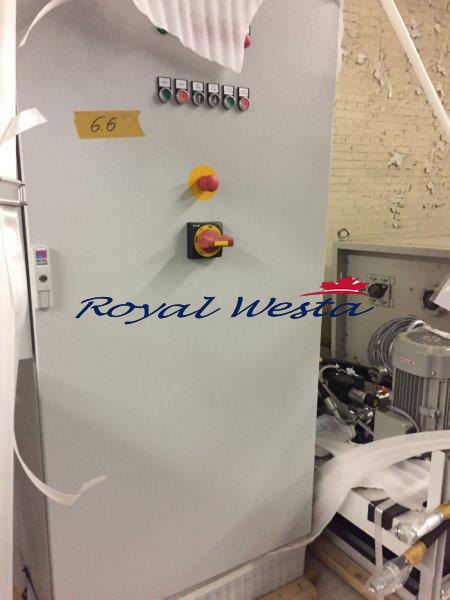

1x (New) Obermaier Cake Press Control Panels
Year 2012
6x (New) Obermaier Material Carriers & Handling Equipment

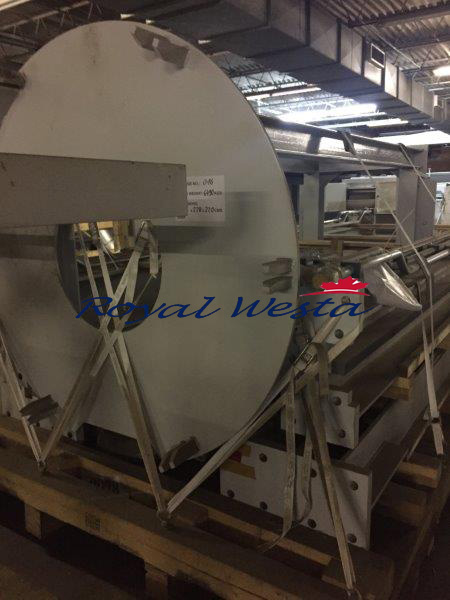

Model MC 1630/3, 3 x 330kg capacity each, Perforated basket with lid, Single wall, Outer Æ 1570mm / Core Æ 440mm, Height 2850mm, Year 2012

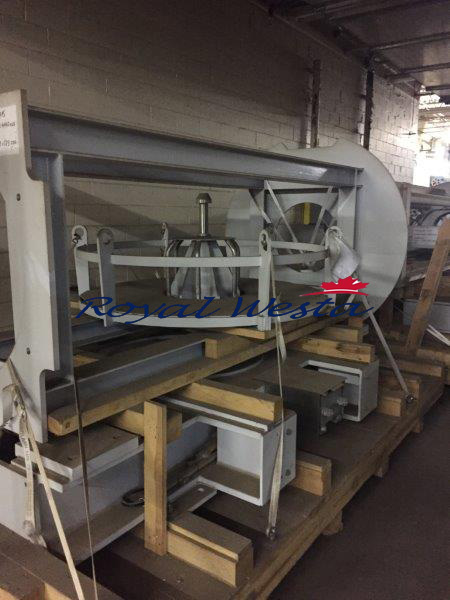

1x (New) Obermaier Hydraulic Fiber Cake Ejectors

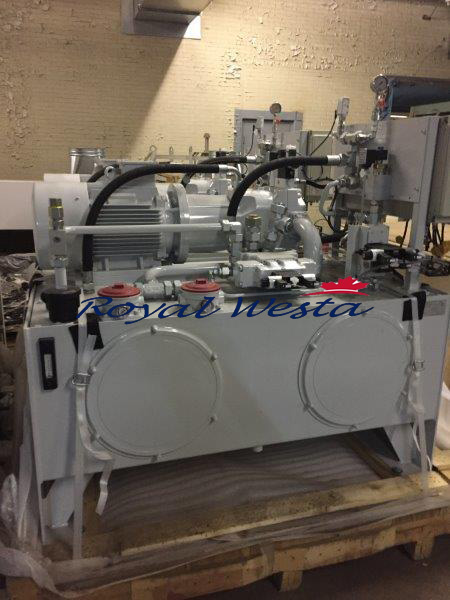

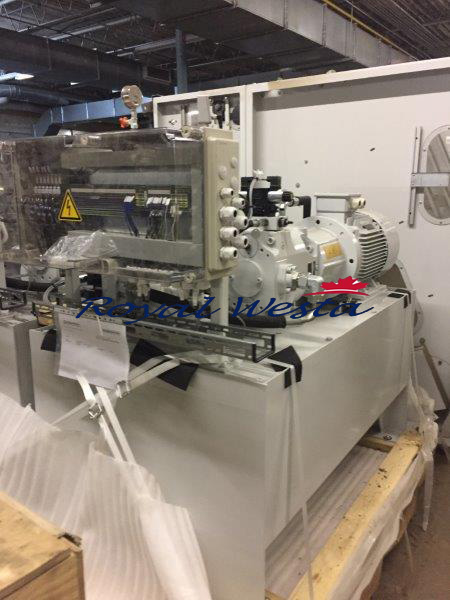

Model CL 1500, Lifting frame, Hydraulic unit with 4 lifting cylinders, Pneumatic carrier clamping unit, Year 2012

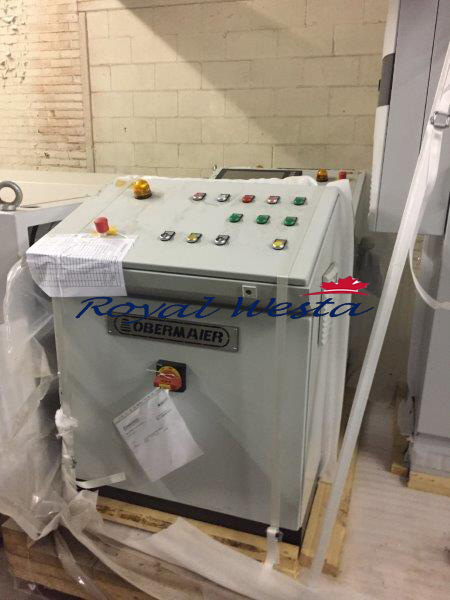

1x (New) Obermaier Cake Ejector Control Panels
Year 2012
