AF45/160925E/CAY-AI/F/BY/
Complete Metex Velvet Looms & Finishing Machines

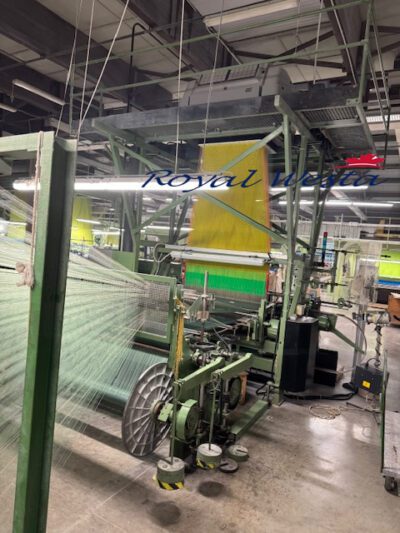

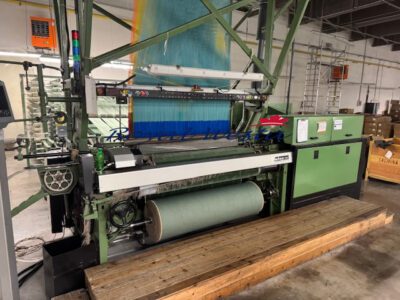

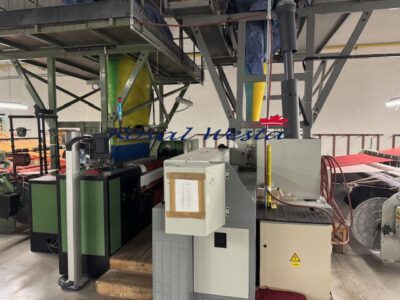

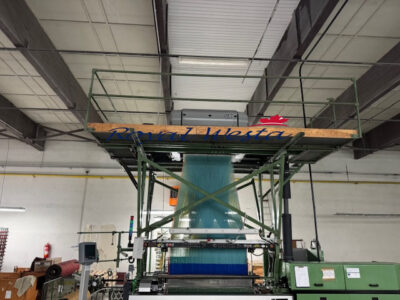

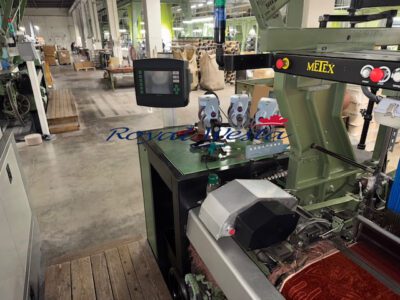

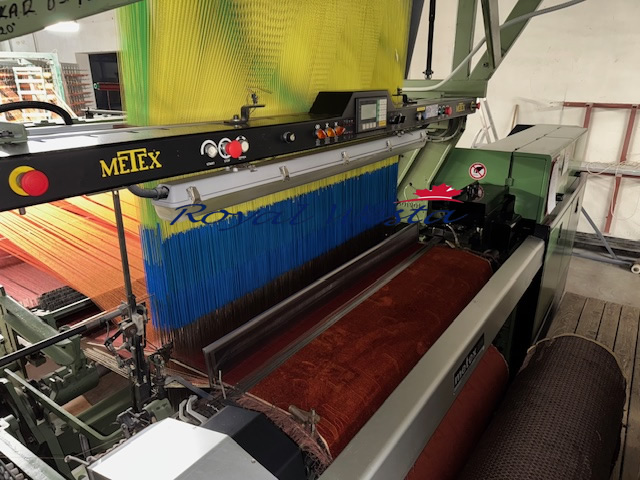

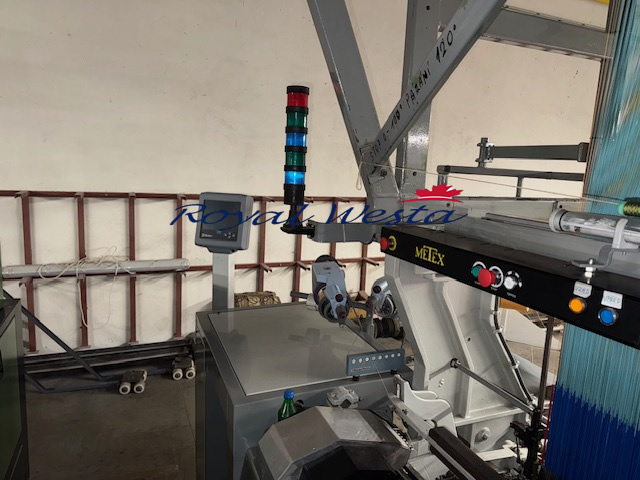

1x Metex One Loom:

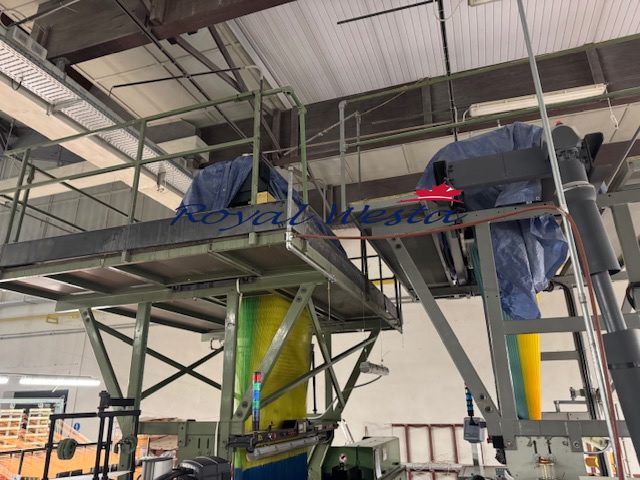

Year: 1998 renovated in 2021, Conversion to Stäubi elecitronic jacquard, replacement of harness and basci mechanical components. Stäubli Jacquard Type SXV, 2688 hooks, Year 2020.
1x QMatex Loom:
Year: 2021, like new, Stäubli Jacquard Type SXV, 2688 hooks, Year 2020.
1x Metex One Loom:
Year: 2003, Stäubli Jacquard Type LX1690B, 3072 hooks, Year 2000.

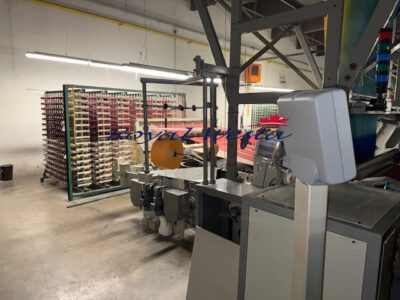

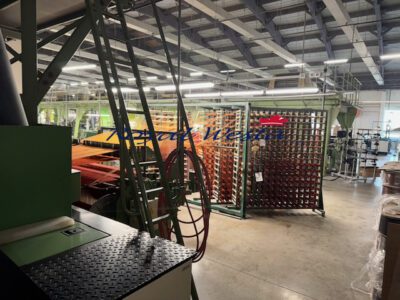

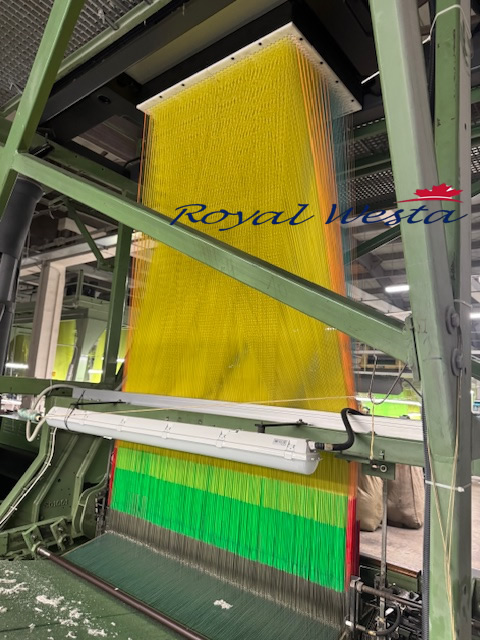

All three looms are equipped with creels for pile warp:
" First section: 1280 bobbins
" Second section: 1280 bobbins
" Total: 2560 yarns for pile warp
Two warp beams for the ground warp, each with 2560 yarns = 5120 yarns total
Weft density: 12 picks/cm - every two picks, one cutting wire
Reed width: 1420 mm
Fabric width: 142 cm
In operation now.

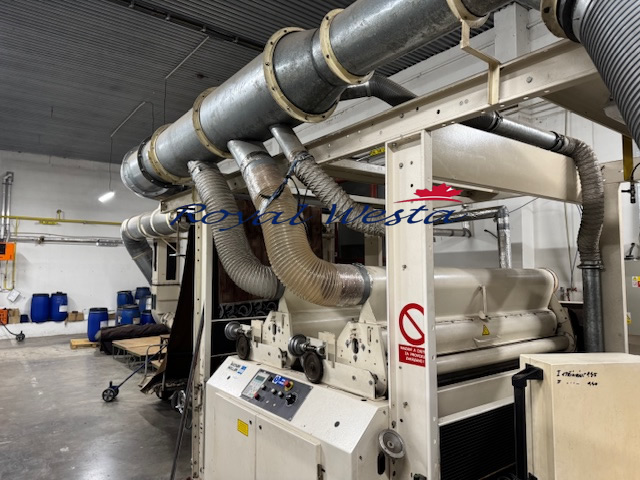

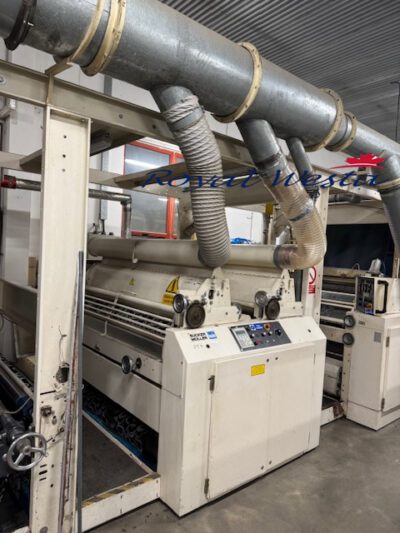

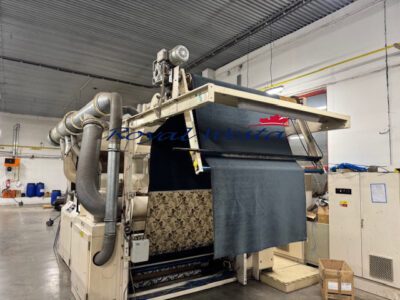

1x Sucker-Müller-Hacoba line 1 for pile finishing of plush fabrics:
Year: 2000
Nominal width: 180 cm
Working width: 160 cm
Working speed: 5 - 30 m/min
The line consists of following three main components:
1. Thermally operating brushing machine Pol - Therma PT- 4
2. Shearing machine FC - 1
3. Complete extraction unit for dirt removal
1. Thermally operating brushing machine:
This machine is used for brushing, opening, and shearing the pile of plush fabrics.
Contains:
" 2 transport rollers
" 1 brushing roller and 1 combing roller
" 2 electric infrared radiators
" 1 heated plate
" 1 beating roller with 5 bars
" Extraction chamber
The total power consumption: 38.4 kW
Both infrared radiators in 2025 replaced.

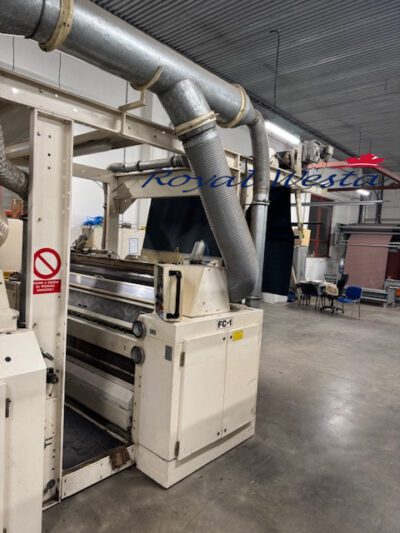

2. Shearing machine FC1 1:
This machine is used for shearing pile fabrics with low pile, such as plush, velvet, corduroy, etc.
Includes:
" 2 transport rollers
" Shearing cylinder with 24 spirals
" 13 cuts per cm
" Suction chamber
" Fixed bottom blade
" Total power input: 12 kW
" Automatic lubrication system for the shearing cylinder
The equipment operates at mains voltage: 400V and frequency: 50 Hz.

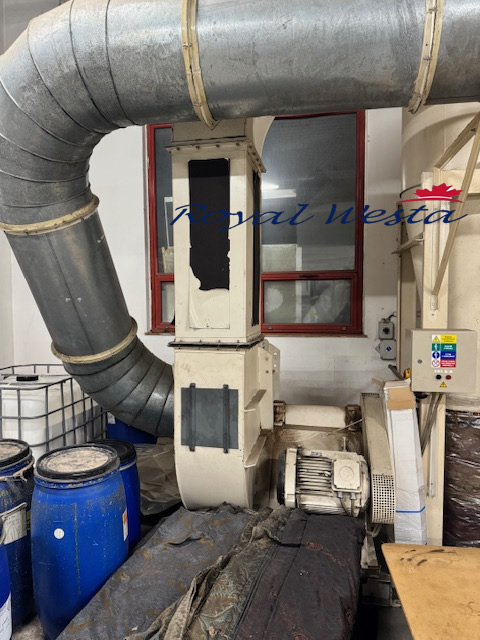

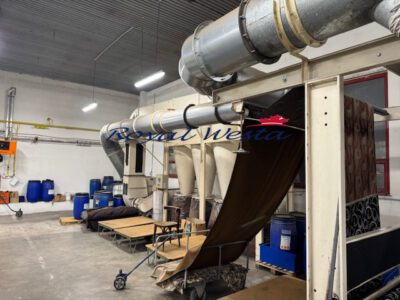

3. Complete extraction unit for dirt removal.
Note: Yes, all looms and finishing line should be sold together.
Note: the machines are not available individually and are for sale together. The machines are under production yet and available in Spring 2026 at soonest.
