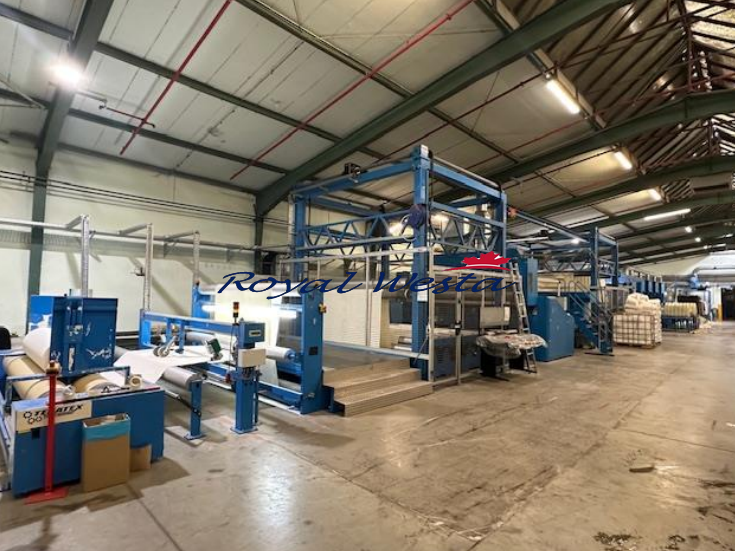

Complete Laminating Line

Technical data (general):
Fabric weights: 125 bis 1.800 g/m², sensitive to shrinkage
Fabric width: min. 1.050mm – max. 3.200mm
Top roller width: 3.400mm (WOB)
Creep speed: 2m/min
Creep feed: 10m/min
Production spedd: 1 – 60m/min
Filling/emptying speed: up to 100m/min
Compressed air: 6 bar
Total length of system: 28,10m
Operating voltage: 400 VAC / 3 Ph / 50 Hz

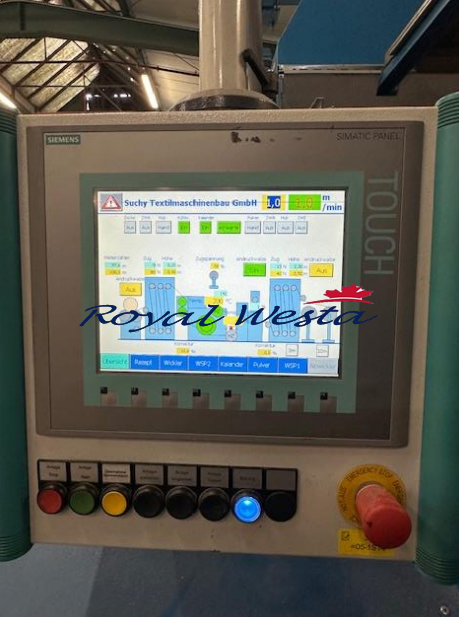

Control voltage: 230 V / 50 Hz / 24 VDC

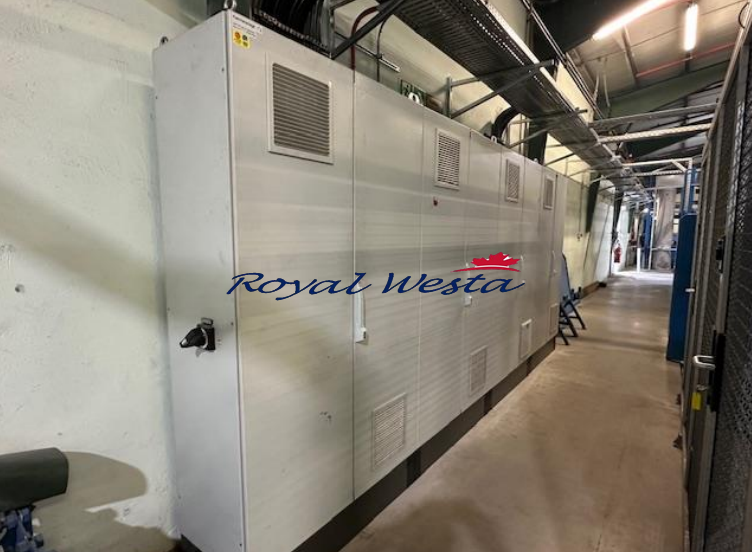

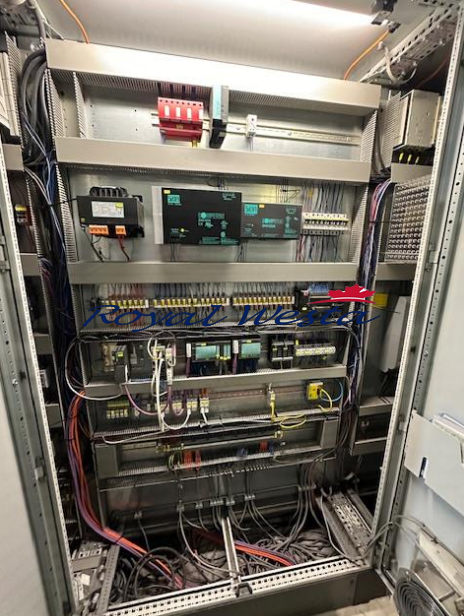

Control cabinet dimensions: 4,80 m x 0,50 m
Machine operating side: running direction left
Machine drive side: running direction right
Machine colour: fixed parts RAL 5015, sky blue Moving parts RAL 9006, white aluminium
Additional: CE marking

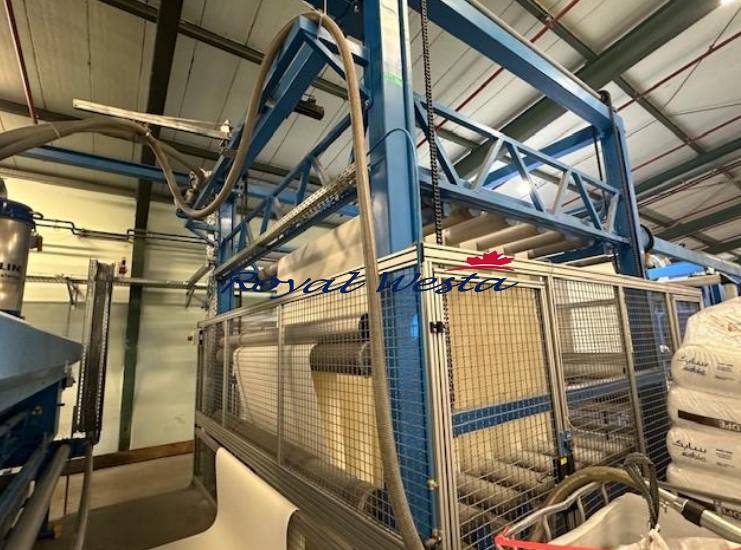

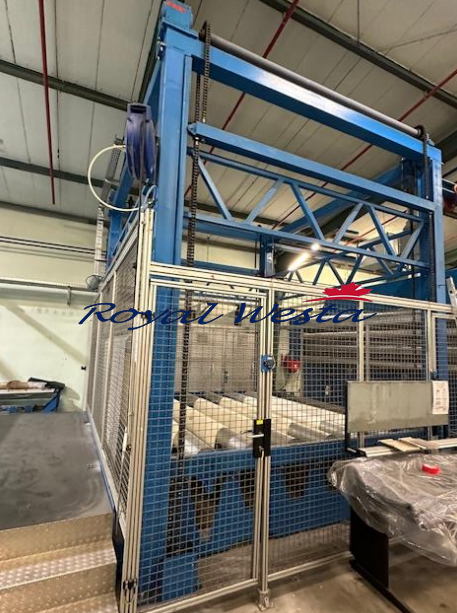

Technical data goods storage / in- and outfeed:
Manufaturer: Suchy
Year of construction: 2012
Dimensions: 4.210 x 5.530 x 3.560mm
Weight: 4.250kg
Roller width: 3.400mm
Smooth-running guide rollers: Ø 200mm
Housing: 3.700 x 4.652mm
Additional: Operating voltage integrated in the integrated. EC conformity in accordance with the Machinery Directive 2006/42/EC

Technical production data goods storage / in- and outfeed:
Fabric thickness: max. 20mm
Fabric width: max. 3.200mm
Fabric storage: ca. 50m
Working speed: 1 – 60m/min.
Creep speed: 2m/min
Creep feed: 10m/min

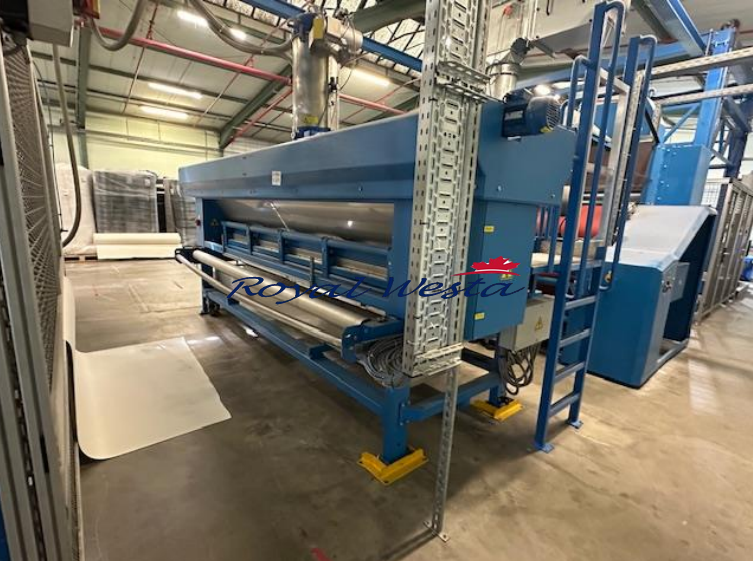

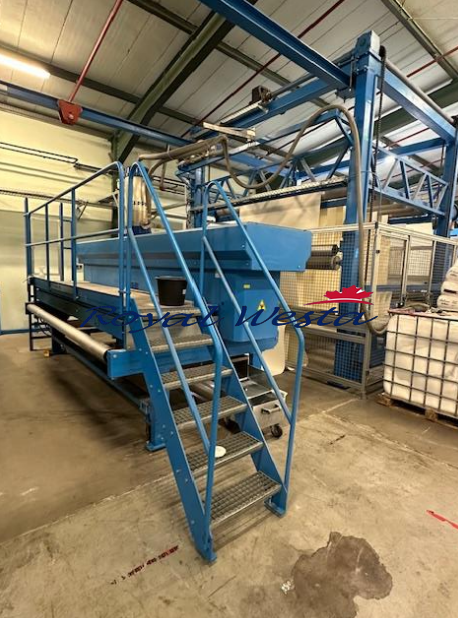

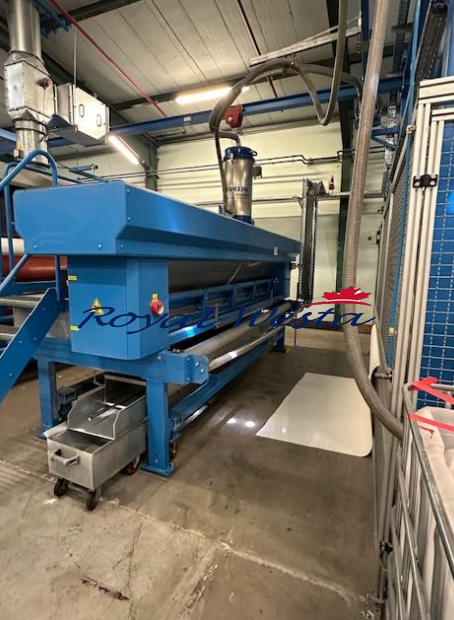

Technical data powder spreader:
Manufacturer: Klieverik
Year of construction: 2012
Dimensions: A=4.735 x B=580 x C=697mm
Weight: 1.100kg
Spreading roller width: 3.500mm
Spreading roller diameter: Ø 188mm
Air pressure: 6 bar / working pressure: 3 bar
Connections: 400V (3ph), 50 Hz
Main drive power: 0,55 kW
Additional: Ionising bar, spreader roller Suction conveyor SFG 3 from Zeppelin

Technical production data powder spreader:
Maximun spreading width: 3.200mm
Maximum spreading capacity: 2.000 g/lfd.m.Min
Particle size powder: 100 - 600µm
Compressed air consumption: 0,6 Nm³/h

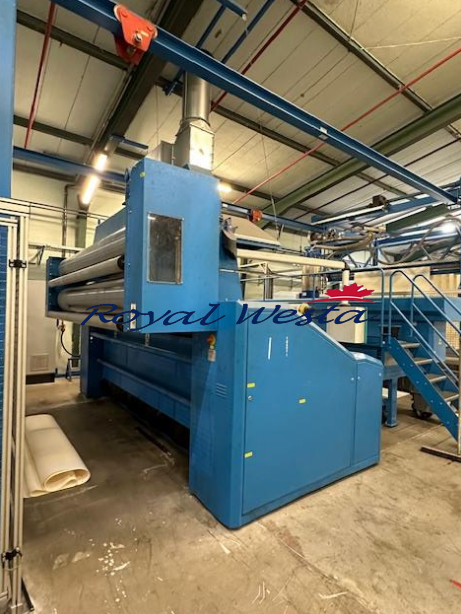

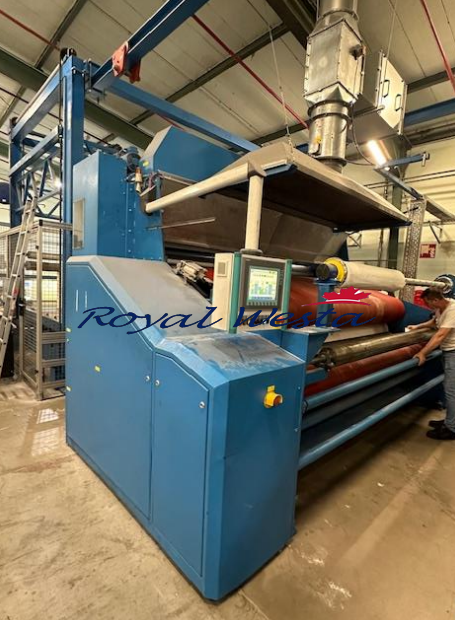

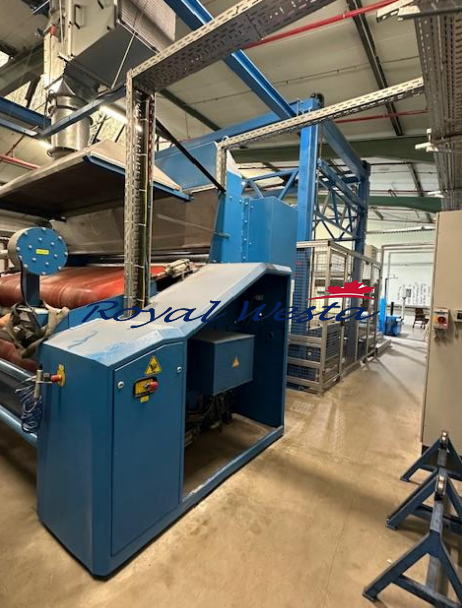

Technical date laminating unit:
Manufacturer: Klieverik
Year of construction: 2012
Dimensions: L 2.090 x B 4.980 x H 2.290mm
Weight: 9.000kg
Pressure blanket: L 7.310 x B 3.500 x H 7mm
Heating power: 100 kW
Diameter of heating cylinder: 760mm
Thermal oil tank: 800 litres
Air pressure: 6 bar / consumption: 0,6 Nm³/h
Connections: 400V (3ph), 50 Hz
Main drive power: 7,5 kW

Technical production data laminating unit:
Mechanical speed: 0 – 60m/min
Maximum working width: 3.200mm
Max. working temperature: 240°C
Heating time (at 3 m/min): approx. 120 minutes
Cooling time (at 6 m/min): approx. 180 minutes

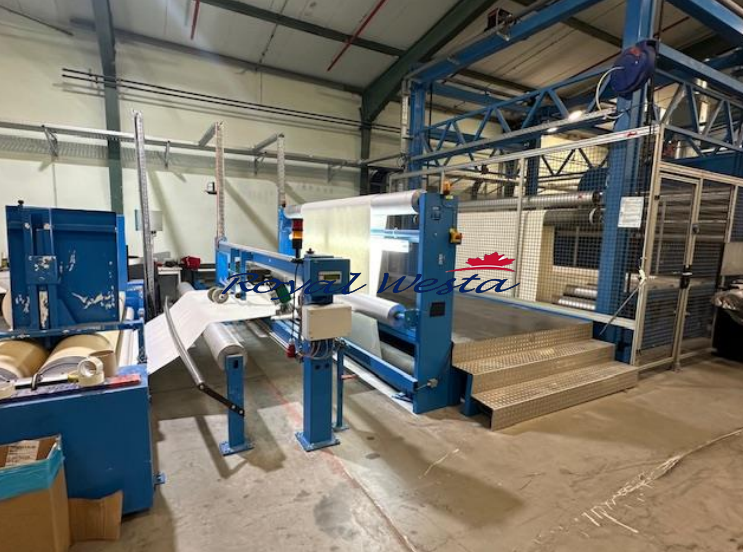

Rotating frame:
Frame welded from sectional steel
Platform running surface covered with laminated wood
Rotating frame with 2 deflection rollers Ø 200mm
Rotating frame control Erhardt+Leimer with optical edge sensing mechanical edge sensor adjustment

Length measurement and graduation:
Upright made of folded sectional steel and welded cross connectors
5 circular knives with separate drive and counter blade

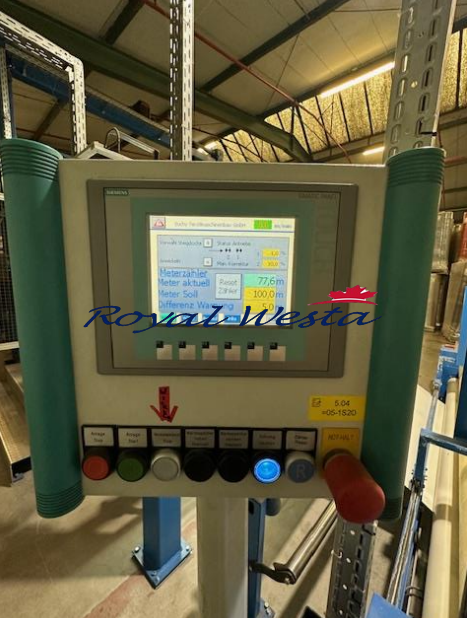

Length measuring device with display on control panel
Sockets and individual activation of the circular knives via a control box on the longitudinal cutter
Guide rollers for fabric guidance

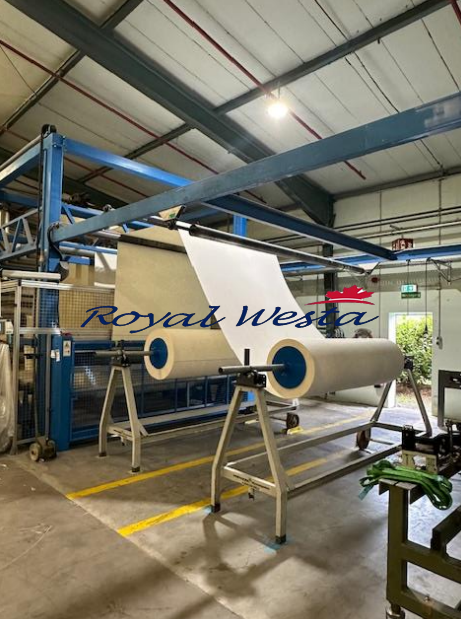

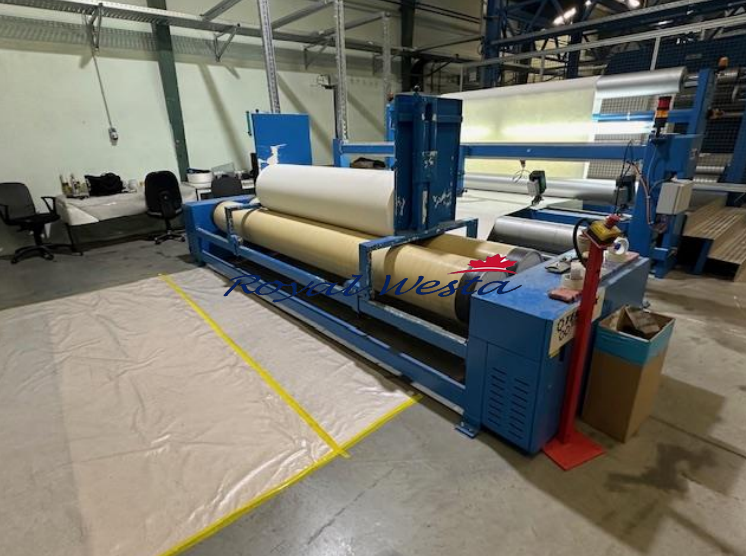

Technical data winder:
Manufacturer: Tekatex
Type: WL-35
Year of construction: 2022 / 2023
Working width: 3.500mm
Installed power: 0,55 kW
Dimensions: B 4.457 x H 1.040mm
Weight: approx. 1.265kg
